12A Cooling, All Hoses. Mazda Still Making Them?
#1
Rotary Enthusiast
Thread Starter
12A Cooling, All Hoses. Mazda Still Making Them?
Hi Folks,
I want to replace all of the rubber coolant hoes under the hood and I think I've got it right that there are 7 of them? I haven't found a diagram that shows them all and I've been leaning over the engine bay with a flashlight.
Lower Hose Mazda Part: N231-15-511
Upper Hose Mazda Part: N231-15-521C
Hose Water Mazda Part: 8871-61-212
Hose Water Mazda Part: FA42-61-213A
Hose Water Heater Mazda Part: N231-15-550
Hose Water Mazda Part: N231-15-530A
Hose Water Mazda Part: N231-15-540B
Any opinions on dealer availability for these?
I want to replace all of the rubber coolant hoes under the hood and I think I've got it right that there are 7 of them? I haven't found a diagram that shows them all and I've been leaning over the engine bay with a flashlight.
Lower Hose Mazda Part: N231-15-511
Upper Hose Mazda Part: N231-15-521C
Hose Water Mazda Part: 8871-61-212
Hose Water Mazda Part: FA42-61-213A
Hose Water Heater Mazda Part: N231-15-550
Hose Water Mazda Part: N231-15-530A
Hose Water Mazda Part: N231-15-540B
Any opinions on dealer availability for these?
#2
Senior Newbie Member
Hi Folks,
I want to replace all of the rubber coolant hoes under the hood and I think I've got it right that there are 7 of them? I haven't found a diagram that shows them all and I've been leaning over the engine bay with a flashlight.
Lower Hose Mazda Part: N231-15-511 https://www.atlantamazdaparts.com/p/...N23115511.html
Upper Hose Mazda Part: N231-15-521C https://www.realmazdaparts.com/oem-p...ose-n23115521c
Hose Water Mazda Part: 8871-61-212 https://www.mazdastuff.com/Mazda-Par...871-61-212.htm
Hose Water Mazda Part: FA42-61-213A https://www.mazdastuff.com/Mazda-Par...42-61-213a.htm
Hose Water Heater Mazda Part: N231-15-550 Cant find a dealer link https://www.atkinsrotary.com/store/8...31-15-550.html
Hose Water Mazda Part: N231-15-530A https://www.jimellismazdaparts.com/p...23115530A.html
Hose Water Mazda Part: N231-15-540B https://www.jimellismazdaparts.com/p...N23115540.html
Any opinions on dealer availability for these?
I want to replace all of the rubber coolant hoes under the hood and I think I've got it right that there are 7 of them? I haven't found a diagram that shows them all and I've been leaning over the engine bay with a flashlight.
Lower Hose Mazda Part: N231-15-511 https://www.atlantamazdaparts.com/p/...N23115511.html
Upper Hose Mazda Part: N231-15-521C https://www.realmazdaparts.com/oem-p...ose-n23115521c
Hose Water Mazda Part: 8871-61-212 https://www.mazdastuff.com/Mazda-Par...871-61-212.htm
Hose Water Mazda Part: FA42-61-213A https://www.mazdastuff.com/Mazda-Par...42-61-213a.htm
Hose Water Heater Mazda Part: N231-15-550 Cant find a dealer link https://www.atkinsrotary.com/store/8...31-15-550.html
Hose Water Mazda Part: N231-15-530A https://www.jimellismazdaparts.com/p...23115530A.html
Hose Water Mazda Part: N231-15-540B https://www.jimellismazdaparts.com/p...N23115540.html
Any opinions on dealer availability for these?
Last edited by Frogman; 05-03-21 at 02:47 AM.
#3
Slowly getting there...
iTrader: (1)
I just bought them all from Mazdatrix. Didn't check your #'s above, but I got...
*Both large hoses (WP to radiator)
*The small one off lower radiator (feeds metal pipe to firewall)
*Both thin ones in & out of heater core (connecting back to left side of block).
I am doing away with the beehive but if you have it there's another hose off the end of the metal pipe. Mazdatrix and Atkins have these so I'm sure they're still available from Mazda.
*Both large hoses (WP to radiator)
*The small one off lower radiator (feeds metal pipe to firewall)
*Both thin ones in & out of heater core (connecting back to left side of block).
I am doing away with the beehive but if you have it there's another hose off the end of the metal pipe. Mazdatrix and Atkins have these so I'm sure they're still available from Mazda.
#4
Rotary Enthusiast
Thread Starter
I just bought them all from Mazdatrix. Didn't check your #'s above, but I got...
*Both large hoses (WP to radiator)
*The small one off lower radiator (feeds metal pipe to firewall)
*Both thin ones in & out of heater core (connecting back to left side of block).
I am doing away with the beehive but if you have it there's another hose off the end of the metal pipe. Mazdatrix and Atkins have these so I'm sure they're still available from Mazda.
*Both large hoses (WP to radiator)
*The small one off lower radiator (feeds metal pipe to firewall)
*Both thin ones in & out of heater core (connecting back to left side of block).
I am doing away with the beehive but if you have it there's another hose off the end of the metal pipe. Mazdatrix and Atkins have these so I'm sure they're still available from Mazda.
I read an older post from forum member j9fd3s that he had an SA with all the OEM hoses and he changed it out in 2007. The rubber was hard but still had plenty of life in it. He noted that some manufacturer's hoses go soft, some go hard and that the OEM Mazda are really good.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
the last hoses i bought were being made in Thailand, Mazda has a factory to make parts there, so they are still being made.
the hoses are kind of a pain, there are the the radiator hoses in the cooling system section (1500) and the heater hoses in the heater section (6100) but the oil cooler hoses are somewhere else, maybe the oil system? they are listed by function and not all together.
the hoses are kind of a pain, there are the the radiator hoses in the cooling system section (1500) and the heater hoses in the heater section (6100) but the oil cooler hoses are somewhere else, maybe the oil system? they are listed by function and not all together.
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
Hi Folks,
I want to replace all of the rubber coolant hoes under the hood and I think I've got it right that there are 7 of them? I haven't found a diagram that shows them all and I've been leaning over the engine bay with a flashlight.
Lower Hose Mazda Part: N231-15-511
Upper Hose Mazda Part: N231-15-521C
Hose Water Mazda Part: 8871-61-212
Hose Water Mazda Part: FA42-61-213A
Hose Water Heater Mazda Part: N231-15-550
Hose Water Mazda Part: N231-15-530A
Hose Water Mazda Part: N231-15-540B
Any opinions on dealer availability for these?
I want to replace all of the rubber coolant hoes under the hood and I think I've got it right that there are 7 of them? I haven't found a diagram that shows them all and I've been leaning over the engine bay with a flashlight.
Lower Hose Mazda Part: N231-15-511
Upper Hose Mazda Part: N231-15-521C
Hose Water Mazda Part: 8871-61-212
Hose Water Mazda Part: FA42-61-213A
Hose Water Heater Mazda Part: N231-15-550
Hose Water Mazda Part: N231-15-530A
Hose Water Mazda Part: N231-15-540B
Any opinions on dealer availability for these?
#7
Rotary Enthusiast
Just make sure you really flush the beehive coolant line. Mine was pretty filled with crap. Oddly, it was the only part of the cooling system that was obstructed.
Trending Topics
#8
Rotary Enthusiast
Thread Starter
Excellent, thanks for all of the confirmation (j9 I was hoping you'd chime in on that) and also Ck for the pro tip on the beehive. This will be fun, or maybe it will be "fun".

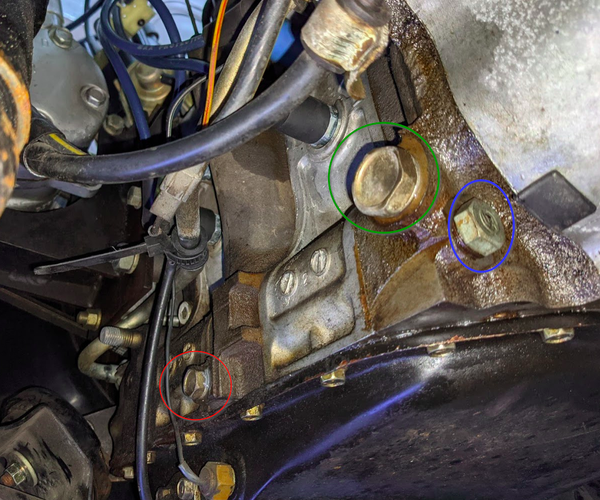

Following forum notes on coolant flushing, I think the block drain
is here, in red. But what are the green and blue circled items?
Following forum notes on coolant flushing, I think the block drain
is here, in red. But what are the green and blue circled items?
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
Green is where the oil cooler hose would go if it didn't have the beehive, its just a plug
Blue is a tension bolt that holds the engine together
Blue is a tension bolt that holds the engine together
The following users liked this post:
Toruki (05-04-21)
#13
Slowly getting there...
iTrader: (1)
His 12A looks just like mine in his pic. Beehive has 2 oil inlets: The metal hose off the front cover (can be seen in his pic: lower left) and the base of the Beehive which I assume is fed from the perch below it. No lines down to the rear oil plug.
if it had a FMOC like an earlier car or an -SE then the cooler gets fed from the same port on front cover, and then the plug shown in his pic at lower rear of block.
if it had a FMOC like an earlier car or an -SE then the cooler gets fed from the same port on front cover, and then the plug shown in his pic at lower rear of block.
Last edited by Maxwedge; 05-05-21 at 10:09 AM.
#14
Rotary Enthusiast
Thread Starter
Here's my steel tube. Love this forum, I learn so much.
