(ELECTRICAL) Need help on interior lights

Neither of my interior lights work in my car. The dome and the map one or whatever it's called. What lights do I need to change these and any other things I should check? What fuses do I check? Anything else?
xxshatteredsoul is offline
Old 04-25-05, 05:39 PM
  #2
What?
10 Year Member

Join Date: Sep 2003
Location: CT
Posts: 3,833
Likes: 0
Received 0 Likes on 0 Posts
Pull the bulbs out and go to Autozone Tell the croney behind the counter you want new lights. Tell them they are special Wankel lights!
John64 is offline
Old 04-25-05, 06:43 PM
  #3
84SE-EGI helpy-helperton

LongDuck's Avatar

Join Date: Oct 2002
Location: Phoenix, AZ
Posts: 2,609
Received 24 Likes on 22 Posts
...and if you find out that the original bulbs were fine, remove the white plastic lens cover and the two Phillips head screws that hold the rear-view mirror and light assembly in place.

Once you get the light assembly down, you'll see that one of the screws is responsible for grounding the contact coming from the light switches. These contacts normally get broken off through time and use and you'll just need to find a little eyelet (crimp terminal) and replace the ground wire.

Once you get that piece fixed, the lights should once again work without any problems. FYI - all of the lights in the overhead location operate off of this same connection, i.e., the dome light and map lights operate from this.

Give it a try; reply back if problems or questions,
LongDuck is offline
Old 04-26-05, 06:06 AM
  #4
Ricer
iTrader: (4)

IanS's Avatar

Join Date: Jun 2004
Location: Washington, Iowa
Posts: 4,424
Likes: 0
Received 1 Like on 1 Post
Next, if you open the doors and the lights dont turn on, simply take out the door switch which is 1 philips screw. Take the switch apart and clean the connections. Very easy to do, dremels work great for this.
IanS is offline
Old 04-26-05, 07:19 PM
  #5
1985 RX7 GS
5 Year Member
Thread Starter

xxshatteredsoul's Avatar

Join Date: Mar 2005
Location: WI
Posts: 151
Likes: 0
Received 0 Likes on 0 Posts
Alright thanks you guys. I don't have any time to work on the car tonight, tomorrow I get off early though and am going to check this out. I'll report back if I have any problems.
xxshatteredsoul is offline
Old 10-17-06, 10:31 PM
  #6
Administrator
iTrader: (8)

mar3's Avatar

Join Date: Nov 1999
Location: So. Arlington, TX!!!
Posts: 12,838
Likes: 0
Received 18 Likes on 13 Posts
lol...pulling another thread back from the past to offer some more scenarios why the overhead lights would fail. Fuses OK? Bulb OK? Then, here's something else to consider...the actual clips that hold the bulb are simply riveted in with cheap aluminum rivets...over time, this can happen.

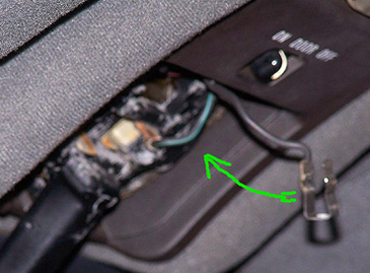

What swung out when I pulled the bulb...arrow indicates where it's supposed to go...

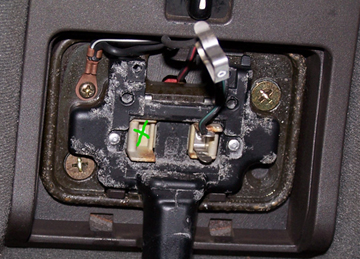

X marks the spot where the busted rivet head is...this is the 'hot' lead into the overhead lamp assembly....



At least my problem was easy to find after I made sure NOT to assume the light bulb was OK because it wasn't dark. A little test lamp grounded to the car found this problem real quick and I purposely pulled the clip all the way out to show why my interior overhead lights no longer work...that particular wire soldered to the clip feeds the swiveling lamp feature as well...tin the rivet head and resolder the clip and I should be set to go!

Attached Thumbnails (ELECTRICAL) Need help on interior lights-overhead-light-prob-1.jpg   (ELECTRICAL) Need help on interior lights-overhead-light-prob-2.jpg
mar3 is offline
Old 10-18-06, 12:25 PM
  #7
Full Member
10 Year Member

imabyter's Avatar

Join Date: May 2003
Location: Kansas City
Posts: 55
Likes: 0
Received 0 Likes on 0 Posts
My car is missing the door switches to turn on the dome light. Anyone have a few or know a source. I assume I can fish the wire back out of the body somewhere.
imabyter is offline
Old 10-18-06, 01:25 PM
  #8
Administrator
iTrader: (8)

mar3's Avatar

Join Date: Nov 1999
Location: So. Arlington, TX!!!
Posts: 12,838
Likes: 0
Received 18 Likes on 13 Posts
This is a very common junkyard part to find...no one takes that stuff...the gasket behind it is a bit trickier....I just cut my own out of gasket material from a roll of gasket paper I keep.

mar3 is offline
Old 10-18-06, 02:37 PM
  #9
What?
10 Year Member

Join Date: Sep 2003
Location: CT
Posts: 3,833
Likes: 0
Received 0 Likes on 0 Posts
Another reason to solder all connections!
John64 is offline
Old 10-18-06, 06:36 PM
  #10
Onward thru the fog!
5 Year Member

DublyDurty's Avatar

Join Date: Feb 2006
Location: On the couch
Posts: 315
Likes: 0
Received 1 Like on 1 Post
Talking

A few more possibly helpful tips from one of my old posts (since this is ALSO and old post ),

"After a couple of PM's about exactly HOW I fixed the interior lights (map, dome, glovebox, and hatch) I realized I should have been more specific. I removed the dome light assembly. It contained two springy clips that hold the dome bulb. One of those springy clips (the left one) was (no longer) riveted to the assembly. I screwed that clip (with a tiny screw) back into the assembly and soldered the screw in place from the back. The glovebox had a dirty/rusted bullet connector and I sanded it clean. The hatch had a visibly perfect bulb but when I removed it, one end cap of the bulb fell off. I replaced the bulb. The dome light bulb is larger than the hatch bulb. For the dome I used a Sylvania DE3175 and the hatch a Sylvania DE3022. A possibly useful tip I learned for testing (while sitting on the couch) bulbs and interior light assemblies is to use a small, square 9 volt battery from what we used to call a "transistor radio"). Yes, wackyracer, I'm an "old fart" too. That way you know everything works before reinstallation."

DD
DublyDurty is offline
The following users liked this post:
javanzel (04-28-18)
Old 10-18-06, 07:57 PM
  #11
Administrator
iTrader: (8)

mar3's Avatar

Join Date: Nov 1999
Location: So. Arlington, TX!!!
Posts: 12,838
Likes: 0
Received 18 Likes on 13 Posts
Excellent...now this thread is ready for the archives...it's perfect...
mar3 is offline
The following users liked this post:
javanzel (04-28-18)
Old 10-19-06, 11:11 PM
  #12
Administrator
iTrader: (8)

mar3's Avatar

Join Date: Nov 1999
Location: So. Arlington, TX!!!
Posts: 12,838
Likes: 0
Received 18 Likes on 13 Posts
Welp, tinning the rivet was not an option since it's aluminum...instead, I drilled out both of the rivets for the lamp clips with a 3/32nds drill bit from the back side. Then I simply used tiny machine screws to screw the clips back in...simple solution and no nuts necesary on the back side.



Then came testing...it worked but the swivel light stopped working after a turn or two...the test light showed power going to the light, so I pulled the whole overhead light unit again to take a look...a wire popped out of the back of the swivel part, so my work wasn't done, after all...

Attached Thumbnails (ELECTRICAL) Need help on interior lights-overhead-light-fix.jpg
mar3 is offline
Old 10-19-06, 11:29 PM
  #13
Administrator
iTrader: (8)

mar3's Avatar

Join Date: Nov 1999
Location: So. Arlington, TX!!!
Posts: 12,838
Likes: 0
Received 18 Likes on 13 Posts

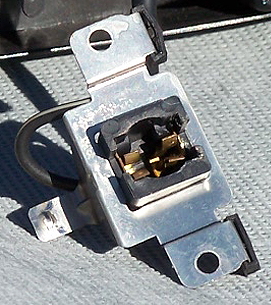

After unscrewing the metal housing from the plastic swivel piece, it became obvious what the problem was...the wires feed into the plastic bulb retainer and are soldered to the brass clips at the base of one of the 'legs' of each clip....the back and forth motion had simply worked one of the small wires brittle and it broke off from the clip. Luckily, the clip still had resin, so soldering wouldn't be a problem. I got some mini-pliers and pulled the side tab of the metal clip to work it out of the plastic bulb holder, losing flesh and blood in the process......Here's what the front side of that metal housing looks like with the bulb removed...the two brass clips can clearly be seen here...

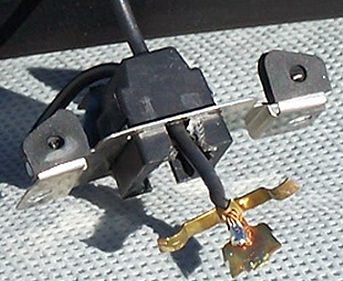

Once out, I simply bent the clip ears back and then soldered the wire back onto the clip...

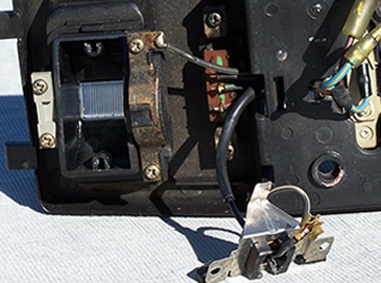

With the ears of the clip bent gently back, it was ready for the fight to get the mess back into the plastic bulb holder. I used a screw driver and some patience for that part to prevent anymore blood loss.



Once done, I bolted it all back in and now it all works again, just like it's supposed to.

Attached Thumbnails (ELECTRICAL) Need help on interior lights-overhead-swivel-light-fix-3.jpg   (ELECTRICAL) Need help on interior lights-overhead-swivel-light-fix-1.jpg   (ELECTRICAL) Need help on interior lights-overhead-swivel-light-fix-2.jpg
mar3 is offline
The following users liked this post:
javanzel (04-28-18)
