(BRAKES) Upgrading my brake booster





Old 04-08-06, 05:24 PM
  #1
Banned. I got OWNED!!!
Thread Starter

gonzz's Avatar

Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes on 0 Posts
(BRAKES) Upgrading my brake booster

I stripped my eng bay for paint. I have read some post on a TII brake booster upgrade. I tried to install it on my SA and it covers 1/2 the hole on the clutch master cylinder. Is the FC N/A booster a little smalller? Any Ideas? Thanks
gonzz is offline
Old 04-08-06, 05:27 PM
  #2
Rotary Enthusiast
iTrader: (14)

Slammed_GSL's Avatar

Join Date: May 2004
Location: Drifting a Roundabout near you!
Posts: 1,365
Likes: 0
Received 3 Likes on 3 Posts
Originally Posted by gonzz
I stripped my eng bay for paint. I have read some post on a TII brake booster upgrade. I tried to install it on my SA and it covers 1/2 the hole on the clutch master cylinder. Is the FC N/A booster a little smalller? Any Ideas? Thanks
I'm with ya, I got a GTU booster that I want to install in my 82' GSL after I do the brake upgrade.
Slammed_GSL is offline
Old 04-08-06, 05:38 PM
  #3
Banned. I got OWNED!!!
Thread Starter

gonzz's Avatar

Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Slammed_GSL
I'm with ya, I got a GTU booster that I want to install in my 82' GSL after I do the brake upgrade.
Can you measure the width on the booster you have? Just want to compare the size with a TII one.. I might need a N/A booster
gonzz is offline
Old 04-08-06, 08:14 PM
  #4
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,534
Received 61 Likes on 57 Posts
gonzz ~

do you have any side-by-side pics of your stock booster and the T2 one?
diabolical1 is offline
Old 04-08-06, 08:43 PM
  #5
Banned. I got OWNED!!!
Thread Starter

gonzz's Avatar

Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes on 0 Posts

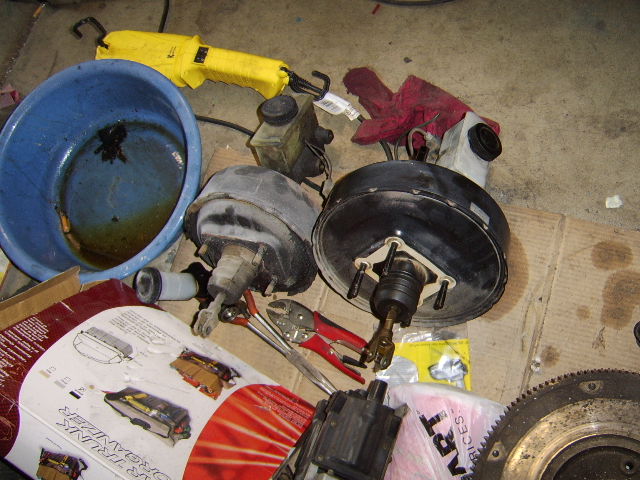

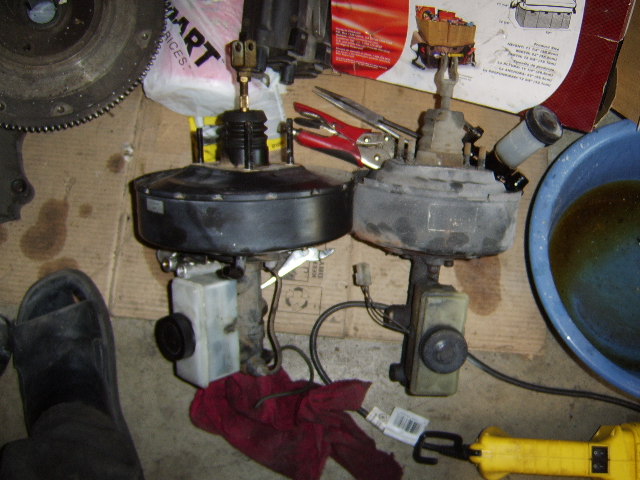

Pics attached
Attached Thumbnails (BRAKES) Upgrading my brake booster-sta71995.jpg   (BRAKES) Upgrading my brake booster-sta71996.jpg
gonzz is offline
Old 04-08-06, 08:59 PM
  #6
Old Fart Young at Heart
10 Year Member
iTrader: (6)

trochoid's Avatar

Join Date: Apr 2004
Location: St Joe MO
Posts: 15,147
Likes: 0
Received 1 Like on 1 Post
The TII and S4 GTU boosters are the same, they both have the 4-pot front brakes. You might look for the S4 booster for the single pot brakes. I don't know if they will be much different than an SE booster though.
trochoid is offline
Old 04-08-06, 10:03 PM
  #7
Senior Member
5 Year Member

boog's Avatar

Join Date: Jan 2004
Location: las vegas
Posts: 597
Likes: 0
Received 0 Likes on 0 Posts
wow that thing is ginormous!!!!!! does it fit? Does it add alot more pressure/feel to the brakes or not really?
boog is offline
Old 04-08-06, 10:51 PM
  #8
FB+FC=F-ME
5 Year Member

Join Date: Jul 2004
Location: Rohnert Park CA
Posts: 3,353
Likes: 0
Received 1 Like on 1 Post
Huh,might be something different about the SA.

My S4 booster came from a TII and it fits with just a little grinding on the side of the clutch master cylinder.
I could see the SA brake booster being smaller than the FB's,but I dont know why they would put the holes in the firewall closer together.
Is it possible you have a S5, 4 pot brake FC booster?Could be larger still,than the S4's...(which JUST barely fits)

Name:  DSC01994.jpg
Views: 471
Size:  49.0 KB
steve84GS TII is offline
Old 04-09-06, 01:39 AM
  #9
Banned. I got OWNED!!!
Thread Starter

gonzz's Avatar

Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes on 0 Posts
Removed it from a S4 TII parts car i just got.. Might try a S4 N/A.. Think it's the same size as a TII one?
gonzz is offline
Old 04-09-06, 07:33 PM
  #10
FB+FC=F-ME
5 Year Member

Join Date: Jul 2004
Location: Rohnert Park CA
Posts: 3,353
Likes: 0
Received 1 Like on 1 Post
S4 big brake cars have a 9" vacuum servo,the base S4 have an 8".

Trim level,not engine type will determine the brakes.For the S4's,only the 4 lug base cars had the small brakes.The GTU,VERT,GXL,Sport and TII all had the 4 pots.
steve84GS TII is offline
Old 04-10-06, 12:04 AM
  #11
Banned. I got OWNED!!!
Thread Starter

gonzz's Avatar

Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes on 0 Posts
Thanks
gonzz is offline
Old 04-10-06, 06:50 PM
  #12
Say hello to Mr.Wankel
5 Year Member
iTrader: (7)

dbragg's Avatar

Join Date: Nov 2004
Location: Cartersville, Ga
Posts: 5,963
Likes: 0
Received 1 Like on 1 Post
i have a T2 booster, MC, and prop valve on the way to me. so this wont work on an SA? ...crap
dbragg is offline
Old 04-10-06, 07:02 PM
  #13
Banned. I got OWNED!!!
Thread Starter

gonzz's Avatar

Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes on 0 Posts
It won't work on mine.. when you get it let me know.. might be a rhd thing..
gonzz is offline
Old 04-11-06, 12:45 AM
  #14
FB+FC=F-ME
5 Year Member

Join Date: Jul 2004
Location: Rohnert Park CA
Posts: 3,353
Likes: 0
Received 1 Like on 1 Post
Originally Posted by gonzz
It won't work on mine... might be a rhd thing..
Ahhhh....................

Thats the variable I was missing.
It could still be an SA thing,but Id be more prone to think its a difference between the J-spec and U.S. spec bodies.
steve84GS TII is offline
Old 04-11-06, 01:05 AM
  #15
Banned. I got OWNED!!!
Thread Starter

gonzz's Avatar

Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes on 0 Posts

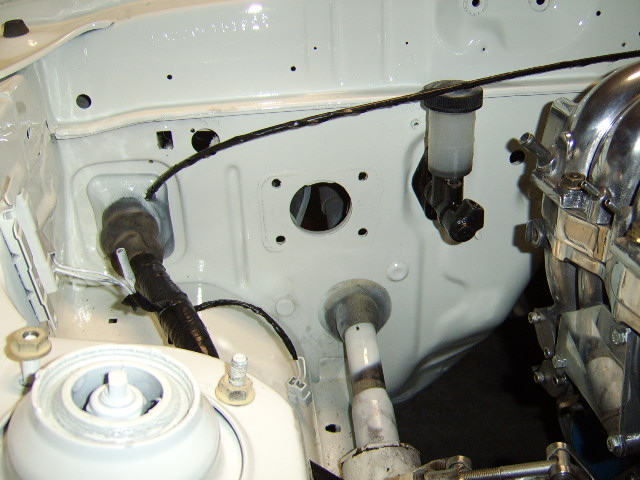

Pic atached on the clearance i have to work with
Attached Thumbnails (BRAKES) Upgrading my brake booster-sta72019.jpg
gonzz is offline
