Can it be done 12a msp/hybrid
#1
Can it be done 12a msp/hybrid
Hi just wondering if it can be done use 12a rotor housings and rotating assembly with 13bmsp side housings forgive me if this has been asked before I've searched and found nothing . however I did see that mazdatrix did manage to build and 13b rew/msp hybrid engine with the use of GSL-SE 13b rotor housings. So I figure the same can be done with a 12a now before anyone here ask why I would want to do such a thing the real question is why not . i have all the parts to put it together but since I have other engines to build at the moment i don't what to start doing any prep work till I see how others feel about it . Please let me know how you all feel about this thanks
#2
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
No.
To elaborate, the 12A rotors don't have their seals in the correct location to account for the MSP side exhaust ports.
There are probably also some issues with bearing configuration at the front mounting 12A stationaries on MSP irons.
To elaborate, the 12A rotors don't have their seals in the correct location to account for the MSP side exhaust ports.
There are probably also some issues with bearing configuration at the front mounting 12A stationaries on MSP irons.
#3
Sorry Aaron but you are going to have to be more specific . Are you referring to the side seals being closer to the msp exhaust port if I were to use a 12a rotor ?if so what problems will I run into short term . As far as the stationary gear goes I was planning on using a modified rx8 gears .
#4
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
I do not know specifically if the side seals of a 12A rotor will foul on the exhaust ports. I believe they will if one compares the location of side seals on a 12A rotor to the Renesis rotor. On the Renesis, they move in at least a few MM.
The Renesis rotor also has a 3rd oil seal, the cutoff seal, which prevents carbon fouling of the two inner O-rings.
The Renesis rotor also has a 3rd oil seal, the cutoff seal, which prevents carbon fouling of the two inner O-rings.
#5
I do not know specifically if the side seals of a 12A rotor will foul on the exhaust ports. I believe they will if one compares the location of side seals on a 12A rotor to the Renesis rotor. On the Renesis, they move in at least a few MM. The Renesis rotor also has a 3rd oil seal, the cutoff seal, which prevents carbon fouling of the two inner O-rings.
#6
Moderator
iTrader: (3)
you could possibly have the rotors modified to suit, but that would only be one of the several pieces of custom (and likely quite expensive) work you will NEED to have done for a successful attempt at the build.
#7
of course you can build it, but at the risk of sounding like the foot in your nuts, what is there to experiment with? in other words, what are you trying to prove and to whom? you could possibly have the rotors modified to suit, but that would only be one of the several pieces of custom (and likely quite expensive) work you will NEED to have done for a successful attempt at the build.
Trending Topics
#8
Moderator
iTrader: (3)
I understand that it is not as simple as just slapping a few parts together and I understand that I am going to have to do quite a bit of modifications and that im going to have to use quite a few custom parts I'm not worried about any of those things .
#9
Rotary Motoring
iTrader: (9)
No, won't work.
The problem is that for the 13B-MSP Mazda moved the side seals ends closer to the edge of the rotor so they could move the port's opening line closer to 0 deg and make up the rest of the timing to 0 deg with the rotor bevel.
If you put 12A rotors/seals in the 13B-MSP side housings the leading end of side seal will fall into the port on the opening line and crash into the closing line breaking the seals.
Yes, you can make it work.
You could machine the 12A's rotor's corner seal to capture the leading ends of longer side seals so the side seal cannot drop into the port further than the corner seal.
Or you could weld the 13B-MSP side housing's port's opening line so it opens later and re-machine the side housing flat.
Here is old 12A and 13B side seal position relative to rotor edge/corner seal (notice it is about 1/2 way up the corner seal.
Here is 13B-MSP side seal position relative to rotor edge/corner seal (notice it is above the 1/2 way point of the corner seal.

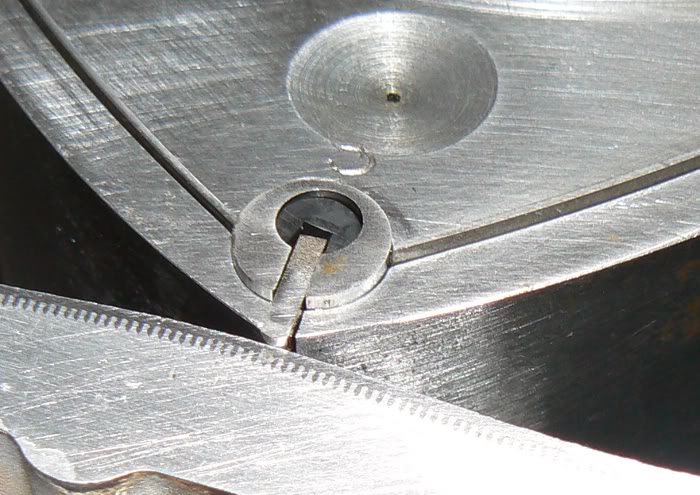

Here is the mod you can do to corner seals to keep the leading edge of the side seal from dropping into the port.
Here is 13B-MSP port opening line.
Here is old 12A/13B port opening line ported to max early opening in order to keep leading edge of side seal from falling into port (~24 deg ABDC).
The problem is that for the 13B-MSP Mazda moved the side seals ends closer to the edge of the rotor so they could move the port's opening line closer to 0 deg and make up the rest of the timing to 0 deg with the rotor bevel.
If you put 12A rotors/seals in the 13B-MSP side housings the leading end of side seal will fall into the port on the opening line and crash into the closing line breaking the seals.
Yes, you can make it work.
You could machine the 12A's rotor's corner seal to capture the leading ends of longer side seals so the side seal cannot drop into the port further than the corner seal.
Or you could weld the 13B-MSP side housing's port's opening line so it opens later and re-machine the side housing flat.
Here is old 12A and 13B side seal position relative to rotor edge/corner seal (notice it is about 1/2 way up the corner seal.
Here is 13B-MSP side seal position relative to rotor edge/corner seal (notice it is above the 1/2 way point of the corner seal.
Here is the mod you can do to corner seals to keep the leading edge of the side seal from dropping into the port.
Here is 13B-MSP port opening line.
Here is old 12A/13B port opening line ported to max early opening in order to keep leading edge of side seal from falling into port (~24 deg ABDC).
Last edited by BLUE TII; 03-31-15 at 06:02 PM.
#10
True one of my biggest worries is the oil seals burning up and It is true that mazda did set up a lot of reason so that I wouldn't attempt . But I'm very curious to I will keep you posted as soon as I start working on it once again thank you for all your input
#11
I thought about running a modified corner seal just like the one you have picture but I've ran large street port where the side seal run pass the edge and it will be easier to port a smooth transition for the side seal to ride on and there will be no edge for it to snag on . The side seals space difference is almost exactly double the distance for the 12a compared to the 13b msp I think I measure 2.75mm further in from the edge at the widest point near the corner and 1.5mm difference in the center . I think at this point I will start working on it and keep you guys posted . Thank you
