E Production Rx-7 Build
I'm turning a 91 Turbo 2 into an NA SCCA E-Production Rx-7. The car previously made 407rwhp with a GT35R and a 13B-RE, but I got tired of driving it on the street and am ready to start racing on a regional level.
Minimum weight, with driver, is 2300 lbs with the stock transmission. I would like to either swap another synchronized 5 speed box into it (can't change the number of gears) that has better ratios for circuit racing than the stock turbo 2 trans, or put a dog box in it, but that is down the road... I'm open to suggestions for that.

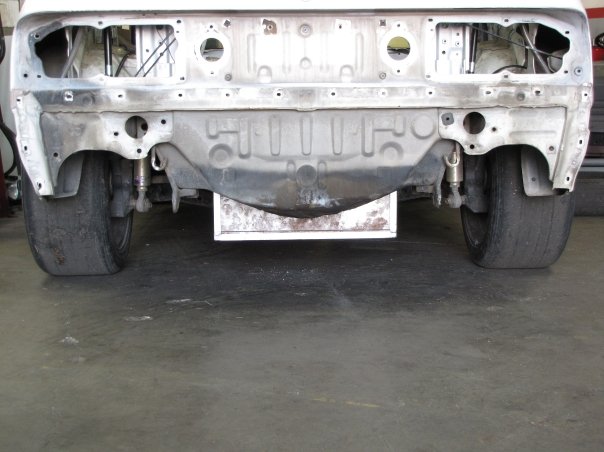

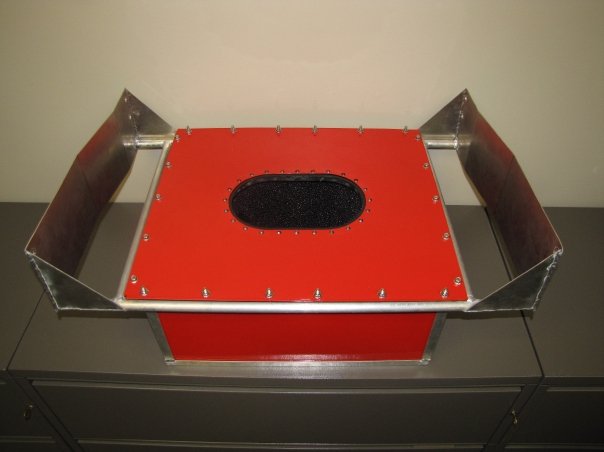

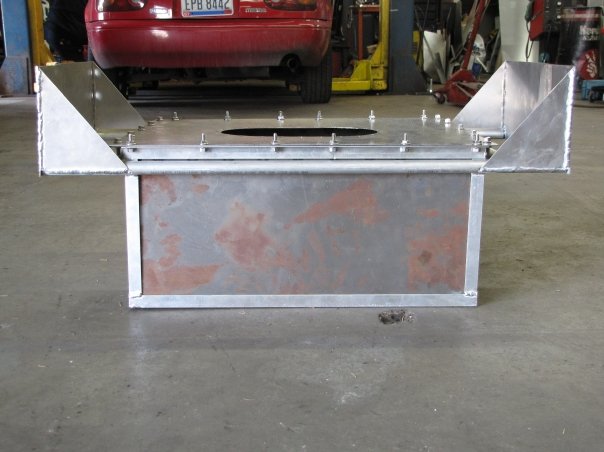

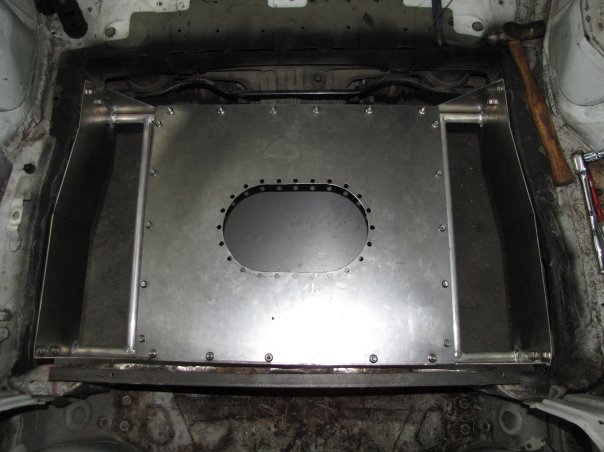

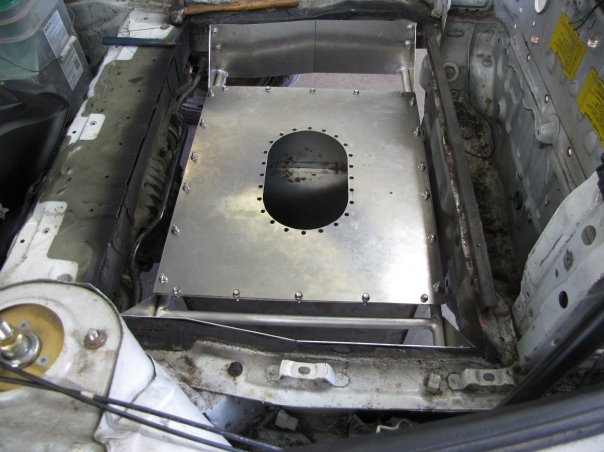

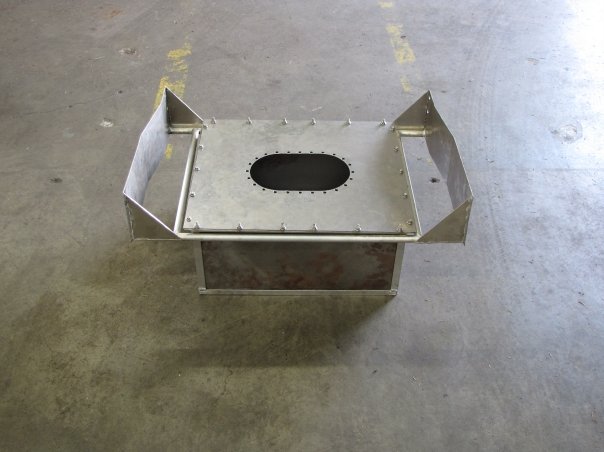

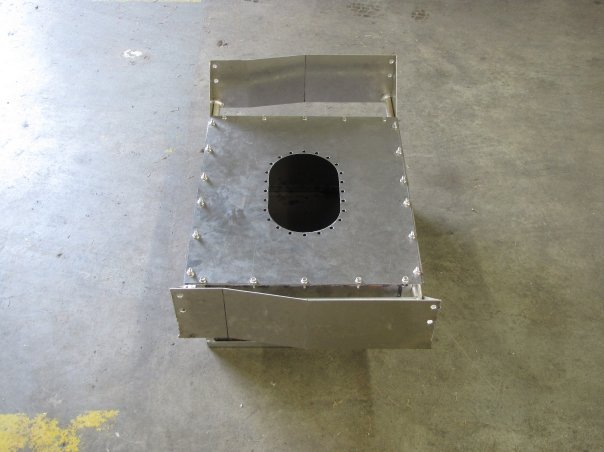

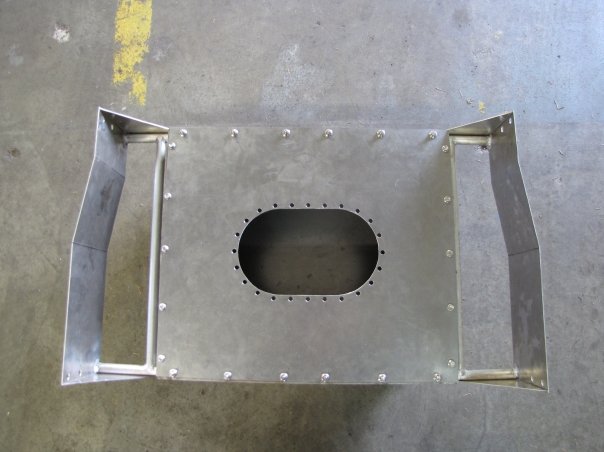

Here are some pics of the fuel cell. It is a 12 gallon ATL bladder from a NASCAR with the NASCAR anti rollover devices. I fabricated the cover, fabricated the aluminum cage, and modified the can to include a flange for a removable cover. The can (not the cage) is being powder coated red, more pics of that and the fuel plumbing later.
Minimum weight, with driver, is 2300 lbs with the stock transmission. I would like to either swap another synchronized 5 speed box into it (can't change the number of gears) that has better ratios for circuit racing than the stock turbo 2 trans, or put a dog box in it, but that is down the road... I'm open to suggestions for that.
Here are some pics of the fuel cell. It is a 12 gallon ATL bladder from a NASCAR with the NASCAR anti rollover devices. I fabricated the cover, fabricated the aluminum cage, and modified the can to include a flange for a removable cover. The can (not the cage) is being powder coated red, more pics of that and the fuel plumbing later.
#5
Fabrineer
Thread Starter
Copied from the 2009 GCR:
o. Final Drive
1. Drive shaft(s) are unrestricted.
2. Final drive ratio is unrestricted.
3. Internal differential components are unrestricted. Electric control of the differential is prohibited.
4. Substitution of the differential housing is only permitted on front engine/front drive or rear engine/rear drive cars through the use of an alternate transaxle.
5. Axle shafts, bearings, bearing carriers, hubs, and universal joints/CV joints are unrestricted.
6. Transverse engine cars can rotate the engine about the crankshaft centerline to align axle shafts/constant velocity joints. On rear engine/rear drive cars the engine/drive train can be relocated vertically upward, to a maximum of one inch, to allow alignment of suspension and driveline components.
