Fuel system picture
01-26-04, 09:57 PM
#1
Fuel system picture

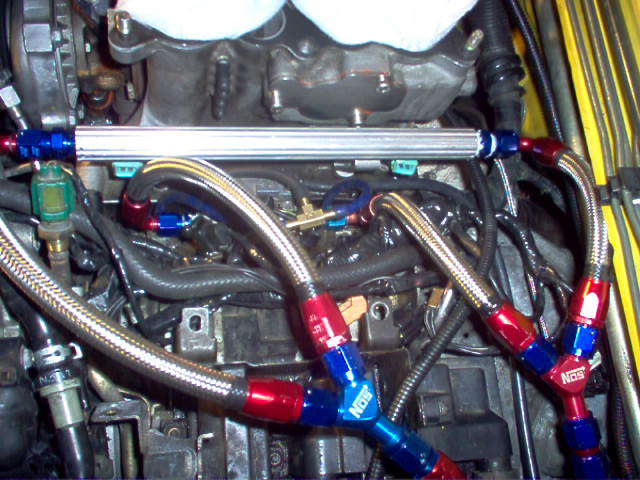

Just thought I'd share a picture of my fuel system. It's a RP secondary rail, Keith Gibbons primary rail, late night on Summit's website figuring out all the fiittings I'd need. I am running 1600's all the way around as reccomended by Autronics.
By the way, the absolute best way to cut the 6AN hose is to have a 4'x'4' wood block, lay the hose on it, and wack it three times with sledge hammer and a sharp wood chisel. It snaps off perfectly clean. I did not believe it until I tried it....
By the way, the absolute best way to cut the 6AN hose is to have a 4'x'4' wood block, lay the hose on it, and wack it three times with sledge hammer and a sharp wood chisel. It snaps off perfectly clean. I did not believe it until I tried it....
01-26-04, 10:14 PM
#2
Ee / Cpe
Join Date: Jan 2003
Location: Gaithersburg, MD / WVU
Posts: 2,843
Likes: 0
Received 2 Likes
on
2 Posts
looks nice, Ive always cut my line with some good duct tape and a hacksaw. Always has worked for me. But ive never heard of anyone running 1600's all around... you trying to make like 800hp or something?
01-26-04, 10:38 PM
#3
Nope, 400 or so is enough for me. The Autronics system likes 4 of the same injectors. They claim the injector drivers are superb and handle the 1600's very well. If there is a problem I will go to a smaller injector. There are other guys with rotaries running Autronics ECUs and 1600's the whole way around. Base fuel pressure is 45.
01-27-04, 12:31 AM
#7
Rotary Freak
Join Date: Jan 2002
Location: St. Louis
Posts: 1,843
Likes: 0
Received 0 Likes
on
0 Posts

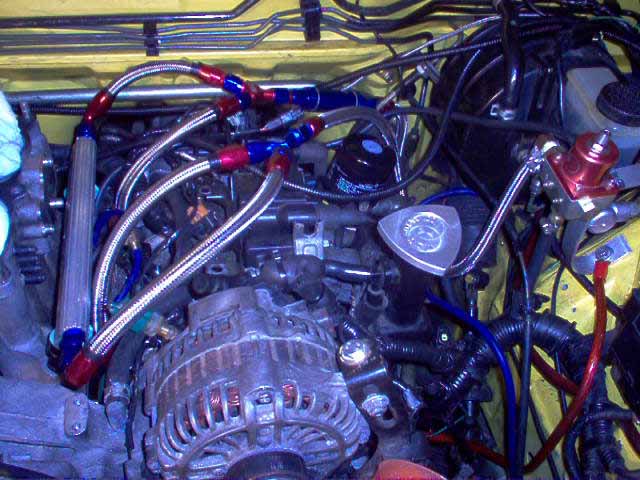

Here's mine--I just did it this week, and last week, and the week before. It's a bit more elaborate... comes up from tank, goes to Y to each rail, comes out of each rail, goes back into Y, goes to FPR, goes back to tank.
Hence my new avitar...
-BN
Hence my new avitar...
-BN
Trending Topics
01-27-04, 11:02 AM
#10
Rotary Enthusiast
very nice guys ,and i have also heard of more people running 4 1600`s ,it will hate you when adjusting idle but with enough tinkering it should work
if DR wankel could see this it would bring a tear to his eye
if DR wankel could see this it would bring a tear to his eye
01-27-04, 11:45 AM
#11
Senior Member
Join Date: Apr 2001
Location: Seattle, WA
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Benjamin
Another.
-BN
Another.
-BN
Are you sure the intake manifold will fit with your hoses routed above the coils?
Just asking- I had to re-route mine because of this.
Gene
01-27-04, 04:38 PM
#13
1JZ powered
Join Date: Jul 2001
Location: Where there's only two seasons, hot and wet! I love Okinawa
Posts: 4,423
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Benjamin
Here's mine--I just did it this week, and last week, and the week before. It's a bit more elaborate... comes up from tank, goes to Y to each rail, comes out of each rail, goes back into Y, goes to FPR, goes back to tank.
Hence my new avitar...
-BN
Here's mine--I just did it this week, and last week, and the week before. It's a bit more elaborate... comes up from tank, goes to Y to each rail, comes out of each rail, goes back into Y, goes to FPR, goes back to tank.
Hence my new avitar...
-BN
01-27-04, 05:49 PM
#16
Eats, Sleeps, Dreams Rotary
Join Date: Aug 2002
Location: Dallas, TX
Posts: 3,119
Likes: 0
Received 0 Likes
on
0 Posts
Where and how are you guys mounting your SX fpr's?
Benjamin, looks like you have some kind of U shaped bracket attaching it to the bay.
Right now the way it came installed for me its just flopping around the engine bay, sometimes rubbing up on the hood protector material.
Benjamin, looks like you have some kind of U shaped bracket attaching it to the bay.
Right now the way it came installed for me its just flopping around the engine bay, sometimes rubbing up on the hood protector material.
01-27-04, 07:32 PM
#17
Rotary Freak
Join Date: Jan 2002
Location: St. Louis
Posts: 1,843
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by jspecracer7
Very interesting way of running your fuel system. What type of fuel pump(s) are you using?
Very interesting way of running your fuel system. What type of fuel pump(s) are you using?
quote:
--------------------------------------------------------------------------------
Originally posted by 93 R1
Is that a surge tank on the fire wall?
--------------------------------------------------------------------------------
That's a fuel filter. You can see mine back by the break booster; it's blue. compared to the stocker, the one's pictured here are tiny.
Jspecracer7--I've got an 800hp Bosch in-tank FP.
Cavellm--I went to Home Depot, and got a piece of aluminum bar for $5. I utilized the two stock threaded mounting locations (visible in the picture), and secured a custom bracket. It just took some back & forth to the vice, but it mounts very sturdy, and conveniently. The only downside, is that I have to remove the elbow with the UIM, for it doesn't leave enough room to do so. If I changed anything, it would have been to push the FPR about a half inch closer to the fender wall, away from the engine.
-BN
Last edited by Benjamin; 01-27-04 at 07:38 PM.
01-30-04, 11:01 PM
#20
Dyno Guy
Join Date: Dec 2002
Location: Austin, TX
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
The Autronic ECUs will have no problem making the engine idle nicely, even with 1600cc injectors.
You guys who've never dealt with these have little room to doubt. When you quit fooling around with cheap ECUs and band-aid tuning devices and buy a serious piece of gear, you'll be amazed at the difference in how well the stuff works. After all, there is a lot of truth in the saying "you get what you pay for."
BK
You guys who've never dealt with these have little room to doubt. When you quit fooling around with cheap ECUs and band-aid tuning devices and buy a serious piece of gear, you'll be amazed at the difference in how well the stuff works. After all, there is a lot of truth in the saying "you get what you pay for."
BK
01-30-04, 11:55 PM
#21
Rotary Enthusiast
Join Date: Mar 2002
Location: DE, Taiwan
Posts: 751
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by jetenginedoctor
The Autronic ECUs will have no problem making the engine idle nicely, even with 1600cc injectors.
You guys who've never dealt with these have little room to doubt. When you quit fooling around with cheap ECUs and band-aid tuning devices and buy a serious piece of gear, you'll be amazed at the difference in how well the stuff works. After all, there is a lot of truth in the saying "you get what you pay for."
BK
The Autronic ECUs will have no problem making the engine idle nicely, even with 1600cc injectors.
You guys who've never dealt with these have little room to doubt. When you quit fooling around with cheap ECUs and band-aid tuning devices and buy a serious piece of gear, you'll be amazed at the difference in how well the stuff works. After all, there is a lot of truth in the saying "you get what you pay for."
BK
You might want to look around and check out what people here are using. Most of us who have decently modded cars are running stand alone ECU's, even before the injector sizes are changed.
And sure, with the right management, you can run 1600cc injectors in the primary rail. Its just not necessary unless you are running a very high boost setup that would normally require additional injectors beyond what the upgraded rails and usual 850/1600's can put out (ample support for more horsepower than most forum members are making).
Be careful how you defend your preferences. The responses weren't questioning the integrity of the Autronic unit, they were meerly asking why he chose to go with a different setup that isn't normally recommended by knowledgable rotary tuners. There's no need to talk down to anyone here. If you're feeling the need to, your place is not in the 3rd gen section, or any other part of this forum. Try some other place where they actually use cheap parts and are unfamiliar with stand alone/programmable management systems.
01-31-04, 04:18 AM
#23
Full Member
Re: Fuel system picture
Originally posted by zkeller
Just thought I'd share a picture of my fuel system. It's a RP secondary rail, Keith Gibbons primary rail, late night on Summit's website figuring out all the fiittings I'd need. I am running 1600's all the way around as reccomended by Autronics.
By the way, the absolute best way to cut the 6AN hose is to have a 4'x'4' wood block, lay the hose on it, and wack it three times with sledge hammer and a sharp wood chisel. It snaps off perfectly clean. I did not believe it until I tried it....
Just thought I'd share a picture of my fuel system. It's a RP secondary rail, Keith Gibbons primary rail, late night on Summit's website figuring out all the fiittings I'd need. I am running 1600's all the way around as reccomended by Autronics.
By the way, the absolute best way to cut the 6AN hose is to have a 4'x'4' wood block, lay the hose on it, and wack it three times with sledge hammer and a sharp wood chisel. It snaps off perfectly clean. I did not believe it until I tried it....
are u using autronic smc or sm2....?
01-31-04, 10:26 AM
#24
Rotary Enthusiast
Join Date: Mar 2002
Location: DE, Taiwan
Posts: 751
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Red-Rx7

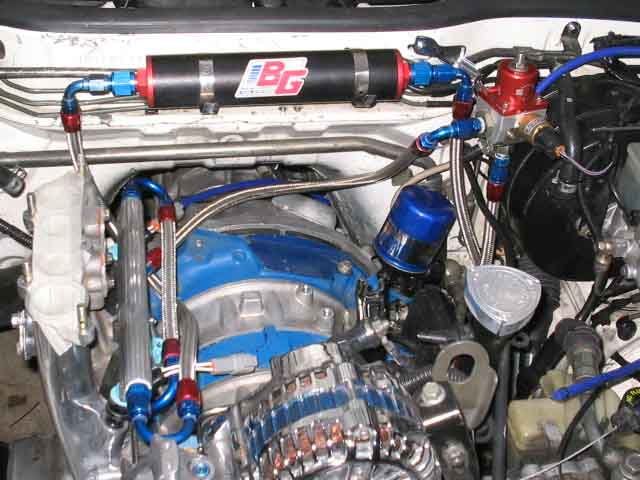

Here is mine:
Here is mine:
That's quite a juice machine you have there! I've seen a lot more people going to external pump setups with everything bolted to the bottom of the tank lately. Do you use anything to cover your gear under there like a fabricated rock shield or a diffuser? Does it whine a lot, or is it pretty quiet?
