13b-rew Opinions on simplest way to mount
#1
High Comp Booster
Thread Starter
iTrader: (4)
Join Date: Apr 2009
Location: Oakville, Ontario
Posts: 1,907
Likes: 0
Received 0 Likes
on
0 Posts
13b-rew Opinions on simplest way to mount

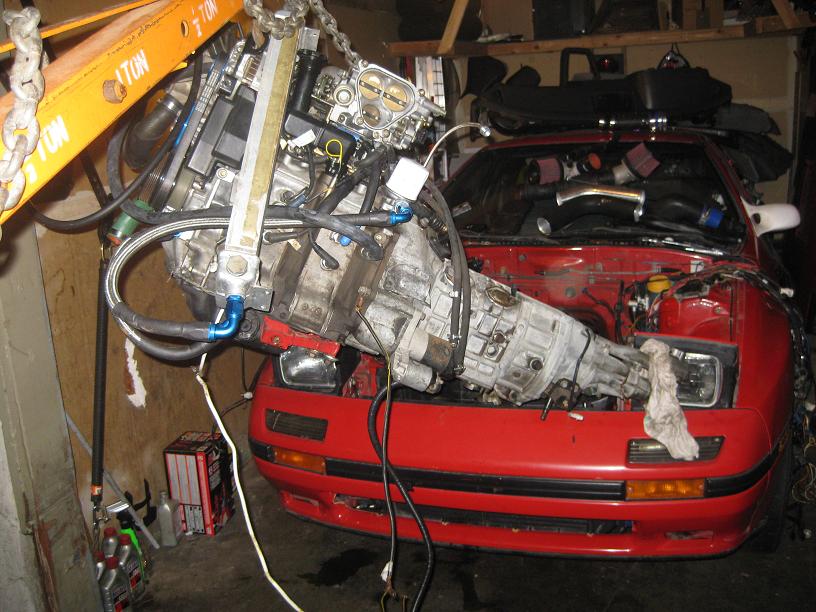

Hey guys i just got A 13b-rew at a too good a price to say no lol
whats the simplest way I can mount it in my car? I've read some stuff on using a mount kit that uses the stock rew mounts and adapts to the fc mounts
Orrr drill and tap the intermediate and use a T2 oil pan and maybe front cover I plan on going with a single turbo, premix and standalone anyways
I'd rather pocket the money from having to buy mounts and putting it toward something else
I just want to be able to make an educated guess
I have a Complete parts S5 n/a motor that i could rob parts from
Thanks guys
whats the simplest way I can mount it in my car? I've read some stuff on using a mount kit that uses the stock rew mounts and adapts to the fc mounts
Orrr drill and tap the intermediate and use a T2 oil pan and maybe front cover I plan on going with a single turbo, premix and standalone anyways
I'd rather pocket the money from having to buy mounts and putting it toward something else
I just want to be able to make an educated guess
I have a Complete parts S5 n/a motor that i could rob parts from
Thanks guys
#3
High Comp Booster
Thread Starter
iTrader: (4)
Join Date: Apr 2009
Location: Oakville, Ontario
Posts: 1,907
Likes: 0
Received 0 Likes
on
0 Posts
I dont see why it would be soo hard to drill and tap the intermediate its 3 holes realistically I have a spare T2 intermediate and mount im going to look at now
and thank you i couldn't remember the name banzai racing lol
and thank you i couldn't remember the name banzai racing lol
#4
Our brackets are for installing the Cosmo 13b-re & 20B engines only, they do not work for the FD 13b-rew.
Drilling and tapping the center iron may be a solution, but it certainly is not simple, and is not the best way to install the engine. As a matter of fact it opens up a bunch of new issues. To install the FC oil pan you need to install the FC front cover, and you still have 6 huge holes on the rear iron to deal with.
There is someone that makes brackets, however I am not a big fan of the design.
The "simplest" and "best" way to install the FD engine is to fabricate a subframe crossmember that boxes in the FC subframe just like the FD, then use the REW factory mounting brackets. This is as easy as welding in a channel across the rear of the FC subframe.
Drilling and tapping the center iron may be a solution, but it certainly is not simple, and is not the best way to install the engine. As a matter of fact it opens up a bunch of new issues. To install the FC oil pan you need to install the FC front cover, and you still have 6 huge holes on the rear iron to deal with.
There is someone that makes brackets, however I am not a big fan of the design.
The "simplest" and "best" way to install the FD engine is to fabricate a subframe crossmember that boxes in the FC subframe just like the FD, then use the REW factory mounting brackets. This is as easy as welding in a channel across the rear of the FC subframe.
#7
Senior Member
iTrader: (2)
Join Date: Oct 2003
Location: San Jose
Posts: 361
Likes: 0
Received 0 Likes
on
0 Posts

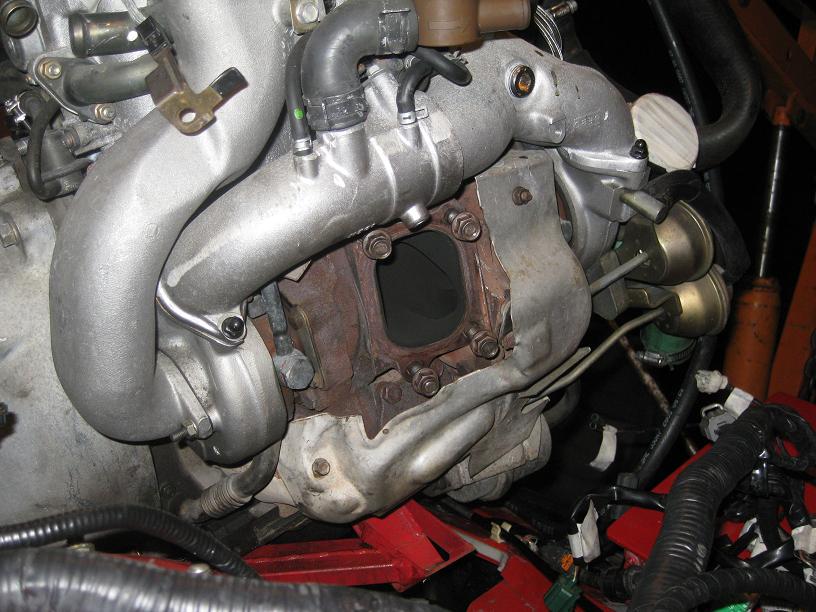

Heres one way, havent tested at full potential but at idle and regular street driving its not to bad, Have a little bit of vibration at idle, but not bad. Pretty sturdy though, and is an option. Will try and get another, better pic. Dont remember who makes them though.
Trending Topics
#8
High Comp Booster
Thread Starter
iTrader: (4)
Join Date: Apr 2009
Location: Oakville, Ontario
Posts: 1,907
Likes: 0
Received 0 Likes
on
0 Posts
thanks for those who have posted so far!
Banzai are the holes where the factory mount is a real issue couldn't i just put bolt in ea hole and call it a day?
I don't mind running the Fc front cover+ acc i wanted to do a side mount alternator
Is the FD front cover wayy better than the fc?
Banzai are the holes where the factory mount is a real issue couldn't i just put bolt in ea hole and call it a day?
I don't mind running the Fc front cover+ acc i wanted to do a side mount alternator
Is the FD front cover wayy better than the fc?
#9
Rotary Freak
iTrader: (6)
FC3spro.com Quote "The most popular method is to adapt the stock 13B-REW engine mounts to the FC3S chassis. Trying to adapt the stock 13B-REW engine mounts to the stock FC3S engine mount locations on the chassis is a difficult proposition, and it's not a recommended design. The stock 13B-REW engine mounts are both located on the rear, side housing; the stock FC3S 13BT engine mounts are located on the center, intermediate housing. This makes for a sharp angle to connect both "points". When researching engine mounts in general, the weight load vector is universally in a vertical plane; the engine (above) loads the mounts (below) straight up and down. Thus, we should try and keep this design structure in mind. The easiest way to accomplish this is to keep the stock 13B-REW engine mounts and weld in a new crossmember toward the rear of the FC3S engine "cradle". There is just enough space to weld in a 3" crossmember, and getting the 13B-REW engine mounts to mount nicely is pretty easy. This allows you to keep almost all the 13B-REW components.
The optional method to welding in a crossmember is to drill and tap the 13B-REW center housing to accept the stock FC3S 13BT passenger engine mount; three M14 x 1.50 holes need to be drilled and tapped into the underside of the center, intermediate housing of the 13B-REW engine to accept the three 17mm bolts that secure the bottom of the engine to the passenger side engine mount. This requires a custom oil pan or the stock FC3S 13BT oil pan. The stock FC3S driver's side engine mount is secured by two nuts on already existing studs on the 13B-REW. The passenger side engine mount is mounted in the middle of the engine, necessitating the oil pan change. If you decide on using the FC3S 13BT oil pan, you need to seal the front edge of the 13BT oil pan, as it's longer than the stock 13B-REW oil pan by about 1/4". "
http://fc3spro.com/TECH/SWAP/FD3S/rew.html
Good luck, and don't be discouraged useless posers...
The optional method to welding in a crossmember is to drill and tap the 13B-REW center housing to accept the stock FC3S 13BT passenger engine mount; three M14 x 1.50 holes need to be drilled and tapped into the underside of the center, intermediate housing of the 13B-REW engine to accept the three 17mm bolts that secure the bottom of the engine to the passenger side engine mount. This requires a custom oil pan or the stock FC3S 13BT oil pan. The stock FC3S driver's side engine mount is secured by two nuts on already existing studs on the 13B-REW. The passenger side engine mount is mounted in the middle of the engine, necessitating the oil pan change. If you decide on using the FC3S 13BT oil pan, you need to seal the front edge of the 13BT oil pan, as it's longer than the stock 13B-REW oil pan by about 1/4". "
http://fc3spro.com/TECH/SWAP/FD3S/rew.html
Good luck, and don't be discouraged useless posers...
#11
Senior Member
iTrader: (2)
Contact:
JR Fabrications (Just Racing Fabrications)
Guys name is JR - 772-343-0510
About 5-6 years ago I had an REW fall in my lap too and that started the slippery slope.
This is the cradle he made, it mounts on the FD mounting points and allows you to use the FC mounts. Its very strong (like 400RWHP doing abusive track days strong) and places the engine in the same exact place as a stock unit.
JR Fabrications (Just Racing Fabrications)
Guys name is JR - 772-343-0510
About 5-6 years ago I had an REW fall in my lap too and that started the slippery slope.
This is the cradle he made, it mounts on the FD mounting points and allows you to use the FC mounts. Its very strong (like 400RWHP doing abusive track days strong) and places the engine in the same exact place as a stock unit.
#20
High Comp Booster
Thread Starter
iTrader: (4)
Join Date: Apr 2009
Location: Oakville, Ontario
Posts: 1,907
Likes: 0
Received 0 Likes
on
0 Posts
O really? i didn't know that about FD pans
Would there be any disadvantages for using the S5 front cover with that pan? I plan on using a megasquirt, If use the S5 front cover i could use the FC CAS to run the timing
Would there be any disadvantages for using the S5 front cover with that pan? I plan on using a megasquirt, If use the S5 front cover i could use the FC CAS to run the timing
#22
Oil pan brace, no more leaks http://banzai-racing.com/store/FD_oil_pan_brace.html
To answer your original question about just putting bolts into the FD rear iron, if you have the FC oilpan on then it is impossible to install bolts in those holes.
Here is a picture of our FC oil pan brace, so you can compare the drastic differences in the layouts.
There is going to be a lot of custom fabrication needed to finish the installation of this engine, it is starting to sound like it may be beyond your budget, if you are trying to figure out how to not spend $300 or weld in a bar that will allow you to drop the engine right in.
I wont even go into the megasquirt...
I do wish you well with this project, try not to cut too many corners and you will actually be happy with the outcome. We see people cut every corner possible to often, then just want to complain about how poorly their car runs.
To answer your original question about just putting bolts into the FD rear iron, if you have the FC oilpan on then it is impossible to install bolts in those holes.
Here is a picture of our FC oil pan brace, so you can compare the drastic differences in the layouts.
There is going to be a lot of custom fabrication needed to finish the installation of this engine, it is starting to sound like it may be beyond your budget, if you are trying to figure out how to not spend $300 or weld in a bar that will allow you to drop the engine right in.
I wont even go into the megasquirt...
I do wish you well with this project, try not to cut too many corners and you will actually be happy with the outcome. We see people cut every corner possible to often, then just want to complain about how poorly their car runs.
Last edited by Banzai-Racing; 01-15-10 at 05:27 AM.
#23
High Comp Booster
Thread Starter
iTrader: (4)
Join Date: Apr 2009
Location: Oakville, Ontario
Posts: 1,907
Likes: 0
Received 0 Likes
on
0 Posts
im just trying to keep to a budget I won't go cheap where i don't have to I know of a few people that are local that use the megasquirt with no issues
it's just i'd rather do as much as i possible can on my own and if i can get away with being able to bolt the keg in i'd be very very happy lol
From there it would see the exhaust shop and im going to try to adapt the Greddy FMIC kit i think or do a v-mount
i just like the idea of using the stock Fc mounts lol Unless there is something Obvious i am missing here
it's just i'd rather do as much as i possible can on my own and if i can get away with being able to bolt the keg in i'd be very very happy lol
From there it would see the exhaust shop and im going to try to adapt the Greddy FMIC kit i think or do a v-mount
i just like the idea of using the stock Fc mounts lol Unless there is something Obvious i am missing here
