update:project skittle (v8 83 12a)
#30
Senior Member
Join Date: Jun 2003
Location: Virginia
Posts: 367
Likes: 0
Received 0 Likes
on
0 Posts
I said the same thing but my tire guy said to go with the 17's because of my tire height profile. I wanted 16's and may still go that route espessicaly sicne they are cheaper. That won't be until next summer anyway since my taxes are going for the rear end and springtime I'm driving down th Charlotte NC to purchase a Tandle 347 Stroker for it. Tremec from Summit Racing to since it has a 600 torque rating. I figured that should be just enough for it since it's a little over a 400 horse engine. Not a bad price either.
Last edited by racintang; 02-23-08 at 12:15 PM.
#31
Banned. I got OWNED!!!
Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes
on
0 Posts
tang.... i loooove the seats! but seriously, thanks for those engine pics... very good shots of the mounts and it completely makes sense now how they line up. WOOOOT!
#34
No, it is not stock!
iTrader: (1)
Engine Position

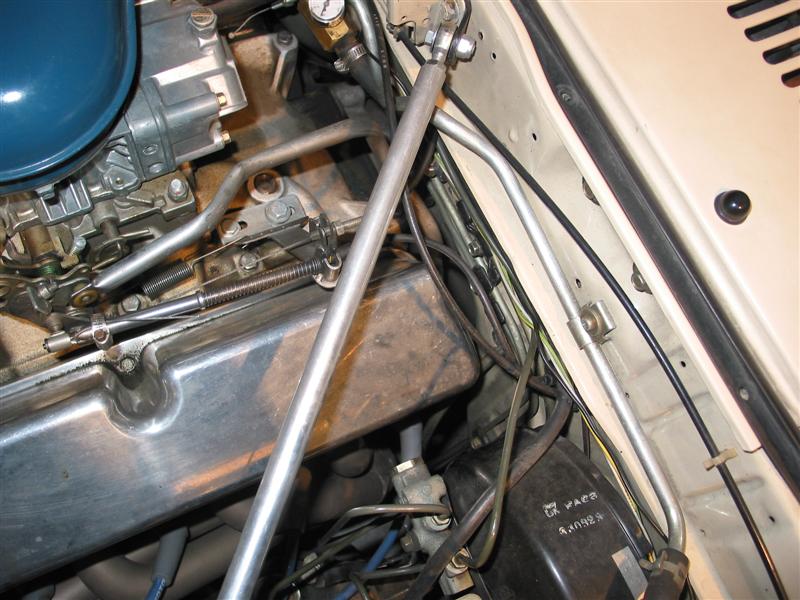

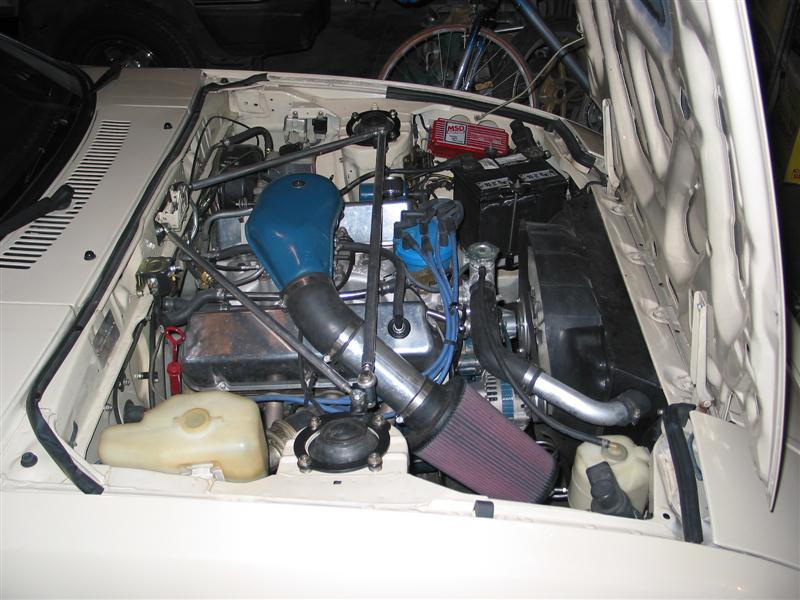

Racintang - your motor seems to sit further back than mine. Did you have to modify the firewall? My firewall is stock. Don't know if you are interested, but Ford Motorsports makes a water pump just for street rods, aluminum, 1 1/2 inch shorter than the later T-bird and Mustang pumps, and turns right direction for v-belts. They also sell a pulley set for it. With that, the aluminum heads, intake and radiator, I saved close to 100 pounds.

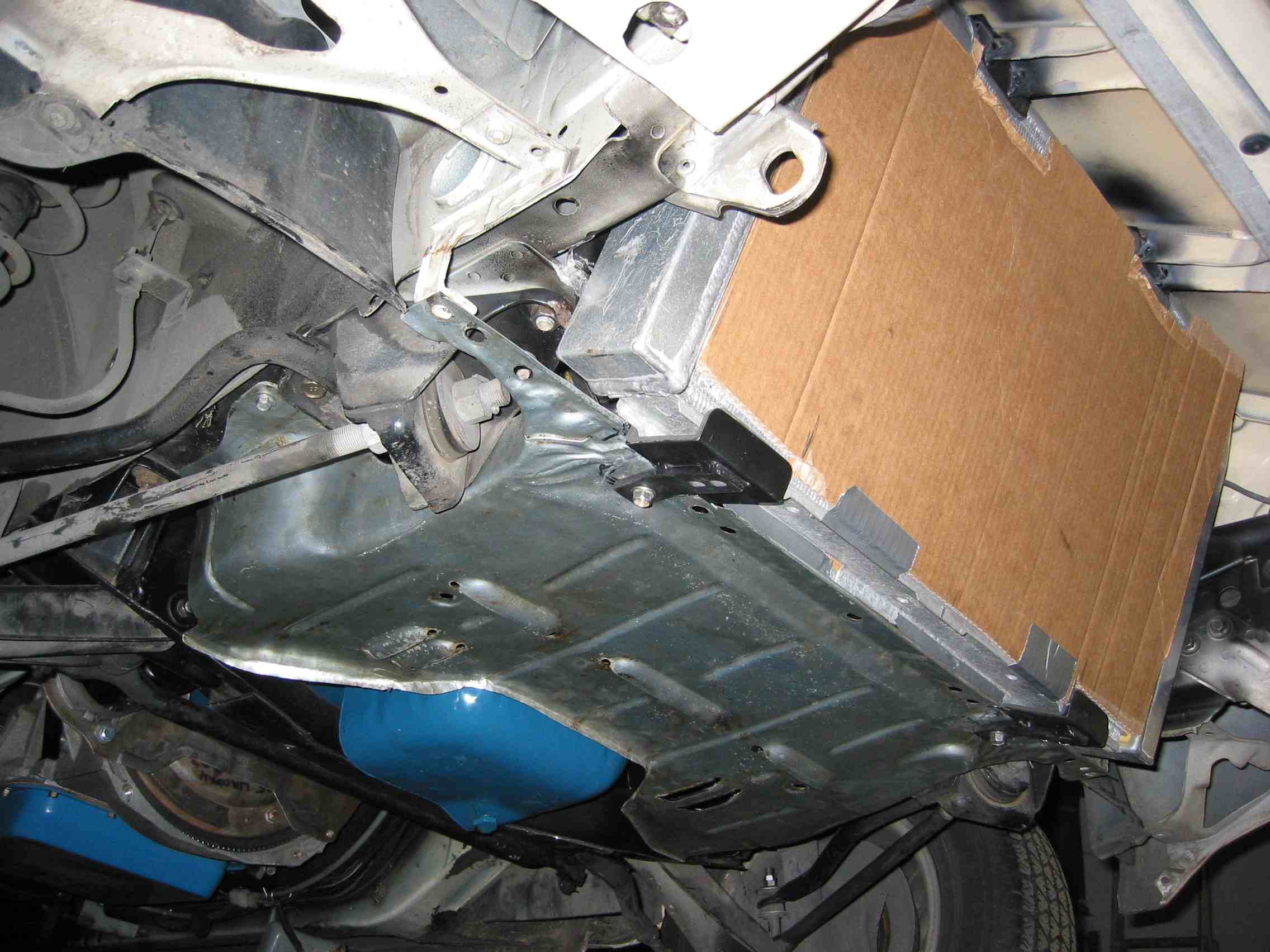

The photo shows my radiator mounting in the nose - taken before the exhaust was built. I tried to post photos when I did my previous post, but they would not upload. Seems to work now.
The photo shows my radiator mounting in the nose - taken before the exhaust was built. I tried to post photos when I did my previous post, but they would not upload. Seems to work now.
Last edited by stilettoman; 10-24-05 at 01:43 AM.
#35
Senior Member
Thread Starter
Join Date: Sep 2005
Location: omaha
Posts: 256
Likes: 0
Received 0 Likes
on
0 Posts
huh, u mounted yours in the nose. thats not a bad idea . i mounted mine as far in the front as i could, after cutting off the old radiator supports on the side, and using grannys custom brackets. for the fan, i put it in the nose, and since it is a VERY powerful fan, i used it on push style, so that i can still get good flow, as its not directly ON the radiator.
#37
Nice, very similar to my combo, except mine's still not running.
Stock bottom end, TFS TW heads, Crower 15512 cam, Vic Jr/RPM/Stealth intakes to test, Street Avenger/BG carbs to test, etc. Through a built AOD and converter. Big NX 200 shot to play with the local poopras.
Take it out and get some times on it, so I can be motivated to take my motor off the stand and bolt it all in.
Stock bottom end, TFS TW heads, Crower 15512 cam, Vic Jr/RPM/Stealth intakes to test, Street Avenger/BG carbs to test, etc. Through a built AOD and converter. Big NX 200 shot to play with the local poopras.
Take it out and get some times on it, so I can be motivated to take my motor off the stand and bolt it all in.
#38
406 SBC-85 rx7
Join Date: Aug 2005
Location: fairfax, VA
Posts: 125
Likes: 0
Received 0 Likes
on
0 Posts
cloud, is your nx 200 shot your running a plate kit? If so does it fit fine with the flange on the barry grant carb? Im looking at putting nitrous on my car and i dont really want to run the Nitrous Works kit.
#39
Senior Member
Join Date: Jun 2003
Location: Virginia
Posts: 367
Likes: 0
Received 0 Likes
on
0 Posts
stilettoman - My engine might seem further back since I modified it with a 10 lb seldge hammer that was pretty fun. Nothing like standing on top of your cowl and letting a giant thor hammer come down on it. But anyway where did you get you radiator brackets or did you buy them. I kind a jerry rigged these in ther since I had not seen a grannys setup or anyone elses but mine seems to work if I can get a pusher fan in front of it.
#40
No, it is not stock!
iTrader: (1)
homemade parts
Actually the only thing I bought from Grannys was the rear flange for my driveshaft. I had everything else fabricated before Grant started doing Fords. If you look at my photo, you can see I had to make a 3 inch spacer to move the fan shroud aft. That is plenty of room for a radiator. But I had the aluminum Howe radiator from my neighbor's race car, so I used it. It would not fit in the engine compartment.
I fabricated the brackets, along with all the motor and tranny mounts, and strut brace. Still, I had almost as much engineering time in the brake conversion as I did the engine installation.
My fan is a stock RX-7 fan with no viscous clutch. It moves a lot of air compared to any electric fan I have seen. I also baffled off the area around the radiator so all the air has to pass through the core. If I were drag racing I would use the electric fan, but I rarely turn over 5,000.
I fabricated the brackets, along with all the motor and tranny mounts, and strut brace. Still, I had almost as much engineering time in the brake conversion as I did the engine installation.
My fan is a stock RX-7 fan with no viscous clutch. It moves a lot of air compared to any electric fan I have seen. I also baffled off the area around the radiator so all the air has to pass through the core. If I were drag racing I would use the electric fan, but I rarely turn over 5,000.
#41
Senior Member
Thread Starter
Join Date: Sep 2005
Location: omaha
Posts: 256
Likes: 0
Received 0 Likes
on
0 Posts
the car is FINALLY moving. had a bitch time with the clutch, but she will have some numbers come saturday. lemme just say HOLY NO TRACTION on the streets lol.
#42
V8 RX-7
iTrader: (2)
Join Date: Sep 2002
Location: BC Canada
Posts: 567
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by stilettoman
Racintang - your motor seems to sit further back than mine. Did you have to modify the firewall? My firewall is stock. Don't know if you are interested, but Ford Motorsports makes a water pump just for street rods, aluminum, 1 1/2 inch shorter than the later T-bird and Mustang pumps, and turns right direction for v-belts. They also sell a pulley set for it. With that, the aluminum heads, intake and radiator, I saved close to 100 pounds.
The photo shows my radiator mounting in the nose - taken before the exhaust was built. I tried to post photos when I did my previous post, but they would not upload. Seems to work now.
The photo shows my radiator mounting in the nose - taken before the exhaust was built. I tried to post photos when I did my previous post, but they would not upload. Seems to work now.
Can you please tell me where you got the air cleaner carb adaptor from?
#43
Senior Member
Thread Starter
Join Date: Sep 2005
Location: omaha
Posts: 256
Likes: 0
Received 0 Likes
on
0 Posts
shes all done
thanks to keith, mike bowersax, and mike from grease monkey, and total performance with hooking me up with lots of stuff, and all pro for the good exhaust. without them, this project wouldnt have been done for a loong time.
marty needs to pull his damn pants up...
^ i tried to get some pics of the clutch assembly
^ hehehehe i got a turbo
paint will be going on if i keep it for much longer.f
marty needs to pull his damn pants up...
^ i tried to get some pics of the clutch assembly
^ hehehehe i got a turbo
paint will be going on if i keep it for much longer.f
#44
Full Member
Join Date: Jan 2002
Location: Lincoln, NE
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
Nice work, Cal! My old wheels look pretty good on that car...I'd love to get a ride in it sometime when it's running well. I spent the day cutting up my '79 so I could haul it to the dump with my pickup...
Armen
Armen
#48
Id like to purchase this.. As long as it hasen't hit any trees. LOL What was your hp before you got rid of it? OHH I need your engine lift for a lil bit, if you check this post. If not Ill give ya a call
#50
Full Member
Join Date: Mar 2001
Location: Omaha, NE USA
Posts: 104
Likes: 0
Received 0 Likes
on
0 Posts
I think he was joking, notice the LOL. That was my car originally, and the guy flairsnyper sold it to wrapped it around a tree last I heard. Sad story, I bought that car for $400 in 1995.
