My Ls swapped FD

Old 10-25-18, 05:54 PM
  #1
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Ohio
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
My Ls swapped FD

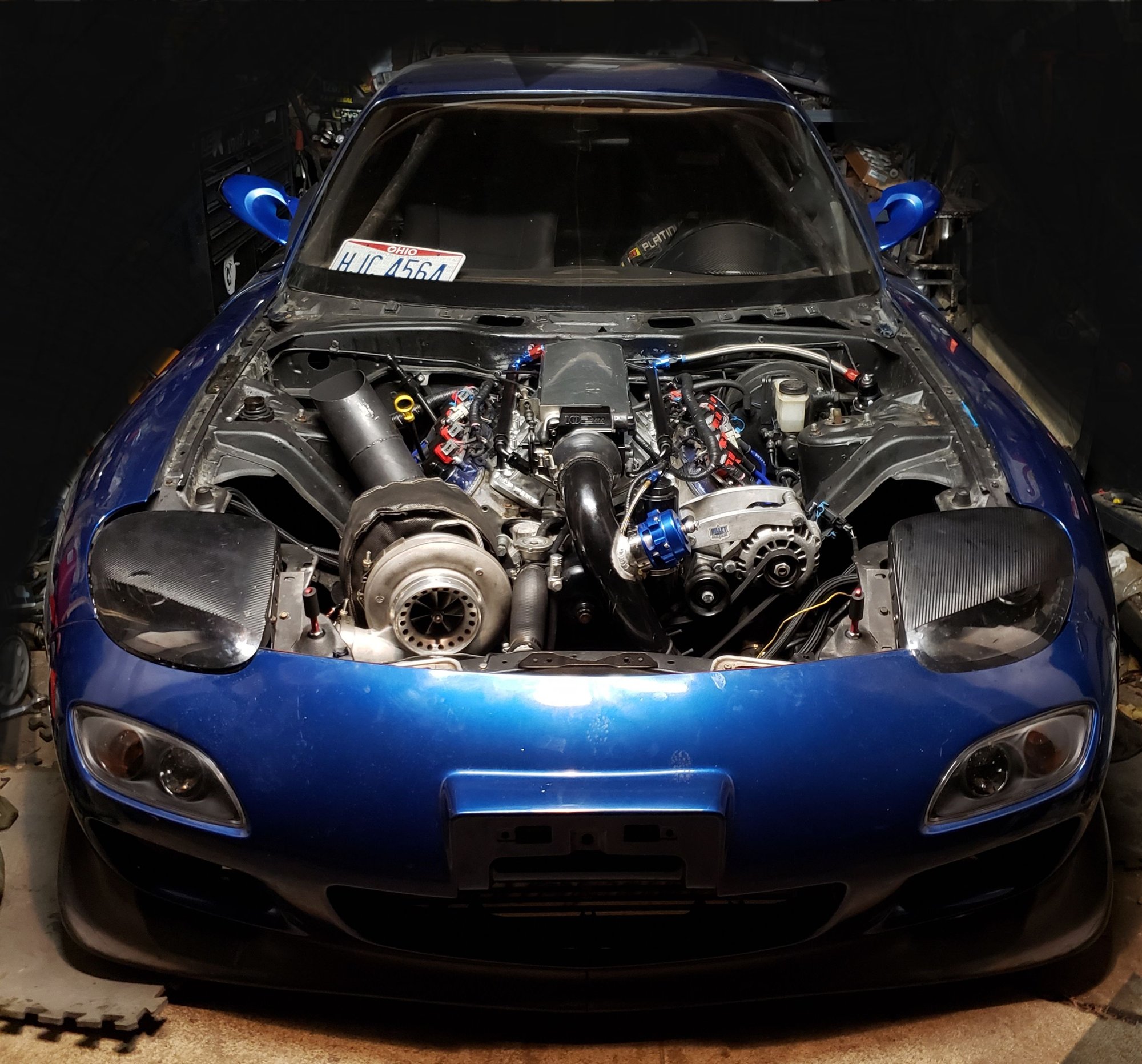

Finally getting around to joining so heres my build so far.

Picked up the chassis as a bare roller Feb 2017. Every wire and mechanical part has been installed by myself with the help of a few friends.

current mod list (well the hard parts)
4l80
Lq4
Ls9 gaskets
Speedmaster head studs
2.5in crossover
S480 billet
Ported throttlebody
Magnafuel 4303
-8 feed
-8 return
On3 4in intercooler
Koyo radiator
80# injectors
F body pan kit
Hinson subframe
Stainless brake lines
Ls6 cam
Ls6 springs
Tial 50mm knockoff bov
Tial 44mm knockoff
3" intercooler piping
On3 44mm wastegate
Autometer gauges
Custom wire harness
Tuned on hptuners by Brian Turner
Pro stick shifter
EFI source 3 bar map
Aeromotive 13110 regulator
Ls1 Intake manifold
4" exhaust
Hinson torque arm
Ict billet pickup girdle
Ls2 hd timing chain
Melling 10296 oil pump

car made 663whp on 14psi and is a blast, it really needs suspension since its currently just spinning even at 80mph rolls.

Dyno vid:
https://youtu.be/c8sW6CRVzXo​​​​​​



Last edited by Anthony Naylor; 10-25-18 at 05:56 PM.
Anthony Naylor is offline
Old 12-20-18, 11:03 PM
  #2
Junior Member

Join Date: Jan 2018
Location: Kerrville, TX
Posts: 9
Thanks: 0
Thanked 1 Time in 1 Post
What hood are you running? Clean ride btw!
Orochi is offline
Old 12-20-18, 11:17 PM
  #3
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Ohio
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks! Running stock hood right now until i build a full exhaust.
Anthony Naylor is offline
Old 12-21-18, 04:04 AM
  #4
Junior Member

Join Date: Nov 2018
Location: Louisiana
Posts: 14
Thanked 0 Times in 0 Posts
Nice! Clean car! Iíve got almost the same setup on an aluminum 5.3, but itís in a Fc. Dynoed 902hp 878 ft lb at 20psi. Super fun cars to drive!
TurboLsFc is offline
Old 12-21-18, 08:15 AM
  #5
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 826
Thanked 53 Times in 39 Posts
Man that screamer hood dump is awesome. I'm still on the rotary side but have one that dumps in about the same spot right in front of the passenger seat. People don't know what to think when it blows a 6 foot flame out the hood at night on a major freeway.

-Skeese
Skeese is offline
Old 12-21-18, 09:23 AM
  #6
Senior Member

Join Date: Jun 2013
Location: FL
Posts: 293
Thanked 0 Times in 0 Posts
Very nice. like that it's not all riced out either. The hoosiers are like a big back off sign lol. nice
ATC529R is offline
Old 12-21-18, 10:46 AM
  #7
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Ohio
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks guys! I cant imagine 900whp, i turned mine up a couple psi so it should be well in the 700whp range and its already crazy. And i do like the hood exit just for the flames alone but im gonna try to run a full exhaust and make it a little more street car-ish. And it means I won't have to cut up a $1k hood in the future.

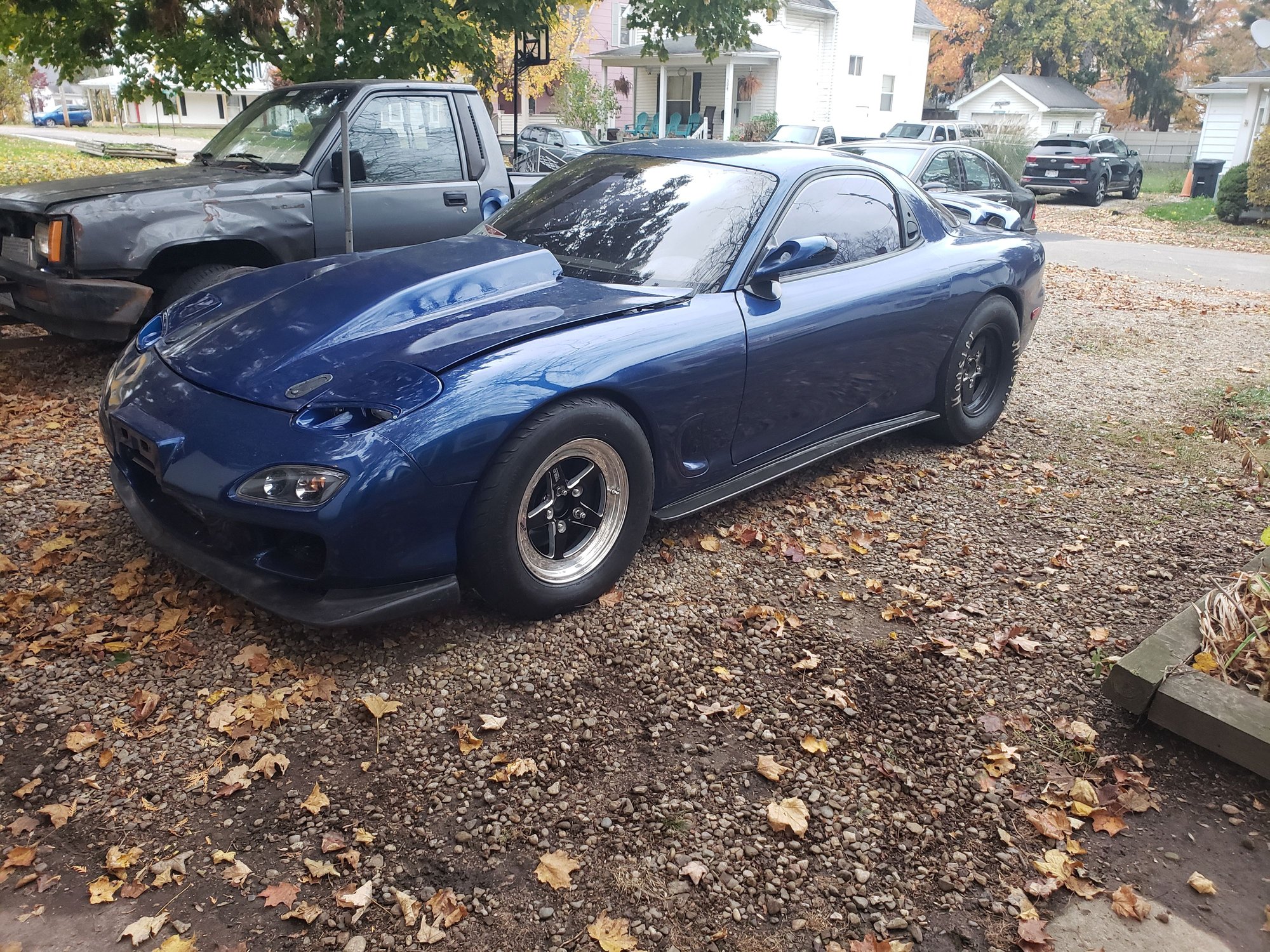

Finally got my feed sidesteps on and installed some Cusco zero coilovers, so no more ridiculous stance.
Also added some billet coil brackets and high output d585 coilpacks.



Last edited by Anthony Naylor; 12-21-18 at 10:51 AM.
Anthony Naylor is offline
Old 12-28-18, 11:58 AM
  #8
BYK
Junior Member

Join Date: Jul 2018
Location: Canada
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
car looks incredible!
BYK is offline
Old 01-01-19, 07:08 PM
  #9
Senior Member

Join Date: Oct 2013
Location: Clemmons, NC
Posts: 634
Thanked 20 Times in 17 Posts
Nice car! Whatís your turbo specs. Iím working on a 4.8 turbo Camaro that hopefully will make similar power
Freeskier7791 is offline
Old 01-01-19, 07:16 PM
  #10
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Ohio
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Freeskier7791 View Post
Nice car! Whatís your turbo specs. Iím working on a 4.8 turbo Camaro that hopefully will make similar power
Thanks! It's a billet wheel s480 with a 96 t6 1.32ar turbine. Same as the vsracing one but i found them much cheaper.
I love it so far, but it might be laggy on a 4.8 unless you go t4.

Anthony Naylor is offline
Old 01-02-19, 04:12 AM
  #11
Senior Member

Join Date: Oct 2013
Location: Clemmons, NC
Posts: 634
Thanked 20 Times in 17 Posts
nice!! thanks for info
Freeskier7791 is offline
Old 01-06-19, 05:15 PM
  #12
tn1
Junior Member

Join Date: Dec 2018
Location: TX
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
sweet build. any photos with the hood on?
