Ignition switch question.

Old 04-25-14, 09:33 PM
  #1
Your Mother Is A Lizard
10 Year Member
Thread Starter
iTrader: (7)

DRFT_HRD's Avatar

Join Date: Jun 2006
Location: Syracuse, Utah
Posts: 667
Likes: 0
Received 0 Likes on 0 Posts
Ignition switch question.

Which of these wires can I tap to run to the S terminal on the sbc starter. I believe it is the black and white thick one but want to be sure and I need to know which of these would be a good keyed power source for my ignition box.

DRFT_HRD is offline
Old 04-26-14, 03:47 AM
  #2
Your Mother Is A Lizard
10 Year Member
Thread Starter
iTrader: (7)

DRFT_HRD's Avatar

Join Date: Jun 2006
Location: Syracuse, Utah
Posts: 667
Likes: 0
Received 0 Likes on 0 Posts

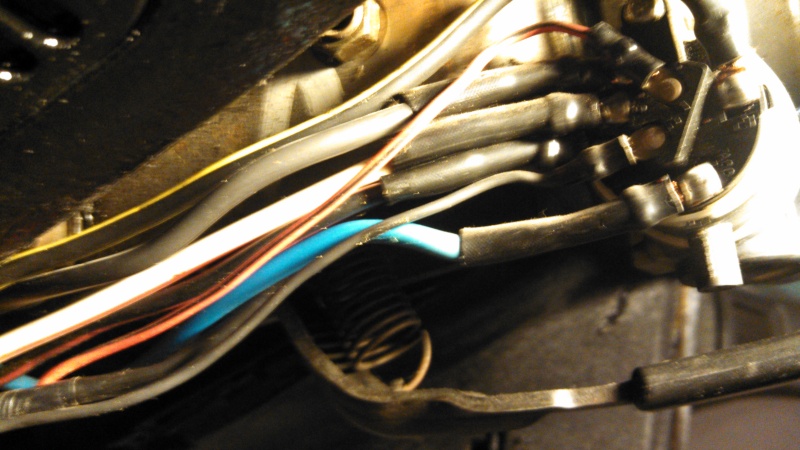

Name:  IMG_20140425_200842_370_zpsc31d562d.jpg
Views: 9
Size:  157.1 KB

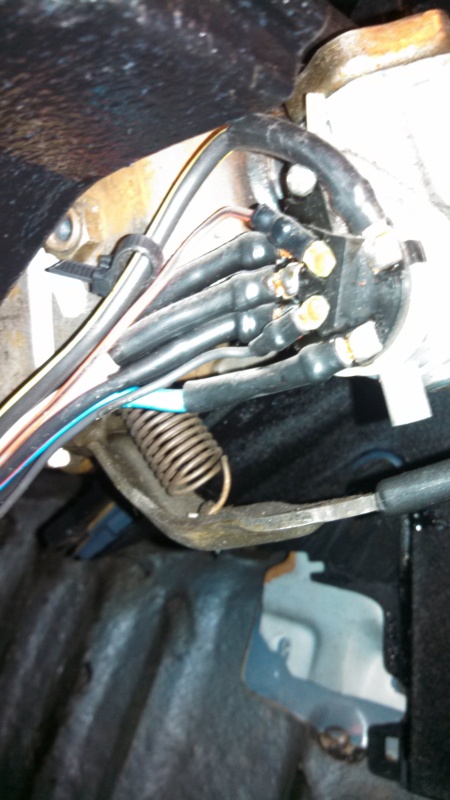

Name:  IMG_20140425_200744_089_zps97d6d45e.jpg
Views: 26
Size:  137.8 KB

Reposting the pictures not sure what happened.
DRFT_HRD is offline
Old 04-26-14, 09:20 AM
  #3
Junior Member
5 Year Member

Join Date: Nov 2007
Location: Savannah, GA
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
I'm trying to remember exactly but it's been a while.

You should be able to check with a DMM what each wire is doing as you turn the key to different positions. (your battery will have to be connected to test this way).

this is what i found through our friend google.

Battery BLACK
Ignition 1 BLACK/WHITE
Ignition 2 BLACK/RED
Accessory 1 BLUE
Starter 1 BLACK/GREEN

I'm assuming you are trying to wire up the starter motor to your key switch correct?
mreed772 is offline
Old 04-26-14, 11:54 AM
  #4
Your Mother Is A Lizard
10 Year Member
Thread Starter
iTrader: (7)

DRFT_HRD's Avatar

Join Date: Jun 2006
Location: Syracuse, Utah
Posts: 667
Likes: 0
Received 0 Likes on 0 Posts
Yes also need a spot to tap for keyed power for ignition box and a couple other items, and man what google terms did you use cause I was up till 5 am and was so ready to shove my computer through the garbage disposal.
DRFT_HRD is offline
Old 04-26-14, 09:05 PM
  #5
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: VA
Posts: 299
Likes: 0
Received 1 Like on 1 Post
Originally Posted by DRFT_HRD View Post
Yes also need a spot to tap for keyed power for ignition box and a couple other items, and man what google terms did you use cause I was up till 5 am and was so ready to shove my computer through the garbage disposal.
Get the FC FSM. It's in one of the electrical sections and tells you exactly which does what. Also, if you look very, very closely at the switch itself it has markings for each wire on it.
valley is offline
Old 04-27-14, 08:19 PM
  #6
Junior Member
5 Year Member

Join Date: Nov 2007
Location: Savannah, GA
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
No problem. I searched something like rx7 ignition switch colors or something like that.

Use the ignition 1 or 2 for your switched power. I would check it with a meter before you pick one. I believe one is one click of the key and the other is two clicks of the key.

As far as the starter motor I would suggest that you tap into the circuit after the relay. The relay will prevent any surges or shorts from effecting other components and that line should already be fused.

I believe you might just be able to use the same solenoid wire from the original circuit depending on how your electrical is now but I don't know for sure.
mreed772 is offline
