Derek_McDermott

iTrader: (1)

I've been searching and searching and can't seem to find anything good on this swap so.just wondering how hard is it and can I use a t2 drivetrain with the 302 powerplant? Any advice would help. Also looking to do a carbd 302 for the sake of no wiring.

digitalsolo

iTrader: (2)

You will use the Ford transmission.

Beyond that, what are you trying to figure out? Granny's has mounts.

Derek_McDermott

iTrader: (1)

Yeh ill use the 302 engine with the stock tranny and if I get the granny mounts what else will I need besides for the driveshaft?

darrin1

o

darrin1

i have 302 tko 500 trans and love it. also carbed. easy to do had to make shifter extension which isnt that hard

Derek_McDermott

iTrader: (1)

Very good to know. Doesn't grannyspeed also make an exstion though.

darrin1

Yea looks like a dogbone dosent work all that great. Ill try to get a pic of mine tomorrow and give you a better idea of what i did.

Derek_McDermott

iTrader: (1)

Alright man thank you. You using a t2 rear end or did you do a 8.8 swap?

Derek_McDermott

iTrader: (1)

Also how'd you rub the clutch line since the t5 is cable and the rx7 is hydrolic?

darrin1

Factory rear factory driveshaft. If you are running a t5 i have external slave cylinder and mounting bracket for sale i bought a hinson modified master cylinder. Worked perfectly till i swapped over to tko500 which uses different external slave cylinder. If you need more info and pix you can text me at 570 764 6249.

Ranger19

I am planning on doing a 5.0 FC as well, I will be following this thread.............

Derek_McDermott

iTrader: (1)

Haha mines going to be a slow build, but I will defiantly post my build on this.

kcdan

If you make your own bracket, you can use the stock Mazda hydraulic slave and master cylinder.. only thing I bought was a brake line and hard metal line from Autozone. Pics here:

http://www.norotors.com/index.php?to...6217#msg216217

Derek_McDermott

iTrader: (1)

Sorry for getting back to you so late ive been super busy with school, but how hard was that to make? And howd you go about making them?

Derek_McDermott

iTrader: (1)

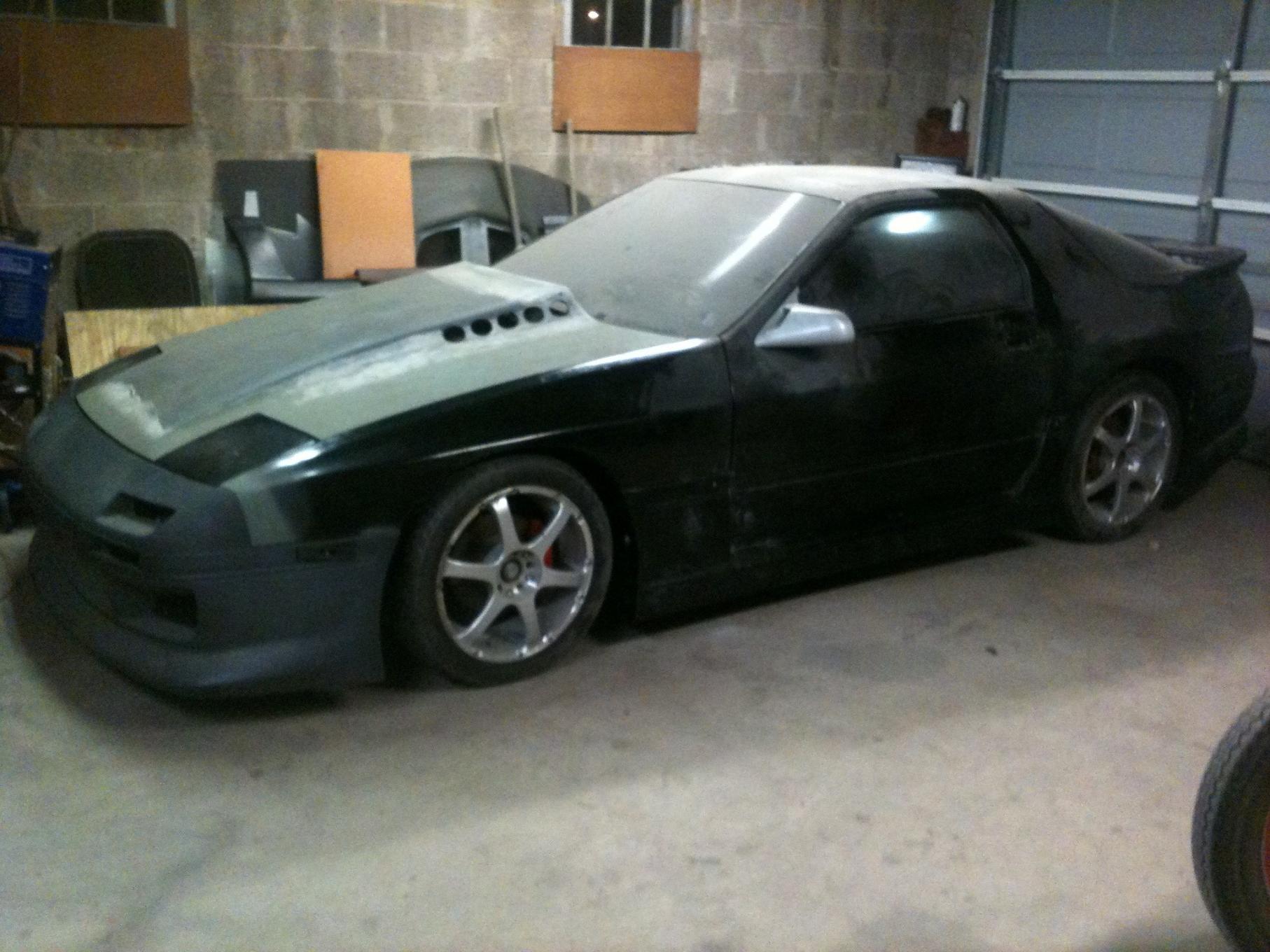

So I just cleared out my engine bay of everything and washed it down a bit. Gonna buy purple power tomorrow and take off the dash to get it all out since I'm going carbd and don't need it. Got to dark go take pictures do I will be taking some tomorrow and posting them up.

CobraPowered87

Hey, I've got an FC with a '93 Cobra FI setup in it. Let me know if you need pics of anything specific.
