FD RX7 with SB2.2 NASCAR Chev

Old 04-09-14, 10:08 AM
  #1
Junior Member
Thread Starter

Join Date: Dec 2011
Location: Perth, Western Australia
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts
FD RX7 with SB2.2 NASCAR Chev

Hi

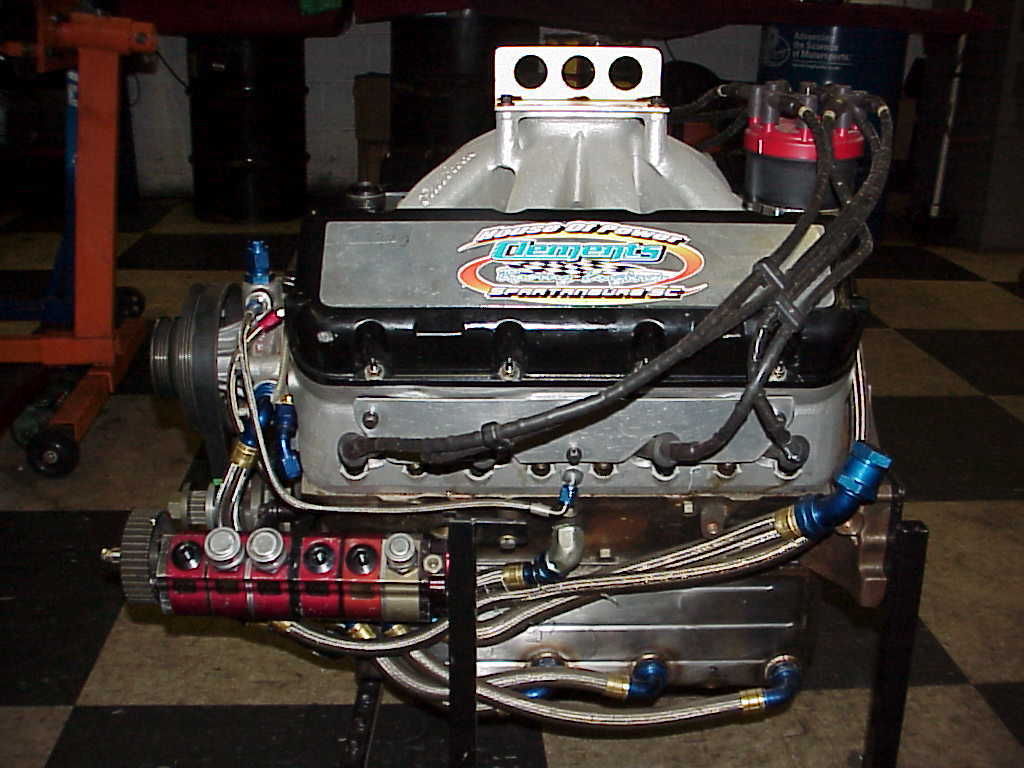

We are sticking 800hp of this
Name:  Chev1_zps37555551.jpg
Views: 442
Size:  98.1 KB

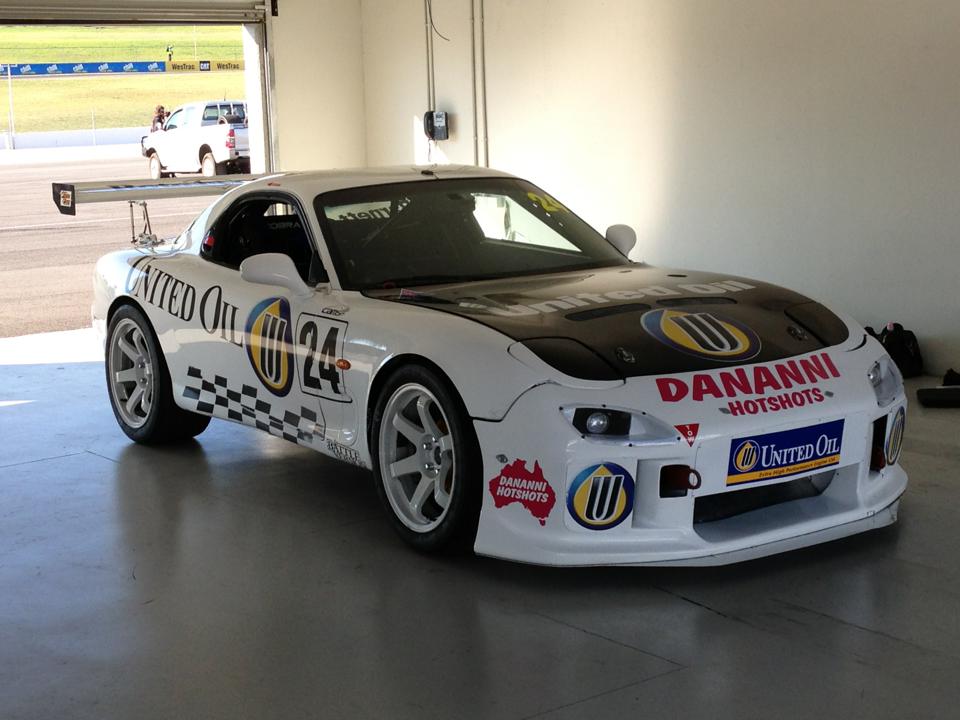

In This
Name:  FDinpits_zpsb95bb605.jpg
Views: 305
Size:  73.0 KB

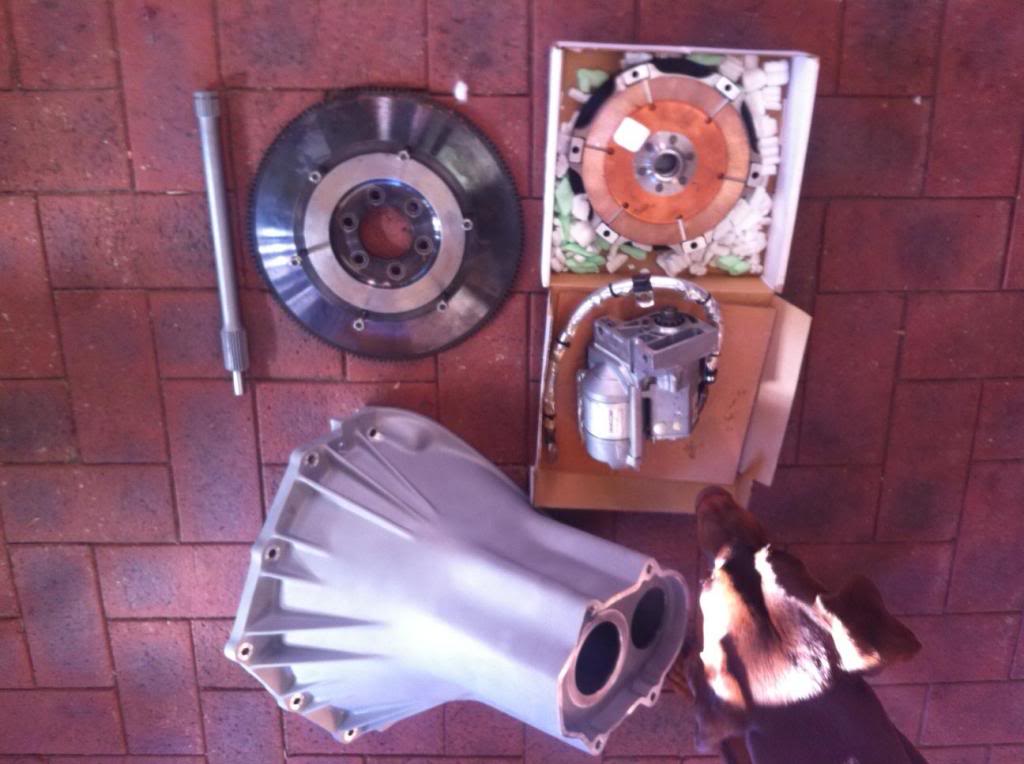

With this
Name:  Photobomb_zps5b602368.jpg
Views: 119
Size:  79.3 KB

Hooked up with this


=
Kingscorp is offline
Old 04-15-14, 09:01 AM
  #2
RX-347
iTrader: (2)

digitalsolo's Avatar

Join Date: May 2003
Location: Fort Wayne, IN
Posts: 2,115
Likes: 0
Received 0 Likes on 0 Posts
Way cool. Looking forward to this one.
digitalsolo is offline
Old 04-16-14, 02:16 PM
  #3
Anti-Hero

thethingthatshouldnotbe's Avatar

Join Date: Jul 2011
Location: Brownsburg, Indiana
Posts: 318
Likes: 0
Received 0 Likes on 0 Posts
Impressive. Lets see this
thethingthatshouldnotbe is offline
Old 04-16-14, 03:26 PM
  #4
brap brap brap
iTrader: (2)

evo_koa's Avatar

Join Date: Jan 2012
Location: Huntsville, Al
Posts: 1,195
Received 14 Likes on 14 Posts
very cool, i dont know where your going to mount the dog
evo_koa is online now
Old 04-18-14, 06:02 AM
  #5
Enthusiast
iTrader: (5)

rx7 SE's Avatar

Join Date: Aug 2004
Location: Charlotte, NC
Posts: 2,181
Likes: 0
Received 1 Like on 1 Post
This. I gotta see.
rx7 SE is offline
Old 04-18-14, 04:26 PM
  #6
Your Mother Is A Lizard
10 Year Member
iTrader: (7)

DRFT_HRD's Avatar

Join Date: Jun 2006
Location: Syracuse, Utah
Posts: 667
Likes: 0
Received 0 Likes on 0 Posts
Dog-box, duh.
DRFT_HRD is offline
Old 04-18-14, 09:06 PM
  #7
Can Post Only in New Member Section

Join Date: Apr 2014
Location: Washington
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Interesting to say the least
ownTer is offline
Old 04-19-14, 10:40 AM
  #8
Piston Head
iTrader: (5)

Littleguy's Avatar

Join Date: Nov 2004
Location: Houston, TX
Posts: 501
Received 6 Likes on 6 Posts
Damn!
Littleguy is offline
Old 04-20-14, 10:18 AM
  #9
Junior Member
iTrader: (2)

Join Date: Nov 2012
Location: NJ
Posts: 36
Likes: 0
Received 0 Likes on 0 Posts
RichC is offline
Old 04-23-14, 08:53 PM
  #10
Junior Member
Thread Starter

Join Date: Dec 2011
Location: Perth, Western Australia
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts

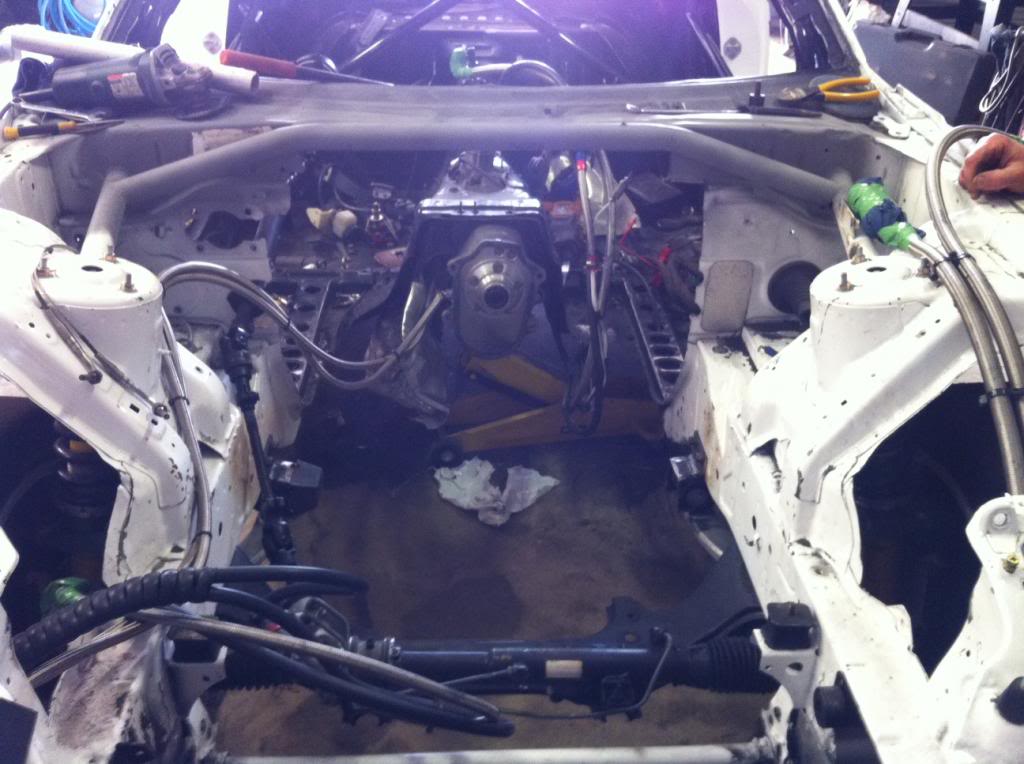

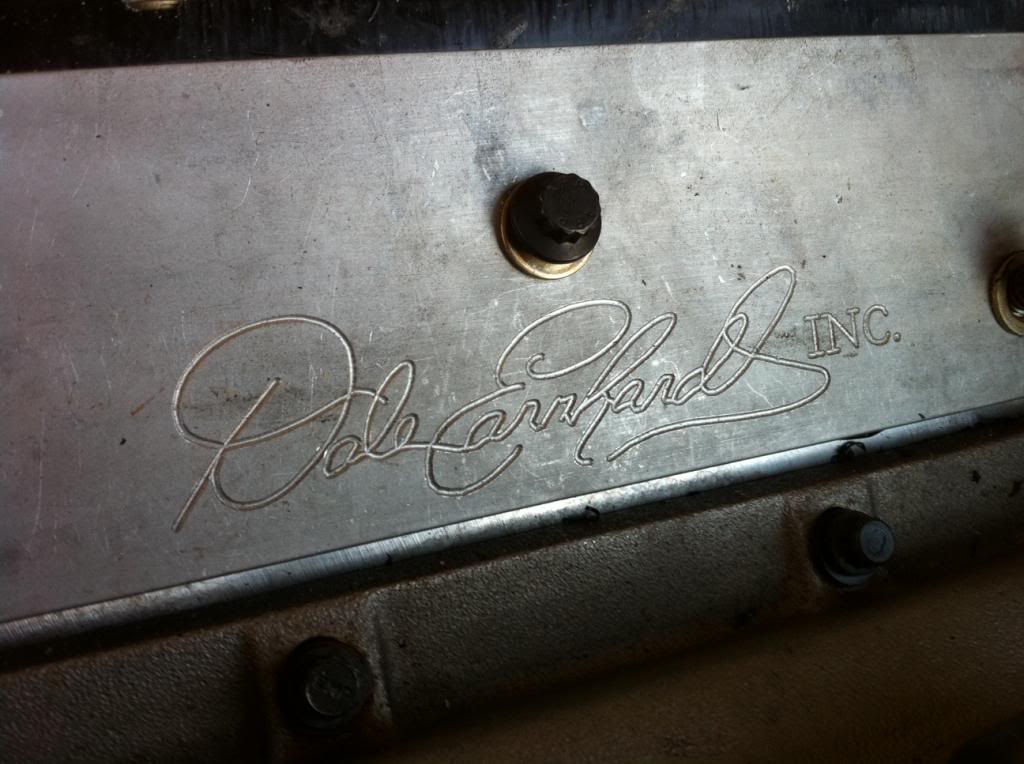

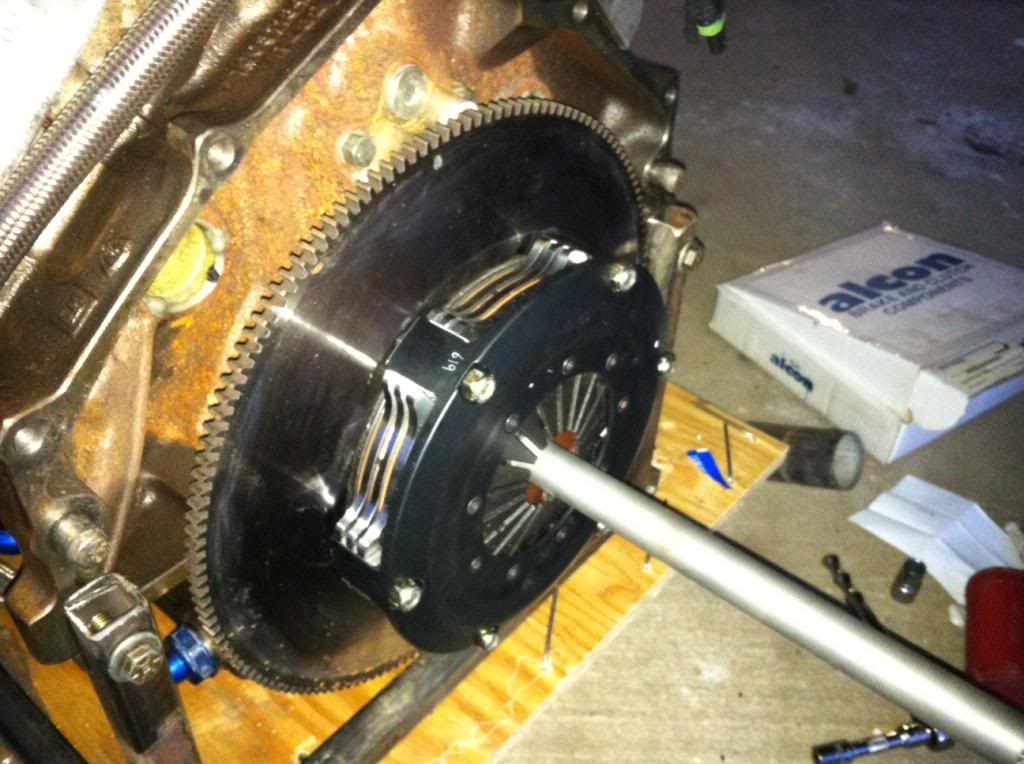

Progress Shots

Name:  eng_zpsda76f0e8.jpg
Views: 94
Size:  118.0 KB

Name:  eng3_zpsc0f9c119.jpg
Views: 115
Size:  116.1 KB

**** ****
Name:  eng2_zps37309572.jpg
Views: 89
Size:  91.6 KB

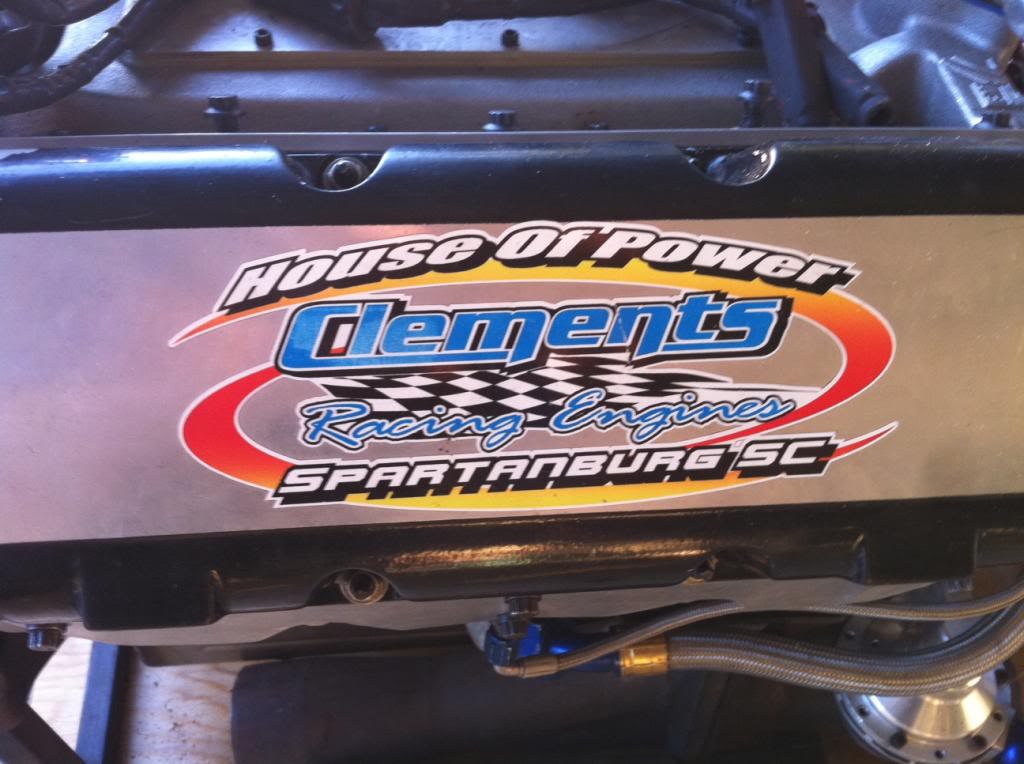

Name:  eng4_zpse00ddf5b.jpg
Views: 96
Size:  93.5 KB

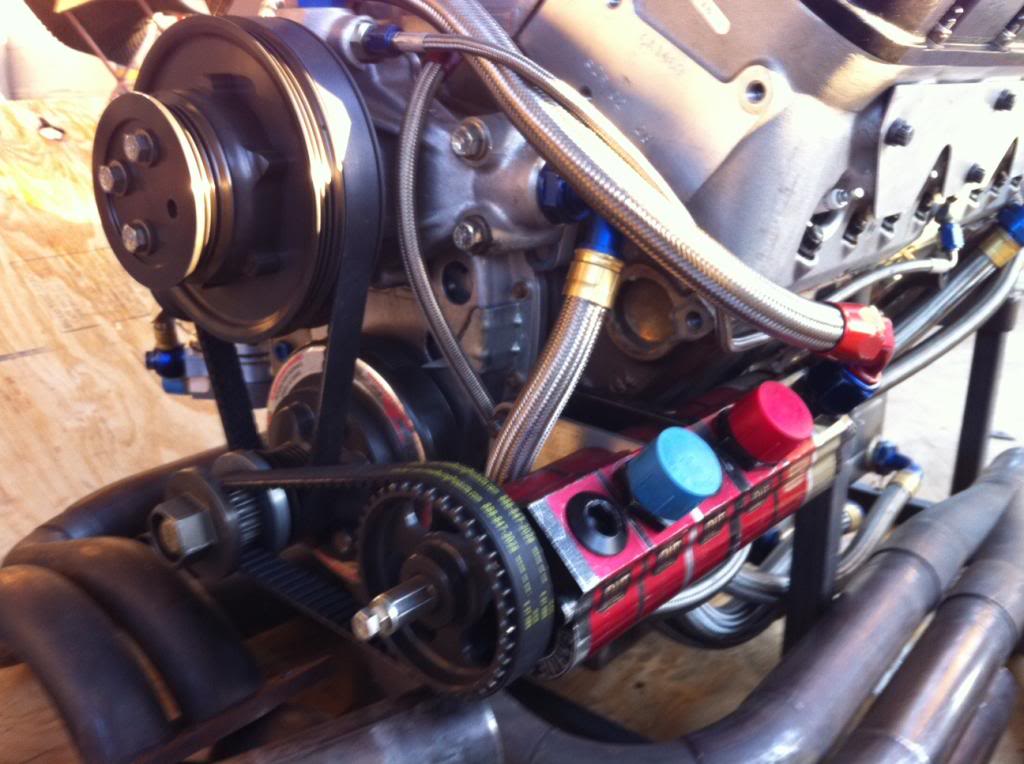

Name:  eng5_zps26501fca.jpg
Views: 100
Size:  96.5 KB

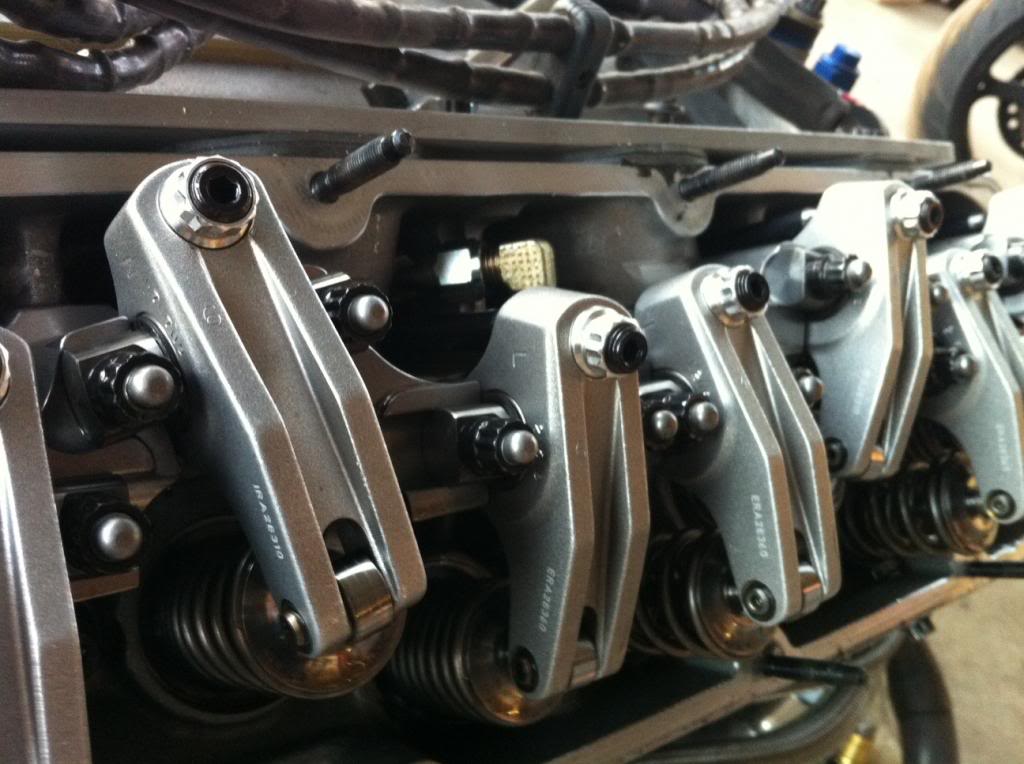

Name:  eng6_zps14fc657f.jpg
Views: 122
Size:  92.9 KB

Name:  eng7_zpse4da03de.jpg
Views: 90
Size:  105.0 KB

Name:  eng12_zpsb870ae15.jpg
Views: 100
Size:  93.3 KB

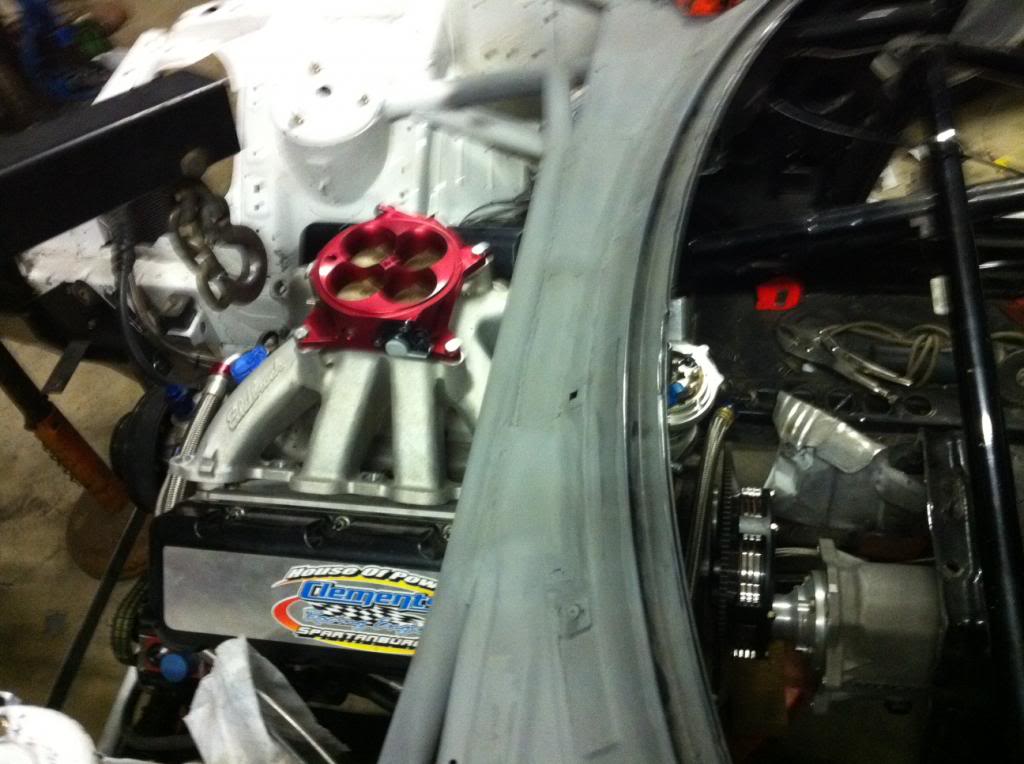

Name:  eng8_zpsec8d42f0.jpg
Views: 109
Size:  87.7 KB

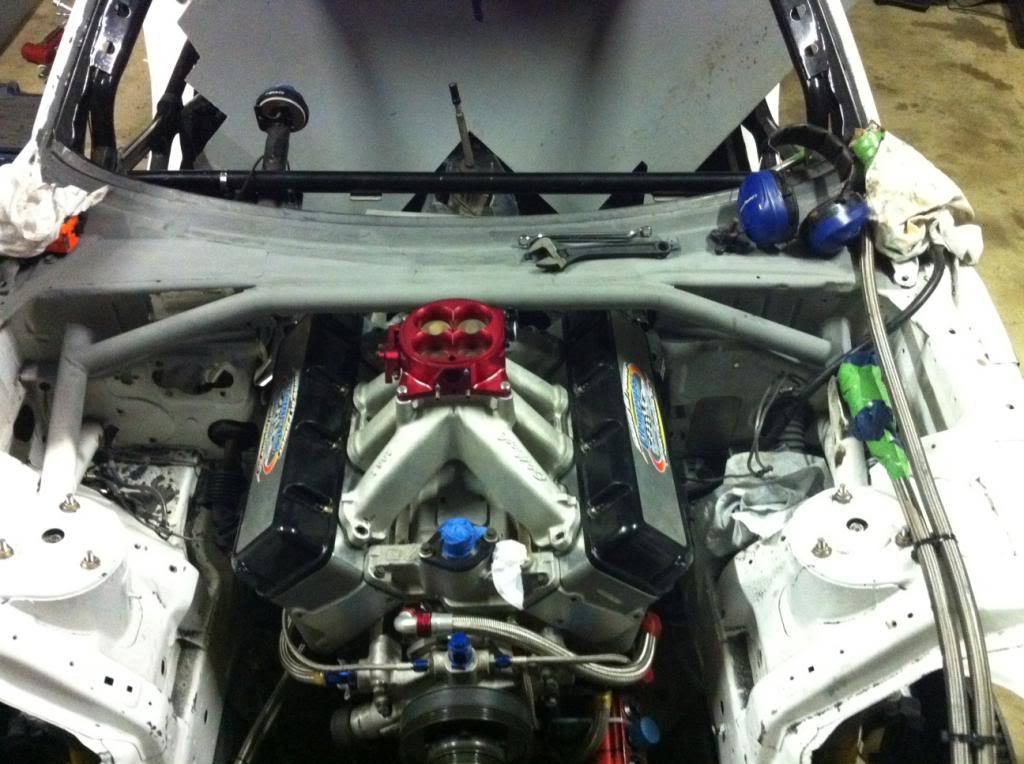

Name:  eng9_zps5b4b91fb.jpg
Views: 143
Size:  107.6 KB

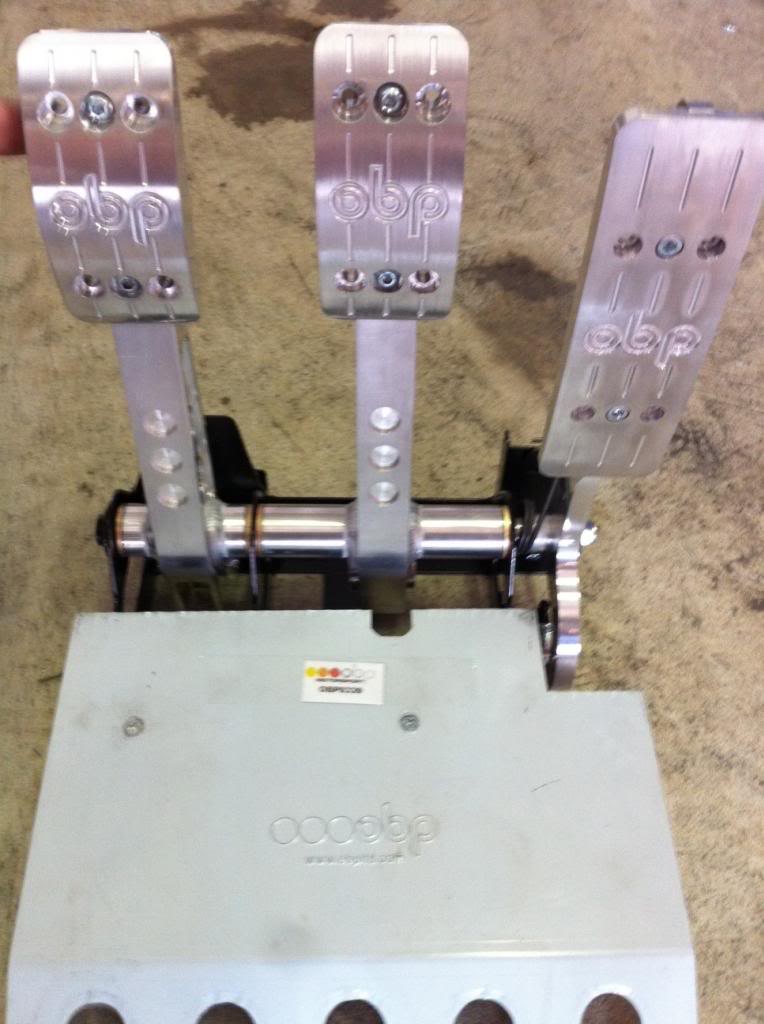

Name:  eng10_zps49cc156d.jpg
Views: 83
Size:  76.9 KB

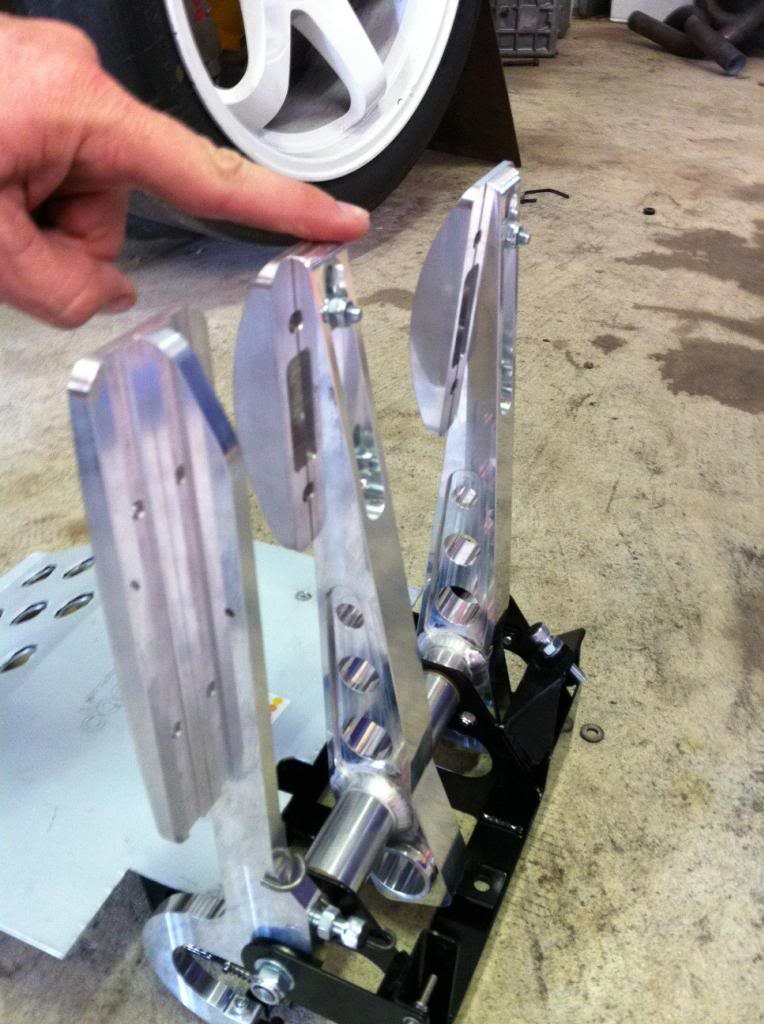

Name:  eng11_zpsdb2c71b8.jpg
Views: 84
Size:  102.7 KB
Kingscorp is offline
Old 04-24-14, 01:39 PM
  #11
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,587
Received 119 Likes on 85 Posts
Sweet. Not sure the engine is far enough to the rear
Narfle is offline
Old 04-28-14, 08:08 PM
  #12
Rotary Freak
iTrader: (10)

Join Date: Mar 2001
Location: San Francisco, CA
Posts: 2,056
Likes: 0
Received 3 Likes on 3 Posts
Wow!

Down Under getting it done!

You are going to need better brakes
gnx7 is offline
Old 05-01-14, 06:24 AM
  #13
Junior Member

Join Date: May 2014
Location: Raleigh, nc
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Good lord that's nasty
Libertarian constitution is offline
Old 05-01-14, 10:29 PM
  #14
Junior Member
Thread Starter

Join Date: Dec 2011
Location: Perth, Western Australia
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts
Glad you guys approve.
We have had the engine for a week and this is the progression so far
* Engine has been mounted on a custom made rear section of the cross member and engine mounts
* Steering race mounting has been modified to clear the dry sump pump
* Holinger sequential gearbox is mounted (Power frame and Tailshaft still need mods)
* New firewall frame work is fabricated
* Pedal Box has been mounted into a box frame and sunken into the floor
* custom made power steering and Alternator mounts fabricated and mounted
* increased cage work around the top of the firewall to strengthen the car after the removal of part of the cross member

Will post some pics soon
Kingscorp is offline
Old 05-01-14, 10:37 PM
  #15
Junior Member
Thread Starter

Join Date: Dec 2011
Location: Perth, Western Australia
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts

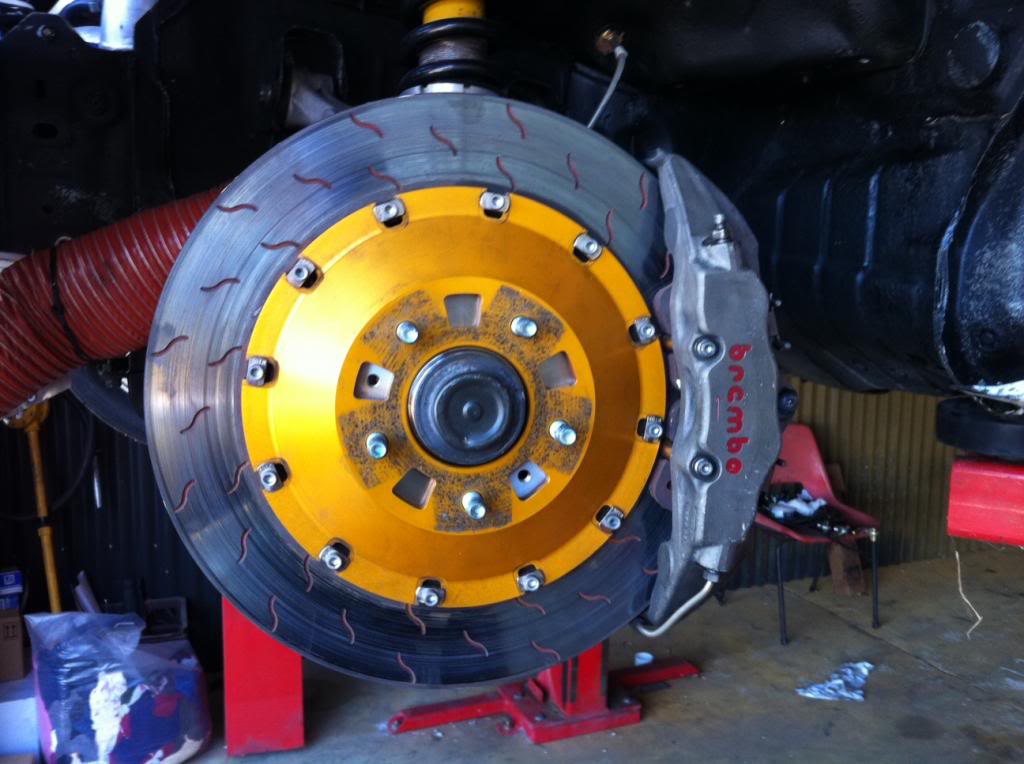

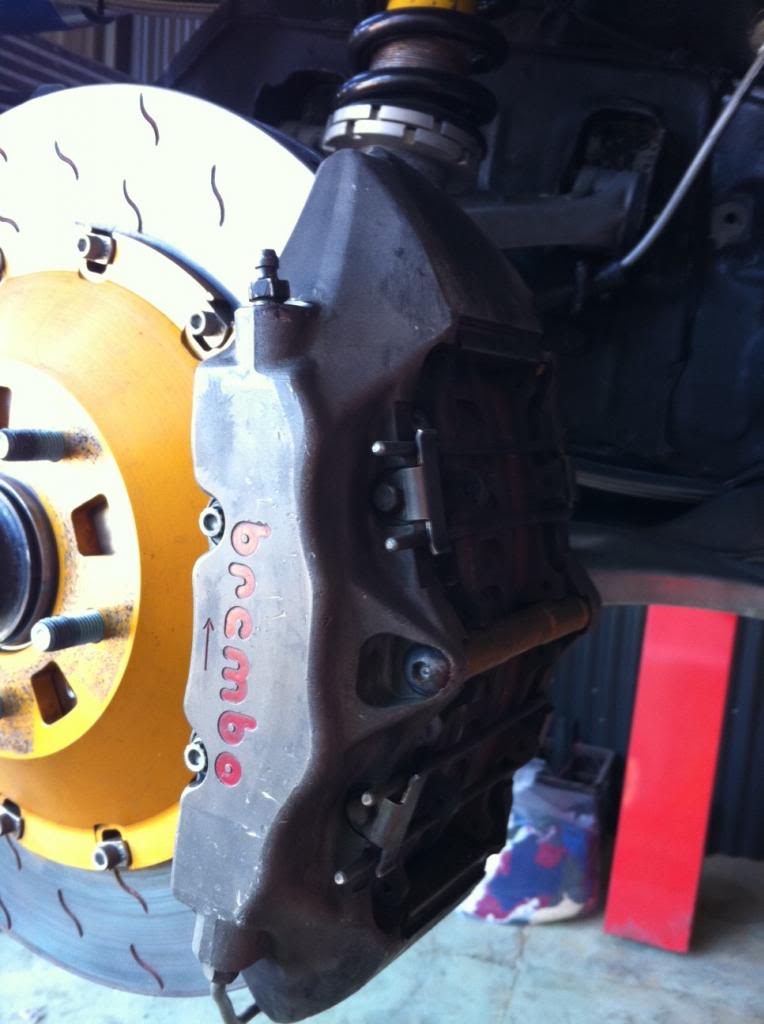

Front brakes
380mm x 36mm full floating Alcon Aussie V8 Supercar Rotors
8 Piston Mono Block lightweight calipers with titanium pistons and carbon heat sink ends

Rear
348mm 32mm Alcon solid mount V8 Supercar rotors
Alcon 4 piston Calipers

OPB floor mount Pedal box

Name:  Brakes1_zps67248c2a.jpg
Views: 144
Size:  87.0 KB

Name:  Brakes_zpsf5b81dbe.jpg
Views: 102
Size:  67.1 KB
Kingscorp is offline
Old 05-02-14, 12:11 AM
  #16
Playing Well
iTrader: (19)

Natey's Avatar

Join Date: Aug 2004
Location: Santa Cruz
Posts: 3,887
Received 55 Likes on 43 Posts
Haha, if that's you, you're looking like a kid walking out of the toy store in the fork-lift pic.

Also, just wondering what was in that car before this swap. Some of the meanest rotarys around come out of your neck of the woods if I recall correctly.

Originally Posted by gnx7 View Post
Wow!

Down Under getting it done!

You are going to need better EARPLUGS
fixt.
Natey is offline
Old 05-02-14, 12:28 AM
  #17
Junior Member
Thread Starter

Join Date: Dec 2011
Location: Perth, Western Australia
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts
Na not me in the pics, I'm the one behind the camera. There my mates Steve and Jeff who are doing all the work on the car.

Was a Bridgeport 13B with a T04Z running 20psi

Kingscorp is offline
Old 05-02-14, 12:19 PM
  #18
Junior Member
Thread Starter

Join Date: Dec 2011
Location: Perth, Western Australia
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts

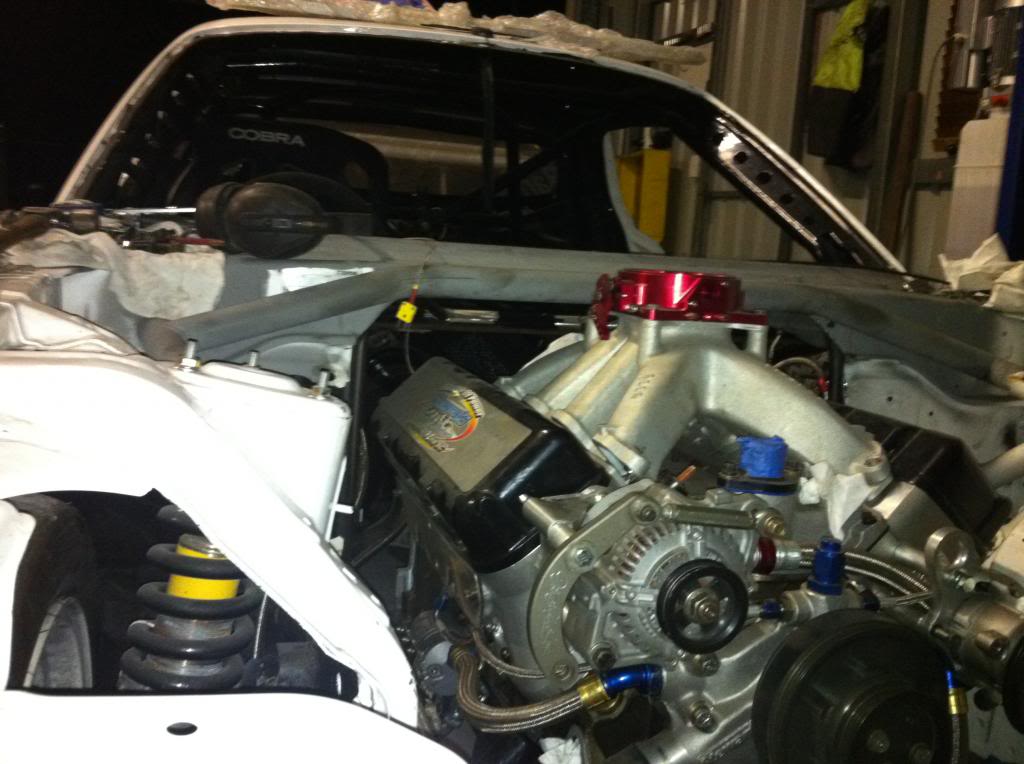

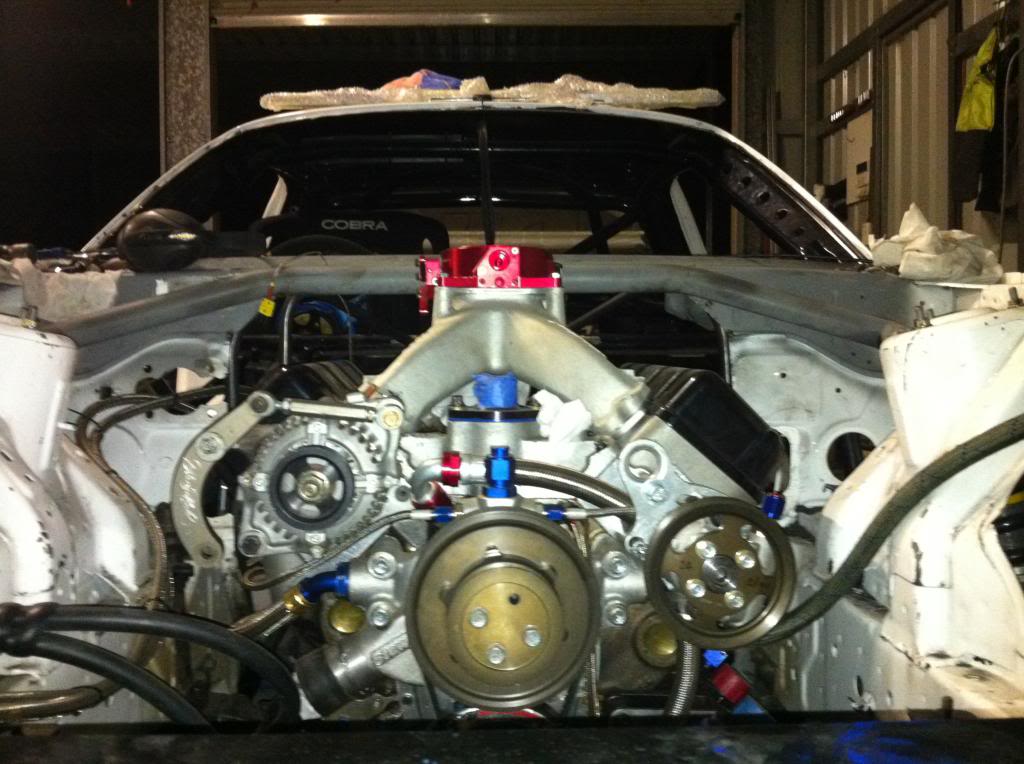

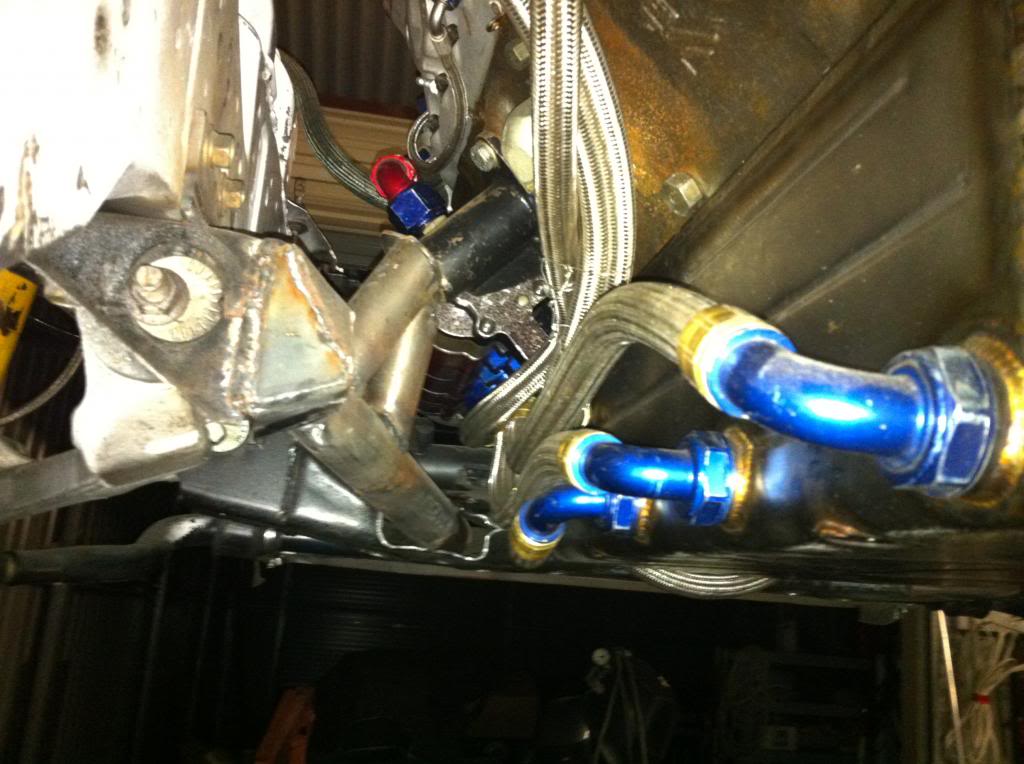

More pics

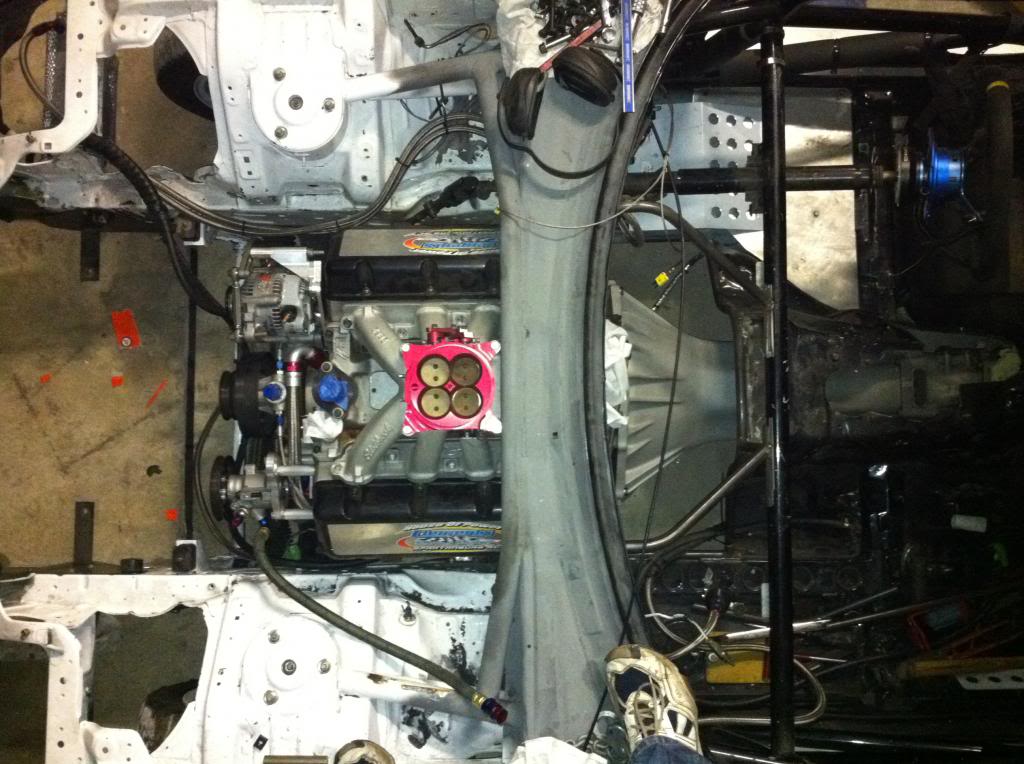

Name:  02052014781_zps030d2578.jpg
Views: 91
Size:  116.7 KB

Name:  02052014780_zps5d648000.jpg
Views: 100
Size:  87.9 KB

Name:  02052014779_zpsd0802831.jpg
Views: 115
Size:  104.1 KB

Name:  02052014778_zpse6c38881.jpg

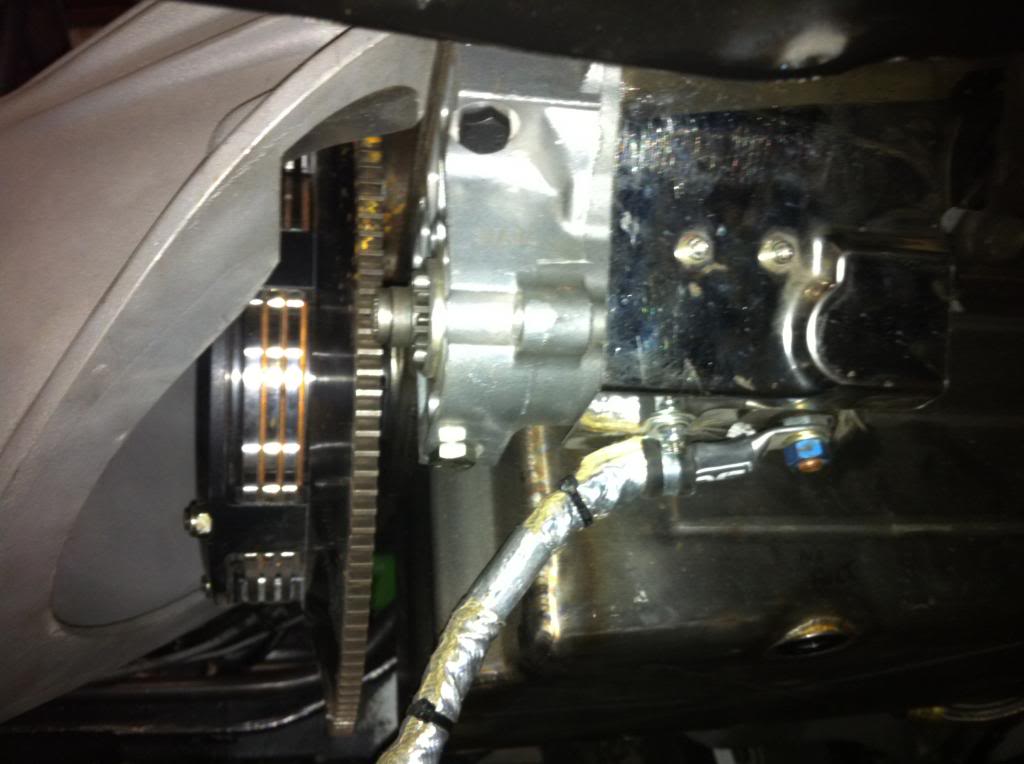

Views: 89
Size:  67.5 KB

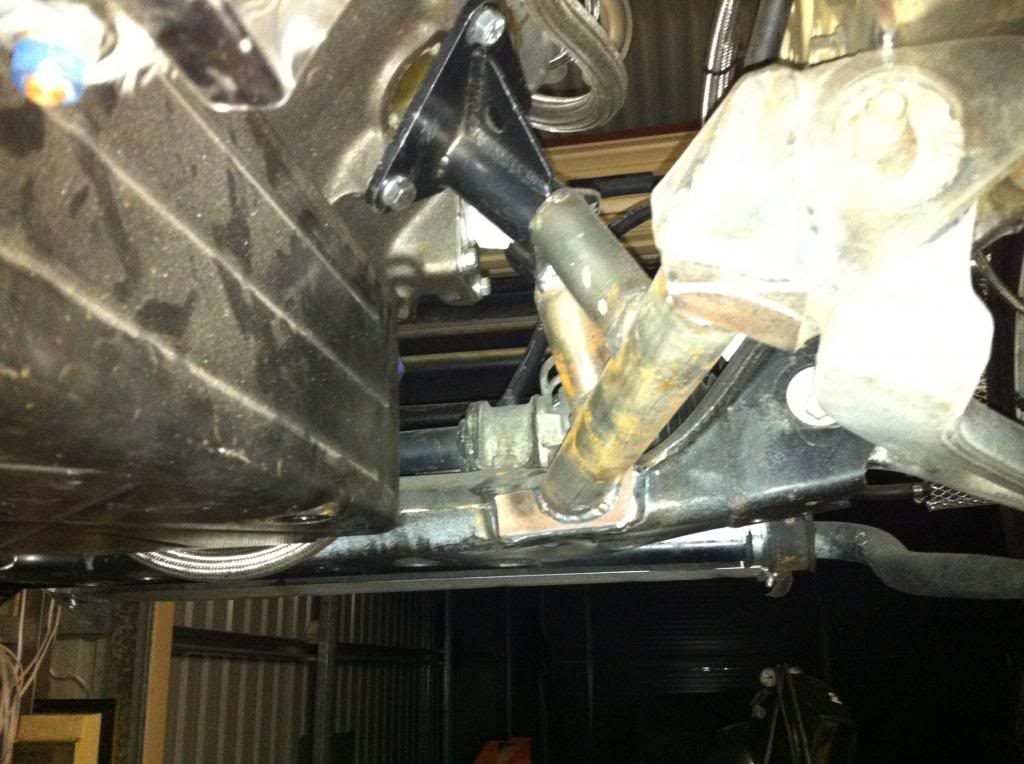

Name:  02052014777_zpsc38a0089.jpg
Views: 87
Size:  93.9 KB

Name:  02052014776_zpsbbf1c5d3.jpg
Views: 95
Size:  94.5 KB

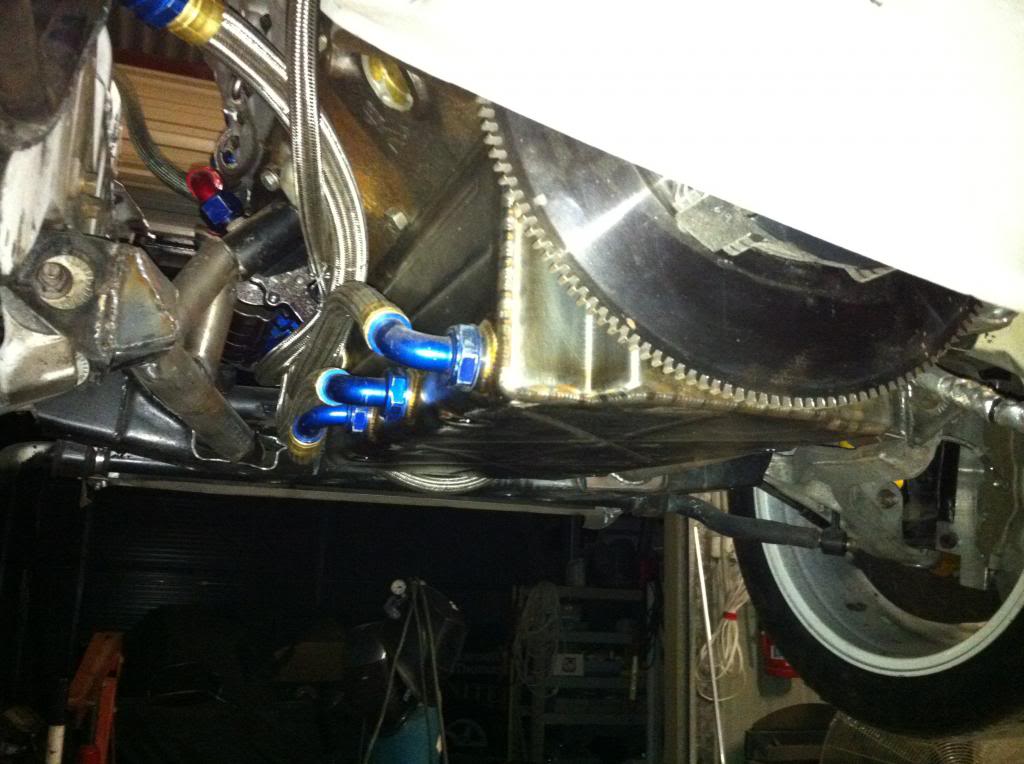

Name:  02052014775_zps0d729f71.jpg
Views: 143
Size:  90.7 KB
Kingscorp is offline
Old 05-03-14, 05:19 PM
  #19
RX-347
iTrader: (2)

digitalsolo's Avatar

Join Date: May 2003
Location: Fort Wayne, IN
Posts: 2,115
Likes: 0
Received 0 Likes on 0 Posts
Hah, this is ridiculous. Ridiculously awesome!
digitalsolo is offline
Old 05-04-14, 06:38 PM
  #20
Full Member
iTrader: (1)

Join Date: Sep 2012
Location: Maryland
Posts: 57
Likes: 0
Received 0 Likes on 0 Posts
subscribing to this epic-ness!
gsx-lex is offline
Old 05-05-14, 09:12 AM
  #21
Junior Member
Thread Starter

Join Date: Dec 2011
Location: Perth, Western Australia
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts
great stuff, thanks for the interest

I will post some more pics soon.

At this stage we are looking at racing at the June round of the Super GT Championship. I will make sure the in car camera is working!

Thanks
Ash
Kingscorp is offline
Old 05-15-14, 08:33 PM
  #22
LS+FD= ** D

mvs1's Avatar

Join Date: May 2013
Location: Houston TX
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
Freaking Love Aussies, I could become an ex-patriot to Australia or New Zealand so fast. They're bat **** crazy and don't understand why people think they are. Looking forward to seeing how this turns out.
mvs1 is offline
Old 05-18-14, 05:57 AM
  #23
Junior Member
Thread Starter

Join Date: Dec 2011
Location: Perth, Western Australia
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by mvs1 View Post
Freaking Love Aussies, I could become an ex-patriot to Australia or New Zealand so fast. They're bat **** crazy and don't understand why people think they are. Looking forward to seeing how this turns out.
Haha, move over here then and get on band wagon!
Kingscorp is offline
Old 05-21-14, 10:41 AM
  #24
Trackstar motorsport
10 Year Member
iTrader: (8)

97SupraTwinTurbo's Avatar

Join Date: May 2002
Location: glendale, ca
Posts: 242
Likes: 0
Received 0 Likes on 0 Posts
Very impressive! How much power do the SB2.2 motors have? This is one hell of a combination. Is that a jerico trans?
97SupraTwinTurbo is offline
Old 05-22-14, 05:35 AM
  #25
Junior Member
Thread Starter

Join Date: Dec 2011
Location: Perth, Western Australia
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 97SupraTwinTurbo View Post
Very impressive! How much power do the SB2.2 motors have? This is one hell of a combination. Is that a jerico trans?
Its 780hp at 7600rpm, that's with a carby and pump fuel. We are running injection with E85 and revving it to 8500rpm, so should go easily more than 800hp.

Gearbox is a Australian V8 Supercar Holinger RD6S sequential 6 speed

Ash
Kingscorp is offline
