Car Body wont power up!! HELP what wires? pix!
09-16-13, 03:23 PM
#1
\/ MY CAR \/
Thread Starter
Join Date: Mar 2003
Location: NEW YORK
Posts: 126
Likes: 0
Received 0 Likes
on
0 Posts
Car Body wont power up!! HELP what wires? pix!

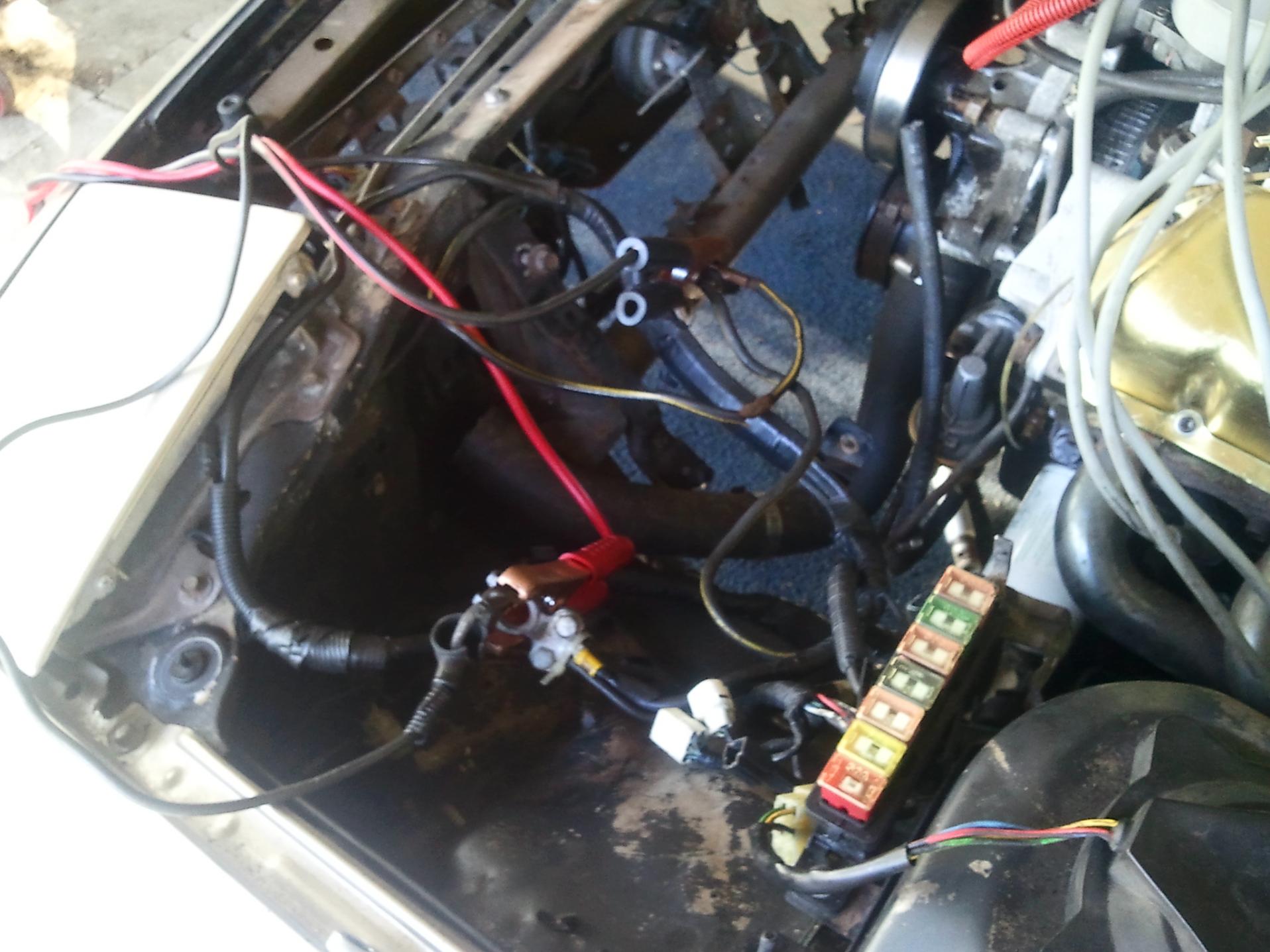

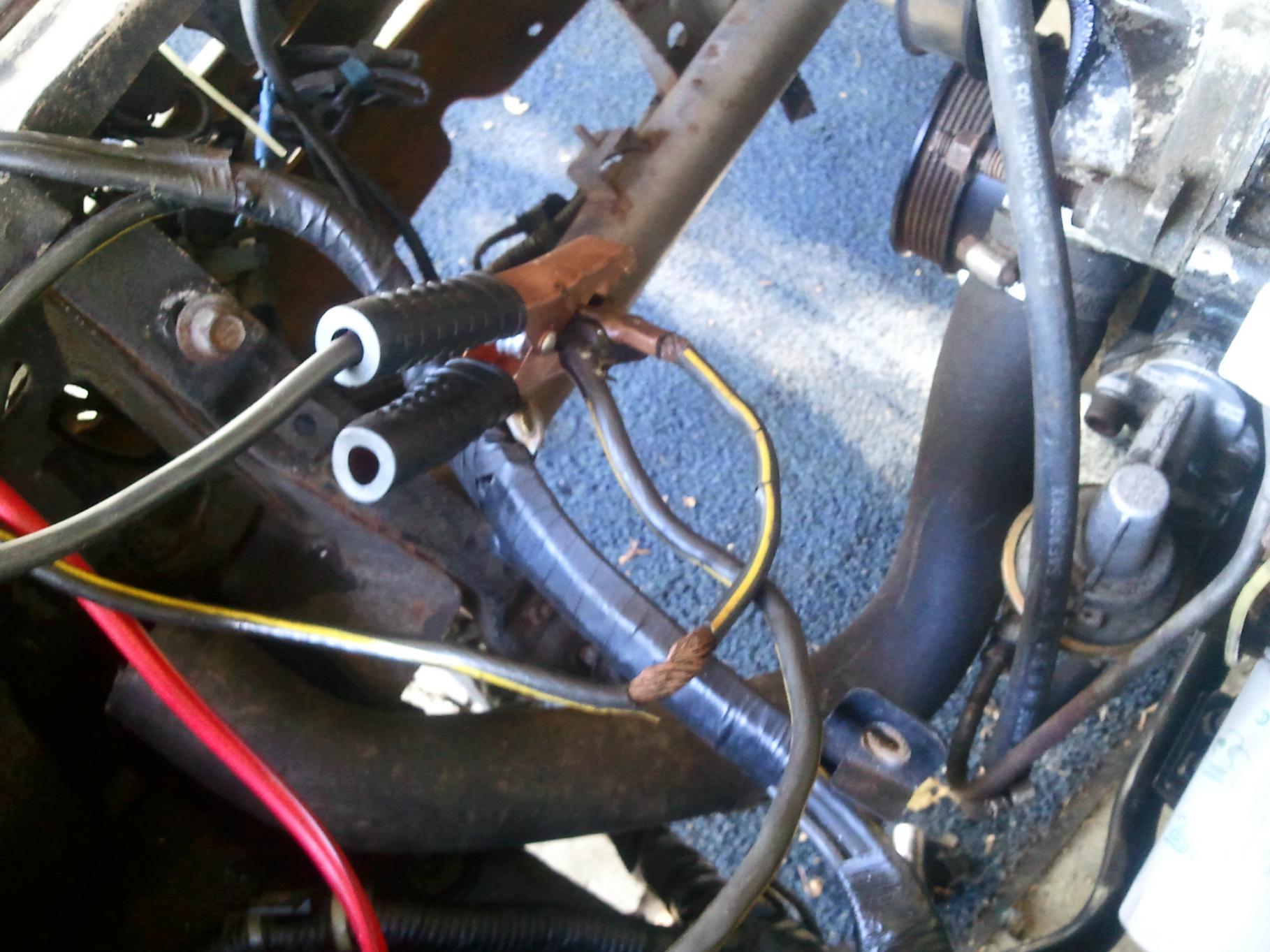

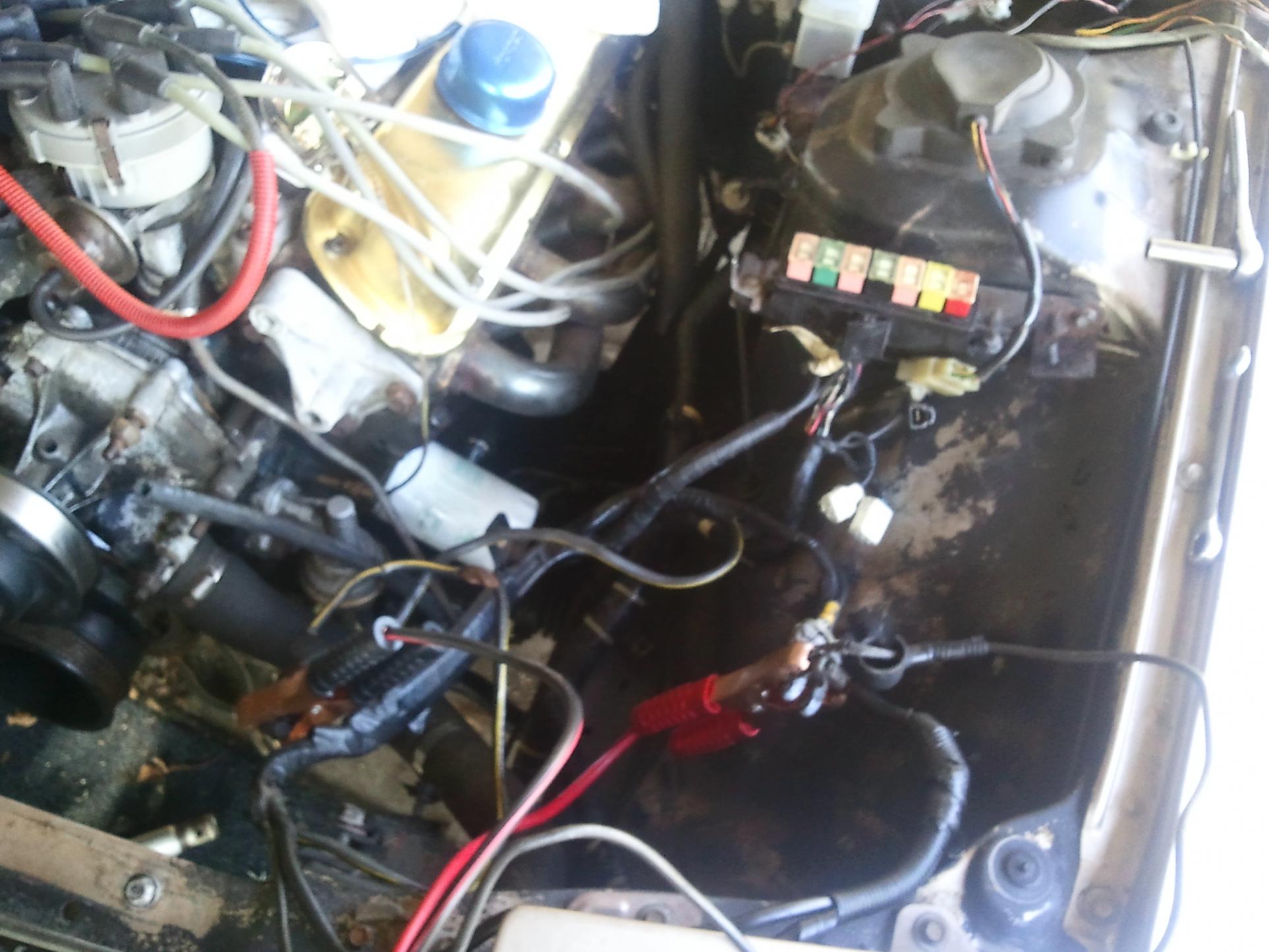

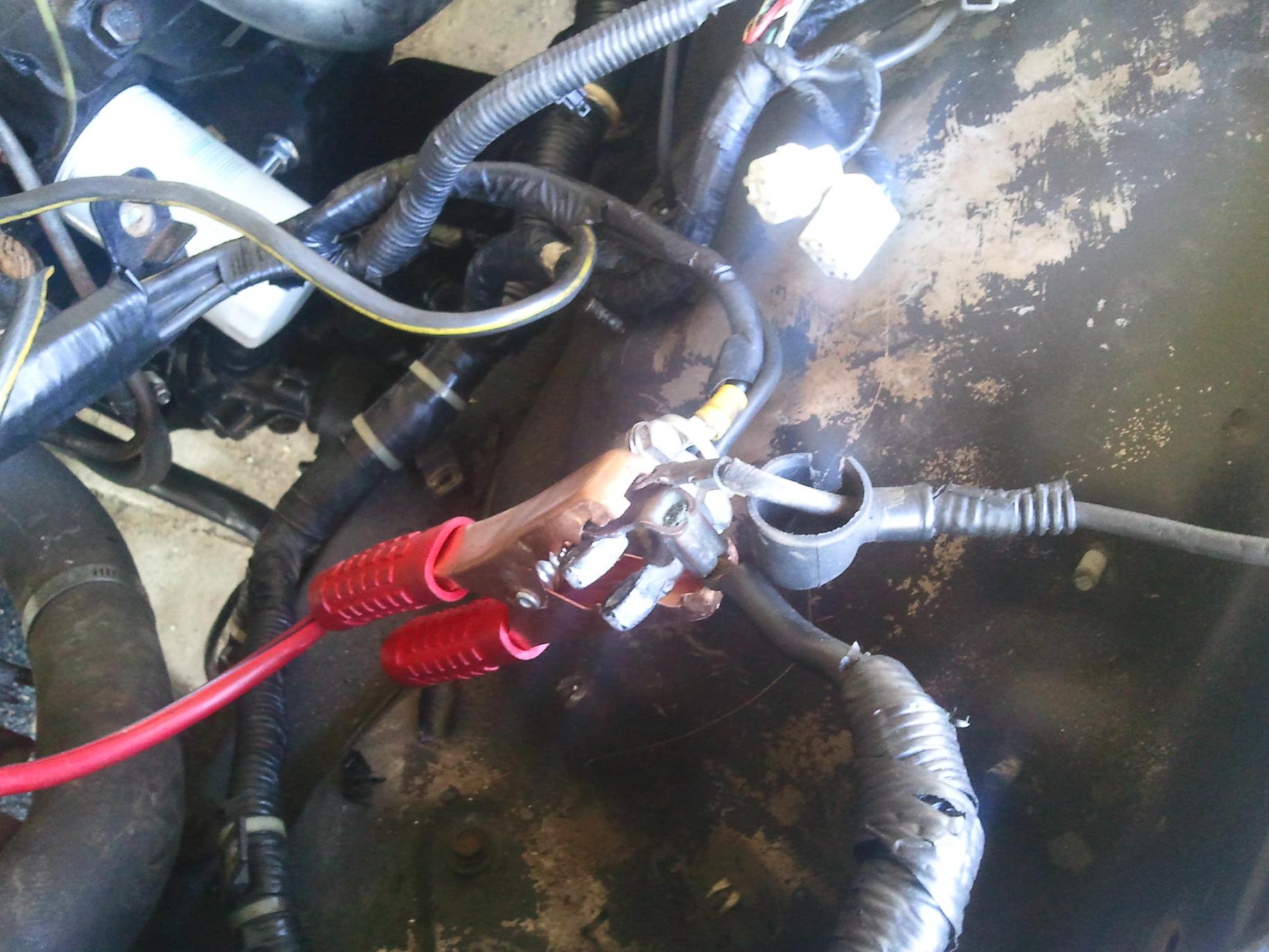

i have these wires hooked up.. nothing happens with the key or horn or anything. nothing is hooked to the V8 but a body ground. pix
10-20-13, 02:41 PM
#3
Newbie
Join Date: Oct 2013
Location: Ephrata PA
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
For the dash lights make sure you have the ground in the x14 connector grounded, it normally plugs into the ECU I believe but thats probably gone.
12-13-13, 01:23 PM
#4
BlackFC-TII
Join Date: Jul 2005
Location: Saint Louis, Mo
Posts: 60
Likes: 0
Received 0 Likes
on
0 Posts

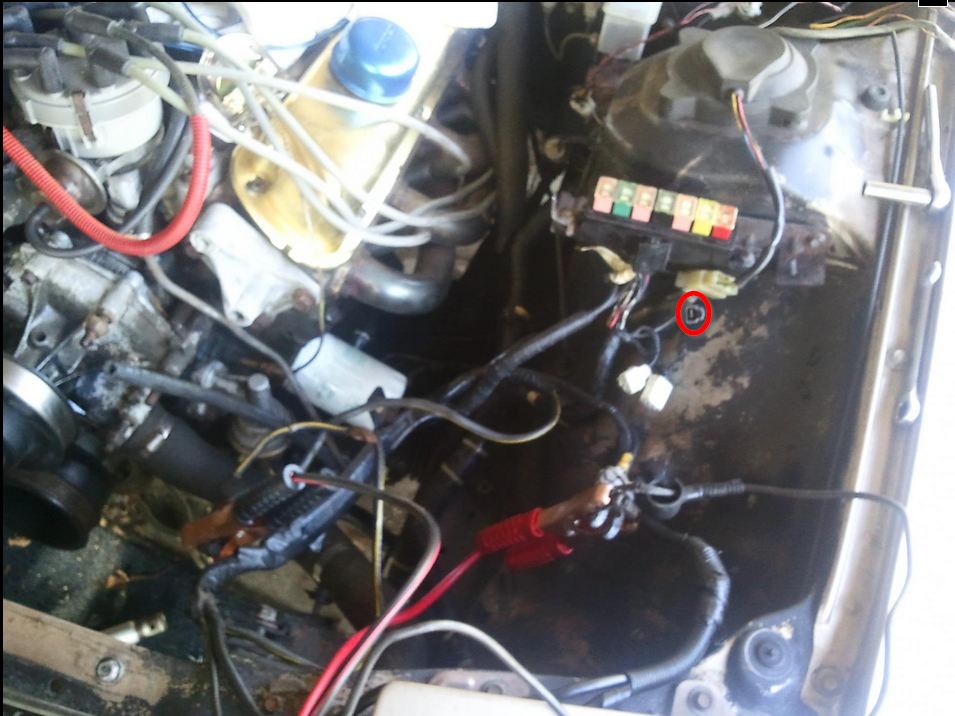

I know it's been a while, and hopefully you have found the solution by now, but I did not see it posted and just went through this myself. The connector circled below is what provides power to the inside of the car. There is a connector on the battery/starter harness that this plugged into that provided 12V from the battery after the 80A main fuse. If you connect this wire to the fused side of the battery power the inside of the car will have power again!
