383Mazda

Hey guys,

I'm using a 200-4R and I just need a shifter to get things going. I wouldn't call my self a neat freak, but I'd like the car to look good when it's finished.
I'd like a shifter that looks like a factory option when I'm done with it.
If you guys have had successful instals with your cars (I know most people probably run manuals) let me know what you did. I've heard you can rig a stock rx7 auto shifter to a chevy tranny.... let me know about that for sure if you know anything!
thanks a lot!!
brandon

getawaycarz

You can probably get a universal shifter cable from any speed shop and modify your original shifter a little to accept the end of the new cable. On the transmission side the length of the swing lever will need to be either shortened or lengthened from center to center of the mounting holes to get the gears to line up right. I started out trying to do the same idea but I am using a BMW driveline and made a pretty hairy setup for the transmission instead. Not so factory looking but after the shiftgate top cover plate and a center console...it looks like it belongs there now

ClassicCarKid52

I'm in the same boat man. I am looking at building a linkage adapter for mine as my dad is a welder. The stock arm on the shifter will have to be bent to the other side as that is the side that the shifter will have to attach to. From there I will build a rod or plate to connect the arm of the shifter to the transmission

RayX-7

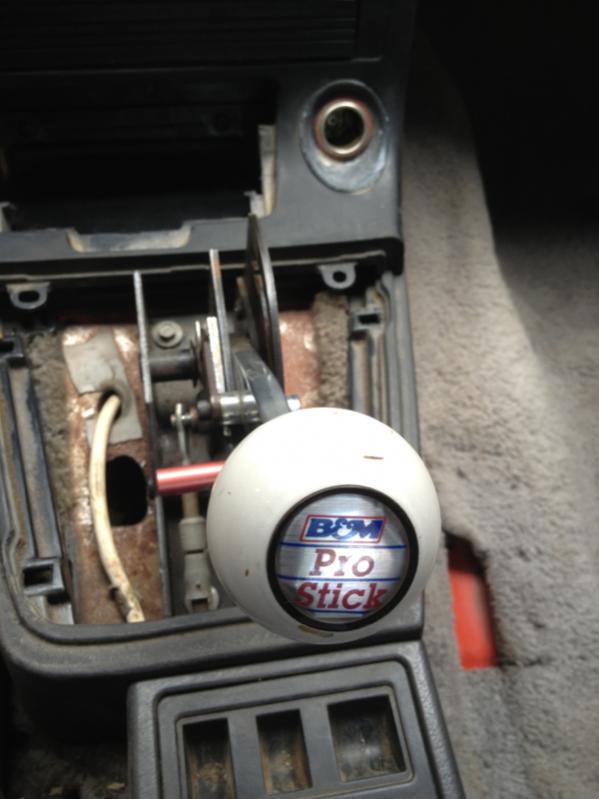

I got the same tranny in mine, and this is what the guy used. I like it, and when the FC factory manual boot cover is on it, it looks nice. I'll post a pic of that later

thethingthatshouldnotbe

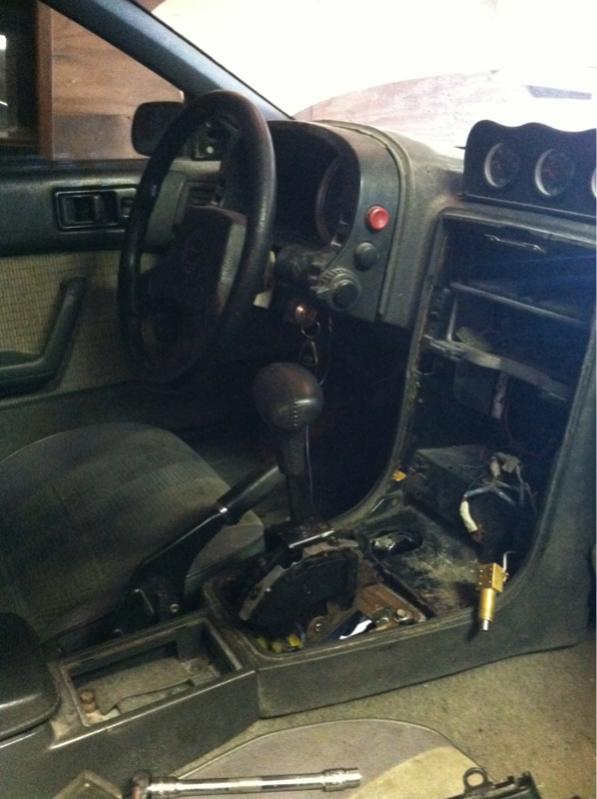

94 t/a shifter on a 700r and 86 rx7 base

RayX-7

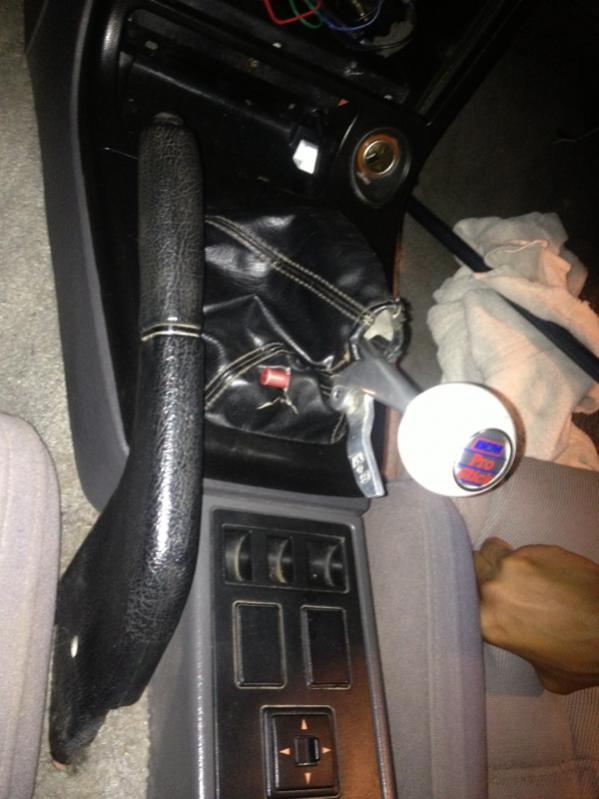

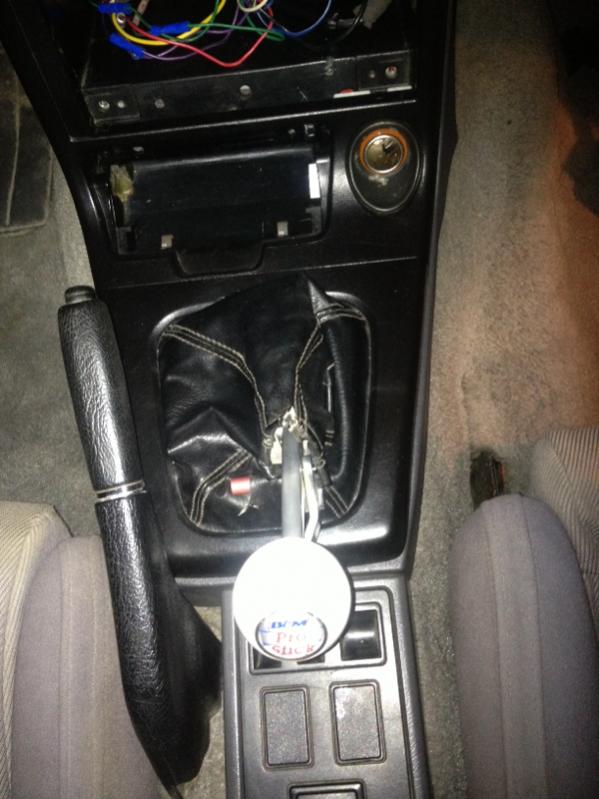

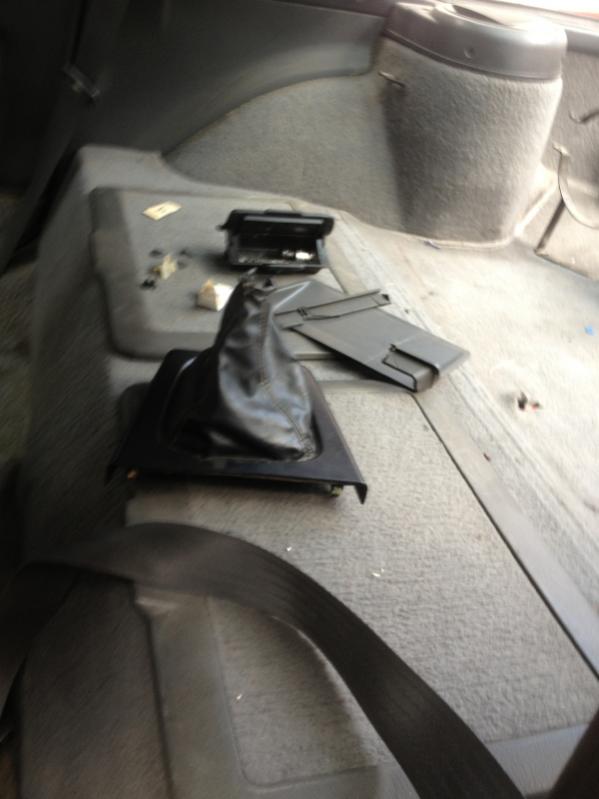

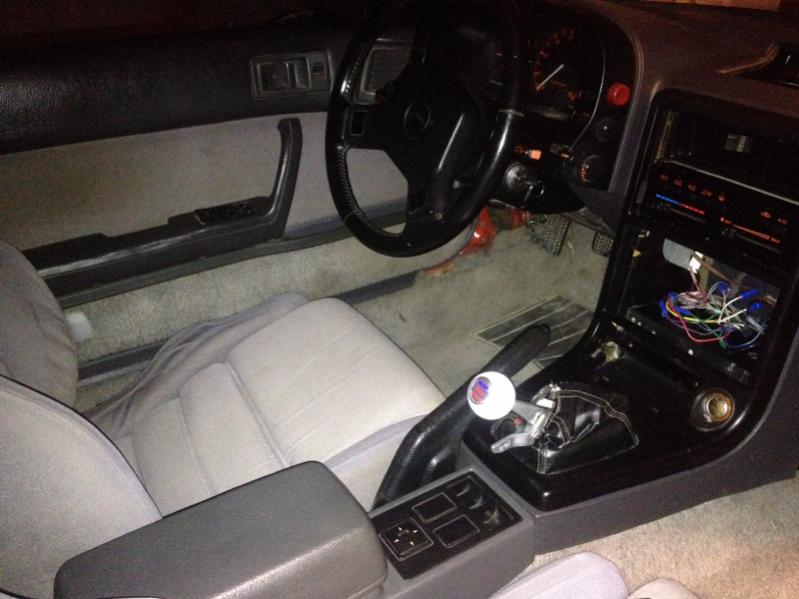

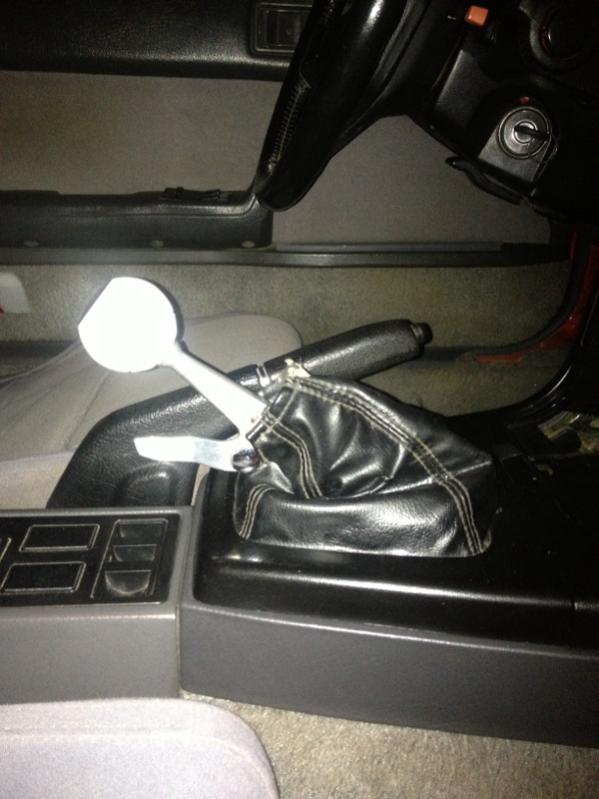

Here are some better pix

jasong21

I used the stock Mazda auto shifter with a grand am shift cable on a 4l60e. The shift cable snaps right onto the transmission shifter arm. I cut the bottom of the grand am shifter off that the other end of the cable snapped onto and welded it onto the bottom of the Mazda shifter arm. I also cut the cable bracket off the grand am and welded it into the tunnel to hold the cable in place. So far it works good I just need to adjust the cable since drive actually is 2 on the shifter face.

thethingthatshouldnotbe

That's why I did the ta shifter. That annoyed the **** out of me lol.
