351w swap

Old 01-02-19, 07:46 PM
  #176
Senior Member

Join Date: Oct 2013
Location: Clemmons, NC
Posts: 644
Received 20 Likes on 17 Posts
nice job gordie on the spacers. They should work. You will need the inner spacer which is much larger and needs to be made on a lathe
Freeskier7791 is offline
Old 01-02-19, 08:02 PM
  #177
Full Member
Thread Starter
iTrader: (1)

GFRENCH's Avatar

Join Date: May 2013
Location: miramichi nb canada
Posts: 150
Received 0 Likes on 0 Posts
Originally Posted by Freeskier7791 View Post
nice job gordie on the spacers. They should work. You will need the inner spacer which is much larger and needs to be made on a lathe
thanks andrew
which spacers are you talking about
do you mean inner breanings
i thought those years use a a-32 inner bearings
stock are a-32 as well
GFRENCH is offline
Old 01-03-19, 06:43 AM
  #178
Senior Member

Join Date: Oct 2013
Location: Clemmons, NC
Posts: 644
Received 20 Likes on 17 Posts
They were different for me, not exactly sure what size. Also you need to space the hub the right difference for the brake calipers to line up
Freeskier7791 is offline
Old 01-03-19, 06:18 PM
  #179
Full Member
Thread Starter
iTrader: (1)

GFRENCH's Avatar

Join Date: May 2013
Location: miramichi nb canada
Posts: 150
Received 0 Likes on 0 Posts
ok
see where i work we sell bearings and all listings back into the 60's
depending on what year shows 84-85 use a-32 and are called fb
86 - 89 use a-32 as well and called fc
so what ever i get i will need to wait and see what they are .

i'm really not a fan of the hei distrib i have . the way the wires are bothers me so today i bought on line a msd coil, 6al box and a normal distrib.
charged 38% conversion from us funds to canadian
this has to be the last i buy from us suppliers
it sucks as nowhere in canada to find some of the needed parts
so not sure where this puts me in my build
but it looks dim on this summer to finish
GFRENCH is offline
Old 01-03-19, 11:01 PM
  #180
Junior Member

Join Date: Nov 2018
Location: Ca
Posts: 14
Likes: 0
Received 1 Like on 1 Post
Originally Posted by GFRENCH View Post
ok
see where i work we sell bearings and all listings back into the 60's
depending on what year shows 84-85 use a-32 and are called fb
86 - 89 use a-32 as well and called fc
so what ever i get i will need to wait and see what they are .

i'm really not a fan of the hei distrib i have . the way the wires are bothers me so today i bought on line a msd coil, 6al box and a normal distrib.
charged 38% conversion from us funds to canadian
this has to be the last i buy from us suppliers
it sucks as nowhere in canada to find some of the needed parts
so not sure where this puts me in my build
but it looks dim on this summer to finish
I sent that same POS distributor back too, too large overall and made contact with the blower, among other things.

However if you can I'd cancel the order for the MSD stuff, they're called May Suddenly Die products for a reason. I went through 6 in a year with BS song and dance from them until I switched over to Crane and never looked back.

I ran this same one in my supercharged mustang for 6 years, sent it back once to have it looked at chasing down a random misfire that turned out to be the distributor and Fast(owns crane now) serviced it for free, with return shipping

Crane Ignition
Shaolin Crane is offline
Old 01-07-19, 04:52 PM
  #181
Full Member
Thread Starter
iTrader: (1)

GFRENCH's Avatar

Join Date: May 2013
Location: miramichi nb canada
Posts: 150
Received 0 Likes on 0 Posts
Originally Posted by Shaolin Crane View Post
I sent that same POS distributor back too, too large overall and made contact with the blower, among other things.

However if you can I'd cancel the order for the MSD stuff, they're called May Suddenly Die products for a reason. I went through 6 in a year with BS song and dance from them until I switched over to Crane and never looked back.

I ran this same one in my supercharged mustang for 6 years, sent it back once to have it looked at chasing down a random misfire that turned out to be the distributor and Fast(owns crane now) serviced it for free, with return shipping

Crane Ignition
very good info
thanks
GFRENCH is offline
Old 01-12-19, 09:37 AM
  #182
Full Member
Thread Starter
iTrader: (1)

GFRENCH's Avatar

Join Date: May 2013
Location: miramichi nb canada
Posts: 150
Received 0 Likes on 0 Posts
guys i got a few more parts in
if you see in the pic the tall valve cover are close to the heater barbs so i got 2 of a gates #28467 heat bent 90 deg 5/8 hose
these are 15/16 od and very soft hose. i plan to remove the cover cut down the 90 to length need and put the cover back on.
anyone know if 90 on the heater core is a bad thing?




GFRENCH is offline
Old 01-12-19, 08:51 PM
  #183
Senior Member

Yolo7's Avatar

Join Date: Oct 2014
Location: winters, ca
Posts: 254
Likes: 0
Received 2 Likes on 2 Posts
I donít think the 90s will hurt. You pretty much have a 90 already coming off the W/P going to the t-stat.
Yolo7 is offline
Old 01-26-19, 11:21 AM
  #184
Full Member
Thread Starter
iTrader: (1)

GFRENCH's Avatar

Join Date: May 2013
Location: miramichi nb canada
Posts: 150
Received 0 Likes on 0 Posts
wow guys the hubs arrived and i was floored . they are aluminum and look like they were made last week
i mean **** they are as new clean as can be
today i am going lay a weld bead on the races to remove them
when i'am ready i will show all related parts needed with sizes
GFRENCH is offline
Old 01-28-19, 12:38 PM
  #185
Senior Member

Join Date: Oct 2013
Location: Clemmons, NC
Posts: 644
Received 20 Likes on 17 Posts
I would love to see. DId you buy new hubs?
Freeskier7791 is offline
Old 01-29-19, 05:07 PM
  #186
Full Member
Thread Starter
iTrader: (1)

GFRENCH's Avatar

Join Date: May 2013
Location: miramichi nb canada
Posts: 150
Received 0 Likes on 0 Posts
Originally Posted by Freeskier7791 View Post
I would love to see. DId you buy new hubs?
Andrew no these are from a member in la
With me here in Canada and bad winter's we are not used to clean cars or parts
These are from a 91 and I had no idea they were made from aluminum
All I saw was from Atkins rotary at $600 ea
So when I opened the box I was floored
Just waiting on the spacer for the inner bearings . I have ordered a 3 inch round billet to turn
I decided to use the a32 bearing inner and the race is 58mm the inner for the hub is a19 or 63mm
So 63 to 58 I need
Soon as all parts and bearings are here I will post all pics with sizes and bearing numbers as a complete how to
GFRENCH is offline
Old 03-06-19, 05:19 PM
  #187
Full Member
Thread Starter
iTrader: (1)

GFRENCH's Avatar

Join Date: May 2013
Location: miramichi nb canada
Posts: 150
Received 0 Likes on 0 Posts
finally made some progress with the hub related parts
we are having a winter from hell 5 storms in a row all over 50cm each
if any one is thinking about doing this 5 lub swap here is what you need
in my case i am using stock 80 spindles
these need inner bearing a-32 kit outer bearing lm11749. a-32 is 28mm and lm11749 is 18mm
the hubs are from a 91 rx7 and use a inner jlm69349 bearing and a outer 32204 bearing
the jlm69349 is 38 mm and the 32204 is 20mm
the busings need to be made from the 91 bearings to fit the 80 spindles
so a 38mm od with 28mm id spacer for the inner and a 20mm od with 18mm id for the outer
for a seal you need a 40mm x 63mm x 7mm
40mm to fit the spindle and 63 mm to fit the hub

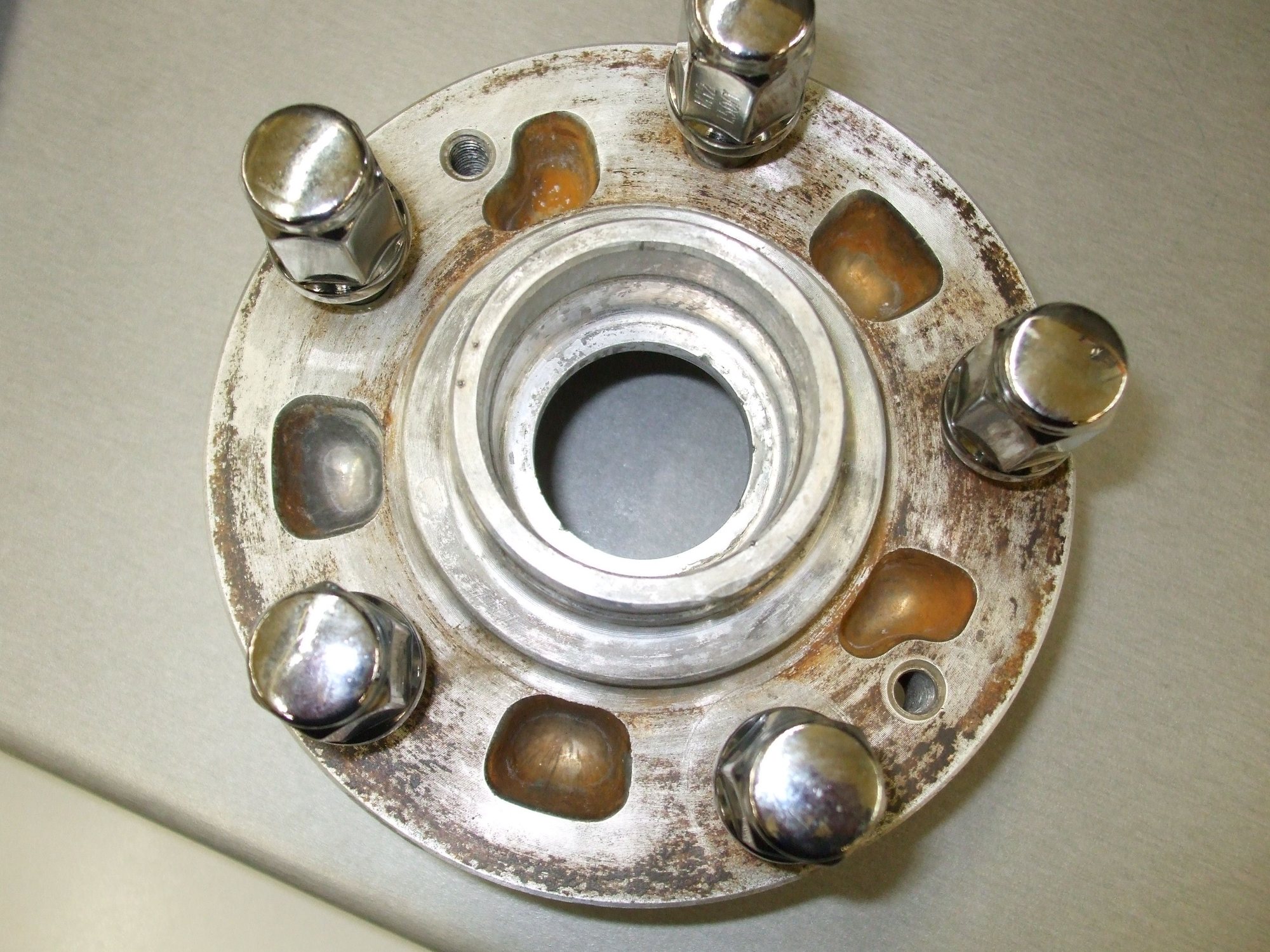

you can see by the pic of the hubs how clean they are, i was floored when i opened the box to see them

since the car is buried under snow it will be some time before i fit them on the car
i will then need to fab some caliper brackets

\






GFRENCH is offline
