250whp megasquirt dyno analysis
#1
Rotary Turbo
Thread Starter
250whp megasquirt dyno analysis

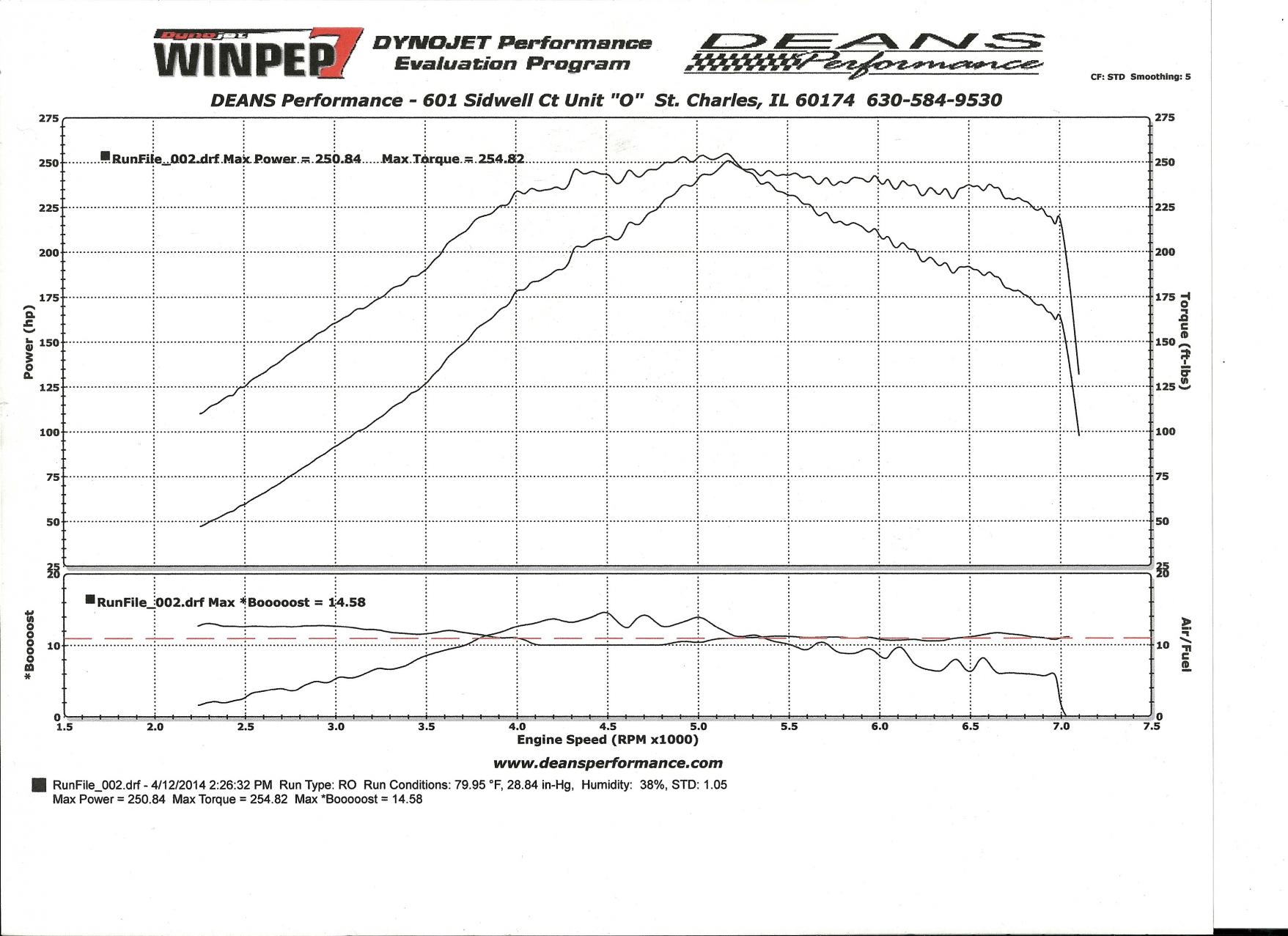

Threw my car on the dyno to see where was it at with all street tuning. Well 250 was not what I was hoping for but oh well its a learning process. Engine is a S5 T2 with pineapple racing large street port. Exhaust ports are ported so they open earlier, car has a solid idle @ 800rpm, Stock s5 turbo with swapped compressor wheel to a T04B "super S" according to the sizes in the fc3spro site. Boost is what ever it feels like it on a stock ported wastegate (wastegate isn't connected to any pressure/vac port). It has never been over 14psi. Fuel provided by megasquirt 2 v3 with 550 primaries 1600 secondaries and a walbro 255 pump. Exhaust was a 2.5" straight pipe. Does this seem reasonable to you guys? max timing advance under boost is 13*. I have it tuned rich just to be safe. My guess its running out of turbo what you guys think?
#2
Rotisserie Engine
iTrader: (8)
I'd say thats about right. It makes good power until the turbine stops flowing at higher RPMs (see how the boost drops after 5k?) I managed to put an external wastegate on a S4 manifold so it holds better, by using a stiffer wastegate spring. Then I picked up a turbo with a clipped turbine wheel and now it holds at 15 psi all the way to redline.)
This was my hybrid stage 1, you can see the gauge visibly dropping. I think the needle straight up and down is 15 PSI.
This was my hybrid stage 1, you can see the gauge visibly dropping. I think the needle straight up and down is 15 PSI.
#6
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
Get a legitimate boost controller and it'll probably make the car feel a whole lot better and help out in the top-end. But those numbers don't sound to bad with what you described.
