Time Slips and Dyno Section is for posting 1/4 mile time slips and dyno graphs

Please analyze my quarter mile times!

Old 07-27-05, 10:33 PM
  #1
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (14)

neit_jnf's Avatar

Join Date: Apr 2003
Location: Around
Posts: 3,296
Received 12 Likes on 11 Posts
Please analyze my quarter mile times!

First time ever on the strip, on any car for that matter, only got 2 runs.

My car is a touring with bose tube and spare removed, 1/3 tank of gas and I weight about 220 lbs. The car dynoed 315 whp at 13.5 psi, for the runs I lowered it to 13 psi. The car was also heat soaked from waiting in line for so long...

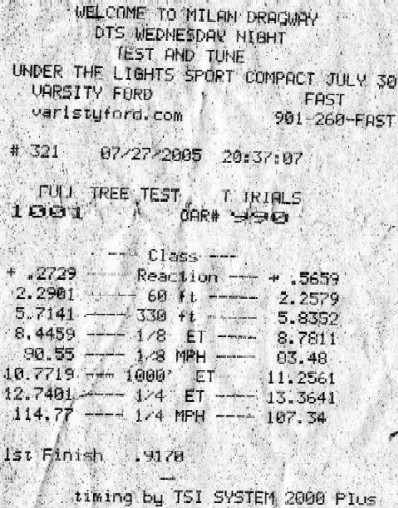

First try (right lane car #990): 31 psi tire pressure, 3~4000rpm launch, got nervous with the wheelspin so I pressed the clutch in and kinda slipped it, I'm not sure what I did

rt .5659
60' 2.2579
1/8 8.78 @ 83.48
1000' 11.2561
1/4 13.36 @ 107.34

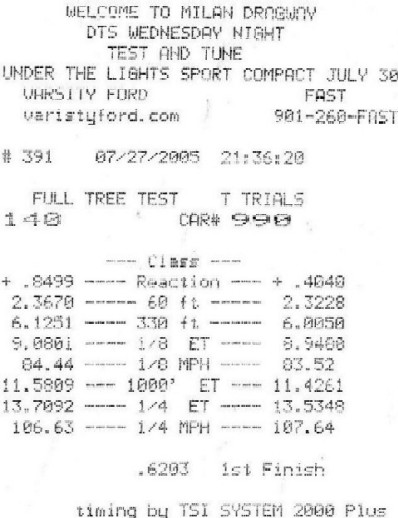

Second try (right lane car #990): lowered pressure to 23 psi, 4000rpm launch, bogged down

rt .4040
60' 2.3228
1/8 8.94 @ 83.52
1000' 11.4261
1/4 13.53 @ 107.64

I have a M2 Large IC, do you think adding a puller fan behind it is a good idea?

I thought I could hit mid/high 12's what do you guys think?? Is the car capable of this and I only need to practice? Or do I need more power? Ideas?
Attached Thumbnails Please analyze my quarter mile times!-1st-run.jpg   Please analyze my quarter mile times!-2nd-run.jpg

Last edited by neit_jnf; 07-27-05 at 10:36 PM.
neit_jnf is offline
Old 07-27-05, 11:25 PM
  #2
Junior Member
5 Year Member

Join Date: Jun 2005
Location: detroit michigan
Posts: 44
Likes: 0
Received 0 Likes on 0 Posts
your car has 12's in it, you just need to go to the track more.

the 60fts are lacking, a good launch on street tires is 2.0x, a great launch on street tires is 1.9x.

btw-this is marksmazda..are you going to the import drags on saturday?
jack_arss is offline
Old 07-27-05, 11:59 PM
  #3
Junior Member
5 Year Member

A.W.O.L's Avatar

Join Date: Mar 2005
Location: X
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
the trap seems low for that kind of power
A.W.O.L is offline
Old 07-28-05, 12:02 AM
  #4
Import Connoisseur
10 Year Member

tt2323's Avatar

Join Date: Oct 2003
Location: MA
Posts: 1,334
Likes: 0
Received 0 Likes on 0 Posts
I agree your trap is fairly low. I ran lesser mods 12psi and was running [email protected] with a awful 2.35 60ft
tt2323 is offline
Old 07-28-05, 07:01 AM
  #5
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (14)

neit_jnf's Avatar

Join Date: Apr 2003
Location: Around
Posts: 3,296
Received 12 Likes on 11 Posts
I also was dissapointed at the trap speeds, I thought maybe the heatsoaked IC robbed my power? I also felt it misfire at about 7000 rpm, it never did that before, maybe the new walbro is making it too rich? Or the plugs are worn (12k miles)? I don't know. I'm getting new iridium 9's to put on next week. And hopefully a friend can let me use his wideband to log the afr's cough-mark-cough.
neit_jnf is offline
Old 07-28-05, 02:11 PM
  #6
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (14)

neit_jnf's Avatar

Join Date: Apr 2003
Location: Around
Posts: 3,296
Received 12 Likes on 11 Posts
any pointers? tire pressure, launch rpm, dump or slip the clutch??
neit_jnf is offline
Old 07-28-05, 02:17 PM
  #7
No more G6
10 Year Member
iTrader: (19)

Force13B's Avatar

Join Date: May 2005
Location: Nipomo, California
Posts: 1,935
Likes: 0
Received 0 Likes on 0 Posts
Lower your launch RPM's, and slip the cluch out as you go, for the first 30ft or so. This is what i've read about launching the 7 on street tires. I could be way off base, haven't taken my car to the track yet so you might know more then me.
Force13B is offline
Old 07-29-05, 07:52 AM
  #8
Slow RX-7
5 Year Member

rotorsownyou7's Avatar

Join Date: Sep 2004
Location: Virginia
Posts: 1,716
Likes: 0
Received 0 Likes on 0 Posts
Damn, that should be capable of mid 12's Just go to the track like 20 times and try out different things.
rotorsownyou7 is offline
Old 07-29-05, 04:23 PM
  #9
0 lbs of boost
10 Year Member
iTrader: (1)

turbogarrett's Avatar

Join Date: May 2002
Location: wisconsin
Posts: 1,261
Likes: 0
Received 0 Likes on 0 Posts
I used to run a spal slimline fan on the back of my m2 large and it really helped minimize heatsoak problems.
turbogarrett is offline
Old 08-01-05, 10:44 PM
  #10
Rotary Freak

2FAST7S's Avatar

Join Date: Oct 2001
Location: Carmel, NY
Posts: 1,884
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by neit_jnf
any pointers? tire pressure, launch rpm, dump or slip the clutch??
lower tire preasure to about 17 psi, slip the clutch from about 4k rpms and shift without lifting as fast as possible!
2FAST7S is offline
Old 08-03-05, 07:35 AM
  #11
Tony Stewart Killer.
iTrader: (12)

Snook's Avatar

Join Date: Mar 2002
Location: FL
Posts: 5,150
Likes: 0
Received 0 Likes on 0 Posts
12k miles on the spark plugs is your problem
I ran a [email protected] my first time at the track with 10psi and only mods intake, dp, cb
your 60 foot time isn't that bad for the first time. change the plugs and get a 2.0 60 time and you should never get into the 13s again
do you have a midpipe?

Last edited by Snook; 08-03-05 at 07:38 AM.
Snook is offline
Old 08-03-05, 12:03 PM
  #12
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (14)

neit_jnf's Avatar

Join Date: Apr 2003
Location: Around
Posts: 3,296
Received 12 Likes on 11 Posts
stock cat, I'm afraid of boost spike/creep... Thinking about getting a metal highflow cat in there...
neit_jnf is offline
Old 08-03-05, 12:22 PM
  #13
Tony Stewart Killer.
iTrader: (12)

Snook's Avatar

Join Date: Mar 2002
Location: FL
Posts: 5,150
Likes: 0
Received 0 Likes on 0 Posts
you didnt say what ecu you're running?
spikes can be controlled with a boost controller and I wouldnt expect any creep since you're running 13psi already.

the stock cat is killing your power. That should have been upgraded before the intercooler. you can still get into the 12s with your setup you'll just have to turn those 60 times into 1.95s
Snook is offline
Old 08-03-05, 12:40 PM
  #14
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (14)

neit_jnf's Avatar

Join Date: Apr 2003
Location: Around
Posts: 3,296
Received 12 Likes on 11 Posts
neit_jnf is offline
Old 08-03-05, 01:04 PM
  #15
Tony Stewart Killer.
iTrader: (12)

Snook's Avatar

Join Date: Mar 2002
Location: FL
Posts: 5,150
Likes: 0
Received 0 Likes on 0 Posts
12.5 is real lean in the high rpms!
I would not run the car like that

First, I'd not run high boost again until I switched out ecus

The pettit unlimited is a much better choice and run 12psi MAX but you can have a midpipe too you'll pick up tons of power.

with a 1.9 60 foot expect mid [email protected] every run at 12psi

Last edited by Snook; 08-03-05 at 01:07 PM.
Snook is offline
Old 08-03-05, 01:34 PM
  #16
Eats, Sleeps, Dreams Rotary
Thread Starter
iTrader: (14)

neit_jnf's Avatar

Join Date: Apr 2003
Location: Around
Posts: 3,296
Received 12 Likes on 11 Posts
As I understand it, the Pettit is more agressive than the M2, so I chose the M2 to be on the safer side. Supposedly the M2 is good to 14 psi, but the dyno operator told me the pump wasn't keeping up. I have since upgraded to a Walbro high pressure pump and lowered the boost to 12 psi.

The dyno wideband was in the tailpipe so it was reading leaner than it actually was because of the cat. I was probably at the 11.7~12.0 level when I leaned out. I'm getting a wideband loaned from a friend and new Iridium 9 range plugs. I'll do a couple afr's logs starting at 10psi and gradually increasing back to 13.5 to see if the pump helped. I'll post the results when I get them.

So far the pump increased my fuel consuption, I was getting consistent 20 mpg 85% highway 15% city and now I'm getting 18...
neit_jnf is offline
Old 08-05-05, 10:03 PM
  #17
Junior Member
5 Year Member

Join Date: Jun 2005
Location: detroit michigan
Posts: 44
Likes: 0
Received 0 Likes on 0 Posts
your over running your stock fuel presure regulator. from what i've read, a non adjustable FPR will not lower your fuel presure back to stock, it's just a ratio of the presure going into it. basicly, if you have 2psi going in, and 1psi comming out, then up the presure to 4psi goin in, you will have 2psi comming out.
jack_arss is offline
