280whp @ 12psi on '99twins, safe tune

Old 01-21-09, 07:53 PM
  #1
Bosozoomku
Thread Starter
iTrader: (10)

TimeMachine's Avatar

Join Date: Oct 2008
Location: Seattle, WA
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
280whp @ 12psi on '99twins, safe tune

These are the dyno results from tuning my rebuilt 13B in 2006. I have only put about 3k miles on the motor since then, and nothing else has changed. The tune is very, very conservative: Low A/Fs and retarded timing to help ensure longevity. Notice the dip at the turbo switchover! This could be smoothed out with an Efini y-pipe, but I've got other plans in store for that.

Nevertheless, water injection will be my next major move to combat knock and CCP. My next power goal is 15psi on the '99 twins and stock ports on 91 octane. What is a realistic power expectation at 15psi?

I look forward to hearing thoughts!

Click here or see attachment: http://i279.photobucket.com/albums/k...raph080206.jpg

Mods


Engine:

Hurley 3mm ceramic apex race seals
Hurley corner race seals
JDM '99 spec turbos
Tri-Point 3" downpipe
Tri-Point high flow catalytic converter
HKS exhaust
Mazda Competition radiator
ACT Performance street disc
ACT Xtreme pressure plate
XACT ProLite flywheel
Miata thermostat
Tri-Point 8mm ignition wires
K&N replacement air filter

Electronics:

AEM EMS
AEM wideband UEGO controller

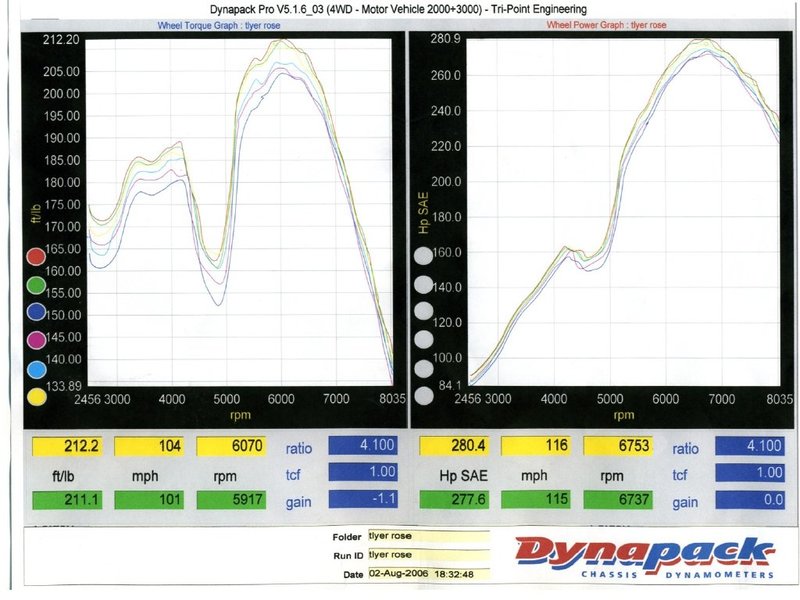

Attached Thumbnails 280whp @ 12psi on '99twins, safe tune-dynograph080206-1.jpg
TimeMachine is offline
Old 01-22-09, 11:23 PM
  #2
Full Member

Envisioned7's Avatar

Join Date: Oct 2007
Location: Coronado, CA
Posts: 83
Likes: 0
Received 0 Likes on 0 Posts
very nice! Im stationed in Ventura...maybe when I get back from Japan in August we'll be able to meet up with the cars...I'd love to see yours in action haha..
Envisioned7 is offline
Old 01-23-09, 12:01 PM
  #3
Bosozoomku
Thread Starter
iTrader: (10)

TimeMachine's Avatar

Join Date: Oct 2008
Location: Seattle, WA
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Envisioned7 View Post
very nice! Im stationed in Ventura...maybe when I get back from Japan in August we'll be able to meet up with the cars...I'd love to see yours in action haha..
Cool, sounds good man. Keep me posted on your whereabouts!
TimeMachine is offline
Old 01-23-09, 12:46 PM
  #4
F**K THE SYSTEM!!

junito1's Avatar

Join Date: Sep 2006
Location: Florida
Posts: 2,582
Likes: 0
Received 0 Likes on 0 Posts
I dont think a down pipe would fix that dip on your power curve...

DO you have a graph that shows boost throught the RPM?
I would guess that your loosing boost in that section..

I think some tunning will get you where you want. 15 psi and factory twins yeilds about 350whp+- on Avg.
junito1 is offline
Old 01-23-09, 01:29 PM
  #5
Bosozoomku
Thread Starter
iTrader: (10)

TimeMachine's Avatar

Join Date: Oct 2008
Location: Seattle, WA
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
Not a downpipe, I've got that... it's the stock '95 y-pipe that's choking off airflow during the 2nd turbo's addition. The old 10-8-10 boost pattern, mine is like 12-10-12. The '99+ y-pipe helps this problem by being more free-flowing, or so I'm told.
TimeMachine is offline
Old 01-23-09, 06:00 PM
  #6
Ronald..
10 Year Member
iTrader: (1)

93rx74lyfe's Avatar

Join Date: Aug 2005
Location: Fairfax/Manassas VA
Posts: 2,013
Likes: 0
Received 0 Likes on 0 Posts
For 12 psi Thats low on stock usdm twins, so thats really bad on 99's.
93rx74lyfe is offline
Old 03-21-09, 06:24 PM
  #7
Looking to learn...
iTrader: (2)

Prometheus's Avatar

Join Date: Jan 2007
Location: Portland/ Seattle
Posts: 1,686
Received 1 Like on 1 Post
I thought the hurley seals were carbon.

Are your seals the ones that turn to dust (if the engine blows) so is to not damage the turbos?
Prometheus is offline
Old 03-21-09, 09:58 PM
  #8
Chasing numbers
iTrader: (5)

sk8world's Avatar

Join Date: Apr 2001
Location: Alabama
Posts: 5,093
Likes: 0
Received 4 Likes on 3 Posts
Just had 2 cars with stock ports and 99 twins tuned here and both made 312ish at 12psi. But this was done by one of the top tuners in the USA..... Dyno's do very so maybe after you pull some fuel it will be in the ballpark....
sk8world is offline
Old 03-22-09, 07:07 PM
  #9
Bosozoomku
Thread Starter
iTrader: (10)

TimeMachine's Avatar

Join Date: Oct 2008
Location: Seattle, WA
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by sk8erpunk1983 View Post
I thought the hurley seals were carbon.

Are your seals the ones that turn to dust (if the engine blows) so is to not damage the turbos?
The Hurley seals I've got are ceramic... not sure about turning to dust, but at 3mm, they're not supposed to blow

Originally Posted by sk8world View Post
Just had 2 cars with stock ports and 99 twins tuned here and both made 312ish at 12psi. But this was done by one of the top tuners in the USA..... Dyno's do very so maybe after you pull some fuel it will be in the ballpark....
That sounds much better... It was tuned on a Dynapack, way rich I might add. Any way you could send me dyno charts or fuel maps for the two cars?
TimeMachine is offline
Old 03-23-09, 12:12 PM
  #10
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,837
Received 15 Likes on 14 Posts
I think you might want to do some research on troubleshooting that low boost level transition to try and decrease the amount of the drop. The autosport....com site (check for link in FAQ thread) has some good info on troubleshooting that. It looks like you drop down to 5 PSI or so at transition. I don't think the Efini Y pipe is going to help that issue.
gracer7-rx7 is offline
Old 03-23-09, 12:16 PM
  #11
Rotary Enthusiast
10 Year Member
iTrader: (5)

AWD-RWD racer's Avatar

Join Date: Apr 2006
Location: pennsylvania
Posts: 1,488
Likes: 0
Received 0 Likes on 0 Posts
how does a dynopack compare to reading vs a dynojet or mustang dyno?
AWD-RWD racer is offline
Old 03-23-09, 05:06 PM
  #12
Chasing numbers
iTrader: (5)

sk8world's Avatar

Join Date: Apr 2001
Location: Alabama
Posts: 5,093
Likes: 0
Received 4 Likes on 3 Posts
Sorry, not my maps to give. Ray Wilson tuned the cars. You could give him a buzz. www.pfsupercars.com
sk8world is offline
Old 03-24-09, 08:31 AM
  #13
rotorhead
iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 15,641
Received 57 Likes on 55 Posts
t's a dynapack. they read at least 10% low compared to the dynojets, trust me on this one. On my old nonturbo I put down 155rwhp on a dynapack and 172 on a dynojet, which is about 10%.

that would be over 300whp on a dynojet in this case
arghx is offline
Old 03-24-09, 06:03 PM
  #14
Don't worry be happy...
iTrader: (1)

Montego's Avatar

Join Date: Apr 2001
Location: San Diego, CA
Posts: 6,449
Received 76 Likes on 60 Posts
so you still have a cat and stock IC correct? If so those numbers aren't bad as the stock IC heats soaks like crazy...
Montego is offline
Old 03-24-09, 07:07 PM
  #15
Bosozoomku
Thread Starter
iTrader: (10)

TimeMachine's Avatar

Join Date: Oct 2008
Location: Seattle, WA
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by montego View Post
so you still have a cat and stock IC correct? If so those numbers aren't bad as the stock IC heats soaks like crazy...
I have a high flow cat midpipe from Tri-Point.

I think there were a combination of factors... the dyno used, the near 100*F temp when tuning, and a deliberately "safe" A/F tune.

After I install a simple water injection kit and upgrade the intercooler, I would like to retune and lean out the A/F a little and bump boost to about 15lbs. This is the ultimate goal for the car.

I just replaced my COM cable for the AEM EMS, so hopefully I can post my fuel maps and datalogs soon.

Thanks to all for the input!
TimeMachine is offline
Old 03-25-09, 01:04 PM
  #16
Chasing numbers
iTrader: (5)

sk8world's Avatar

Join Date: Apr 2001
Location: Alabama
Posts: 5,093
Likes: 0
Received 4 Likes on 3 Posts
if there were no corrections added and it was a solid 280 pull then I agree it would be closer to 300 dynojet numbers. But I have scene most shops (that run dyno dynamics, mustang and dynapacs go ahead and add some correction to read closer to dynojet...
sk8world is offline
Old 03-25-09, 01:27 PM
  #17
Bosozoomku
Thread Starter
iTrader: (10)

TimeMachine's Avatar

Join Date: Oct 2008
Location: Seattle, WA
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
Ya, I'm not hung up on the specific numbers themself, but the rich tune does. It feels great on the road, very responsive, but it burns gas at an astonishing rate
TimeMachine is offline
Old 04-02-09, 12:42 PM
  #18
Now What?
iTrader: (3)

prrex4ever's Avatar

Join Date: Oct 2004
Location: Texas
Posts: 2,394
Received 0 Likes on 0 Posts
That 300 to the wheels sound abut right. My FD with stock internals, stock turbos dynoed 303whp this morning at RX7.com. That was at 12psi with PFC, Hi-flow cat. and upgraded fuel pump plus the regular bolt-on stuff.
prrex4ever is offline
Old 04-13-09, 08:00 PM
  #19
Bosozoomku
Thread Starter
iTrader: (10)

TimeMachine's Avatar

Join Date: Oct 2008
Location: Seattle, WA
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts
Data and logs

Originally Posted by gracer7-rx7 View Post
I think you might want to do some research on troubleshooting that low boost level transition to try and decrease the amount of the drop. The autosport....com site (check for link in FAQ thread) has some good info on troubleshooting that. It looks like you drop down to 5 PSI or so at transition. I don't think the Efini Y pipe is going to help that issue.
Dead on... As you can see below, my boost pattern in 3rd gear is 12-6-12. Good call, now how do you think I could help this? (I didn't see anything specific to this problem on the autosport site)

First time out logging data ...so I'm still trying learning how to extrapolate the data. Help is appreciated! I didn't set AFR units correctly, so I'll have to log some more in the correct units. However, the real time O2 date followed the O2 target table closely, but in the wrong units, so it doesn't make sense in the graphs.

The main thing I can't figure out is the fuel map. Below, it's presented in Raw, Pulse Width, and Duty Cycle units. None of the tables seem to make sense in the upper-right hand corner area. How can duty cycle approach 200%?

Here's a couple of images captured from the AEM's software.

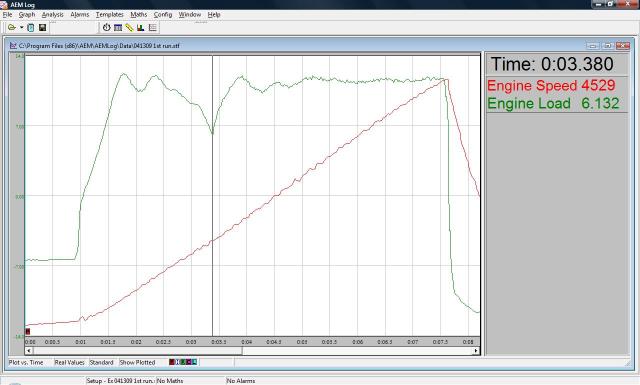

3rd gear pull 3k-7krpms, RPM and Boost over time
http://i279.photobucket.com/albums/k...time041309.jpg

AFR target map (wideband 02)
http://i279.photobucket.com/albums/k...tMap041309.jpg

3D fuel map w/ raw data
http://i279.photobucket.com/albums/k...wraw041309.jpg

Fuel PW
http://i279.photobucket.com/albums/k...apPW041309.jpg

Fuel DC
http://i279.photobucket.com/albums/k...apDC041309.jpg

Can someone lend some insight? Thanks!
Attached Thumbnails 280whp @ 12psi on '99twins, safe tune-3rdgear3k-7kboostrpmovertime041309.jpg
TimeMachine is offline
Old 04-15-09, 11:51 PM
  #20
dorito powered
5 Year Member
iTrader: (5)

KKMpunkrock2011's Avatar

Join Date: Mar 2008
Location: Lincoln, NE
Posts: 2,839
Likes: 0
Received 0 Likes on 0 Posts
I see an Efini Y-pipe and a larger intercooler in your future, and possibly meth, I don't know much about the AEM system, but that may have affected it, but I doubt it.
What was your injector duty? have you rewired the pump? and a different intake all will help, I personally am using the Greddy/Trust intake and it works great and seems to be one of the better ones on the market IMO, no crappy accordian hoses FTW
KKMpunkrock2011 is offline
Old 04-24-09, 09:58 PM
  #21
Bosozoomku
Thread Starter
iTrader: (10)

TimeMachine's Avatar

Join Date: Oct 2008
Location: Seattle, WA
Posts: 632
Likes: 0
Received 0 Likes on 0 Posts

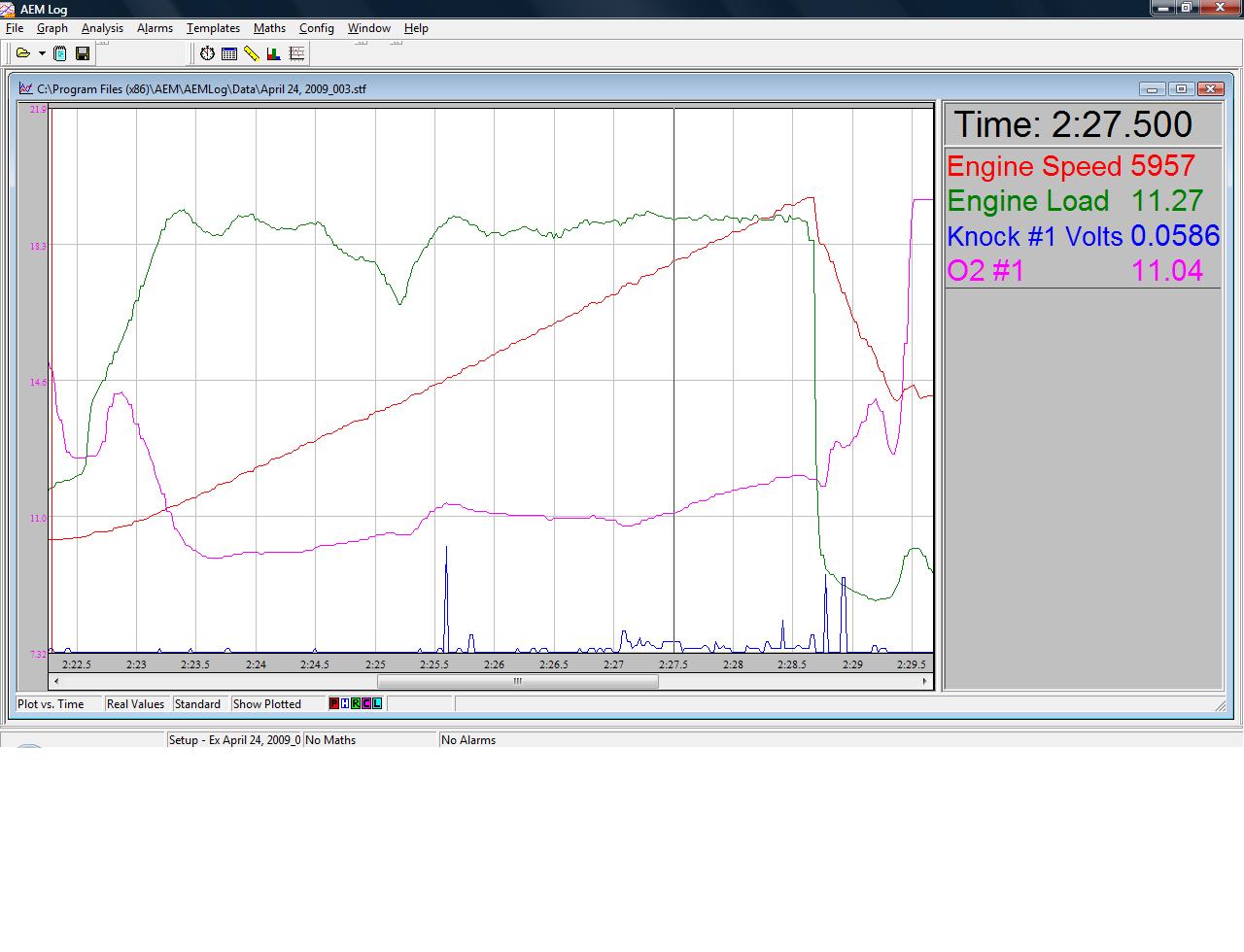

Here's some updated graphs with AFRs with primary and secondary injector duty

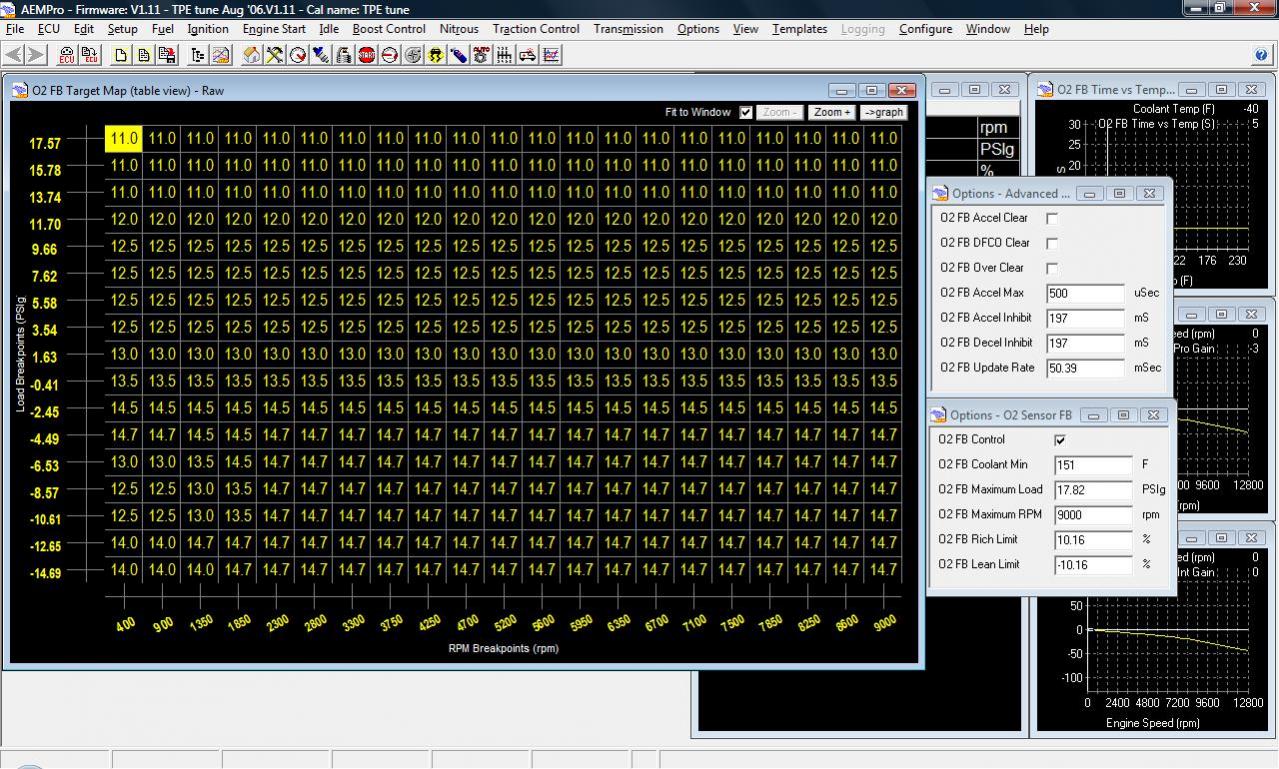

New datalogs with 02 sensor feedback target and real-time. I think the real-time measurement climbs toward the target around 5800RPM due to a graph that reduces the INJ GAIN exponentially as seen in the first posted image. The second image is AFRs with both sets of injectors over a 3rd gear pull.
Attached Thumbnails 280whp @ 12psi on '99twins, safe tune-o2-fb-target-map-041309.jpg   280whp @ 12psi on '99twins, safe tune-3rd-gear-pull-3.1k-6.6k-042409.jpg
TimeMachine is offline
Old 10-27-11, 01:45 AM
  #22
Junior Member
5 Year Member

Join Date: Sep 2005
Location: USA
Posts: 10
Likes: 0
Received 0 Likes on 0 Posts
pretty good numbers on the stockers.
hdawg06 is offline
Old 12-16-11, 09:59 PM
  #23
******
iTrader: (7)

flaco's Avatar

Join Date: May 2009
Location: miami
Posts: 901
Likes: 0
Received 0 Likes on 0 Posts
parked
flaco is offline
Old 12-17-11, 11:08 AM
  #24
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 138 Likes on 111 Posts
^what?
GoodfellaFD3S is offline
Old 12-17-11, 11:18 AM
  #25
ROTARY PUNX
iTrader: (9)

jonnyrx7's Avatar

Join Date: Oct 2008
Location: Los Angeles, CA
Posts: 918
Received 0 Likes on 0 Posts
Originally Posted by AWD-RWD racer View Post
how does a dynopack compare to reading vs a dynojet or mustang dyno?
Originally Posted by arghx View Post
t's a dynapack. they read at least 10% low compared to the dynojets, trust me on this one. On my old nonturbo I put down 155rwhp on a dynapack and 172 on a dynojet, which is about 10%.

that would be over 300whp on a dynojet in this case

In my old shop Mustang Dyno Cell showed the Stock 2009 R35 at
406whp at 6400RPM
414 torque at 3800

Same Car Same Day Dyna Pack
452whp at 6350
448 torque 3865

All Dynos Vary..typically Dyno Jets Read The Highest followed by Dyna Packs...and the rest of the real world uses Mustang Dynos. (and tune with the hoods down )
jonnyrx7 is offline
