10.87 @ 128.90 mph on stock twin turbos 21 psi

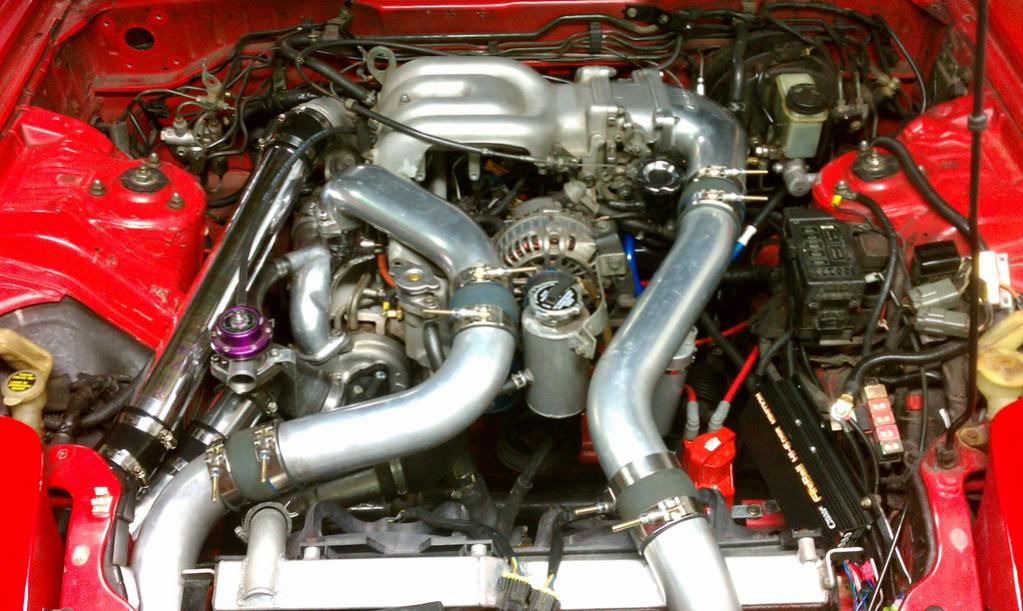

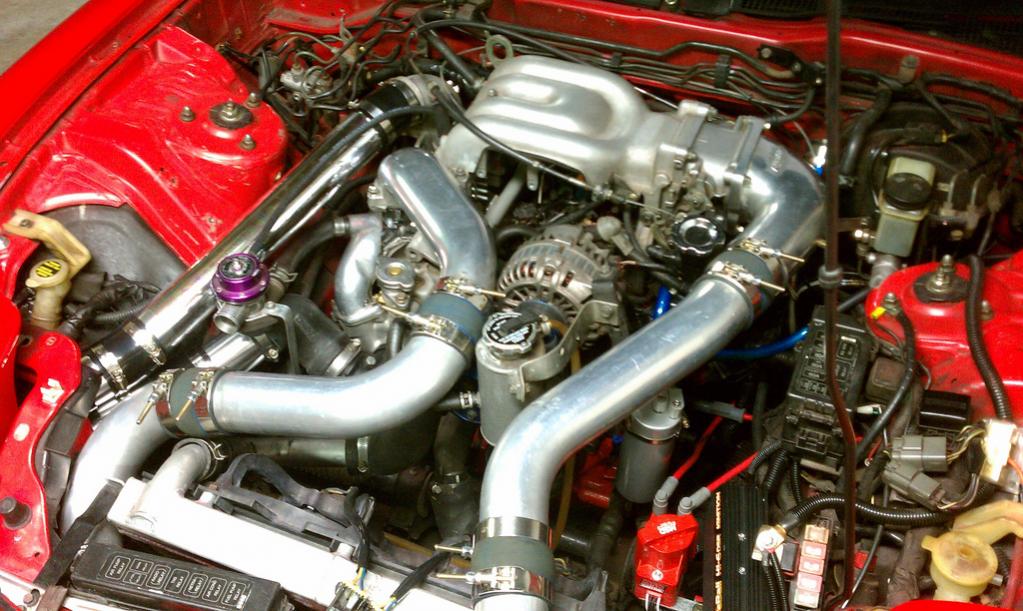

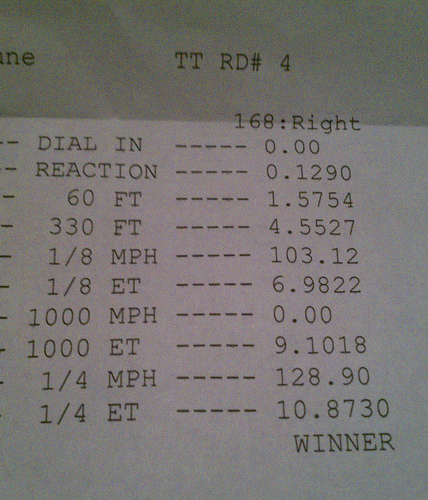

I finally hit 10's tonight on my first pass of the year at Pittsburgh Raceway Park. See time slip attached and pics of my current setup. I'm pretty sure my new 10.87 @ 128.90 mph is a new record for the FD with stock twin turbos, full non sequential, below is the video of this run. I did alot of little things to it since last year, my previous best ET was 11.08 and best trap speed was 127.17 at MIR last year.

http://www.youtube.com/watch?v=RNPFe68X77E

The crane ignition with 2 step launch control at 7k rpms and 10 psi boost and a Tilton clutch flow control valve made launching simple and good. For this run I had 16 psi in the tires, I started off with more tire pressure than usual, and you can see from the video above the tires did spin and my 60 ft time was 1.57, which isn't bad but could have been better, my best 60ft time is 1.52 last year. So there is still room for improvement.

Peak boost was 21.4, it varies between 19-21 depending on gear and rpm throughout the run. Running 50/50 Sunoco GT100 race gas & 93 pump gas. My tune. My rebuilt engine by djseven at http://rotaryrebuildstore.com runs great! See my mods list in my signature below.

My 2nd and last pass of the night I spun more, 1.63 60 ft, 11.09 @ 127.70. Track Elevation is 1110 ft.
Attached Thumbnails 10.87 @ 128.90 mph on stock twin turbos 21 psi-10_87-timeslip.jpg   10.87 @ 128.90 mph on stock twin turbos 21 psi-5670422234_19b1ed3f3e_b.jpg   10.87 @ 128.90 mph on stock twin turbos 21 psi-5669853853_22f6910e39_b.jpg
tom94RX-7 is offline
Old 05-06-11, 01:49 AM
  #2
Do a barrel roll!
15 Year Member
iTrader: (4)

Rxmfn7's Avatar

Join Date: Oct 2001
Location: Lower Burrell, PA
Posts: 7,529
Likes: 0
Received 1 Like on 1 Post
Very impressive, congrats
Rxmfn7 is offline
Old 05-06-11, 01:51 AM
  #3
Mazdaspeed!!!!!
iTrader: (10)

Eternal_Gamer's Avatar

Join Date: Nov 2003
Location: Sacramento, CA
Posts: 2,462
Likes: 0
Received 0 Likes on 0 Posts
nice!
Eternal_Gamer is offline
Old 05-06-11, 01:58 AM
  #4
Total Balance is Key
iTrader: (13)

Turbo II FC's Avatar

Join Date: Jul 2002
Location: ATX
Posts: 1,161
Likes: 0
Received 0 Likes on 0 Posts
Good job.
Turbo II FC is offline
Old 05-06-11, 01:59 AM
  #5
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Thanks!
tom94RX-7 is offline
Old 05-06-11, 02:01 AM
  #6
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,707
Likes: 0
Received 10 Likes on 8 Posts
I guess I was right. Great job!
t-von is offline
Old 05-06-11, 02:07 AM
  #7
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Yep haha, thanks!
tom94RX-7 is offline
Old 05-06-11, 03:01 AM
  #8
Full Member
10 Year Member
iTrader: (5)

Join Date: Dec 2002
Location: socal
Posts: 124
Likes: 0
Received 0 Likes on 0 Posts
congrat!!
what size and type of tire are you using?
jspecusa is offline
Old 05-06-11, 07:12 AM
  #9
Ronald..
10 Year Member
iTrader: (1)

93rx74lyfe's Avatar

Join Date: Aug 2005
Location: Fairfax/Manassas VA
Posts: 2,013
Likes: 0
Received 0 Likes on 0 Posts
Very impressive, I think we may be the only 90s sports car to get into the 10s on stock turbos.
93rx74lyfe is offline
Old 05-06-11, 07:28 AM
  #10
Full Member

Join Date: Mar 2010
Location: Milwaukee
Posts: 124
Likes: 0
Received 0 Likes on 0 Posts
Congrats, great job!
chappy586 is offline
Old 05-06-11, 07:38 AM
  #11
REPU Garage
iTrader: (17)

Join Date: Jun 2007
Location: Northern Colorado
Posts: 623
Likes: 0
Received 0 Likes on 0 Posts
Awesome, great job!
Turbo8 is offline
Old 05-06-11, 07:40 AM
  #12
rotorhead
iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 15,641
Received 57 Likes on 55 Posts
Awesome. That is faster than most single turbo cars will go.
arghx is offline
Old 05-06-11, 07:42 AM
  #13
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 138 Likes on 111 Posts
Very, very impressive man. At first I thought someone bumped one of JD's old threads...... you should be very proud, this is an amazing accomplishment
GoodfellaFD3S is offline
Old 05-06-11, 07:47 AM
  #14
Eh
iTrader: (55)

djseven's Avatar

Join Date: Aug 2002
Location: Nashville, TN
Posts: 6,232
Received 54 Likes on 50 Posts
Congrats man! I knew you would get it done. For those wondering it was done on ALS seals with my pretty standard street port.
djseven is offline
Old 05-06-11, 08:40 AM
  #15
IRS 4 Life
iTrader: (12)

Bacon's Avatar

Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 0 Likes on 0 Posts
Damn fine run! Congrats
Bacon is offline
Old 05-06-11, 08:45 AM
  #16
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Thanks everyone! Tires are 26x10.50x16 MT ET Streets. I had been trying for a few years to finally hit 10's on the stock turbos, there always seem to be a problem or I didn't drive good enough when it was capable like last year. This time I pull into the track and start adjusting the tire pressure and I found a big chunk of wood in the middle of the tread in one of the rear tires, and it was leaking air slowly, no Idea where I ran it over at. So I went to Walmart and got a tire plug kit lol. I couldn't manage to pull out the chunk of wood, and ended up just pushing it through into the tire, then used 4 or 5 tire plugs to fill the big gaping hole in the tire that was nearly a half inch wide!, and cut the plugs off that were sticking out. I didn't think I should run it like that, I did some burnouts and 2nd gear pulls out on the street and it seemed to be good. So first run on the track I was just gonna go through 2nd gear and let off, but the start felt good and good thing I was crazy and didn't let off lol! and good thing my plug job worked hahaha. Now I got to get a new tire..
tom94RX-7 is offline
Old 05-06-11, 09:07 AM
  #17
Senior Member
5 Year Member

blitzboy's Avatar

Join Date: Nov 2004
Location: England
Posts: 383
Likes: 0
Received 0 Likes on 0 Posts
awesome Tom!!!!
blitzboy is offline
Old 05-06-11, 09:14 AM
  #18
Chasing numbers
iTrader: (5)

sk8world's Avatar

Join Date: Apr 2001
Location: Alabama
Posts: 5,093
Likes: 0
Received 4 Likes on 3 Posts
I am very impressed! I think one of the biggest things to drag racing is staying with it and workings th bugs ou along with learning th car. I have noticed you around for awhile. You probably also have the record for most hp on stock twins by the trap speed. Your car weight is nice also.

Good job man, be proud and talk lots of trash!

Also djseven (David Jerome) builds nice motors and ALS are the ****!
sk8world is offline
Old 05-06-11, 09:18 AM
  #19
Chasing numbers
iTrader: (5)

sk8world's Avatar

Join Date: Apr 2001
Location: Alabama
Posts: 5,093
Likes: 0
Received 4 Likes on 3 Posts
Wait a minute, that track is down hill! Just kidding. Did you stay with the 4:10 or 4:30 gear?
sk8world is offline
Old 05-06-11, 09:22 AM
  #20
Chasing numbers
iTrader: (5)

sk8world's Avatar

Join Date: Apr 2001
Location: Alabama
Posts: 5,093
Likes: 0
Received 4 Likes on 3 Posts
Acceleration Calculator
Horsepower (HP) 425
Weight (lbs) 2560
Shifts 3
Tire height (inch.) 26
Gear. 4.3


Power to Weight Ratio: 6
E.T.: 10.86
Trap Speed: 131
Trap RPM: 7450
*

Is 2560 your race weight or minus you? If not including you that means it has more power and more e in it!
sk8world is offline
Old 05-06-11, 09:29 AM
  #21
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Thanks! I'm on the stock 4.10 gears, never tried 4.30s. Haha, there was also no wind. I've heard cars run faster at MIR because their track elevation is low and PRP is 1110 ft.
tom94RX-7 is offline
Old 05-06-11, 09:34 AM
  #22
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
Ya it will look nice when I get it to hook next time hopefully. Power FC. it just builds a little more boost in the bigger gears and falls off a little towards redline.
tom94RX-7 is offline
Old 05-06-11, 09:38 AM
  #23
Rotary Enthusiast
10 Year Member
Thread Starter
iTrader: (5)

tom94RX-7's Avatar

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,489
Likes: 0
Received 1 Like on 1 Post
That is my race weight, actually weighed a couple years ago, it might be a few pounds lighter now but not much. Not including me. I weigh close to 160 in the car.
tom94RX-7 is offline
Old 05-06-11, 09:40 AM
  #24
Common sense ain't common
iTrader: (30)

estevan62274's Avatar

Join Date: May 2002
Location: Melbourne, Fl
Posts: 2,414
Received 11 Likes on 11 Posts
Very Nice!! Congrats!!
estevan62274 is offline
Old 05-06-11, 09:41 AM
  #25
Chasing numbers
iTrader: (5)

sk8world's Avatar

Join Date: Apr 2001
Location: Alabama
Posts: 5,093
Likes: 0
Received 4 Likes on 3 Posts
Wow on the weight. I got to really get on a diet and car also! Last time out I wa 2810! Did you gut the car?
