Where are Bumps Stops located?
#1
Senior Member
Thread Starter
Join Date: Apr 2004
Location: Sydney Australia
Posts: 558
Likes: 0
Received 0 Likes
on
0 Posts
Where are Bumps Stops located?

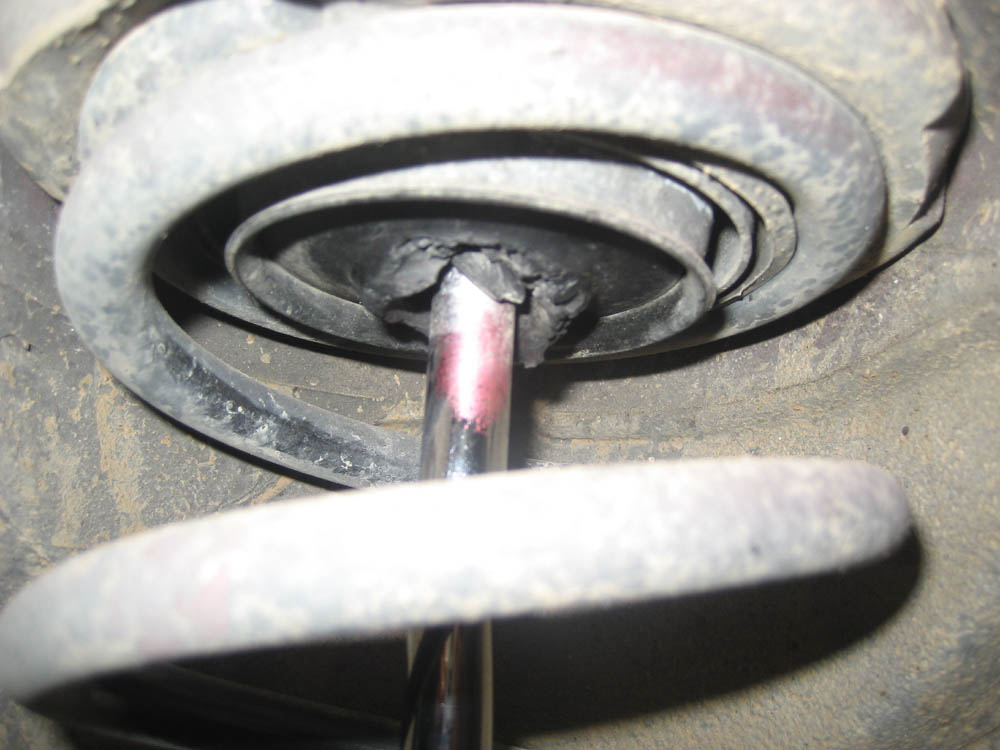

Went to get a suspension safety check yesterday. They said my bump stops are all destroyed. Looking at the photos can you guys tell where they are meant to be?
Cheers
Cheers
#2
Lives on the Forum

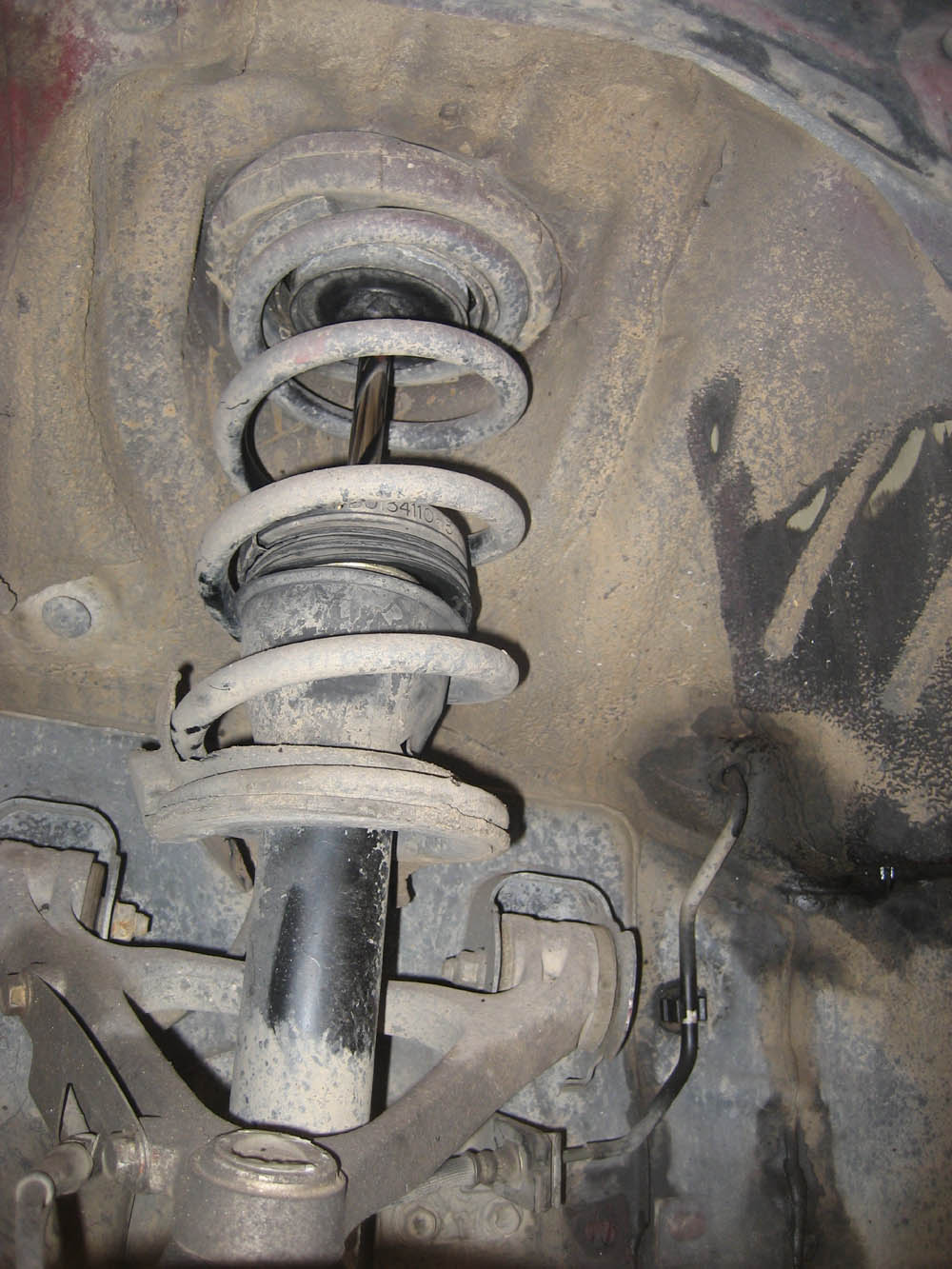

In the second pic the rubber bellows laying in the bottom of the spring is supposed to be attached to the rubber mount at the top. There is a rubber biscuit in the top of the bellows that is the bump stop. It's very common for these to look just like yours if they've never been replaced.
#5
Rotary crazy
Join Date: Oct 2005
Location: Helsinki, Finland
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
bump stops don't affect your ride comfort at all. atleast replacing the stock bump stops don't. bump stops save the car from frame damage if and when the suspension bottoms out. but they do sell aftermarket bump stops that are much taller than stock that act like hard rate progressive springs.
