WHeel spacer options
#1
Rotary Enthusiast
Thread Starter
WHeel spacer options
i just got a set of Gramlights DR 17x9.5 with 245/45/17 tires. As expected my fronts need spacers. I used the washer method to test how many MM spacer I need. It came out to about 6.8mm. Not worried about being precise so I figured an 8mm spacer would be a good choice.
I have searched on here for threads related to spacers and most are fairly old (at least the ones that came up). What is a good type of spacer for what I need? Any brand reccomendations? Thanks
I have searched on here for threads related to spacers and most are fairly old (at least the ones that came up). What is a good type of spacer for what I need? Any brand reccomendations? Thanks
#5
Penis Healthy
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 776 Likes
on
445 Posts
I have 5x114.3 10mm spacers for sale. 60.1 hubcentric. 30 shipped to the lower 48. PM me.
PS you can get away with 10mm spacers on the stock studs, but i also have some extended studs if youre interested. 2 spacers and 10 studs 60 shipped.
PS you can get away with 10mm spacers on the stock studs, but i also have some extended studs if youre interested. 2 spacers and 10 studs 60 shipped.
#6
Rotary Enthusiast
Thread Starter

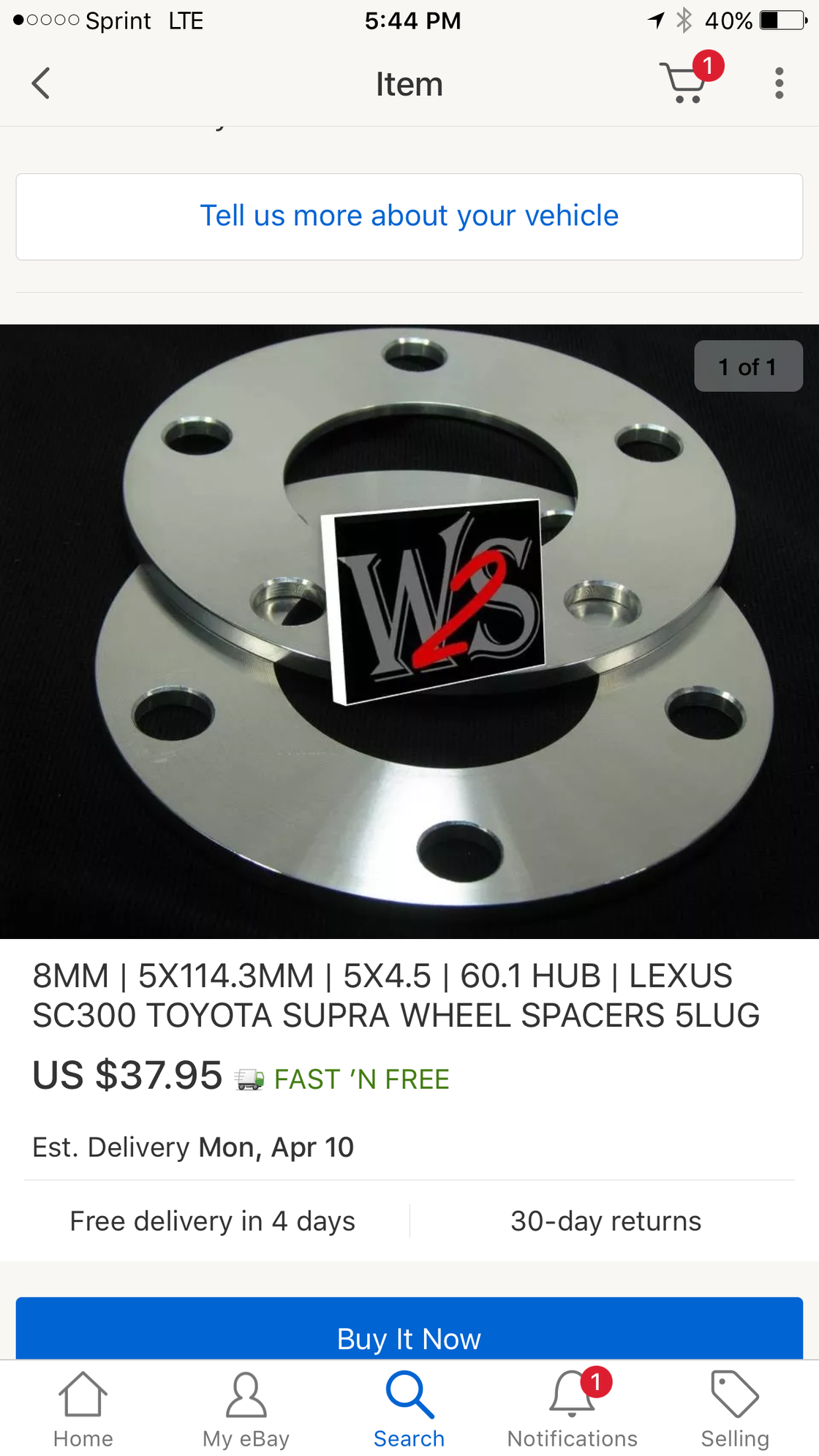

These re are the lugs I'm using. So I already ordered the ones from eBay. I just need (want) to find a good/safe solution for the rear wheels. 10-12mm would look great but I could possibly still do an 8mm on rear and be happy.
#7
Lives on the Forum
iTrader: (9)
I'm running a 5mm spacer in the rear, and I wouldn't run any more than that—for two reasons, one being the amount of thread left on the studs, regardless of how long the head of the lug nut is, and two, there isn't going to be anything left of the hub center ring for the wheel to center itself on... unless you get a spacer with a new hub center ring machined in it, and use a different hub centric ring (larger) on your wheels. I've seen some spacers like this.
The one thing you can do about thread space is use extended shank lug nuts, like these:
http://www.jegs.com/i/Cragar/260/278...FRpLDQodQuYORw
However, these won't go in the lug holes on my street wheels, but they do fit the lug holes on my track wheels, so it just depends. I use them on track for extra peace of mind. Otherwise, I'd get longer studs.
P
The one thing you can do about thread space is use extended shank lug nuts, like these:
http://www.jegs.com/i/Cragar/260/278...FRpLDQodQuYORw
However, these won't go in the lug holes on my street wheels, but they do fit the lug holes on my track wheels, so it just depends. I use them on track for extra peace of mind. Otherwise, I'd get longer studs.
P
Trending Topics
#9
Rotary Enthusiast
Thread Starter
I did order the ones suggested earlier. How About these? Would these be a safe alternative if the ones I bought don't workout for what I'm needing/wanting? Thanks again guys
https://www.ichibausa.com/ProductDet...ode=MZ%2D53210
https://www.ichibausa.com/ProductDet...ode=MZ%2D53210
#10
Fistful of steel
iTrader: (7)
Yea those are hubcentric, but then you'd need hubcentric rings for your wheels. The hubcentricity is done with your lug nuts. You want the spacer hubcentric so it does not float around on the hub before you bolt on your wheel. The Toyota spacers are so close in size they work well and just barely move. The Mazda 59.6 bore spacers are quite a bit more money.
#12
Fistful of steel
iTrader: (7)
That is a ring for Mazda, It replicates the same size register for the wheel you have now. Your aftermarket wheels have a 73mm hub bore (or something like that) so they can fit any car.
You would still need hubcentric spacers on those 10mm wheel spacers to make the wheels hubcentric.
#13
Rotary Enthusiast
Thread Starter
so basically I would need the spacers I posted in the link and these or similar in the correct Inner/Outer diameters?
https://www.uswheeladapters.com/shop...ings-set-of-4/
https://www.uswheeladapters.com/shop...ings-set-of-4/
#15
Rotary Enthusiast
Thread Starter
Im gona wait and see how they do with the ones from eBay that you showed me earlier. If I don't like them or they won't work for what I'm wanting ill order the others and the rings are only $24 so worth picking up just in case. Thanks for all the help on the wheels and the spacers.
#16
Lives on the Forum
iTrader: (9)
I would not rely on just the lug nuts to center your wheel. I've had a ring fall off, and you'll get a shimmy at different speeds, etc. Wheels are hub centric for a reason. I even tried out stuffing two 5mm spacer on my wheels just to see how it would look, you could feel it.
P
P
#17
Fistful of steel
iTrader: (7)
You are in fact relying on tapered lug nuts to center your wheel. You certainly are not relying on a plastic ring to do it. All the ring does is hold the wheel in place while you bolt on the lug nuts. That is the whole point of the tapered seat lug nut, to keep the wheel centered.
Either method will yeild a proper result. If not there is someone wrong with how the bolt pattern was drilled on the wheels.
Either method will yeild a proper result. If not there is someone wrong with how the bolt pattern was drilled on the wheels.
#20
1308ccs of awesome
iTrader: (9)
My car is a bit of an extreme case, but there was definitely a pretty large difference going from no hub-centric rings to (metal) hub-centric rings on a set of 30mm bolt on spacers I had.
it went from a pretty significant steering wheel shake on the highway to much less of one.
when I ordered my next set of spacers (slip on) I just ordered them with hub-centricity built in from motorsport-tech.com. They'll machine spacers to whatever specs you want.
that being said, 8mm isn't that much spacer and most people with aftermarket wheels are hub-centric so you should be fine.
also, the hub on an FC is 59.5mm, not 60.1
it went from a pretty significant steering wheel shake on the highway to much less of one.
when I ordered my next set of spacers (slip on) I just ordered them with hub-centricity built in from motorsport-tech.com. They'll machine spacers to whatever specs you want.
that being said, 8mm isn't that much spacer and most people with aftermarket wheels are hub-centric so you should be fine.
also, the hub on an FC is 59.5mm, not 60.1
#21
Fistful of steel
iTrader: (7)
My car is a bit of an extreme case, but there was definitely a pretty large difference going from no hub-centric rings to (metal) hub-centric rings on a set of 30mm bolt on spacers I had.
it went from a pretty significant steering wheel shake on the highway to much less of one.
when I ordered my next set of spacers (slip on) I just ordered them with hub-centricity built in from motorsport-tech.com. They'll machine spacers to whatever specs you want.
that being said, 8mm isn't that much spacer and most people with aftermarket wheels are hub-centric so you should be fine.
also, the hub on an FC is 59.5mm, not 60.1
it went from a pretty significant steering wheel shake on the highway to much less of one.
when I ordered my next set of spacers (slip on) I just ordered them with hub-centricity built in from motorsport-tech.com. They'll machine spacers to whatever specs you want.
that being said, 8mm isn't that much spacer and most people with aftermarket wheels are hub-centric so you should be fine.
also, the hub on an FC is 59.5mm, not 60.1
My argument is that if you are not running them now and have no ill effects, nothing will change with a thin spacer.
#22
Rotary Enthusiast
Thread Starter
I got the 8mm spacers and they work. I havnt driven it at speed yet. I may order 5mm spacers to see if they will work for the front just to pull the wheel back in a bit and put the 8mm on the rear. Should give it a nice stance and function for what I need it to do.
Can anyone confirm form if I would need extended studs for the rear with 8mm spacer? I have them on but hard to tell how many threads they have to bite on.
Can anyone confirm form if I would need extended studs for the rear with 8mm spacer? I have them on but hard to tell how many threads they have to bite on.
#23
Rotary Enthusiast
Thread Starter
i got the 8mm spacers and they work. I havnt driven it at speed yet. I may order 5mm spacers to see if they will work for the front just to pull the wheel back in a bit and put the 8mm on the rear. Should give it a nice stance and function for what i need it to do.
Can anyone confirm form if i would need extended studs for the rear with 8mm spacer? I have them on but hard to tell how many threads they have to bite on.
Can anyone confirm form if i would need extended studs for the rear with 8mm spacer? I have them on but hard to tell how many threads they have to bite on.
#24
Penis Healthy
iTrader: (5)
Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 776 Likes
on
445 Posts
I got the 8mm spacers and they work. I havnt driven it at speed yet. I may order 5mm spacers to see if they will work for the front just to pull the wheel back in a bit and put the 8mm on the rear. Should give it a nice stance and function for what I need it to do.
Can anyone confirm form if I would need extended studs for the rear with 8mm spacer? I have them on but hard to tell how many threads they have to bite on.
Can anyone confirm form if I would need extended studs for the rear with 8mm spacer? I have them on but hard to tell how many threads they have to bite on.
#25
Rotary Enthusiast
Thread Starter
You shouldnt need em, but it wouldnt hurt to have the extra length. I have 10mm spacers hub centric 60.1 HB and extended studs, ARP 100-7708 2.5" length, 60 shipped for the 2 front wheels.
The part number you gave me. Is that for the front or rear. Or is it the same for both? Thanks
