hi ,
i ordered a EBC red set for my fd and the set i received is a bit diferent.

there is a spring on one of the pads. what it is?
the pads fit nicely but i do not know what it is or if i must put the pad with this spring in the inside or the outside of the rotor.
thanks

jfxp

iTrader: (4)

It's a wear indicator. When enough pad is worn away it will contact the rotor and "squeal" and let you know you need to change out pads before it's metal on metal contact.

AchillesGr

iTrader: (1)

hi,
should I put it on the outside or at the inside ?
thanks

nashman69g

iTrader: (3)

put it on the inside as the wear is usually higher there.

DaleClark

iTrader: (55)

I think it will only go in one way.

Dale

zeroG

iTrader: (28)

I just did mine, it fits on either side of the rotor, I put it on the inside

AchillesGr

iTrader: (1)

hi guys thanks for the replies.

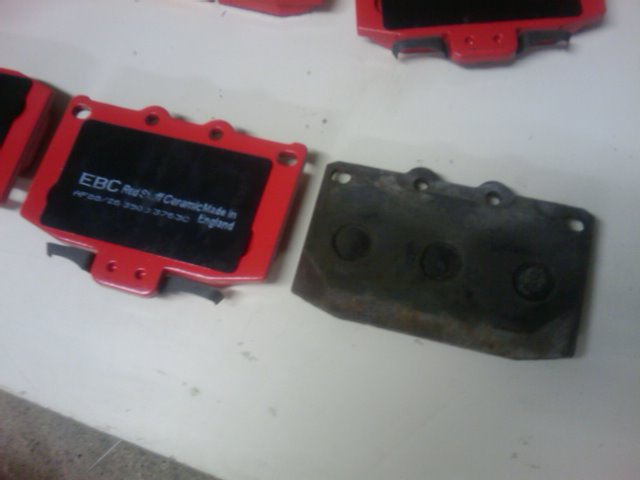

1) there is a soft black plastic that it is sticked at the backside of the pads.it is visible at the fotos.
should i remove it?this is only at the fronts . the rears came with aluminiun sims but what is this soft plastic at the fronts?

2)there are two OEM sims per pad .one stainless and one steel that is very corroded.
can i leave it out?
what is these sims for? i assume that the stainless one witch have an angle cut is for presure equilazation. the other(the corroded) is a flat piece. is it needed?

thanks again!

jfxp

iTrader: (4)

1. The soft stuff on the back of the pads is used for noise suppression. It stops vibration of the pads at certain frequencies which in turn makes them queiter. It's the same idea with using brake lube on the backing plate contact points. If you remove it, it's not going to hurt anything, you just might have noisier brakes.

2.Were there two shims on your car before you removed the pads? Or is one set of shims new that came with the pads? You should only have one set of shims on the brakes. So i would use the un-corroded set. The shims serve pretty much the same purpose as the black stuff on the front pads.

Hope this helps.

AchillesGr

iTrader: (1)

hi,
the old pads had two sims per pad.one large and on smaller with an angle cut.the smaller is stainless and it is intact.the other is coroded.as i looked on the mazda manual,these sims comes with the factory setup.
now, the pads that are ebc reds have this plastic material and i am confused.i came in contact with the ebc team here and they told me that if the pads i received came with the plastik i should not use the factory sims.
hope i make myself clear so you could help me.
i do not trust these guys and i would like your opinions.
many thanks.
