Im looking at replacing the pillowballs in the rear of the fd, and was wondering if I get aftermarket trailing arms, does that eliminate one set of bushings? Or, if anyone happens to have a picture of where all three bushings per side are located. Ive searched and I guess Im using the wrong terms because Im not really turning anything up....

Thanks in advance guys

Alex



what search terms did you use?

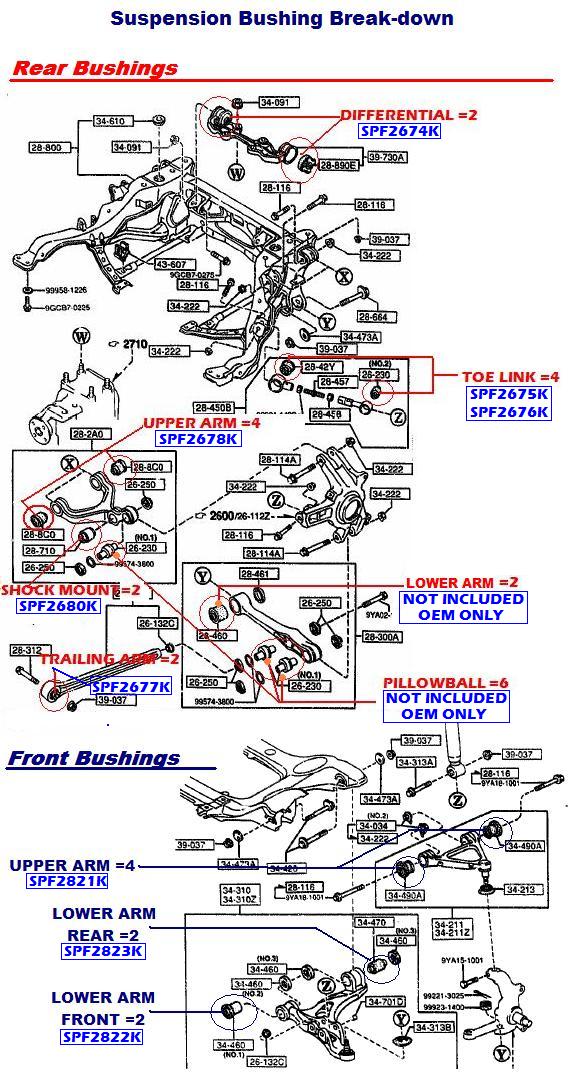

here a factory diagram edited from wanklin's superpro poly urethane group buy thread

the factory service manual also has a good set of diagrams on this. you can download a PDF copy from the stickied links in the 3rd gen section.
