Offset size

Hi guys. I want to change the rims of my car. I like the size and offset of them so I want to buy new ones but how do I know what are the offset size for me to order the new ones the same size and all. They are 18". Appreciate your help. Thanks

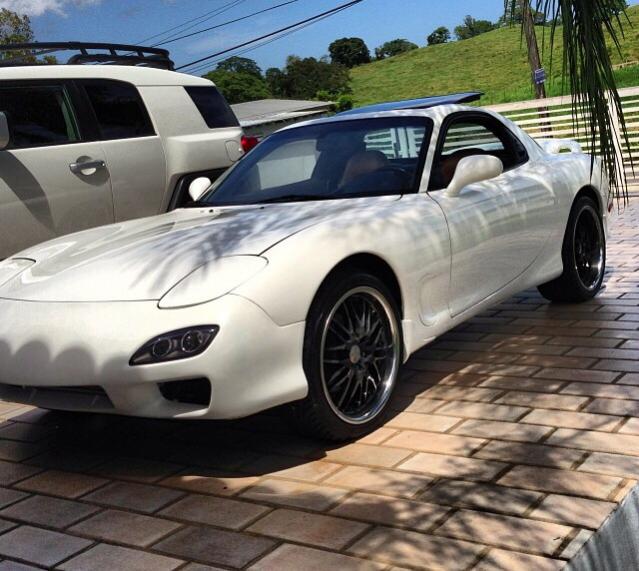

Offset size-image-2356826143.jpg
Old 05-27-14, 07:51 AM
  #2
Rotary Enthusiast

iTrader: (19)

lOOkatme's Avatar

Join Date: Apr 2002
Location: Colorado Springs, CO
Posts: 1,169
Likes: 0
Received 11 Likes on 10 Posts
depends on the tire you want to run. you can manipulate the tire and wheel with offset.

what tire size do you want to run and what are the offsets of the current wheels?
Old 05-27-14, 10:21 AM
  #3
Boilermakers!

iTrader: (157)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 3,691
Received 359 Likes on 263 Posts
Take the wheel off and see if the offset is stamped on the back.
Old 05-27-14, 11:11 AM
  #4
Full Member

iTrader: (1)

Kman Art's Avatar

Join Date: Apr 2010
Location: Cayman Islands
Posts: 147
Likes: 0
Received 0 Likes on 0 Posts
If there is no numbers on the inside back of the hub, you can measure the backspacing in inches and then convert it with an online calculator.

The internet is your friend!
Old 05-27-14, 01:21 PM
  #5
Full Member

Thread Starter
iTrader: (1)

jdr821's Avatar

Join Date: Jan 2006
Location: home
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ZE Power MX6
Take the wheel off and see if the offset is stamped on the back.
I check them front and rear and they both have a number 38. Front is 18x8 and rear 18x9. Could the offset be that number 38 on both??
Old 05-27-14, 01:35 PM
  #6
Full Member

Thread Starter
iTrader: (1)

jdr821's Avatar

Join Date: Jan 2006
Location: home
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
In inches the front back spacing is 5.5" and the rear are 6.25". 18x8 in the front and 18x9 in the rear
Old 05-27-14, 03:58 PM
  #7
1308ccs of awesome

iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,189
Received 17 Likes on 15 Posts
Originally Posted by jdr821
In inches the front back spacing is 5.5" and the rear are 6.25". 18x8 in the front and 18x9 in the rear
front = +25
rear = +32

I would post a picture of the back of your wheel though, it should be cast either in one of the spokes or the mounting face.
Old 05-27-14, 06:46 PM
  #8
Full Member

Thread Starter
iTrader: (1)

jdr821's Avatar

Join Date: Jan 2006
Location: home
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by eage8
front = +25 rear = +32 I would post a picture of the back of your wheel though, it should be cast either in one of the spokes or the mounting face.
Thanks alot for your help guys. Just ordered some new rims.
