Old May 28, 2013 | 01:26 PM
  #5776
rowdyfc's Avatar
Junior Member

Joined: Dec 2012
Posts: 37
Likes: 0
Anybody running
18x8 +20
18x9.5 +20
Or does anyone know if That will work.
225/40r18
275/35r18
Reply
Old May 28, 2013 | 05:59 PM
  #5777
newkid2rotary2012's Avatar
Full Member
Tenured Member 05 Years
iTrader: (3)

Joined: Aug 2011
Posts: 220
Likes: 0
From: Mathews VA
That will work the +20 offset though might make it poke out the fender just a tad, I'm running 17x8.25 +25 in the front and 17x9.75 +25 in the rear and the front will rub the fender under fast turns or big bumps.
Reply
Old May 28, 2013 | 10:21 PM
  #5778
rowdyfc's Avatar
Junior Member

Joined: Dec 2012
Posts: 37
Likes: 0
Originally Posted by newkid2rotary2012
That will work the +20 offset though might make it poke out the fender just a tad, I'm running 17x8.25 +25 in the front and 17x9.75 +25 in the rear and the front will rub the fender under fast turns or big bumps.
Thx for the info. I guess alittle fender pulling never hurt anyone lol
Reply
Old May 29, 2013 | 03:28 PM
  #5779
newkid2rotary2012's Avatar
Full Member
Tenured Member 05 Years
iTrader: (3)

Joined: Aug 2011
Posts: 220
Likes: 0
From: Mathews VA
Not at all I got to do the same to mine cause its starting to shave the outside of my tire.
Reply
Old Jun 13, 2013 | 03:58 PM
  #5780
Frank Field's Avatar
Can Post Only in New Member Section

Joined: Apr 2013
Posts: 3
Likes: 0
Alright, here goes my first post.
I've been trying to research this for a while now.
I want to put these wide fenders on my 91 vert. What i would like to know, is what size wheels to get to fill these out. I still want to be able to lower the car some for track purposes, but i'm thinking 17s or 18s. How wide and what offsets should i look at?
Reply
Old Jun 14, 2013 | 10:55 PM
  #5781
djSL's Avatar
Rotary Enthusiast
Tenured Member: 10 Years
Liked
Loved
Community Favorite
iTrader: (5)

Joined: Feb 2012
Posts: 1,142
Likes: 135
From: Duluth, MN
Alot of great info in here. Looking at picking up some rims for a steal and I may have missed it as I was skimming the pages but I needed an urgent answer.

Would this fit stock body and on coilovers?
Front: 17x7 +35 (215/40/17)
Rear: 17x9 +22 (245/40/17)

Thanks in advance
Reply
Old Jun 14, 2013 | 11:25 PM
  #5782
sytfu_fc3s's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (1)

Joined: Jul 2008
Posts: 490
Likes: 0
From: bayarea
Originally Posted by Frank Field
Alright, here goes my first post.
I've been trying to research this for a while now.
I want to put these wide fenders on my 91 vert. What i would like to know, is what size wheels to get to fill these out. I still want to be able to lower the car some for track purposes, but i'm thinking 17s or 18s. How wide and what offsets should i look at?
17x9.5 -2 front and 18x10 - 12 rear. 225/40/17 in front and 255/40/18 in rear. some people have gotten even more extreme, but i still have some fender clearance front and back.
Reply
Old Jun 16, 2013 | 10:52 PM
  #5783
jayr_'s Avatar
Full Member
Tenured Member 10 Years
iTrader: (2)

Joined: Jun 2013
Posts: 60
Likes: 0
From: NJ
great info! looking to run 10 and 11s on my fd
Reply
Old Jun 17, 2013 | 01:38 PM
  #5784
sytfu_fc3s's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (1)

Joined: Jul 2008
Posts: 490
Likes: 0
From: bayarea
these are 30mm fenders front and back. front is 17x9 with corrected -5 on 235/40/17. the rear is 18x10 with corrected -2 on 255/40/18. i can either run more camber in front or simply go to a 225 or 215. havent descided yet.



Reply
Old Jun 17, 2013 | 01:45 PM
  #5785
Derek King's Avatar
Rotary Enthusiast
Tenured Member 15 Years
iTrader: (2)

Joined: Nov 2006
Posts: 1,048
Likes: 35
From: fort wayne, in

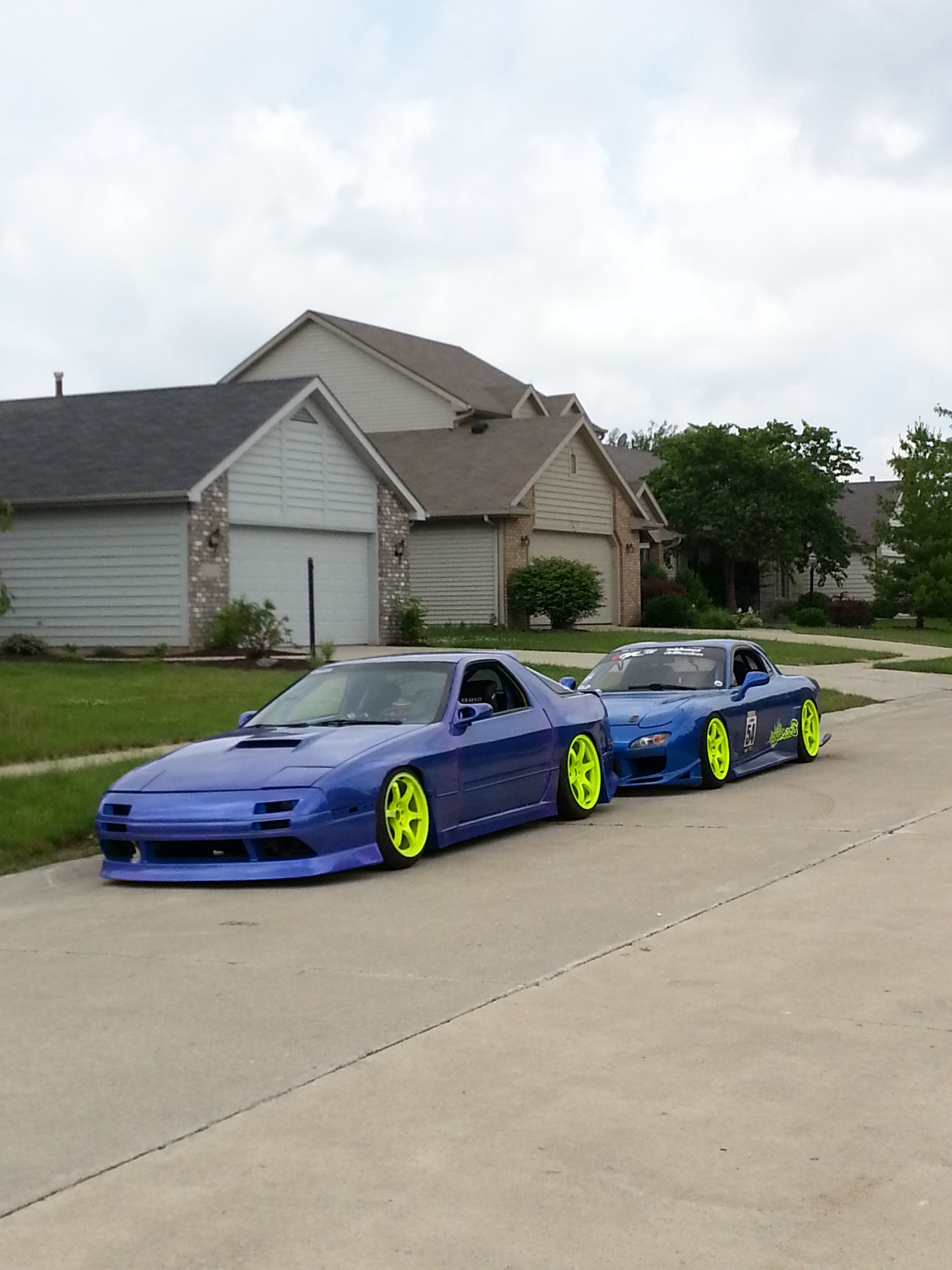

Name:  20130616_134617_zps5054bc84.jpg
Views: 1064
Size:  1.39 MB
Reply
Old Jun 17, 2013 | 03:29 PM
  #5786
sytfu_fc3s's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (1)

Joined: Jul 2008
Posts: 490
Likes: 0
From: bayarea
team colors > all. i like it.
Reply
Old Jun 18, 2013 | 07:57 AM
  #5787
Valkyrie's Avatar
Lives on the Forum
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Oct 2004
Posts: 5,164
Likes: 167
From: Japanabama
+42 8" front and +40 9" rear will fit with 10mm spacers on each end, right?

I've got some Prodrive rims I am gonna send home if I can't get a job here...
Reply
Old Jun 24, 2013 | 09:13 PM
  #5788
pumpupthejam's Avatar
Full Member
Tenured Member 05 Years
iTrader: (1)

Joined: Jan 2012
Posts: 129
Likes: 0
From: WA
[IMG][/IMG]
[IMG][/IMG]

17x9.75 (215/45/17) and 17x8.25 (205/40/17) no spacers.

I wish my coilovers would go lower, but whatever. And the front coils aren't maxed.
Reply
Old Jun 27, 2013 | 07:54 AM
  #5789
Valkyrie's Avatar
Lives on the Forum
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Oct 2004
Posts: 5,164
Likes: 167
From: Japanabama
Originally Posted by pumpupthejam
[IMG][/IMG]
[IMG][/IMG]

17x9.75 (215/45/17) and 17x8.25 (205/40/17) no spacers.

I wish my coilovers would go lower, but whatever. And the front coils aren't maxed.
...even if you could go lower with your coilovers, you're going to run out of stroke room if you don't remove the fender liner and fold or grind the frame's lip... and even if you do, you will have to double your spring rate to keep it from bottoming out.

...wait, are your wheel sizes 9.75 inches or 9 inches with a 75mm offset? The latter... wouldn't work, obviously.. What are your offsets?
Reply
Old Jun 29, 2013 | 04:43 AM
  #5790
boostinfc3s's Avatar
Senior Member
Tenured Member 05 Years

Joined: May 2008
Posts: 344
Likes: 2
From: Alameda
18x9.5/10.5 +15

if i want to make it fit on stock fenders with a roll, what size tires would make that possible?
Reply
Old Jun 29, 2013 | 10:00 PM
  #5791
sytfu_fc3s's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (1)

Joined: Jul 2008
Posts: 490
Likes: 0
From: bayarea
225 front and 235 rear 40 sidewall on both.

glad to see you still alive bransannnnn.
Reply
Old Jun 29, 2013 | 10:21 PM
  #5792
boostinfc3s's Avatar
Senior Member
Tenured Member 05 Years

Joined: May 2008
Posts: 344
Likes: 2
From: Alameda
no, glad to see u still alive laxis haha.. bro i hollered at u the other day about this matter but u never got back to me. thanks
Reply
Old Jun 30, 2013 | 11:35 AM
  #5793
pumpupthejam's Avatar
Full Member
Tenured Member 05 Years
iTrader: (1)

Joined: Jan 2012
Posts: 129
Likes: 0
From: WA
Originally Posted by Valkyrie
...even if you could go lower with your coilovers, you're going to run out of stroke room if you don't remove the fender liner and fold or grind the frame's lip... and even if you do, you will have to double your spring rate to keep it from bottoming out.

...wait, are your wheel sizes 9.75 inches or 9 inches with a 75mm offset? The latter... wouldn't work, obviously.. What are your offsets?
They are 17x9.75 + 25mm (215/45/17) in the back, and 17x8.25 + 25mm (205/40/17) in the front. No spacers at all.

Yeah don't worry, i already rolled the fenders and took out the fender liner. There is plenty of room. I will eventually just have to get some other coilovers (Iv'e been looking at some Powered by Max), but that is in the future. Maybe i'll just rebuild these (Megan Track Coilovers).

I just wish I had stretched them some more in the front, but whatever, i'm happy with this first attempt on fitment.

Last edited by pumpupthejam; Jun 30, 2013 at 11:37 AM.
Reply
Old Jul 1, 2013 | 07:30 AM
  #5794
Valkyrie's Avatar
Lives on the Forum
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Oct 2004
Posts: 5,164
Likes: 167
From: Japanabama
^even if you have rolled the fenders and taken the liner out, there's still the lip of the frame hanging down to about where the liner was.
Reply
Old Jul 1, 2013 | 09:38 AM
  #5795
Chriz88DX's Avatar
Senior Member
Tenured Member 10 Years
iTrader: (1)

Joined: May 2007
Posts: 387
Likes: 0
From: Georgia
Is it just me or is the 4 lug FC fitment different from the 5 lug fc fitment. i just upgraded to a 5 lug fc and seems like the 4 lug fc has more "room" in the wheel wells.
Reply
Old Jul 1, 2013 | 03:01 PM
  #5796
sytfu_fc3s's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (1)

Joined: Jul 2008
Posts: 490
Likes: 0
From: bayarea
Originally Posted by boostinfc3s
no, glad to see u still alive laxis haha.. bro i hollered at u the other day about this matter but u never got back to me. thanks
sorry bruh, working like crazy... i havent even taken my phone off mute in 16 days. working like mad. hit me up tho.
Reply
Old Jul 2, 2013 | 01:43 PM
  #5797
Derek King's Avatar
Rotary Enthusiast
Tenured Member 15 Years
iTrader: (2)

Joined: Nov 2006
Posts: 1,048
Likes: 35
From: fort wayne, in
Reply
Old Jul 3, 2013 | 07:19 AM
  #5798
Customisbetter's Avatar
Senior Member
Tenured Member 05 Years

Joined: Jun 2012
Posts: 462
Likes: 0
From: Michigan
Ugh I hate to ask this but I've searched a bunch and can't find it..

I'm planning on machining my hubs to 5x120 to fit some BMW e38 BBS wheels.

They are 16x8 ET 23, 225/50 tires all around. I figure I'll be ok in the back, but I'm worried about the front. Anybody know if that will be an issue? I'll be using stockish suspension as well.
Reply
Old Jul 3, 2013 | 07:52 AM
  #5799
Customisbetter's Avatar
Senior Member
Tenured Member 05 Years

Joined: Jun 2012
Posts: 462
Likes: 0
From: Michigan
Nevermind that machining nonsense, I can't edit the post. My only option i guess would be adding spacer/adapters but that adds another inch and I'm sure that won't work.
Reply
Old Jul 3, 2013 | 11:12 AM
  #5800
schaft's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (1)

Joined: Sep 2010
Posts: 556
Likes: 0
From: ohio
ok so im ordering some new wheels, im looking at 17x9.5 for the rear and 17x8 or 8.5 for the front the off sets available for the rear are et 12,20 and the front is et 30.

i also found a set of 18x10 and 18x8.5 with rear ets of 20,15,35 and front of et 20,30,35,44... any of those set ups work on a fc with stock(for now) suspension and rolled fenders?
Reply
