The Official FC Wheel Fitment Thread

Reply Subscribe

Thread Tools

Search this Thread

Jul 8, 2011 | 07:18 PM

#5226

Wild Bill Massey

Wild Bill Certified

iTrader: (2)

Joined: Apr 2010

Posts: 264

Likes: 8

From: Ebensburg, Pennsylvania

I am looking for flush fitment, or I don't mind having the fenders rolled.

Will 17x9 +30 wheels fit? If so, what size tire?

The wheels I am looking at are also available with a +22.

Last edited by Wild Bill Massey; Jul 8, 2011 at 07:29 PM.

Jul 8, 2011 | 11:01 PM

#5227

K!NCH

Eats, Sleeps, Dreams Rotary

iTrader: (2)

Joined: Jul 2007

Posts: 3,564

Likes: 26

From: Cincinnati, OH

Quote:

Originally Posted by Wild Bill Massey

I am looking for flush fitment, or I don't mind having the fenders rolled.

Will 17x9 +30 wheels fit? If so, what size tire?

The wheels I am looking at are also available with a +22.

+22 would be better.

Jul 10, 2011 | 02:36 AM

#5228

nismorx7

Full Member

Joined: Mar 2005

Posts: 108

Likes: 0

From: Canada

Any idea if a 8.5 inch front rim will fit on stock fenders? Its a +35 offset but spacers are an option.

Jul 10, 2011 | 02:44 AM

#5229

nismorx7

Full Member

Joined: Mar 2005

Posts: 108

Likes: 0

From: Canada

Its an 18" rim FYI. O and the rears are 9.5 wide with a +35 offset. I know the fronts will be tight, but does anyone know for sure if I can make them work by just rolling the fenders?

Jul 10, 2011 | 03:04 AM

#5230

K!NCH

Eats, Sleeps, Dreams Rotary

iTrader: (2)

Joined: Jul 2007

Posts: 3,564

Likes: 26

From: Cincinnati, OH

Quote:

Originally Posted by nismorx7

Its an 18" rim FYI. O and the rears are 9.5 wide with a +35 offset. I know the fronts will be tight, but does anyone know for sure if I can make them work by just rolling the fenders?

You can fit a 9" under stock fenders with a proper offset in the front, and the rear is no problem so the 9.5 should work. Just get the offsets right.

Jul 10, 2011 | 03:33 PM

#5231

batmanfc

Senior Member

Joined: Jan 2008

Posts: 506

Likes: 0

From: Virginia

What size tire and offset would I have to run for a 17x8.5 front and rear and also a 17x9 front and rear?

Jul 12, 2011 | 01:04 AM

#5232

hockeyderek21

Junior Member

Joined: Feb 2008

Posts: 36

Likes: 0

From: fontana, ca

what would be a good tire size to run for FNO1RC 's?

FRONT: 17x8 +43
REAR: 17x10 +25

looking for somthing not too stretched and not to thin at the same time...

Jul 12, 2011 | 01:25 AM

#5233

K!NCH

Eats, Sleeps, Dreams Rotary

iTrader: (2)

Joined: Jul 2007

Posts: 3,564

Likes: 26

From: Cincinnati, OH

Quote:

Originally Posted by hockeyderek21

what would be a good tire size to run for FNO1RC 's?

FRONT: 17x8 +43
REAR: 17x10 +25

looking for somthing not too stretched and not to thin at the same time...

Get a better offset for the front. Why not go with a 17x9?

Jul 12, 2011 | 04:42 PM

#5234

nismorx7

Full Member

Joined: Mar 2005

Posts: 108

Likes: 0

From: Canada

I wouldn't have believed these offsets would fit until I tried them

17x8 +42 front (215/45) - perfect fit, just clears strut and room without rolling fender

17x9 +48 rear (215/45) - I will need a spacer when i throw 255's on it but clears easily at the moment and fits pretty well.

[IMG]

[/IMG]

[IMG]

[/IMG]

Name: DSCF3004.jpg
Views: 650
Size: 11.5 KB

Jul 12, 2011 | 05:32 PM

#5235

illestvillains

Junior Member

iTrader: (3)

Joined: Apr 2011

Posts: 33

Likes: 0

From: Edmonton, AB, Canada

18x9.5JJet12 Team 5Zigen nt01r-c Hot Versions wrapped in 225/40/r18 Federals. Fitment is just spot-on for a stock-bodied FC3S, but these are being replaced with something a little different.

These are for sale now if anyone's interested.

Jul 14, 2011 | 07:49 PM

#5236

Brismo7

6 Speed FC

iTrader: (2)

Joined: Aug 2005

Posts: 2,258

Likes: 1

From: Orange, CA

Can I assume 18x10 +25 will fit like this in the rear? Will it hit the coil overs? TIA!

Quote:

I started reading this 8 year long and still going thread today. I read the first 6-7 pages, then skipped to the end.

Most of the first pages that were written in 2001 are about 16"-17" wheels.

I was wondering if anyone could tell me what they think of this fitment:

18X8.5 +35 offset up front. 225 45 18 Tires (I have these laying around, not sure if they will clear)

18X9.5 +35 offset in the back. 265 25 18 Tires

Quote:

Originally Posted by fc3c69

Yes they will fit. I actually have the same setup on my, stock suspension, 90 vert. The only difference is that my rear tires are 265/35 18. Here is a pic of how it looks.[IMG]

[/IMG][IMG]

[/IMG]

Jul 14, 2011 | 10:06 PM

#5237

h_block88

Full Member

Joined: Sep 2008

Posts: 235

Likes: 0

From: carteret nj

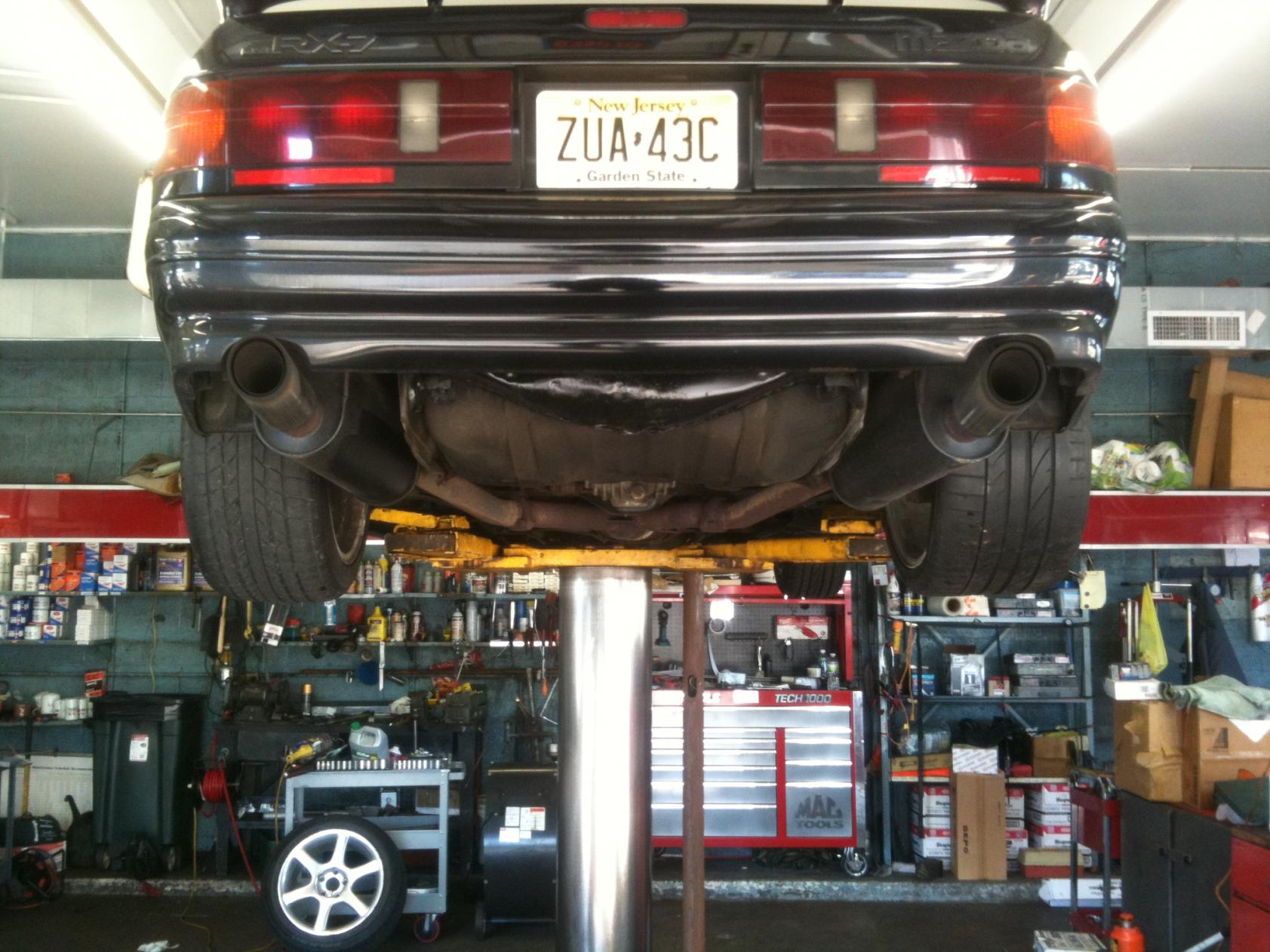

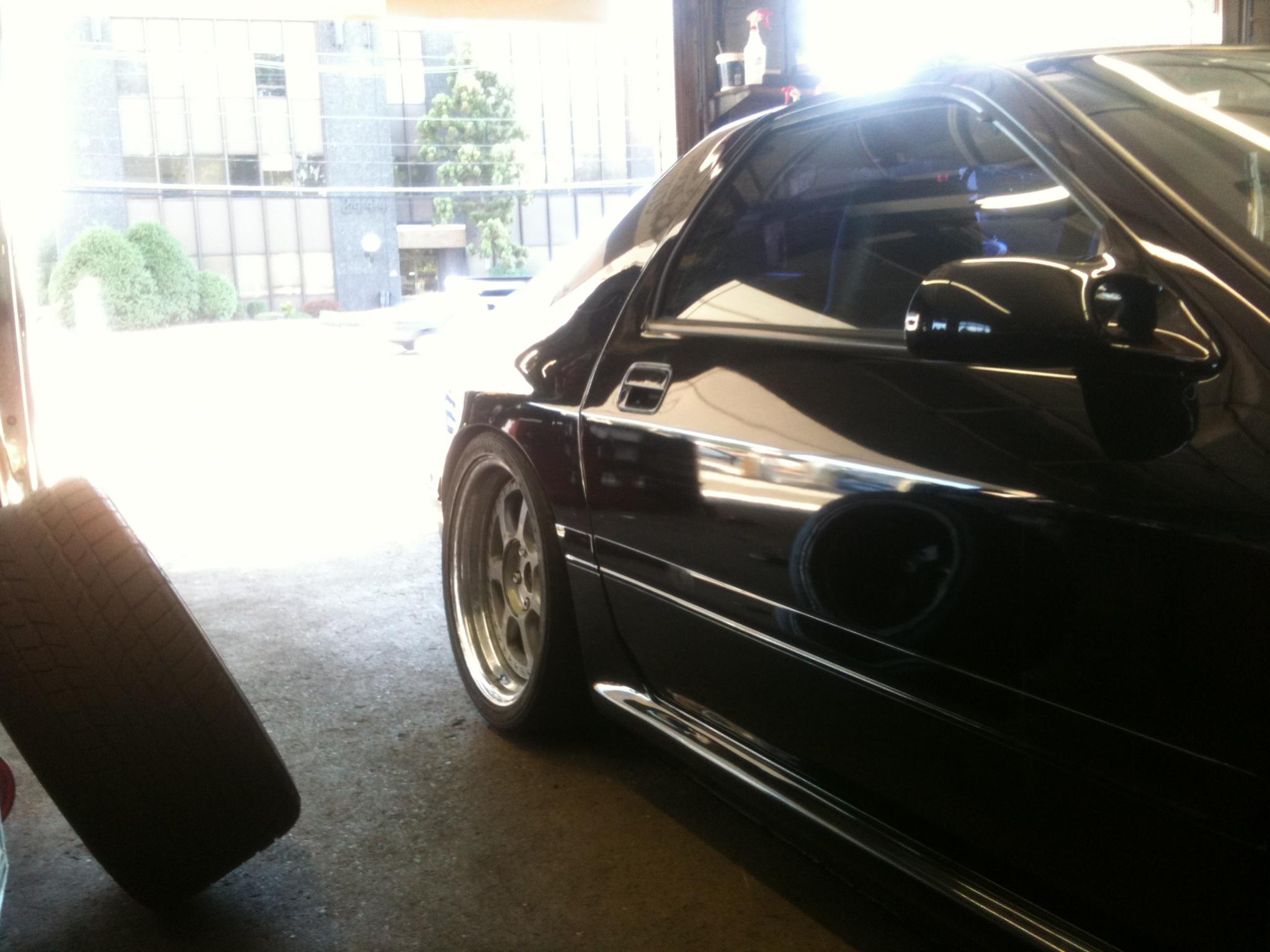

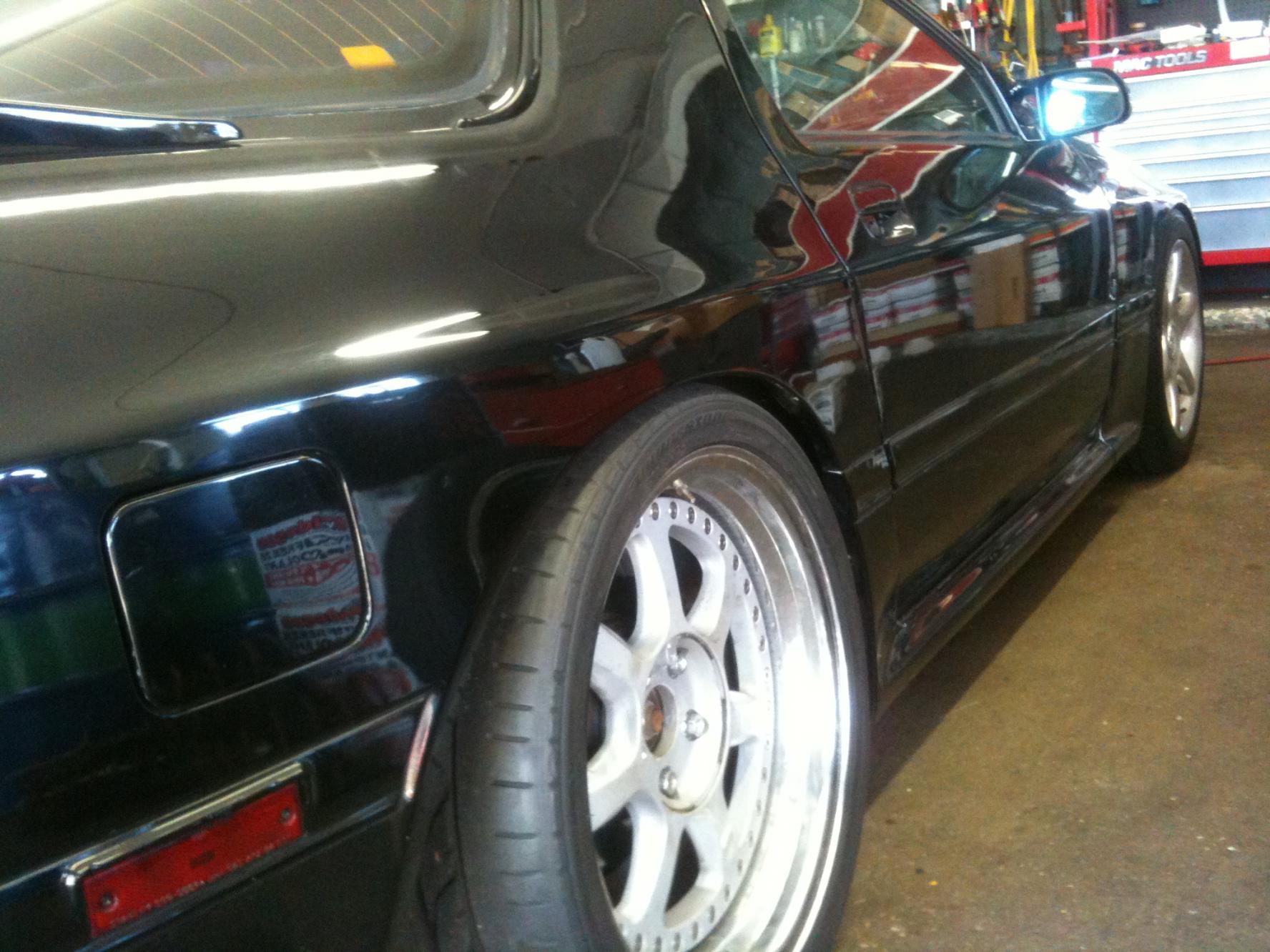

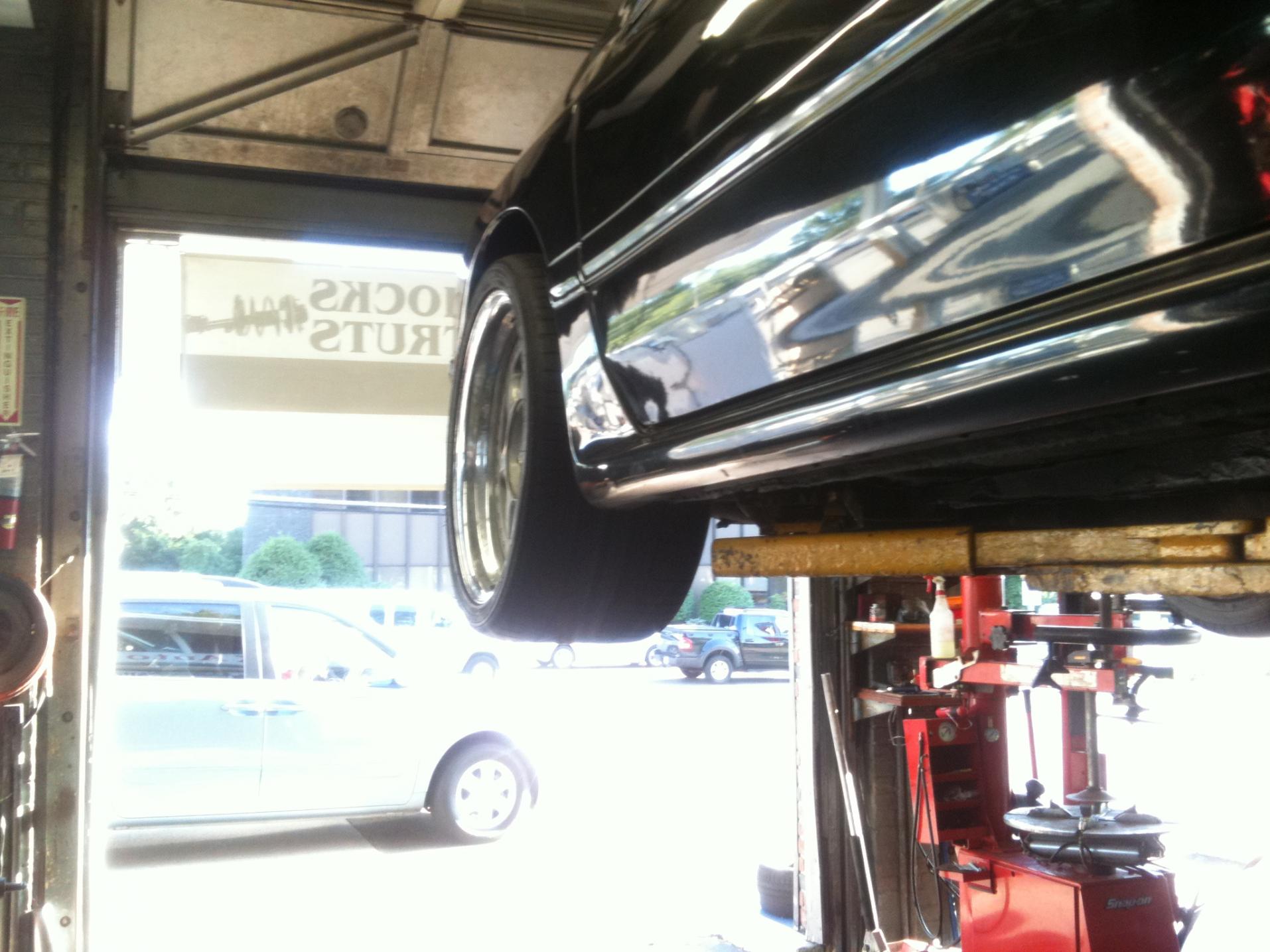

I had this 18x10 acr wheel laying around with 285/30/18 with 37 offset so i tried to see if it fits on STOCK BODY WITH COILOVER AND IT DID YEYY
Its a VERY tight fit thou and deffinitly needs to roll if i wanna get something similar

rest of the wheels trashed and cant really use one

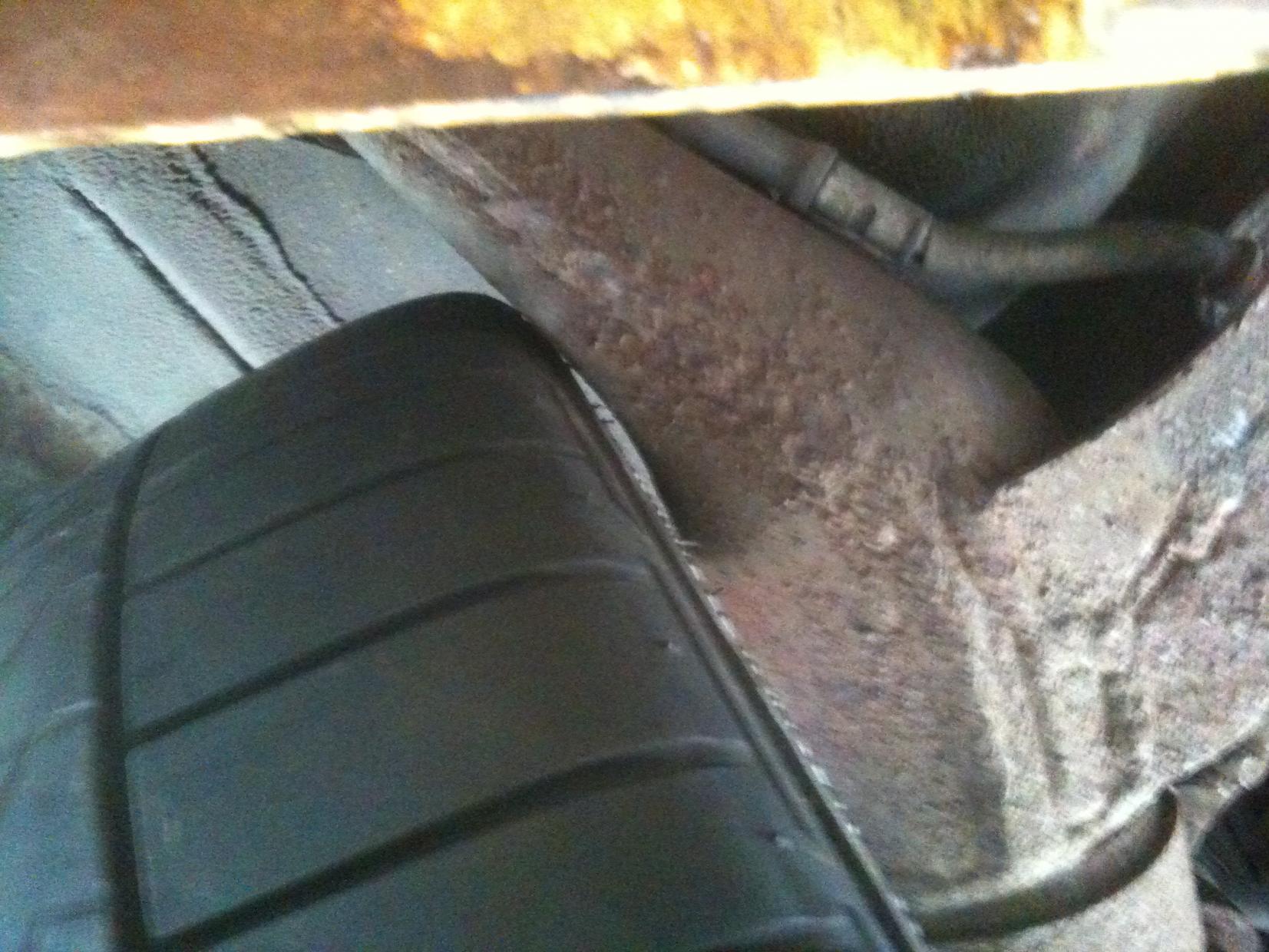

Note in the picture it almost hit the control arm back after 4mm spacer it was good so probley 33 offset is the best offset to not hit anything

Attached Thumbnails

The Official FC Wheel Fitment Thread-img_0302.jpg

The Official FC Wheel Fitment Thread-img_0296.jpg

The Official FC Wheel Fitment Thread-img_0304.jpg

The Official FC Wheel Fitment Thread-img_0297.jpg

The Official FC Wheel Fitment Thread-img_0300.jpg

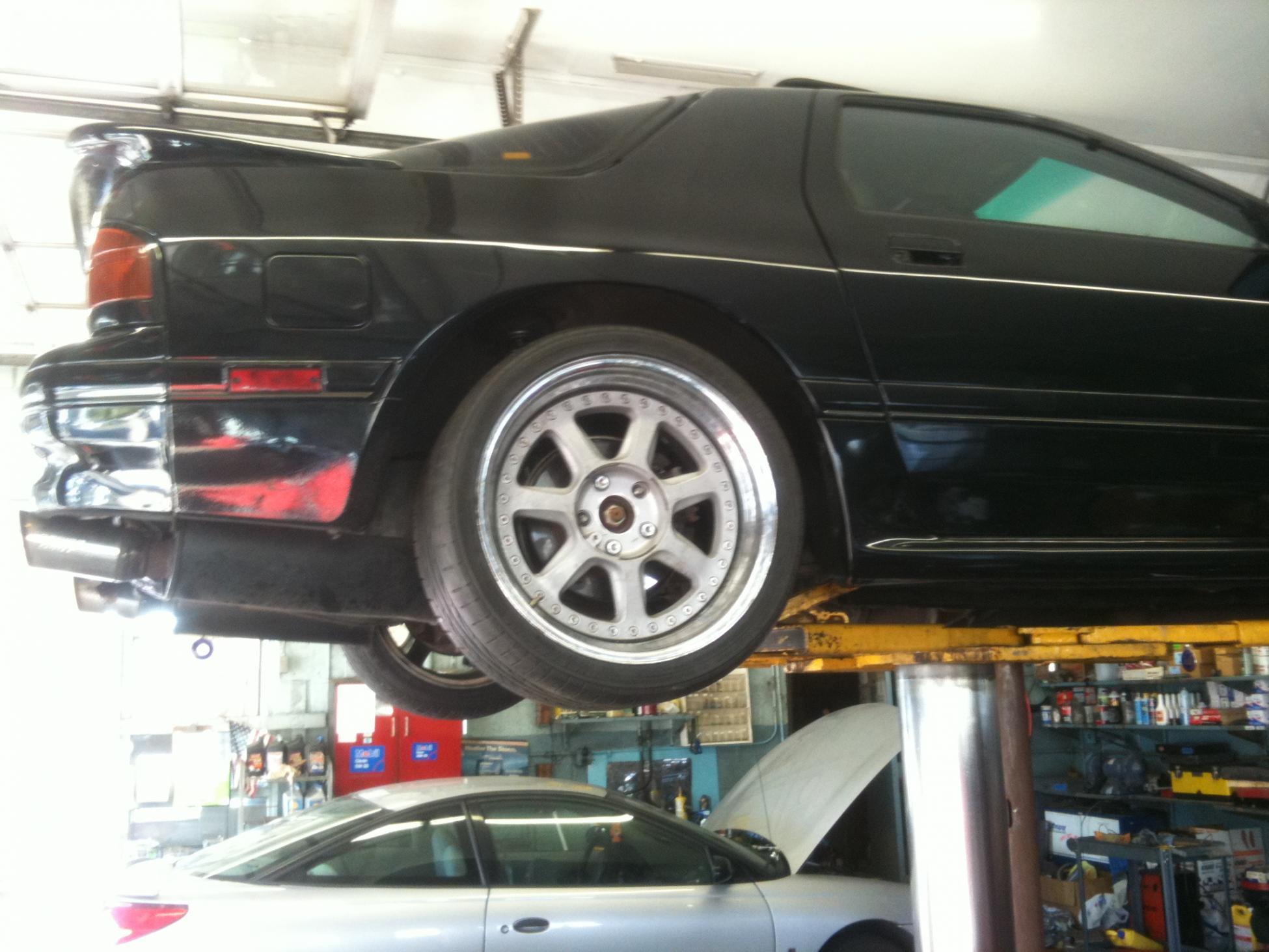

The Official FC Wheel Fitment Thread-img_0299.jpg

Jul 17, 2011 | 01:03 PM

#5238

Chriz88DX

Senior Member

iTrader: (1)

Joined: May 2007

Posts: 387

Likes: 0

From: Georgia

Cool thread. I am tring to decide on what width wheels to get will a 17x8.25 fit better up front on stock metal or a 17x9.75 I am not looking for super stretch either the car is mainly used for mountain runs and grip. I would like to run the 17x9.75 on all around but don't know if they will clear.

Btw car has full suspension camber adjusters front and rear and full coil overs as well thanks for the help guys

Jul 17, 2011 | 01:09 PM

#5239

Chriz88DX

Senior Member

iTrader: (1)

Joined: May 2007

Posts: 387

Likes: 0

From: Georgia

I al most forget the offset is +25 for the 17x8.25 and the 17x9.75

Jul 28, 2011 | 09:43 AM

#5240

h_block88

Full Member

Joined: Sep 2008

Posts: 235

Likes: 0

From: carteret nj

new wheels; Volk cv
17x8.5 et 33 235/45/17
17x9.5 et 38 255/40/17

Attached Thumbnails

The Official FC Wheel Fitment Thread-185542_10150328194376171_541456170_9981742_5800475_n.jpg

The Official FC Wheel Fitment Thread-188241_10150328195666171_541456170_9981755_4637959_n.jpg

The Official FC Wheel Fitment Thread-262913_10150328196116171_541456170_9981758_5009360_n.jpg

Jul 28, 2011 | 03:59 PM

#5241

illestvillains

Junior Member

iTrader: (3)

Joined: Apr 2011

Posts: 33

Likes: 0

From: Edmonton, AB, Canada

Quote:

Originally Posted by illestvillains

I don't know why my phone auto-corrects this, but that should have read ***FN01r-c

Jul 28, 2011 | 08:28 PM

#5242

boricuajr

just bought a S4

Joined: Dec 2006

Posts: 75

Likes: 0

From: Norwich CT

there are some very nicely fitted FC's in here

Jul 29, 2011 | 01:07 AM

#5243

joegallo13b

Full Member

Joined: Dec 2010

Posts: 105

Likes: 0

From: armonk ny

im getting xxr 527's in 17x9.75 +25mm all around on my 87 gxl with coilovers, will this fit nicely??

Jul 29, 2011 | 06:35 AM

#5244

dennik

Opelitis

Joined: Apr 2007

Posts: 48

Likes: 0

From: Norway

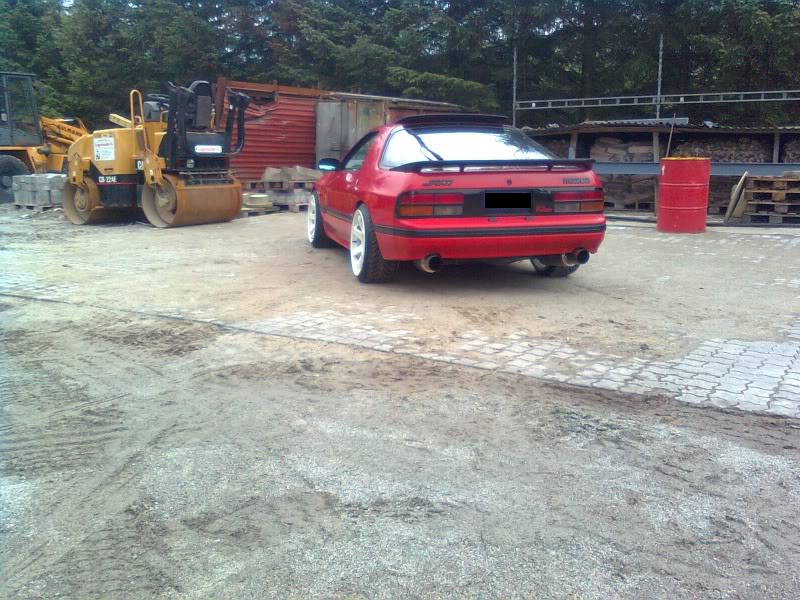

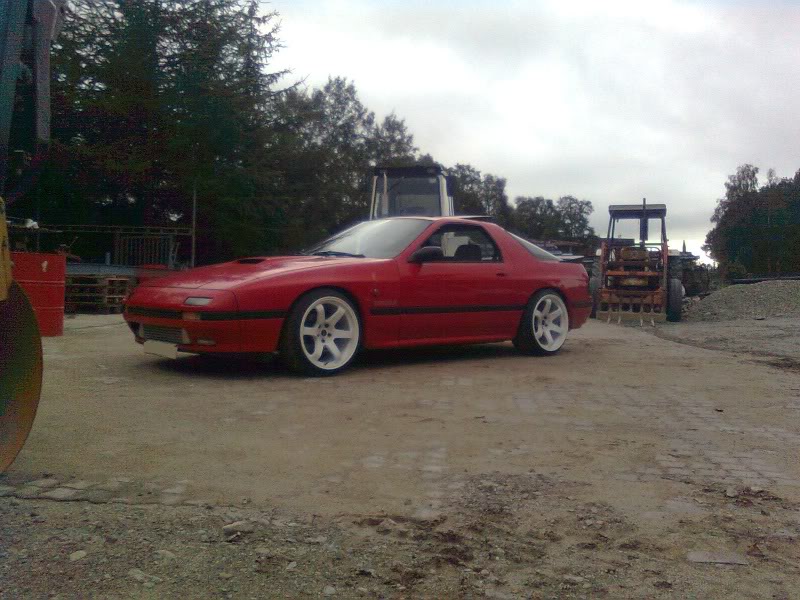

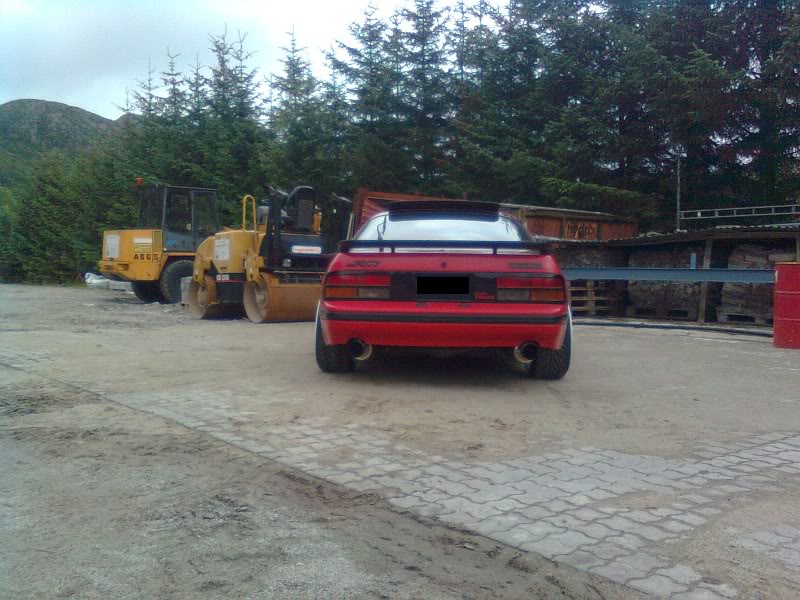

F: 18x9,5 ET15 (ET20+5mm spacer) 225/35-18 Federal 595
R: 18x10 ET15 225/35-18 Federal 595

Stock untouched body.

Name: Bilde0282.jpg
Views: 698
Size: 145.9 KB

Name: Bilde0280.jpg
Views: 698
Size: 102.1 KB

Name: Bilde0281.jpg
Views: 655
Size: 117.8 KB

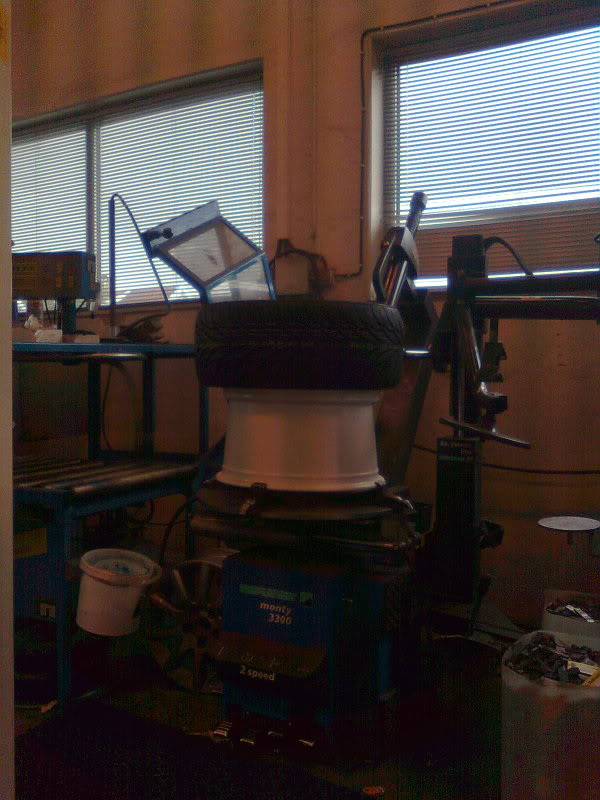

Name: Bilde0278.jpg
Views: 643
Size: 77.7 KB

Jul 29, 2011 | 10:24 AM

#5245

Gabe13b

G13b

Joined: Jan 2009

Posts: 16

Likes: 0

From: V city...

Quote:

Originally Posted by nismorx7

Any idea if a 8.5 inch front rim will fit on stock fenders? Its a +35 offset but spacers are an option.

If the +35 offset is going on an fc, no need for spaces man, I have +35 and gotta roll my fenders. 8.5 f 9.5 r.

Aug 1, 2011 | 01:52 PM

#5246

JDP6693

Up and Running again.

iTrader: (1)

Joined: May 2011

Posts: 234

Likes: 0

From: Lawrence, KS

Okay,I've been going through this thread page..by page..by page..by page..and checked the fc3spro fitment guide, and I'm almost positive this should fit. The package I'm planning to go with is Enkei FLC-01's, 17x7" +40 all around with Nitto Neo Gen 215/45/17 tires. Can you guys confirm this fitment for me, just for peace of mind?

Aug 1, 2011 | 02:01 PM

#5247

JDP6693

Up and Running again.

iTrader: (1)

Joined: May 2011

Posts: 234

Likes: 0

From: Lawrence, KS

And by fit, I mean fit as close to factory as possible with a stock body. Close as possible to flush, no camber out of whack or anything, just normal.

Aug 1, 2011 | 02:39 PM

#5248

MaczPayne

Mac Attack

iTrader: (5)

Joined: Dec 2005

Posts: 5,668

Likes: 22

From: California

It'll fit, but it'll be positioned in exactly the same way the OEM wheels were at. So how ever 'flush' your factory wheels are now, is how the new wheels will sit.

Aug 1, 2011 | 02:43 PM

#5249

JDP6693

Up and Running again.

iTrader: (1)

Joined: May 2011

Posts: 234

Likes: 0

From: Lawrence, KS

Perfect. That's exactly what I want. Thanks. Now, when funds allot, I'll order them.

Aug 2, 2011 | 11:56 AM

#5250

JDP6693

Up and Running again.

iTrader: (1)

Joined: May 2011

Posts: 234

Likes: 0

From: Lawrence, KS

So I was debating tire sizes last night, and two sites recommend 215/45/17 or 225/45/17. Those seem meaty enough, but what's the biggest tire size I could run with no modification to the body? The roads out here in Kansas are nowhere near friendly. But they're repaving them as we speak. The wheels are 17x7" +40mm offset. Thanks.
