NEED help fast, ABS questions and pics inside:

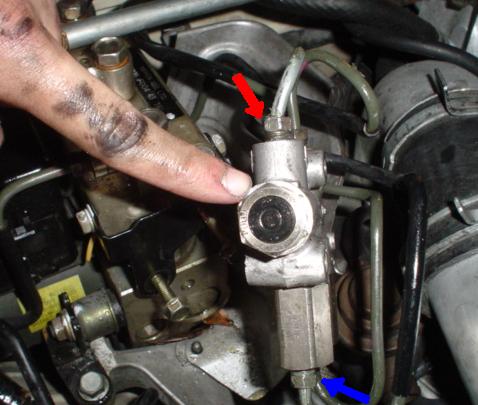

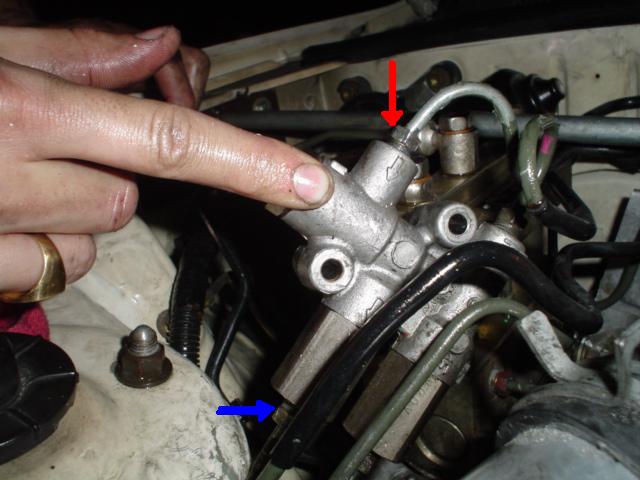

Ok here is the dilemma, I think there is something wrong with this "valve?" in my abs system. The red arrow shows where the fluid goes in, BTW these are the lines leading to the rear brakes,. It flows out of the line where the red arrow is but does not come out of the part where the blue arrow is. Anyone know if I could just replace this part, or take it apart and clean it out ?
Last edited by ghostrx7; 01-25-04 at 10:32 PM.
#3
Former Rx7 *****
Join Date: Nov 2001
Location: Mississauga
Posts: 4,534
Likes: 0
Received 0 Likes
on
0 Posts
that is the proportioning valve. You can replace that part. You can also test to see that is is correctly bypassing hydraulic fluid at the irght pressures. The test is in the Factory Service manual. The FSM can be found at iluvmyrx7.com
#4
Senior Member
Thread Starter
Join Date: Jun 2003
Location: west palm beach, FL
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
Yea thats what its called, i forgot...anyhow i took off the two lines that run through it and connected them with a 6 AN fitting, and then blocked off the existing holes where the brake lines went into, the red and blue arrows with 6 an caps, doing that i got fluid to the rear but pressure wasnt there in t he pedal.I did that just to check to make sure that fluid could get back there. Any idea as to how much that proportioning valve costs to get? or can i fix mine.
#6
Senior Member
Thread Starter
Join Date: Jun 2003
Location: west palm beach, FL
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
Well it wasnt the right part that we ordered, that proportioning valve from mazda is 300 bucks!!! WTF its just a small piece of metal with a valve inside. Any one know how to rebuild one? Just wondering if its doable, before i crack it open, id rather try that then spend 300 dollars on brakes that was going towards getting my car tuned.
Trending Topics
#8
Lives on the Forum
Originally posted by Cheers!
i do not believe it is rebuildable... the FSM does not talk about rebuilding it.
i do not believe it is rebuildable... the FSM does not talk about rebuilding it.
They don't talk about disassembling and rebuilding the ABS pump either but I did it a few weeks ago
#9
Senior Member
Thread Starter
Join Date: Jun 2003
Location: west palm beach, FL
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
I think one of the main reasons for them not listing it to be rebuilt is that its not commonly done because the proportioning valve is meant not to go bad. I havent heard of anyone elses going bad so far.
#10
Senior Member
Thread Starter
Join Date: Jun 2003
Location: west palm beach, FL
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
Ok took the proportioning valve apart, cleaned the inside up, put it back on, now it works fine!!! It just needed a little tlc and cleaning, now its working great...ahhh its nice to have all 4 brakes working in unison again...
#11
Former Rx7 *****
Join Date: Nov 2001
Location: Mississauga
Posts: 4,534
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by DamonB
They don't talk about disassembling and rebuilding the ABS pump either but I did it a few weeks ago
They don't talk about disassembling and rebuilding the ABS pump either but I did it a few weeks ago
i have the same problems all FC owners have, the ABS pump leaks.
#14
Lives on the Forum
Originally posted by Cheers!
have you tried mcmaster.com for rings?
have you tried mcmaster.com for rings?
#16
Senior Member
Thread Starter
Join Date: Jun 2003
Location: west palm beach, FL
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
A lot of times if you havent changed your brake fluid for a while itll get build up inside the pumps/soleniods etc. I did a cleanup of the master cylinder then went ahead and took apart that proportioning valve and cleaned the inside of that as well, it seemed to have a lot of gunk inside it. Nothing a little brake cleaner didnt fix
#17
Rotary Freak
Join Date: May 2002
Location: Houston
Posts: 1,742
Likes: 0
Received 0 Likes
on
0 Posts
Would that buildup be propotional to usage? I ask because I bought my 94 2 Memorial Days ago. It only had 7500 miles on it, so I am really sure that was OEM brake fluid. I did replace the fluid, and was wondering ....
#18
Lives on the Forum
Originally posted by PVerdieck
Would that buildup be propotional to usage?
Would that buildup be propotional to usage?
#19
Senior Member
Thread Starter
Join Date: Jun 2003
Location: west palm beach, FL
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
Yea, damon is correct, I am pretty sure mine hasnt been flushed in god knows how many miles, but I bled the brakes 3 times just to make sure all the crap was out of the lines. Now with new pads, rotors, my car stops like a go kart. Brake fluid is nasty stuff, and over time , it will show
#20
Former Rx7 *****
Join Date: Nov 2001
Location: Mississauga
Posts: 4,534
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by PVerdieck
Would that buildup be propotional to usage? I ask because I bought my 94 2 Memorial Days ago. It only had 7500 miles on it, so I am really sure that was OEM brake fluid. I did replace the fluid, and was wondering ....
Would that buildup be propotional to usage? I ask because I bought my 94 2 Memorial Days ago. It only had 7500 miles on it, so I am really sure that was OEM brake fluid. I did replace the fluid, and was wondering ....
