Thumbs up Coilovers

Hi i have a set of tein coilover on my car, I want to do some height adjustment but I have forgot do I hold the bottom perch and turn the top or hold the top perch and turn the lower perch. of course the adjustment start at the botton of the coilover where the two perch are together.

oh yeah, is it necessary to take the wheel out before adjustment, i will jack up the car of course

Last edited by CarzArKoo1; Oct 25, 2008 at 03:27 PM.
Reply
Old Oct 26, 2008 | 12:43 AM
  #2
BASTARD's Avatar
®
Tenured Member: 20 Years
iTrader: (4)

Joined: Dec 2003
Posts: 2,282
Likes: 3
From: NorCal
do you have the height adjustable ones or are you using the preload to lower the car?
Reply
Old Oct 26, 2008 | 03:43 AM
  #3
CarzArKoo1's Avatar
Thread Starter
Rotary Enthusiast

Joined: Jan 2007
Posts: 1,026
Likes: 0
From: California
yeah i have the height adjustable
Reply
Old Oct 26, 2008 | 05:17 AM
  #4
LAN's Avatar
LAN
Rotary Enthusiast
Tenured Member 20 Years
iTrader: (1)

Joined: Aug 2003
Posts: 992
Likes: 0
From: USA

The top 2 perches are locked where preload is set. I wouldn't touch that, unless you need to.
Loosen the last perch on the bottom, take your coilover wrench and lower/higher the car using the locked perches. it will move up or down unless maxed out.

Reply
Old Oct 26, 2008 | 05:49 AM
  #5
CarzArKoo1's Avatar
Thread Starter
Rotary Enthusiast

Joined: Jan 2007
Posts: 1,026
Likes: 0
From: California
Originally Posted by LAN

The top 2 perches are locked where preload is set. I wouldn't touch that, unless you need to.
Loosen the last perch on the bottom, take your coilover wrench and lower/higher the car using the locked perches. it will move up or down unless maxed out.

when you say the locked perches, are you refering to the bottom second to the last perch?

thanks, is it easier to take out the wheel to do it or is not necessary.
Reply
Old Oct 26, 2008 | 07:53 AM
  #6
LAN's Avatar
LAN
Rotary Enthusiast
Tenured Member 20 Years
iTrader: (1)

Joined: Aug 2003
Posts: 992
Likes: 0
From: USA
Thumbs up

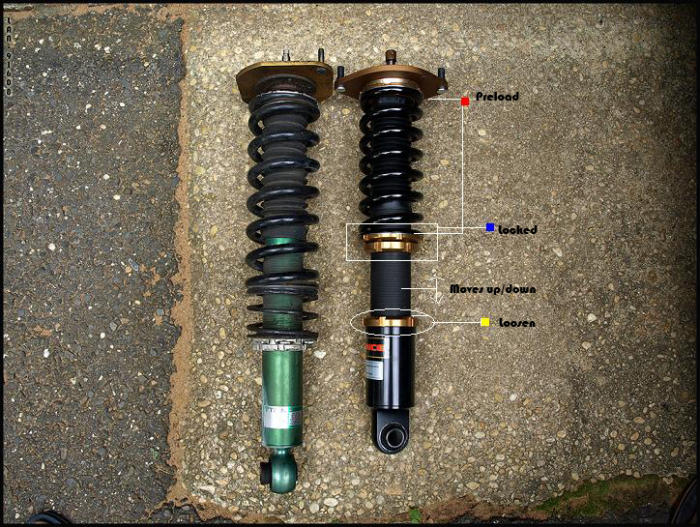

Attached Thumbnails Coilovers-adjust3.jpg
Reply
Old Oct 26, 2008 | 12:57 PM
  #7
Jaiyurai's Avatar
Endure Persevere Succeed
Tenured Member: 20 Years
iTrader: (30)

Joined: Apr 2005
Posts: 1,693
Likes: 37
From: Berkeley, CA
to do it properly, you must remove the wheel and remove at least the mounting point on the bottom of the coilover. Adjust ride height and bolt back together. take it around the block a few times to settle the preload/spring.
Reply
Old Oct 27, 2008 | 10:49 AM
  #8
Novellus's Avatar
Newbie

Joined: Oct 2008
Posts: 2
Likes: 0
From: Toronto
How is the drivability with these coil overs? I have been thinking about them for my car but I heard that when it starts getting cold outside they sqweek and make alot of noise, any truteth to this???
Reply
Old Oct 27, 2008 | 09:29 PM
  #9
Josh18_2k's Avatar
Rotary Freak
Tenured Member 10 Years
iTrader: (3)

Joined: Jan 2003
Posts: 2,024
Likes: 1
From: Gresham, OR
they are recommending taking the wheel off just because its a bitch to turn the shock body with all that weight on it. if you can muscle it at the weird angle, then you're the man.
i know i have to use two hands to adjust mine with the wheel off.
