best suspension setup for track
#1
imitek
Thread Starter
best suspension setup for track
Plan to go germany ring nx month after peoples experiance on there and specific setups i can use
At the moment my setup i set it to
Enkei rpf1 18x10 front
18x10.5 rear
Suspensions are hks adjustable the springs kg's
Front 11kg
Rear 9kg not 100% on springs will need to look at them again changed around so many cant remember i no i went more stif than what they come with
Dampers set to 60%
front camber set to 1.8deg
Rear set to 1.5 deg
Stock toes
The ride is bit hard but i like it
Any help would be great thanks
At the moment my setup i set it to
Enkei rpf1 18x10 front
18x10.5 rear
Suspensions are hks adjustable the springs kg's
Front 11kg
Rear 9kg not 100% on springs will need to look at them again changed around so many cant remember i no i went more stif than what they come with
Dampers set to 60%
front camber set to 1.8deg
Rear set to 1.5 deg
Stock toes
The ride is bit hard but i like it
Any help would be great thanks
Last edited by imitek; 10-27-15 at 06:55 PM.
#2
Rotary Motoring
iTrader: (9)
OK, but you don't mention your tires.
If you are on max perf. street tires your set-up sounds great.
If you are on non DOT race tires double your spring rates.
The amount of grip from the tires you have will dictate how far off (or on) your bumpstops you will be cornering with the set-up have.
If you are on max perf. street tires your set-up sounds great.
If you are on non DOT race tires double your spring rates.
The amount of grip from the tires you have will dictate how far off (or on) your bumpstops you will be cornering with the set-up have.
#3
imitek
Thread Starter
Sorry for late reply I have not orderd tyres yet im planing on running the federal rsr
Size would be 2653518 all round
I could squeeze on 275 on rear the arch and would need bit more roling the 265 its pritty close
Thanks for your input very helpfull
Size would be 2653518 all round
I could squeeze on 275 on rear the arch and would need bit more roling the 265 its pritty close
Thanks for your input very helpfull
Last edited by imitek; 11-06-15 at 10:53 AM.
#4
Rotary Motoring
iTrader: (9)
Your set-up should be very good for those tires.
I didn't race on a full size track on this set-up, but I did do auto-x, Kart track and hillclimb (as well as lots of street miles).
18x10.5 Enkei PF01 +38 Front and Rear
265/35-18 Federal RS-R
Ohlins DFV 11K/11K springs
Height as recommended by Ohlins (~25.5 from ground to fender arch *varies once corner weighted).
Front Camber -2.4 deg
Rear Camber -1.2 deg
Zero Front Toe
~ 1/16" Rear Toe
Front and Rear poly bushings eliminating the stock variable toe "sliding" bushings and steering rack bushings.
(At first I raced with stock bushings, but they did not last long)
----
RS-R is very good performing cheap tire, just not very refined (noise and quality). I have them on my daily driver now. I love the sidewall strength/feel with very slight stretch.
I didn't race on a full size track on this set-up, but I did do auto-x, Kart track and hillclimb (as well as lots of street miles).
18x10.5 Enkei PF01 +38 Front and Rear
265/35-18 Federal RS-R
Ohlins DFV 11K/11K springs
Height as recommended by Ohlins (~25.5 from ground to fender arch *varies once corner weighted).
Front Camber -2.4 deg
Rear Camber -1.2 deg
Zero Front Toe
~ 1/16" Rear Toe
Front and Rear poly bushings eliminating the stock variable toe "sliding" bushings and steering rack bushings.
(At first I raced with stock bushings, but they did not last long)
----
RS-R is very good performing cheap tire, just not very refined (noise and quality). I have them on my daily driver now. I love the sidewall strength/feel with very slight stretch.
#5
imitek
Thread Starter
So i was sliding all over the track cluldnt figure out why it felt like alignmet was out or somthing like that
ether way track was amazing
People realy nice and polite
Guy at track was unsure about my spoiler said "its a bit massive"
Let me on track but said if moterbikes come on ill have to take it off not a problem i said
I think i gave fd owners a bad name i got overtaken by a smart car lol
Track was wet basicly to give u an idea of how slow i was going took me 14min to complete 1 lap
3 big crashes last crash shut the track down for hour or so
So after all this i thort ill go to local alignment shop to find not only was the alignment out and my gauges are complet crap lol gona get another set of tyres and get the alignment sorted most likly gona put her away till summer time now
Dont think ill be doing alignment again till i get desent gauges
I had a bubble type camber checker
Once again thanks again for evryones help as always
ether way track was amazing
People realy nice and polite
Guy at track was unsure about my spoiler said "its a bit massive"
Let me on track but said if moterbikes come on ill have to take it off not a problem i said
I think i gave fd owners a bad name i got overtaken by a smart car lol
Track was wet basicly to give u an idea of how slow i was going took me 14min to complete 1 lap
3 big crashes last crash shut the track down for hour or so
So after all this i thort ill go to local alignment shop to find not only was the alignment out and my gauges are complet crap lol gona get another set of tyres and get the alignment sorted most likly gona put her away till summer time now
Dont think ill be doing alignment again till i get desent gauges
I had a bubble type camber checker
Once again thanks again for evryones help as always
#7
imitek
Thread Starter
Had some free time today so thort id try adjusting the alignment again
I took to a friends garage using his gauges and they are showing
Front left -2deg camber
front right -1.9deg camber
Rear left -2 camber
Rear right -1.4 camber i couldnt figure out what wheel is 4 deg any way he had 2 sets of gauges and both read same pluss i used my bubble beam camber gauge and also says the same so just for testing i went back to basic and set evrything to 0 and start again
i used these settings
front toe 0
Rear toe 0
Front camber -.9
Rear camber -.4
And took it for drive to my suprise no longer sliding in wet upon loading the front end on cornering
Where as in past it used to slip around 30mph when u put more angle on turn
Now im getting twitching under heavy breaking
( could this be caster related)
Im going to play with the alignment bit more
This is compleatly diffrent car now feels safer to drive
My only theory is the camber was to much at -1.9deg at and the inner edge of tyre was not suficant area for tyres to grip cant be to sure tho
I took to a friends garage using his gauges and they are showing
Front left -2deg camber
front right -1.9deg camber
Rear left -2 camber
Rear right -1.4 camber i couldnt figure out what wheel is 4 deg any way he had 2 sets of gauges and both read same pluss i used my bubble beam camber gauge and also says the same so just for testing i went back to basic and set evrything to 0 and start again
i used these settings
front toe 0
Rear toe 0
Front camber -.9
Rear camber -.4
And took it for drive to my suprise no longer sliding in wet upon loading the front end on cornering
Where as in past it used to slip around 30mph when u put more angle on turn
Now im getting twitching under heavy breaking
( could this be caster related)
Im going to play with the alignment bit more
This is compleatly diffrent car now feels safer to drive
My only theory is the camber was to much at -1.9deg at and the inner edge of tyre was not suficant area for tyres to grip cant be to sure tho
Trending Topics
#8
Rotary Freak
iTrader: (21)
That toe out must of made your car sketchy at high speeds!
You have good rates for your tires. I would consider going a bit stiffer if you upgrade to the top shelf street tires like the Rivals, RE71rs or RS3's. Also, I personally prefer keeping equal rates F/R with a stiffer front bar/oem rear. Just my .02
BTW to my surprise my OEM bushings are still holding up. Planning on going aftermarket soon.
You have good rates for your tires. I would consider going a bit stiffer if you upgrade to the top shelf street tires like the Rivals, RE71rs or RS3's. Also, I personally prefer keeping equal rates F/R with a stiffer front bar/oem rear. Just my .02
BTW to my surprise my OEM bushings are still holding up. Planning on going aftermarket soon.
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
try adding a little rear toe.
#10
Rotary Motoring
iTrader: (9)
i used these settings
front toe 0
Rear toe 0
Now im getting twitching under heavy breaking
( could this be caster related)
j9fd3s try adding a little rear toe.
^^
I would add a little front toe as well.
You showed us your static alignment, now I will tell you how the FD's toe control bushings work.
From Yamaguchi RX-7 book pages 98 to 103 (section titled "Toe Control")
I won't type it all out, but the jist of it is-
Under initial braking force (the suspension load from applying braking force through the tires) the front toes out and the rear does not change toe.
From the resultant weight transfer of braking the front toes out more as it lowers and the rear begins to toe in as it raises.
"Assuming 0.75-g of braking force is generated, the front suspension will have 0.25-degrees toe out, and the rear 0.34-degrees toe in."
As the brake is released and the front comes up the front now gains toe in to where it has a sum total of toe in (remember it was toe out under braking) and now the rear comes down and gains toe out to a sum total of toe out (its natural rolling state)
As lateral loads into the suspension from turning are added in from turning now the front toes out again and the rear toes in.
-------------
If it sounds like it is all over the place with toe, IT REALLY IS!
If you put poly bushings in the front and rear upper arms to eliminate the stock sliding bushings you eliminate this silly toe dance and the FD drives a lot cleaner.
front toe 0
Rear toe 0
Now im getting twitching under heavy breaking
( could this be caster related)
j9fd3s try adding a little rear toe.
^^
I would add a little front toe as well.
You showed us your static alignment, now I will tell you how the FD's toe control bushings work.
From Yamaguchi RX-7 book pages 98 to 103 (section titled "Toe Control")
I won't type it all out, but the jist of it is-
Under initial braking force (the suspension load from applying braking force through the tires) the front toes out and the rear does not change toe.
From the resultant weight transfer of braking the front toes out more as it lowers and the rear begins to toe in as it raises.
"Assuming 0.75-g of braking force is generated, the front suspension will have 0.25-degrees toe out, and the rear 0.34-degrees toe in."
As the brake is released and the front comes up the front now gains toe in to where it has a sum total of toe in (remember it was toe out under braking) and now the rear comes down and gains toe out to a sum total of toe out (its natural rolling state)
As lateral loads into the suspension from turning are added in from turning now the front toes out again and the rear toes in.
-------------
If it sounds like it is all over the place with toe, IT REALLY IS!
If you put poly bushings in the front and rear upper arms to eliminate the stock sliding bushings you eliminate this silly toe dance and the FD drives a lot cleaner.
#11
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
in the 13 or so years we've been racing, we have had a chance to play with everything on the suspension. out of all the alignment angles rear toe is the most sensitive. for the FD, blue Tii's explanation probably covers the why.
we've also never had a car work with zero rear toe, they all like a little toe in in the rear. i would try adding a little, it is usually a sensitive adjustment.
conversely front toe does next to nothing, and once you're within about a half degree, camber isn't that critical either. at least on the tires we run, if you're using something like an Ra1, which wants 97 degrees of camber, and you can only get 52, camber is really important. most tires only want 3-4 degrees of camber, so if you're around 2.5 to 4.5 you're in the happy spot.
we've also never had a car work with zero rear toe, they all like a little toe in in the rear. i would try adding a little, it is usually a sensitive adjustment.
conversely front toe does next to nothing, and once you're within about a half degree, camber isn't that critical either. at least on the tires we run, if you're using something like an Ra1, which wants 97 degrees of camber, and you can only get 52, camber is really important. most tires only want 3-4 degrees of camber, so if you're around 2.5 to 4.5 you're in the happy spot.
#12
imitek
Thread Starter
I did find at about 140ish i was holding the wheel bit tighter and both hands
I have a massive wing on back dont no if that was masking the problem
A bit
I have fully polibushed the car with the black series bushes and used the solid pillow ball bushes
Took me a while to get my head around the movment i understand better now braking pulls wheels back and opersit on acell
I think you are correct in saying toe i will put little toe on front as well as back
Another question about the caster if that is diffrent from front left to front right should this cause any issues ?
Will take out again to conferm how its twitching
Gona see when i can get back on aligner again
I have a massive wing on back dont no if that was masking the problem
A bit
I have fully polibushed the car with the black series bushes and used the solid pillow ball bushes
Took me a while to get my head around the movment i understand better now braking pulls wheels back and opersit on acell
I think you are correct in saying toe i will put little toe on front as well as back
Another question about the caster if that is diffrent from front left to front right should this cause any issues ?
Will take out again to conferm how its twitching
Gona see when i can get back on aligner again
#13
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
caster pulls the wheels straight, like a shopping trolley. how much caster dictates how much the wheel gets pulled straight. so different amounts of caster will cause the car to pull slightly one way. most cars are actually setup to pull slightly one way, as the traditional road is crowned, and so the car wants to wander off it, so adding a little caster evens that out.
#14
imitek
Thread Starter
caster pulls the wheels straight, like a shopping trolley. how much caster dictates how much the wheel gets pulled straight. so different amounts of caster will cause the car to pull slightly one way. most cars are actually setup to pull slightly one way, as the traditional road is crowned, and so the car wants to wander off it, so adding a little caster evens that out.
And evrything els is set to 0 like camber toe etc
Would this cause issue just simply backing off throttle ?
#15
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
#18
Senior Member
thort = thought
mot = Ministry of Transport Test - yearly safety test for all cars in the UK

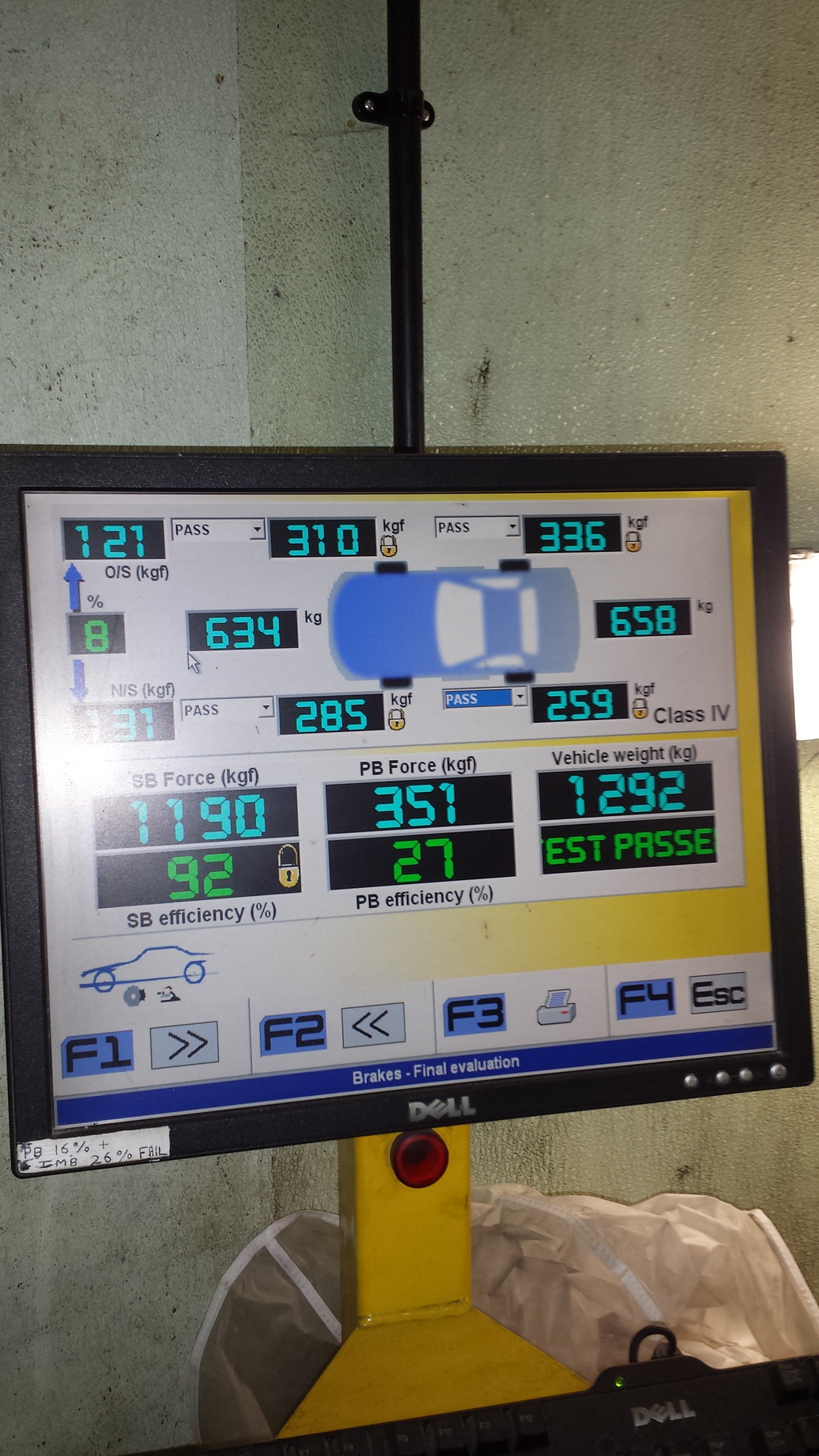

Looks like a picture of the brake tester used during the test.
Imi, speak English chap!
mot = Ministry of Transport Test - yearly safety test for all cars in the UK
Looks like a picture of the brake tester used during the test.
Imi, speak English chap!
#19
Rotary Freak
I'm thinking Manuel from Fawlty Towers or Samuel L Jackson from Pulp Fiction - depending on which side of the Atlantic you're on, might have appropriate responses! Near side rear, wouldn't have quite expected that difference....interesting.
To the earlier post, a lot of computer wheel alignments are absolute fiction. Usually, not the sharpest tool in the shed working at your local tyre shop and maintenance and calibration, foreign concepts. Amazing what a simple piece of string and a steel rule can tell you about some of those exercises you've just shelled out for.
To the earlier post, a lot of computer wheel alignments are absolute fiction. Usually, not the sharpest tool in the shed working at your local tyre shop and maintenance and calibration, foreign concepts. Amazing what a simple piece of string and a steel rule can tell you about some of those exercises you've just shelled out for.
#21
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
To the earlier post, a lot of computer wheel alignments are absolute fiction. Usually, not the sharpest tool in the shed working at your local tyre shop and maintenance and calibration, foreign concepts. Amazing what a simple piece of string and a steel rule can tell you about some of those exercises you've just shelled out for.
i dunno about the rest of the country, but we don't have a brake test machine like that. in the race cars we've logged hydraulic pressure, but i think that is different. so i don't know what those numbers mean
#22
Senior Member
i have learned that nearside = drivers side, the UK is RHD. the off side is the other side, left. they tend to put things in boots, whilst we wear them as shoes... we put wings on airplanes, they put them on cars. we put lifts in shoes, they put them in buildings, stuff like that. common ocean separated by a different language...
Nearside is the side nearest the kerb.
Offside is the side furthest from the kerb(drivers side in the UK)
Now, what is your favourite colour? Mine is the greyish silver of aluminium
Last edited by Marf; 12-08-15 at 12:58 PM.
