18x11 (R) trailing arm clearance

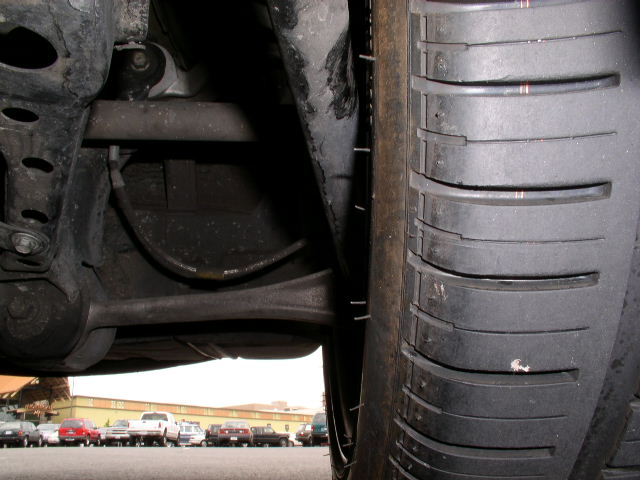

Many folks have been asking me how much clearance there is between my 18x11 +48 offset rear wheels, 295-30 tires and the tubular trailing arms. Attaching a good pic. You can see that it's pretty tight. You can squeeze a 305-30 Hoosier on there as they're just a tad wider than the Pirelli P Zeros (a very wide tire in this size), but a 315 will not work.
Regards,
Gene
PS- Thanks for the pic, Daniels.
Regards,
Gene
PS- Thanks for the pic, Daniels.
#7
Losing Traction on 335s
Join Date: May 2004
Location: NYC
Posts: 225
Likes: 0
Received 0 Likes
on
0 Posts
It looks like there is some rubbing between the tire and the trailing arm? Or was that something else?
On an FC- if you have power (300hp/tq+) you will get rubbing between the tire and the trailing arm, even with 1/4" of static clearance.
On an FC- if you have power (300hp/tq+) you will get rubbing between the tire and the trailing arm, even with 1/4" of static clearance.
Trending Topics
#8
Polishing Fiend
iTrader: (139)
Gene,
If'n I may chime in. I run Brads old 17x11 CCWs in the rear 50mm offset with 275 HooHoos.
I have coilovers and the M2 trailing arms. Suspension travel will affect interference issues.
At near full droop on my car the tire rubs on the trailing arms. And I have the trailing arms shimmed all the way inboard at the chassis end. When on the track tire and hub flex can eat up several mm of clearance. I found this out the hard way. I'd estimate I had 2 mm of clearence between tire/wheel and trailing arm with the suspension statically loaded. Then I went to VIR and with the rear suspension dynamically loaded up (acceleration and cornering) I did groove the trailing arm on the drivers side to a depth of about 1-2mm. So I shimmed the chassis end of the trailing arm over some more and the problem went away.
So just a word of caution when we start speaking of clearences in the 1-2mm or the thickness of a sheet of paper one may not be accounting for all tolerances.
Food for thought,
Crispy
If'n I may chime in. I run Brads old 17x11 CCWs in the rear 50mm offset with 275 HooHoos.
I have coilovers and the M2 trailing arms. Suspension travel will affect interference issues.
At near full droop on my car the tire rubs on the trailing arms. And I have the trailing arms shimmed all the way inboard at the chassis end. When on the track tire and hub flex can eat up several mm of clearance. I found this out the hard way. I'd estimate I had 2 mm of clearence between tire/wheel and trailing arm with the suspension statically loaded. Then I went to VIR and with the rear suspension dynamically loaded up (acceleration and cornering) I did groove the trailing arm on the drivers side to a depth of about 1-2mm. So I shimmed the chassis end of the trailing arm over some more and the problem went away.
So just a word of caution when we start speaking of clearences in the 1-2mm or the thickness of a sheet of paper one may not be accounting for all tolerances.
Food for thought,
Crispy
#10
Senior Member
Thread Starter
Join Date: Apr 2001
Location: Seattle, WA
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RX-Ben
It looks like there is some rubbing between the tire and the trailing arm? Or was that something else?
On an FC- if you have power (300hp/tq+) you will get rubbing between the tire and the trailing arm, even with 1/4" of static clearance.
On an FC- if you have power (300hp/tq+) you will get rubbing between the tire and the trailing arm, even with 1/4" of static clearance.
No, that's fingerprints.
Gene
#11
Senior Member
Thread Starter
Join Date: Apr 2001
Location: Seattle, WA
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by CrispyRX7
Gene,
If'n I may chime in. I run Brads old 17x11 CCWs in the rear 50mm offset with 275 HooHoos.
I have coilovers and the M2 trailing arms. Suspension travel will affect interference issues.
At near full droop on my car the tire rubs on the trailing arms. And I have the trailing arms shimmed all the way inboard at the chassis end. When on the track tire and hub flex can eat up several mm of clearance. I found this out the hard way. I'd estimate I had 2 mm of clearence between tire/wheel and trailing arm with the suspension statically loaded. Then I went to VIR and with the rear suspension dynamically loaded up (acceleration and cornering) I did groove the trailing arm on the drivers side to a depth of about 1-2mm. So I shimmed the chassis end of the trailing arm over some more and the problem went away.
So just a word of caution when we start speaking of clearences in the 1-2mm or the thickness of a sheet of paper one may not be accounting for all tolerances.
Food for thought,
Crispy
If'n I may chime in. I run Brads old 17x11 CCWs in the rear 50mm offset with 275 HooHoos.
I have coilovers and the M2 trailing arms. Suspension travel will affect interference issues.
At near full droop on my car the tire rubs on the trailing arms. And I have the trailing arms shimmed all the way inboard at the chassis end. When on the track tire and hub flex can eat up several mm of clearance. I found this out the hard way. I'd estimate I had 2 mm of clearence between tire/wheel and trailing arm with the suspension statically loaded. Then I went to VIR and with the rear suspension dynamically loaded up (acceleration and cornering) I did groove the trailing arm on the drivers side to a depth of about 1-2mm. So I shimmed the chassis end of the trailing arm over some more and the problem went away.
So just a word of caution when we start speaking of clearences in the 1-2mm or the thickness of a sheet of paper one may not be accounting for all tolerances.
Food for thought,
Crispy
Good point. I'll keep an eye on it. May be exacerbated by using a taller sidewall ( a la 305) as well.
Gene
#12
Lives on the Forum
I would be very leery of those tires rubbing when on the track. Tires move around a lot due to sidewall flex. Granted the most movement is at the bottom of the tire where the contact patch is, but the entire carcass moves around during high cornering loads. I'd shoot for more space there.
Here are some pics showing my 245/45/16 tires during cornering. At rest the sidewalls stick out almost a 1/4" past the wheel lip.
Here are some pics showing my 245/45/16 tires during cornering. At rest the sidewalls stick out almost a 1/4" past the wheel lip.
#14
Lives on the Forum
Originally Posted by Rx_treme
True true, but the 16's also have a much taller sidewall allowing more flex.
#15
Senior Member
Thread Starter
Join Date: Apr 2001
Location: Seattle, WA
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DamonB
I would be very leery of those tires rubbing when on the track. Tires move around a lot due to sidewall flex. Granted the most movement is at the bottom of the tire where the contact patch is, but the entire carcass moves around during high cornering loads. I'd shoot for more space there.
Here are some pics showing my 245/45/16 tires during cornering. At rest the sidewalls stick out almost a 1/4" past the wheel lip.
Here are some pics showing my 245/45/16 tires during cornering. At rest the sidewalls stick out almost a 1/4" past the wheel lip.
Noted. Will have to test them out. The good news is that the picture is somewhat misleading. That is, there's about a finger's width of clearance between the tire and the trailing arm near the rim (i.e. where the tire mounts to the rim). That's approximately 1/2" (depending on how large your fingers are, of course). I don't expect the tire to flex more than 1/2" in that area (likely at max section width, though), but Crispy's comment about hub flex may certainly play a role too.
In summary, don't buy 18x11's with +48mm offset (and wide tires) for track use until I can get some data.
