IAN

iTrader: (3)

Nice. I may just wait and see what your up too LOL. I can't make up my mind. Just want something good. not going to do this again.

I made a mistake. I meant to say B30-627-B1 or R36-5022-H0. One is secured from the bottom and one by a gland nut. Which in your opionion is better?

Funny I was looking at the universal motorsport strut and wonder how to adapt those.

Do you by chance have the bilstein part numbers for the rears?

eage8

iTrader: (9)

you mean the P30-0032-M1 which is a mk1 VW golf insert. They're super short, but only have a 30mm piston instead of the R36-5022's 36mm piston. They also have the threaded top nut so it gets much harder to fabricate housings... These are what AWR runs in the front in their housings. I talked to Tony a while ago before I made my housings and he said he could probably fabricate housings for the 3KGT struts if I wanted...

You'll also have to revalve the p30s (because they're golf inserts...), or just buy them though AWR and I think they'll already be revalved.

3000GT inserts are already decently for stiffer springs because they're from such a heavy car.

the part number for the rear AWR bilsteins is an AK7108R99, but they're customized by bilstein for AWR. They change them from a rod eye mount (like Josh's SNs) to a normal stud mount like stock... They also have a snap ring in the body to mount a coilover sleeve on, I'm not sure if this is another custom touch or not.

IAN

iTrader: (3)

So I looked up the custom front MacPherson strut shock offered by Bilstein. They are at least $550 a side. OUCH. Plus camber plates and springs....

Bilstein 46mm Universal Motorsports Struts

Link above has dimensions.

eage8

iTrader: (9)

MSRP is $550... you can get them much cheaper... but yeah, they're expensive.

eage8

iTrader: (9)

If anyone is interested, my bilsteins are up for sale:
https://www.rx7club.com/ne-sale-want...voirs-1057535/

frft

frft

frft

frft

frft

frft

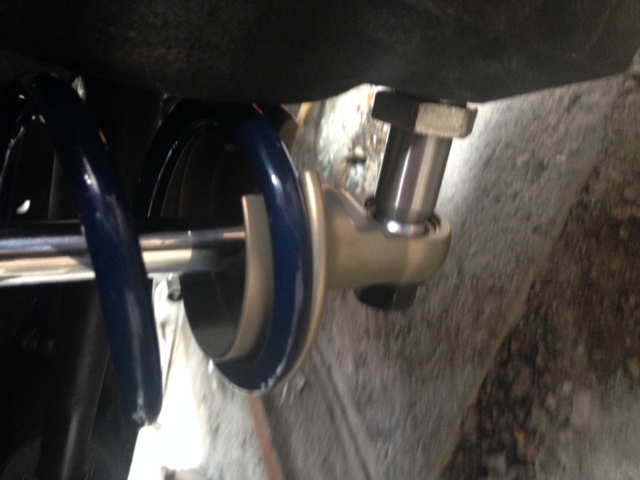

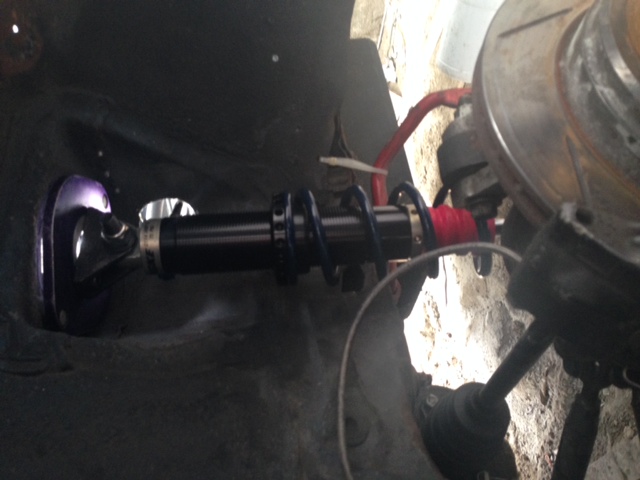

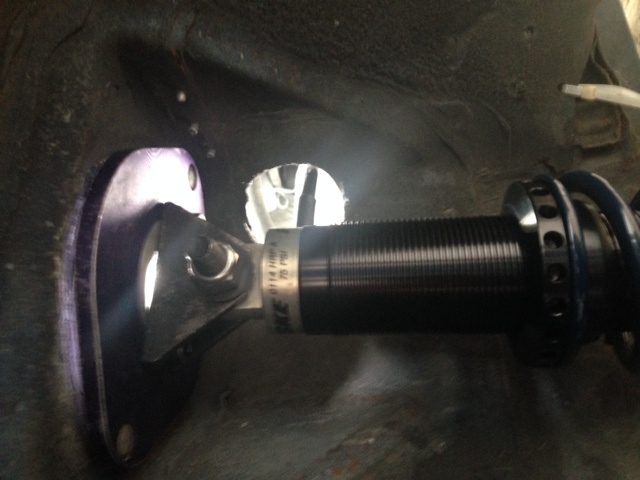

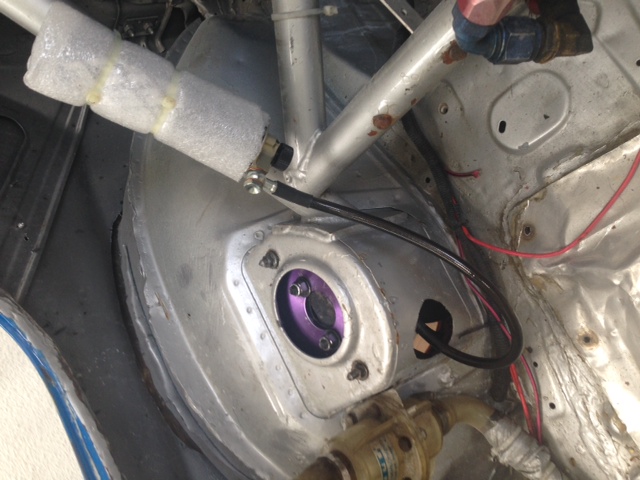

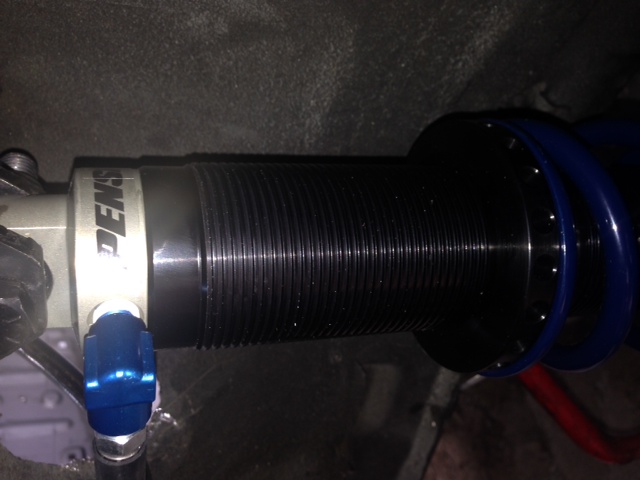

Last 5 pictures are a copy of Josh & eage8 with Penskes 8300 at the rear of a 1987 FC3S

eage8

iTrader: (9)

nice, is that a 2.5" spring on the rear? Josh tried to invert his and I think he couldn't clear the axle boot or something.

is that a stock rear shock mount stud?

frft

. The stud is mfg by myself with Assab 705 steel with 3mm more length to clear the spring.

GrossPolluter

iTrader: (1)

Any updates on the rear lower 12mm mounting bolt having any issues?

I'm a noob, but besides the rear shock being mounted upside down for the reservoirs, but that is also for sprung weight, right?

IAN

iTrader: (3)

Awesome. I want that stud. One question. does it not change the angle of the whole suspension? What does it do to the shock travel.?

Eage8. Did you have pictures or install of those Bilstein 46mm Universal Motorsports Struts. What stroke lengths did you use. Im still about a year from purchase though.

eage8

iTrader: (9)

with my new rears I'm going to attempt to use a 12mm mounting bolt with a 1/2" UHMW sleeve... we we'll see how it goes. I think the AWR mounting stud is too short for the thicker aluminum housings.

McMaster car only has 12.9 black oxide bolts which might rust... fastenal has zinc coated 12.9 grade bolts, but max out at only 40mm long which I'm not sure is long enough....

inverted shocks are only to lighten un-sprung weight, but they do transfer the weight of the 14mm strut rod to sprung weight which is fairly heavy, so it's not as beneficial as you would originally think

the rear shock isn't a locating member of the rear suspension, so it shouldn't do anything to any angles of anything else.

My struts are done being revalved yet... but I used the shortest version which is the 6" stroke. it's should be slightly shorter than the 3000GT inserts. I'll post pictures of everything when I'm done with my version 2 Bilsteins...

my original Bilsteins are sold.

eage8

iTrader: (9)

Re: universal motorsport bilstein length:

Here is a measurement of my old 3000GT bilsteins:


and here are measurements of the motorsport bilsteins:
http://streetwiseparts.com/content/w...rt-Drawing.pdf

L2 on the 6" strokes = 450mm which is pretty close to what the 3kgts are.

~Rev Free~

I just purchased Mike's old setup, can't wait to get them on the car! I'm planning to run 400# front springs and 275# rears and will most likely run a 205/50/15 tire for now.

eage8

iTrader: (9)

Here is the new setup:

5.8" stroke Bilstein universal motorsport struts
9" stroke Bilstein ASNs
Both custom valved by fat cat motorsports with KBO (blow off) pistons.
AWR top mounts

Springs 900/425, no sway bars, 150 lbs/in tender springs



Fat Cat also machined the top stud for me:


drilled and tapped the mounting studs to 1/2", not the best, because M12 OD is larger than 1/2" ID, but it seems to be holding fine (it's also what AWR does for their bilsteins). I messed up the one on the right and it has a lot less thread depth, I'll need to get a new mounting stud and redo that one, but so far so good.



ears tacked to the strut housings:


Ears finished being welded, corners smothed out, and painted:


seals and bearings being pressed into the housings:


So far so good:


on the street the 900 lbs springs in the front ride just as well as my 600s did on the 3000GT struts, pretty nice, no slowing down for bumps required.

atli126

good info here

IAN

iTrader: (3)

Wondering if i should get a new suspension for my 87 now Should never have sold my old car with the bilsteins

Efinity

iTrader: (6)

I've had triple tri point penskes for the fd and jrz moton for s2000 and FC. I tuned them myself and have some charts and tables and my inbox is always open to you.

Logitikes

Im new to all of this, so i hope i dont come off stupid... But whats wrong with building a setup with the bilstein hd's that are made for fc's?B46-1214-H0 - Rears R30-5014-H0 - Fronts and running them with awr's strut tubes, and coilover sleeves? Is it cause its valved wrong? Or is it cause the HD shocks for fc's are made for stock height and perform badly when lowered?

eage8

iTrader: (9)

A few reasons

- They'd have to be revalved to handle serious springs
- they're going to be stock length, so you'll bottom out the damper if you're low.
- the stock inserts don't work in AWR strut tubes. Those are designed for vw gti, p30-0032s which are much shorter or short Koni race struts
- the fronts are only 30mm pistons, 36mm pistons in the 3kgt inserts are going to give you more control and valving options

Logitikes

What about the rears? I think they are 46mm mono tubes, do you think there would be a problem wit h those?
