Super AFC is my throttle setting ok?
07-11-05, 08:38 PM
#1
tom port.. AKA streetport
Thread Starter
iTrader: (6)
Join Date: Jan 2005
Location: ludlow, pa
Posts: 4,659
Likes: 0
Received 0 Likes
on
0 Posts
is my throttle setting ok?
when i monitor my settings my throttle hits 100% at like 1/4 throttle. is this normal or did i set that wrong? i think my throttle points are 30% and 60% if that matters. now keep in mind that ive only had it for 2 days so someone please help!
07-11-05, 10:51 PM
#2
Rotary Power Information
Join Date: Aug 2003
Location: New Hampshire, Greenfield
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
you must have a s4. Your throttle is correct. But your thorttle points are wrong. they should be, LOW Point: 95%-98% HIGH Point: 100%
if you have your low point set at 30% and your high at 60 %. then between 30 and 60 percent your AFC is not controlling anything according to your maps. its makes up a fuel map to merge between the low and high throttle point. Now if you have a S5 TPS. You could have your low point at 50 and your high at around 60-70. The reason you want S4 at 95 and 100 is because at 1/4 throttle its reading 100%. so if you set your low at 30%. you are letting it only read 30% of the 1/4 throttle range and not 30% if the entire throttle range as you would get with a s5 full range tps. 1/4 throttle is about 25% right? so you can imagine how little throttle you are giving till you hit 30% of the 25% throttle.
Just a FYI
Justin
if you have your low point set at 30% and your high at 60 %. then between 30 and 60 percent your AFC is not controlling anything according to your maps. its makes up a fuel map to merge between the low and high throttle point. Now if you have a S5 TPS. You could have your low point at 50 and your high at around 60-70. The reason you want S4 at 95 and 100 is because at 1/4 throttle its reading 100%. so if you set your low at 30%. you are letting it only read 30% of the 1/4 throttle range and not 30% if the entire throttle range as you would get with a s5 full range tps. 1/4 throttle is about 25% right? so you can imagine how little throttle you are giving till you hit 30% of the 25% throttle.
Just a FYI
Justin
Last edited by ViperDude152; 07-11-05 at 10:54 PM.
07-27-05, 03:07 PM
#6
tom port.. AKA streetport
Thread Starter
iTrader: (6)
Join Date: Jan 2005
Location: ludlow, pa
Posts: 4,659
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by SureShot
When you install the turbo, you can the pressure signal for the throttle input.
Actually, you could do that now..
Actually, you could do that now..
07-29-05, 01:30 PM
#7
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
The TPS signal range is from about 1 to 5 volts.
The pressure sensor range is also from about 1 to 5 volts.
Fuel needs are actually more closely related to MAP that TPS.
The THR input on the S-AFC is cool with either.
Just tap the pressure signal instead of the TPS signal.

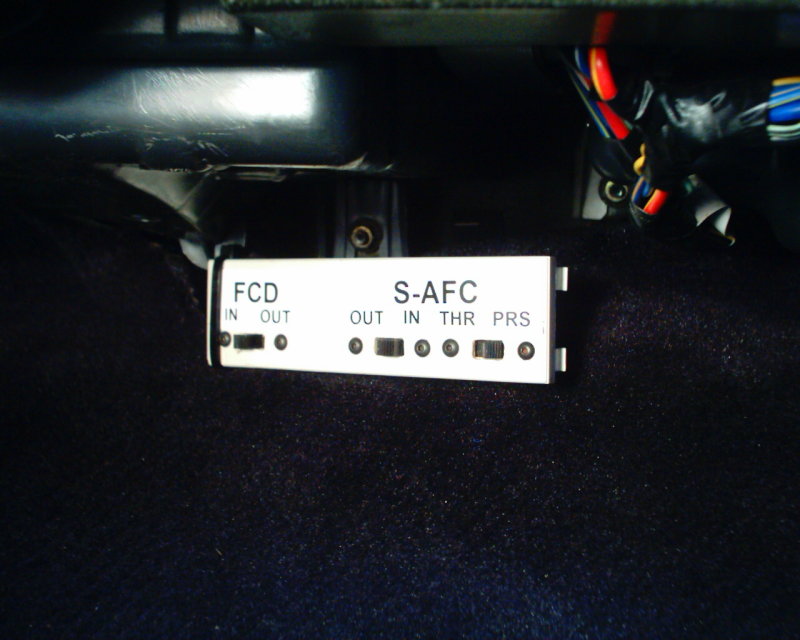

I tapped both into a switch so I could switch back & forth to compare the two.
The pressure sensor range is also from about 1 to 5 volts.
Fuel needs are actually more closely related to MAP that TPS.
The THR input on the S-AFC is cool with either.
Just tap the pressure signal instead of the TPS signal.
I tapped both into a switch so I could switch back & forth to compare the two.
