check my homework please
this might be in the wrong section but...

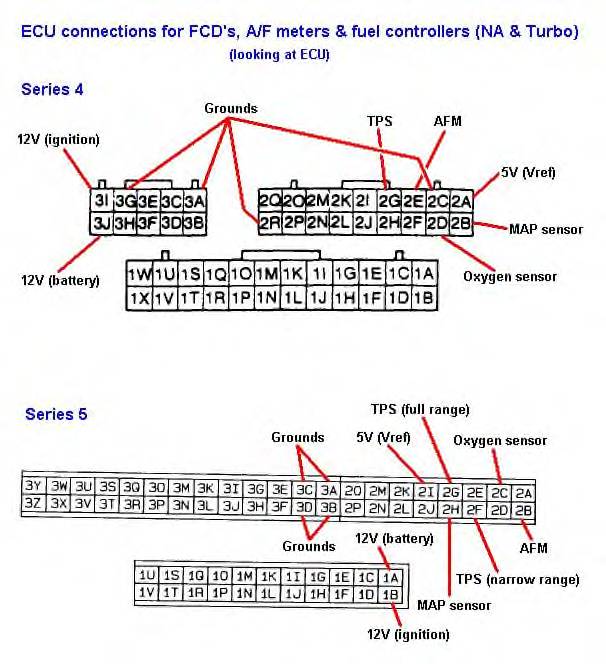

im going to hook my SAFCII to the MAP sensor...
grey (throttle) wire goes to 2B which im not sure the color (maybe red and white)
on the ecu which is the bottom right pin on the biggest plug to the ECU.
im going to hook my SAFCII to the MAP sensor...
grey (throttle) wire goes to 2B which im not sure the color (maybe red and white)
on the ecu which is the bottom right pin on the biggest plug to the ECU.
01-24-06, 09:36 PM
#2
tom port.. AKA streetport
Thread Starter
iTrader: (6)
Join Date: Jan 2005
Location: ludlow, pa
Posts: 4,659
Likes: 0
Received 0 Likes
on
0 Posts
after further research it came to my attention that its not the biggest plug... on a s4 its the center...correct?? reason im asking is because i want to change it form the TPS to the boost pressure sensor..
Last edited by 88rxn/a; 01-24-06 at 09:38 PM.
02-16-06, 09:40 AM
#5
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by 88rxn/a
yes...stock turbo... i switched it and it help alot... alhtough it now doesnt go over 35% for the TPS / boost reading....
Atmospheric pressue should normally show around 42%.
-30" = 0%
+15 PSI ~ 100%
