wtf? where does the downpipe go?
Ok I am turbocharging my 88 gxl but the turbo I got is wierd there is no bolts on the hot side here is a pic sorry about the quality. Can someone tell me what I can do. thank you.
Attached Images
File Type: bmp
cmjaure is offline
Reply Like
Old 10-29-04, 10:16 PM
  #2
Full Member


oppressor666's Avatar

Join Date: Feb 2002
Location: Albuquerque, NM
Posts: 111
Likes: 0
Received 0 Likes on 0 Posts
It looks like a V-band clamp, just a different way of holding the downpipe on. If you check our the HKS T-51, it has a V-Band on the Turbine inlet.
oppressor666 is offline
Reply Like
Old 10-29-04, 10:17 PM
  #3
Eats, Sleeps, Dreams Rotary


apneablue's Avatar

Join Date: Feb 2002
Location: North Coast
Posts: 3,045
Received 2 Likes on 2 Posts
Is there some sort of a flange on the hot side to clamp the DP to it? Otherwise I will send you the half tube of crazy glue I have in my kitchen
apneablue is offline
Reply Like
Old 10-29-04, 10:25 PM
  #4
Full Member


oppressor666's Avatar

Join Date: Feb 2002
Location: Albuquerque, NM
Posts: 111
Likes: 0
Received 0 Likes on 0 Posts
The downpipe should have a flat flange on it, the V-band holds the two together. It works really well if both surfaces are flat. Just do a quick search I am sure you could probably find some pics.

Marc
oppressor666 is offline
Reply Like
Old 10-29-04, 10:34 PM
  #5
a.k.a. Mike

Thread Starter

cmjaure's Avatar

Join Date: May 2004
Location: new mexico
Posts: 250
Likes: 0
Received 0 Likes on 0 Posts
the only flang is on the flang itself and it is flush with the housing
cmjaure is offline
Reply Like
Old 10-29-04, 10:36 PM
  #6
Full Member


oppressor666's Avatar

Join Date: Feb 2002
Location: Albuquerque, NM
Posts: 111
Likes: 0
Received 0 Likes on 0 Posts

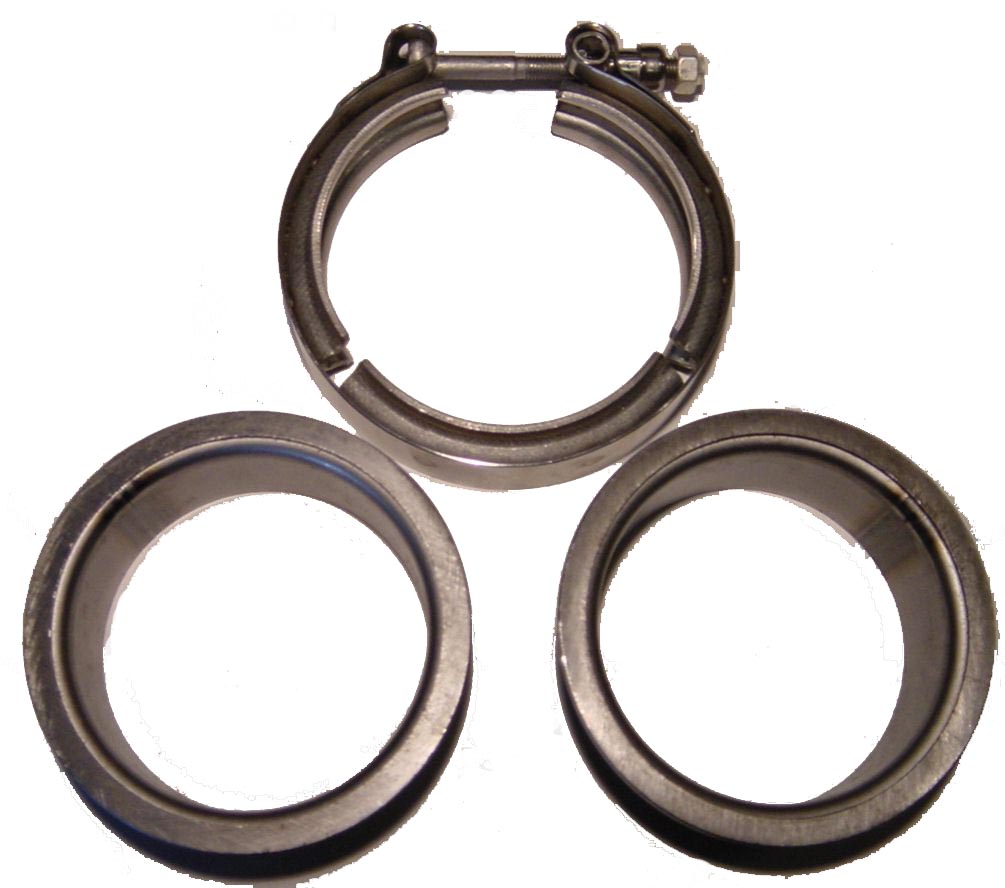

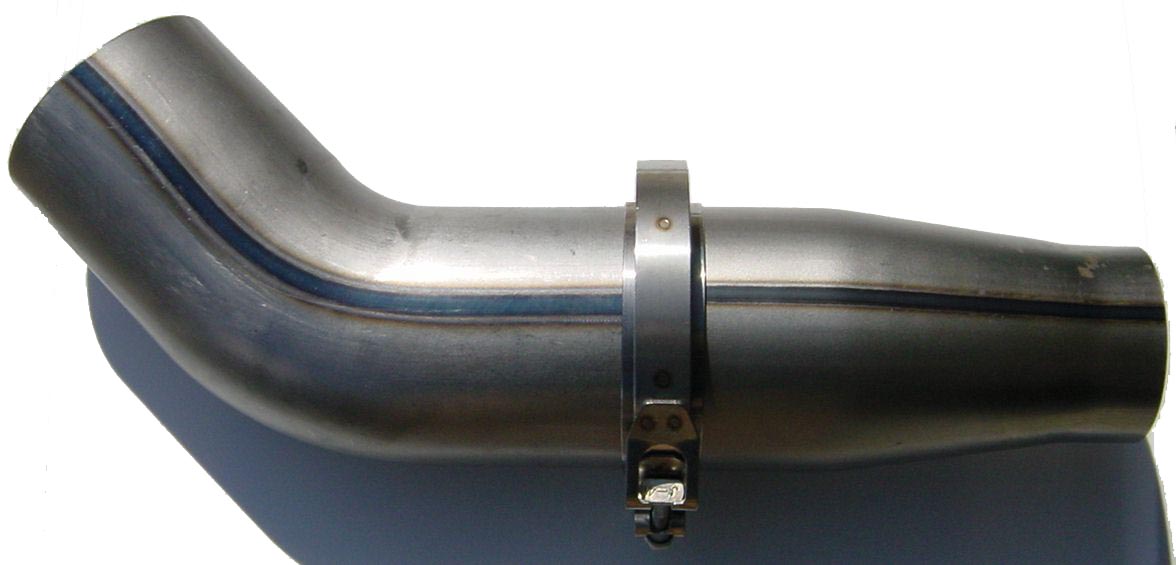

Here are some pics of a V-band set-up. If you could take some better pics it would help out a bunch.
oppressor666 is offline
Reply Like
Old 10-29-04, 10:37 PM
  #7
Full Member


oppressor666's Avatar

Join Date: Feb 2002
Location: Albuquerque, NM
Posts: 111
Likes: 0
Received 0 Likes on 0 Posts
Smile
Here they are.....hopefully!
Attached Thumbnails wtf? where does the downpipe go?-vbandkit.jpg   wtf? where does the downpipe go?-vbandpipe3.jpg
oppressor666 is offline
Reply Like

Trending Topics

Old 10-29-04, 10:38 PM
  #8
Full Member


oppressor666's Avatar

Join Date: Feb 2002
Location: Albuquerque, NM
Posts: 111
Likes: 0
Received 0 Likes on 0 Posts
Hope that helps....
You taking pics from a camera phone?
oppressor666 is offline
Reply Like
Old 10-29-04, 10:38 PM
  #9
Full Member


oppressor666's Avatar

Join Date: Feb 2002
Location: Albuquerque, NM
Posts: 111
Likes: 0
Received 0 Likes on 0 Posts
Wow your'e even in New Mexico Where? I live in Albuquerque.
oppressor666 is offline
Reply Like
Old 10-29-04, 10:59 PM
  #10
a.k.a. Mike

Thread Starter

cmjaure's Avatar

Join Date: May 2004
Location: new mexico
Posts: 250
Likes: 0
Received 0 Likes on 0 Posts
I am in deming but thats cool your the first person I found from nm thanks for the pics and it is a really cheep dig camera
