Will a 2-row fmic support 700hp with large water/meth nozzle?
08-19-14, 11:39 PM
#1
Will a 2-row fmic support 700hp with large water/meth nozzle?

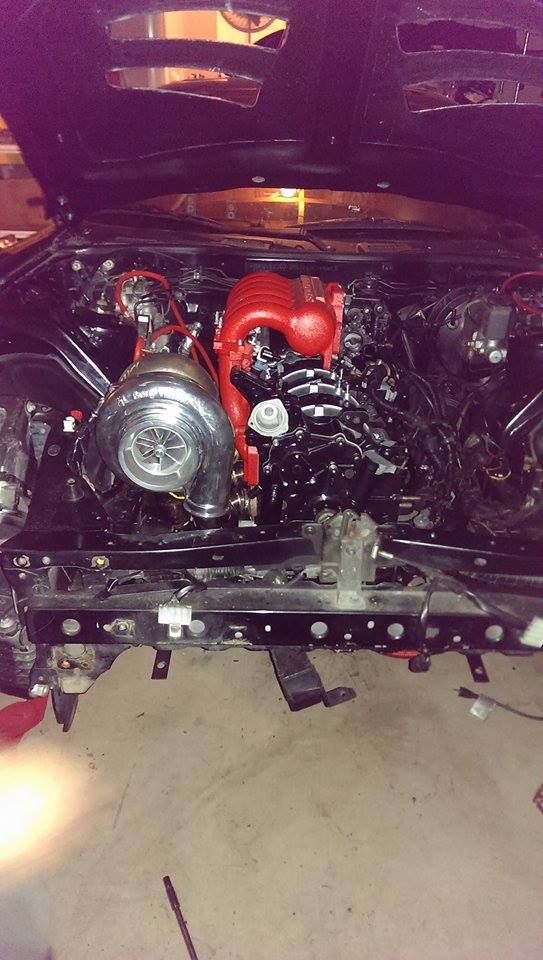

I purchased a greddy 2 row 2.5" thick fmic for 20b conversion I'm working through. I didnt realize how small this was compared to the blitz fmic I used to run.
Do you guys think its sufficient for 18-20psi on an 80mm turbo so long as I'm spraying 1000cc water/meth beyond 10psi and above?
Do you guys think its sufficient for 18-20psi on an 80mm turbo so long as I'm spraying 1000cc water/meth beyond 10psi and above?
08-20-14, 04:41 PM
#7
Racing Rotary Since 1983
iTrader: (6)
intercoolers are a wonderful necessary evil and while they all look similar they do not function similarly. many intercoolers act as restrictor plates as to flow. and this is on a 2 rotor. there is a big difference between the flow of good and not so good cores.
last winter Beyond Redline hooked up a 4 cylinder engine to a big air compressor (you need to flow around 1000 CFM) and tested cores, end tanks etc...
their conclusions were proved out on one of my customer's engines which ended up being flow challenged above 575. a better IC will not only raise the power above 600 but significantly lower IAT.
your 3 rotor will be flowing 50% more air making a proper intercooler important. a great intercooler always pays dividends as to cooler IAT... even when not in boost.
my SM Pettit Cool-Charge 3 takes 130 degrees out of the air from the compressor. W/M AI removes another 30.
your car looks like it will fly.
howard
last winter Beyond Redline hooked up a 4 cylinder engine to a big air compressor (you need to flow around 1000 CFM) and tested cores, end tanks etc...
their conclusions were proved out on one of my customer's engines which ended up being flow challenged above 575. a better IC will not only raise the power above 600 but significantly lower IAT.
your 3 rotor will be flowing 50% more air making a proper intercooler important. a great intercooler always pays dividends as to cooler IAT... even when not in boost.
my SM Pettit Cool-Charge 3 takes 130 degrees out of the air from the compressor. W/M AI removes another 30.
your car looks like it will fly.
howard
Last edited by Howard Coleman; 08-21-14 at 07:21 AM.
Trending Topics
08-20-14, 05:23 PM
#8
intercoolers are a wonderful necessary evil and while they all look similar they do not function similarly. many intercoolers act as restrictor plates as to flow. and this is on a 2 rotor. there is a big difference between the flow of good and not so good cores.
last winter Beyond Redline hooked up a 4 cylinder engine to a big air compressor (you need to flow around 1000 CFM) and tested cores, end tanks etc...
their conclusions were proved out on one of my customer's engines which ended up being flow challenged above 575. a better IC will not only raise the power above 600 but significantly lower IAT.
you will be flowing 50% more air making a proper intercooler important. a great intercooler always pays dividends as to cooler IAT... even when not in boost.
my SM Pettit Cool-Charge 3 takes 130 degrees out of the air from the compressor. W/M AI removes another 30.
your car looks like it will fly.
howard
last winter Beyond Redline hooked up a 4 cylinder engine to a big air compressor (you need to flow around 1000 CFM) and tested cores, end tanks etc...
their conclusions were proved out on one of my customer's engines which ended up being flow challenged above 575. a better IC will not only raise the power above 600 but significantly lower IAT.
you will be flowing 50% more air making a proper intercooler important. a great intercooler always pays dividends as to cooler IAT... even when not in boost.
my SM Pettit Cool-Charge 3 takes 130 degrees out of the air from the compressor. W/M AI removes another 30.
your car looks like it will fly.
howard
What would you recommend as a proper flowing intercooler?
I was under the impression that a thinner quality intercooler such as a genuine Greddy 2-row would have little pressure drop and flow quite well although it may not remove as much heat as a thicker cooler. I'm trying to find a balance between what will yield this best efficiency in combination with the AI and also not so large as to block all the airflow to the radiator.
I've been seeking out a genuine greddy 2-row which should be 3" thick and return this knock-off 2.5" junk cooler. If this is not adequate, perhaphs I should go 4" and purchase a core / weld on end tanks? I've been spoiled by the previous Blitz FMIC setup and overlooked the necessity of this step.
Thanks again Howard for the help.
08-20-14, 07:29 PM
#9
Racing Rotary Since 1983
iTrader: (6)
as an example, by simply replacing a bad/aftermarket intercooler on a Hyundai Genesis coupe w their purpose built IC, Beyond Redline moved the power from 270 to 320.
my bet is there are as many IC limited FDs as there are single turbo FDs w leaking turbo manifold flanges, and that is a big number IMHO.
i do think ICs are under-appreciated for what they can do to help our 4 to 8 hp per cubic inch motors get cooled. additionally, there really is a lack of data offered by many sellers as to overall efficacy/pressure drop and heat rejection.
turbo manufacturers (other than Precision) provide compressor maps but little is available as to IC data.
too bad, as it is very important.
hc
my bet is there are as many IC limited FDs as there are single turbo FDs w leaking turbo manifold flanges, and that is a big number IMHO.
i do think ICs are under-appreciated for what they can do to help our 4 to 8 hp per cubic inch motors get cooled. additionally, there really is a lack of data offered by many sellers as to overall efficacy/pressure drop and heat rejection.
turbo manufacturers (other than Precision) provide compressor maps but little is available as to IC data.
too bad, as it is very important.
hc
