therotorrooter

iTrader: (4)

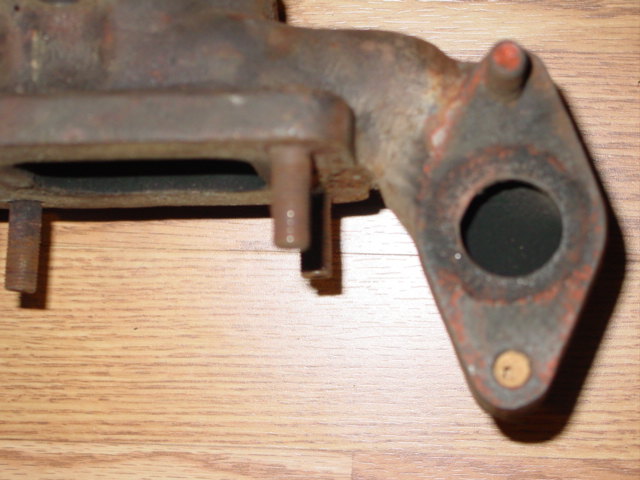

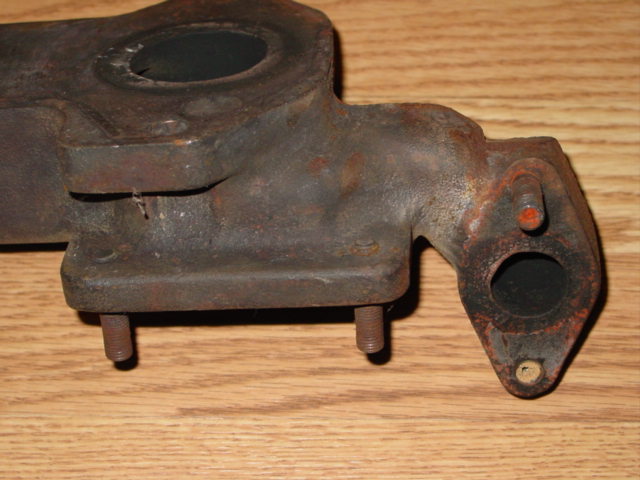

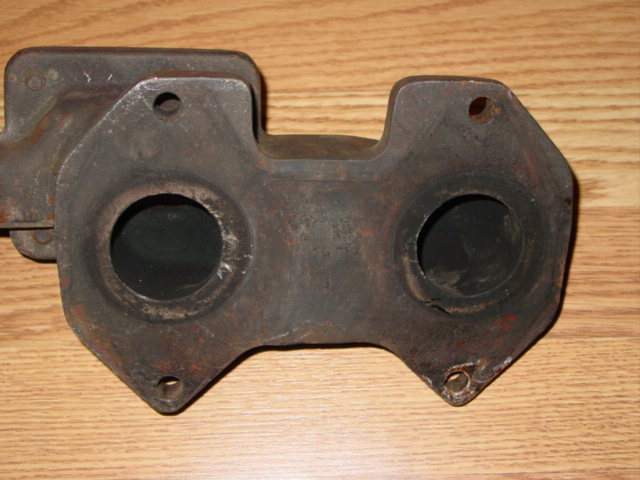

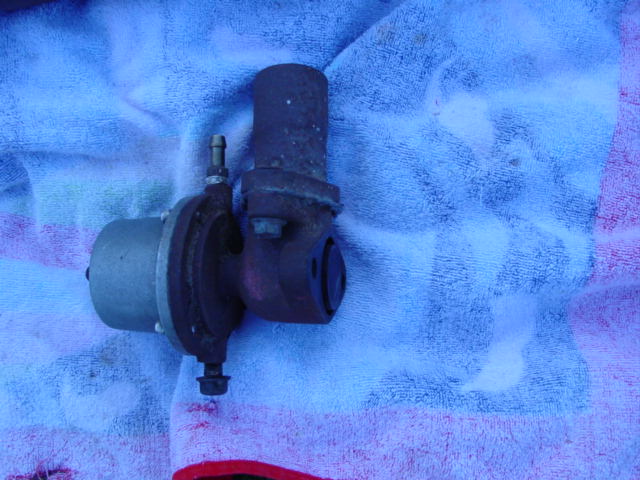

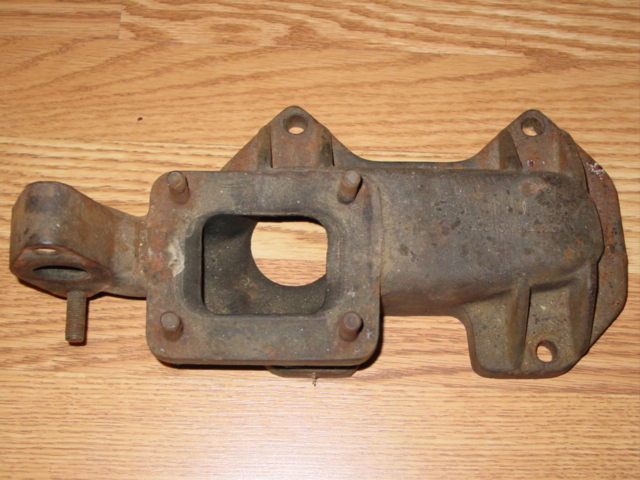

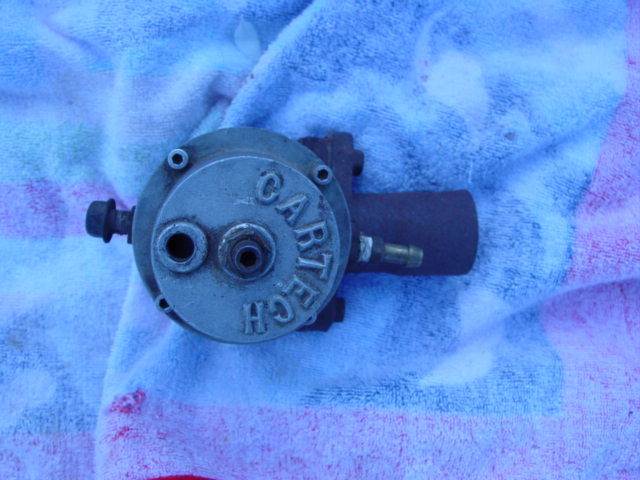

I got this manifold with a garrett turbo a while back. Its obviously old, but doesn't have any make on it that I can tell. It also came with a cartech wastegate. Any help on identifying this would be greatly appreciated. I've searched and searched with no luck so far.

S3DF

Looks like the one from the 12A Turbo RX7 from Japan.

Smitter

its obviously a mazda manifold.

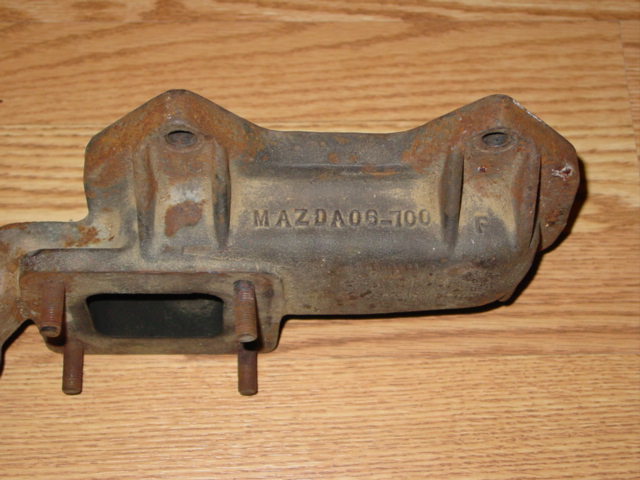

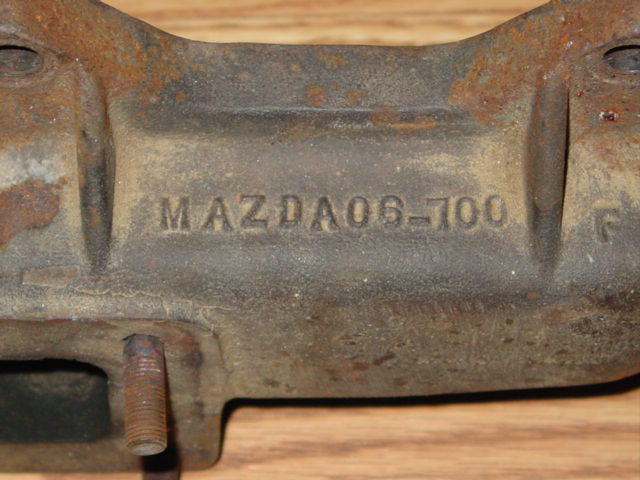

it says mazda right on it (first pic)

kenn_chan

No it does not, so stop spreading dis-information. The 12a turbo uses a hitachi unit same design as the 13bt. Its internal wastegated and the flanged would look like a bastardized sqaure flange somewhere bewtween the t3 and t4

that IMHO looks like one of the arkady (europe)or avatar (america) units both of them tried their hands at tubo charging the 12a back in the 80's so that is probably where it came from.

FYI i I have owned at one time or another every turbocharged car in mazda's lineup , and none of them said mazda anywhere on their manifolds period.

hence my thoughts of it being an aftermarket from the 80's. HKS is marked HKS greddy are marked as greddy,so its not one of them.

good luck.

kenn

Jaime Enriquez

Pretty sure that is a Cartech cast manifold. I had one one that looked exactly the same.

javrosario

iTrader: (5)

YEah, it is a cartech cast manifold.

yetterben

regardless if yah dont want it send it my way!

j9fd3s

iTrader: (3)

yep its a cartech, looks just like mine. if its a 13b one, it fits with all the na intake hoo-ha

therotorrooter

iTrader: (4)

Hey thanks for the info on this guys....yeah it's for a 13b, the ports match up, definately wider than the 12a exhaust ports. It would make sense that its a cartech manifold since I also have the cartech wastegate. Are these worth a crap? What kind of power over stock did they muster up? I'll see if I can find pics of the turbo that came with this.

Just as a side note, I've searched but probably for the wrong heading, can you modify the turbine housing on an s5 to accept a bigger turbine diameter wheel? I didn't know if you could have it bored or honed out to size to accept a bigger turbine wheel. I've got an s5 with the 60-1 compressor upgrade and considered trying to upgrade the turbine side as well. I've got the REVII complete system and kinda wanted to stick with the stock turbine instead of making a new downpipe and all that. Maybe I should utilize this old school cartech system though. Let me know what you think. Thanks for everyones time!!!

therotorrooter

iTrader: (4)

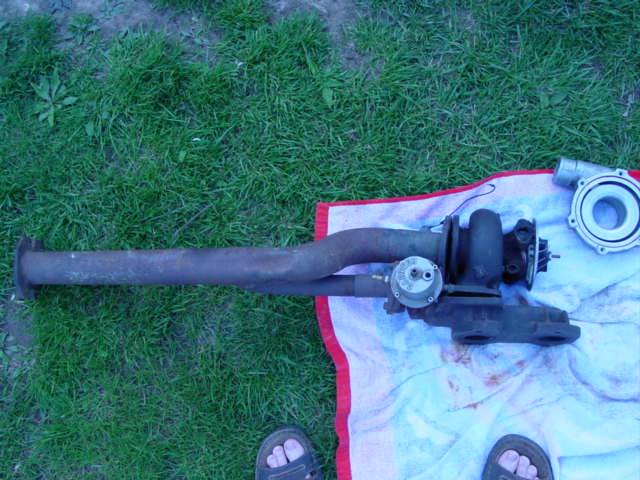

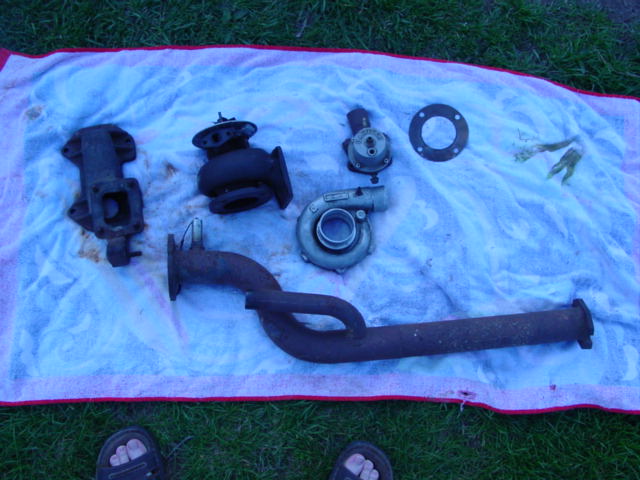

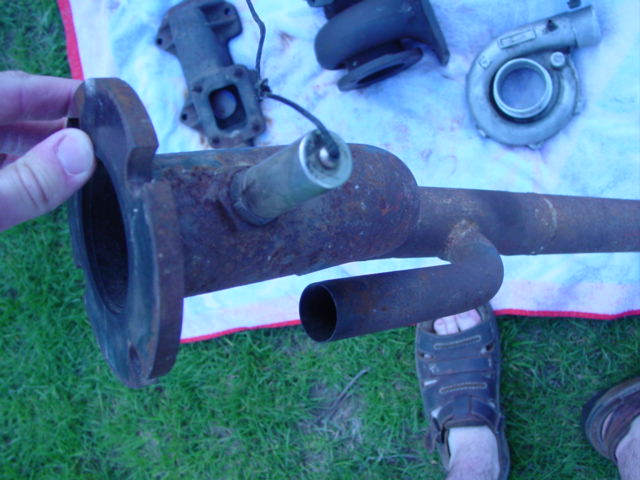

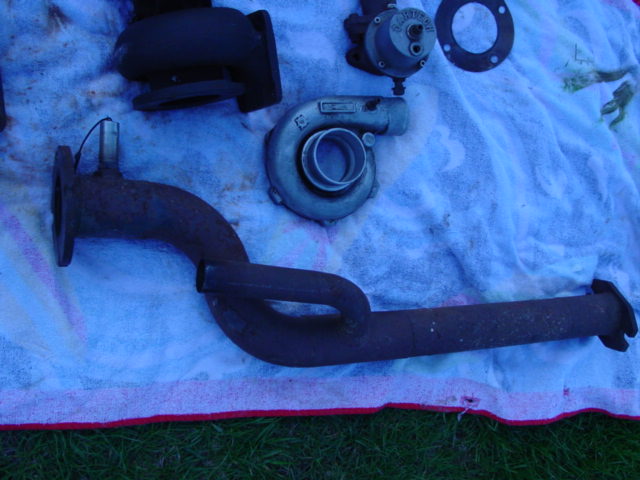

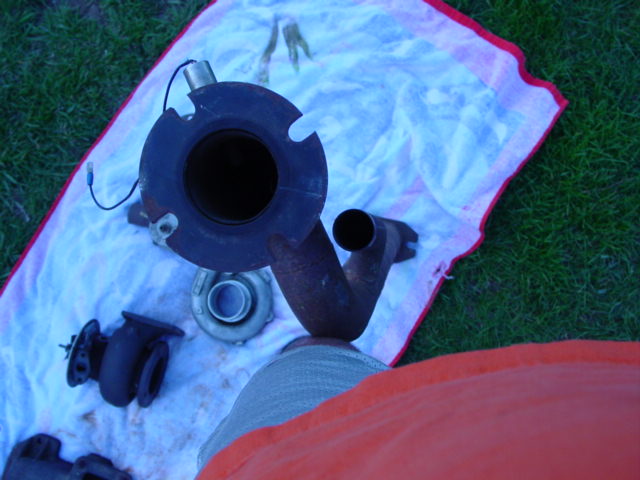

Here's some pics of this setup.....it came with a custom downpipe, I think its 2 1/2" or so.

therotorrooter

iTrader: (4)

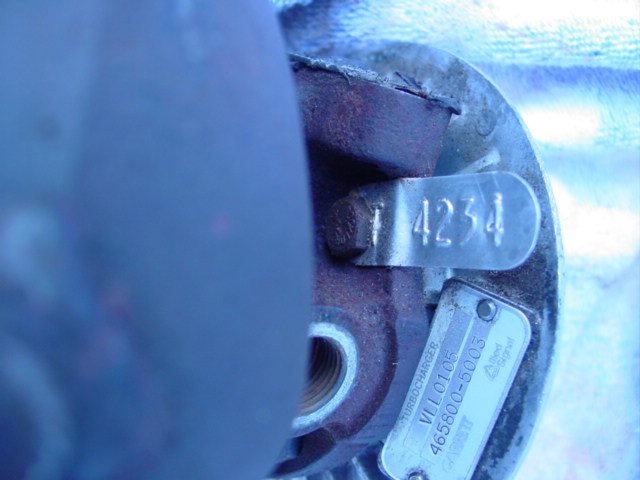

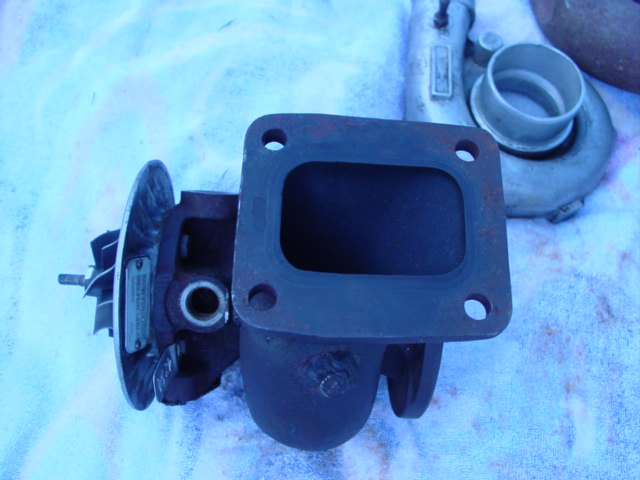

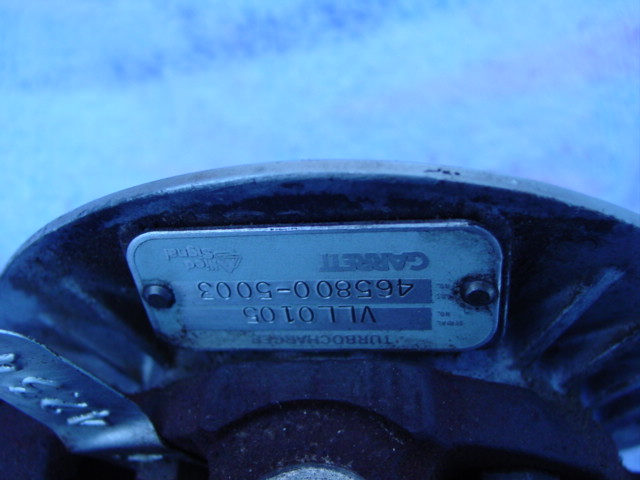

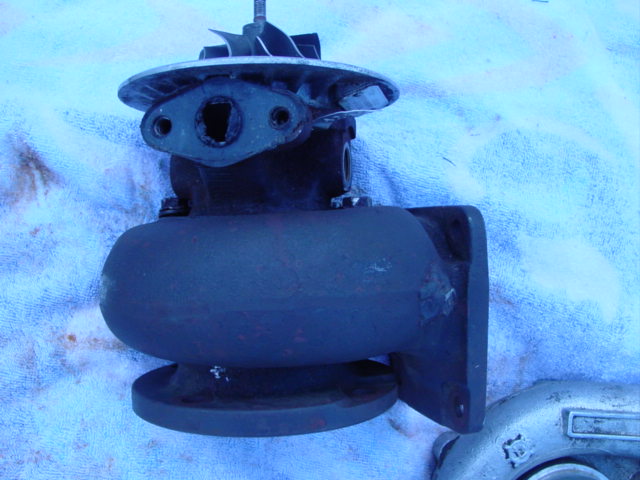

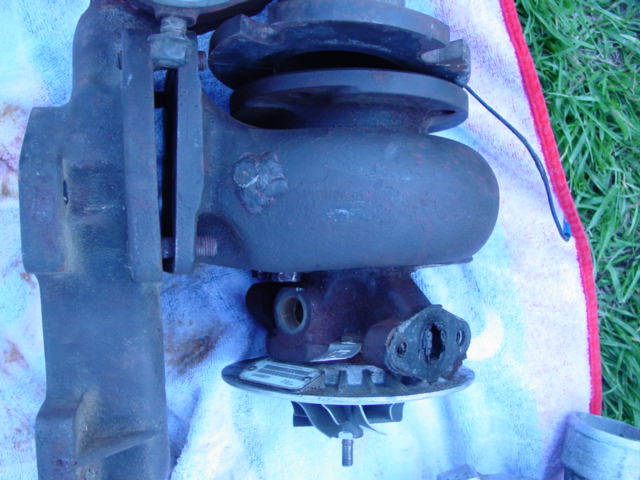

Here's some more pics.... the a/r stamped on the compressor side was .70 and nothing on the turbine housing. If I remember right the exhaust opening on the housing is 2 3/4 or 3". Who knows this system may be something to tinker with but I'm still trying to learn about all this turbo stuff... a/r values, spool time etc. Been reading archived stuff and new posts. Again thanks for all the help.

tearbo2

iTrader: (2)

I am 100% sure it is a "old school" corky bell magic manifold !!!!!!! all I can say is that I dynoed 540 rwhp and ran my BEST et of 10.66 @ 128 mph w/ the same but modified by me jus a lil bit . I still have the manifold jus cuz it did so well. good luck w/ your setup, and make sure you upgrade the wastegate to tial 38mm
much better than the cartech "old school" gate if you need any more info Pm me I would be glad to help w/ turbo selection
