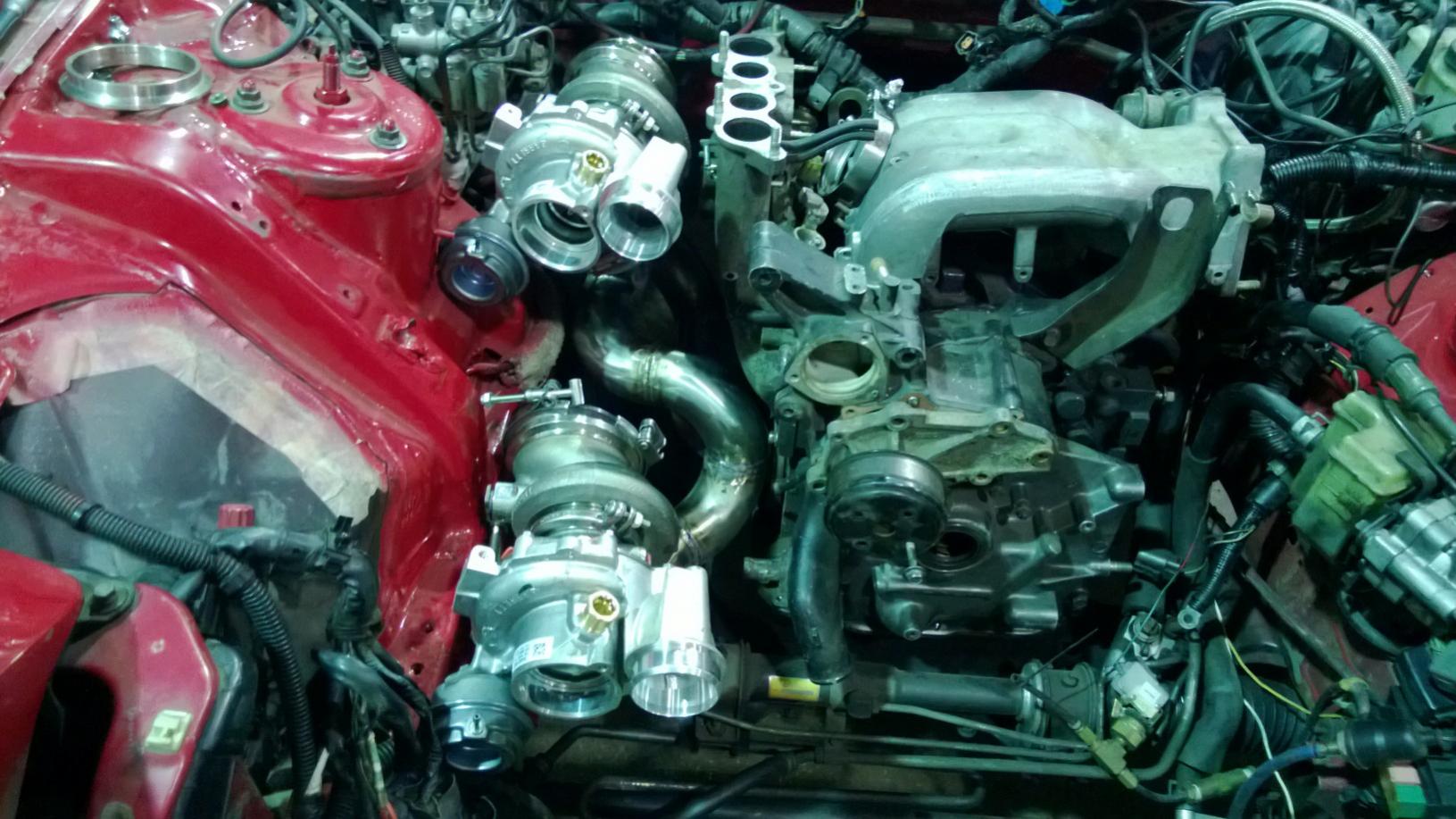

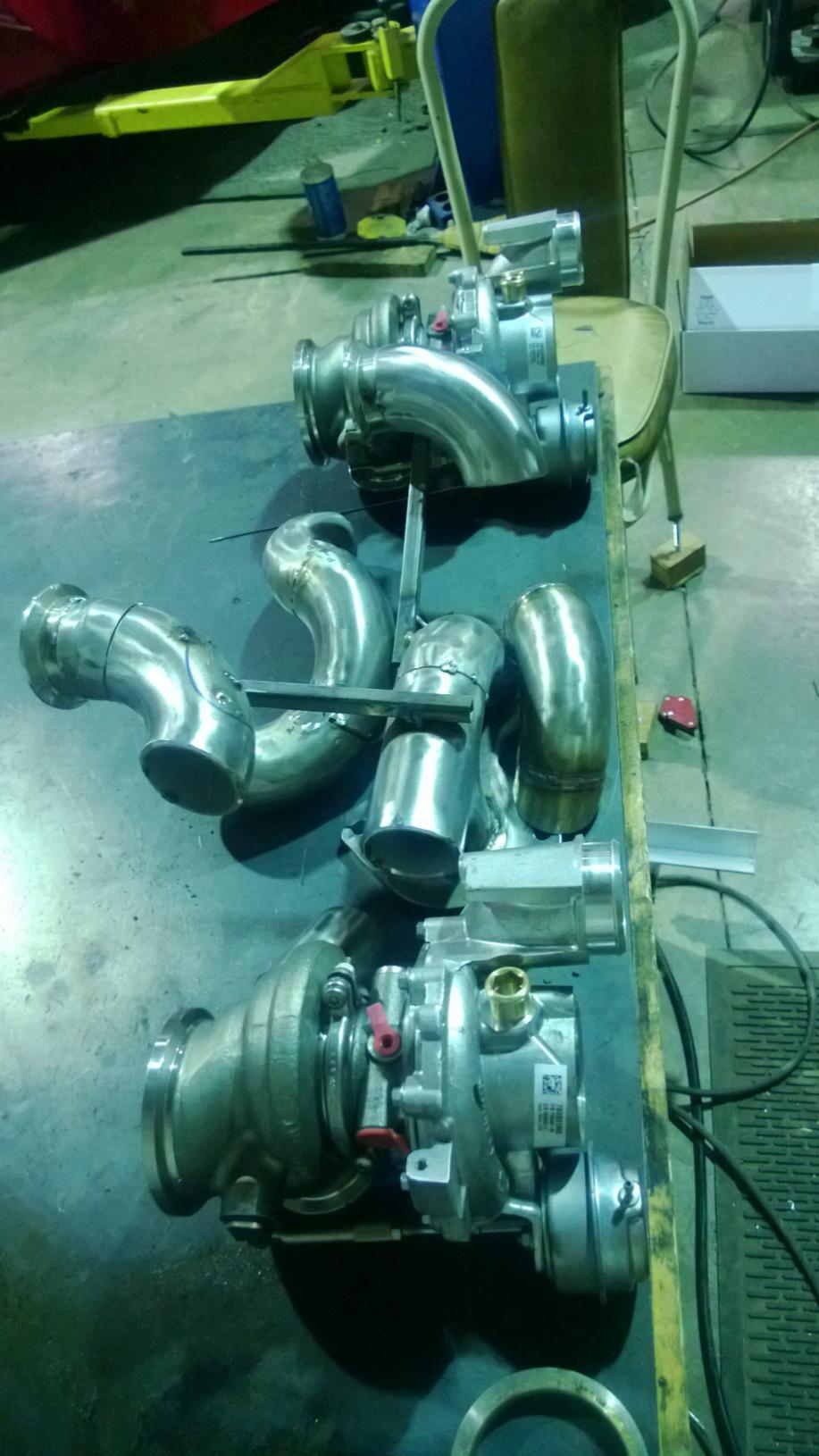

twin turbo pics
#3
the mazda zoom zoom store
Thread Starter
#5
the mazda zoom zoom store
Thread Starter
Trending Topics
#8
F**K THE SYSTEM!!

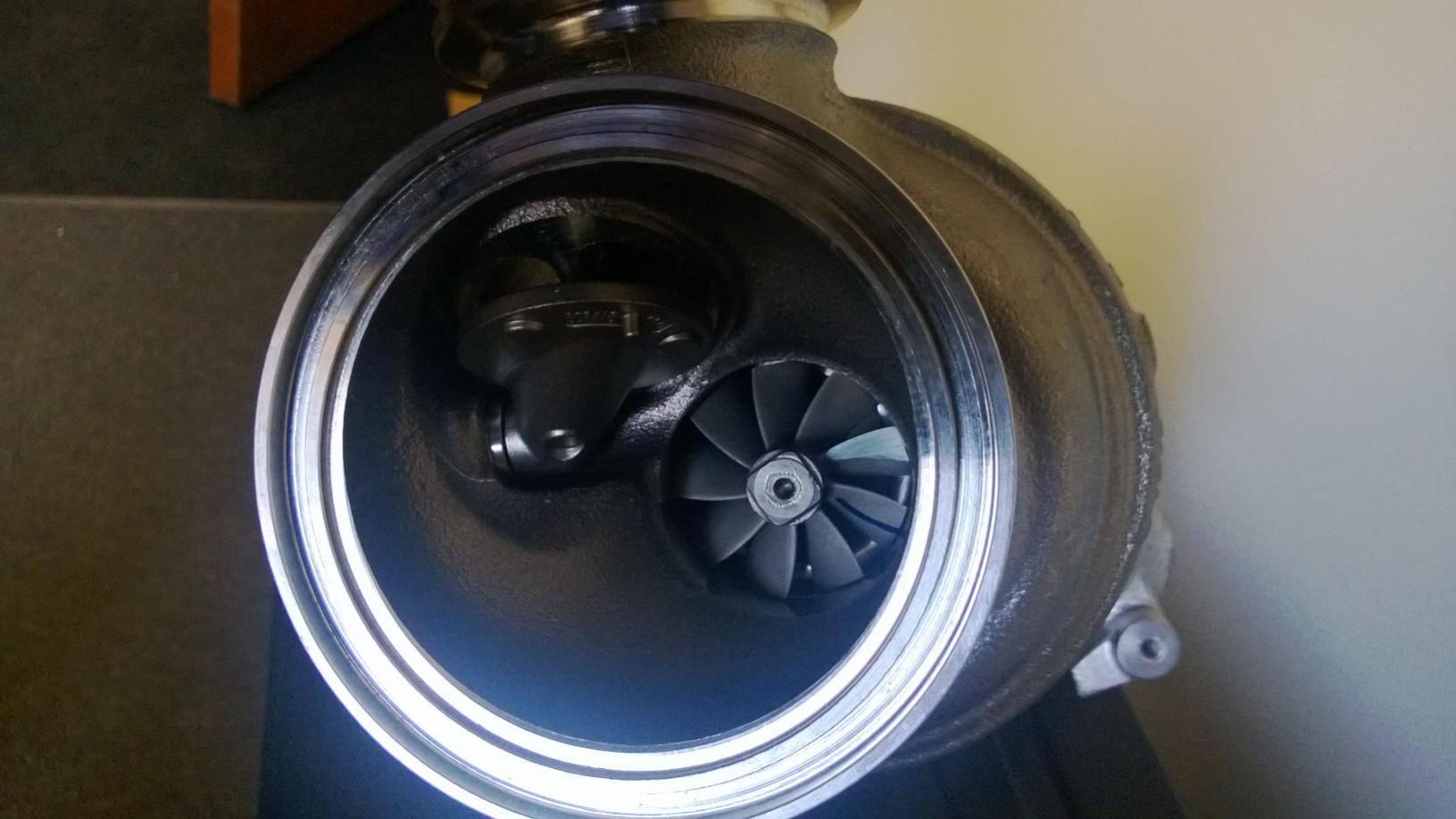

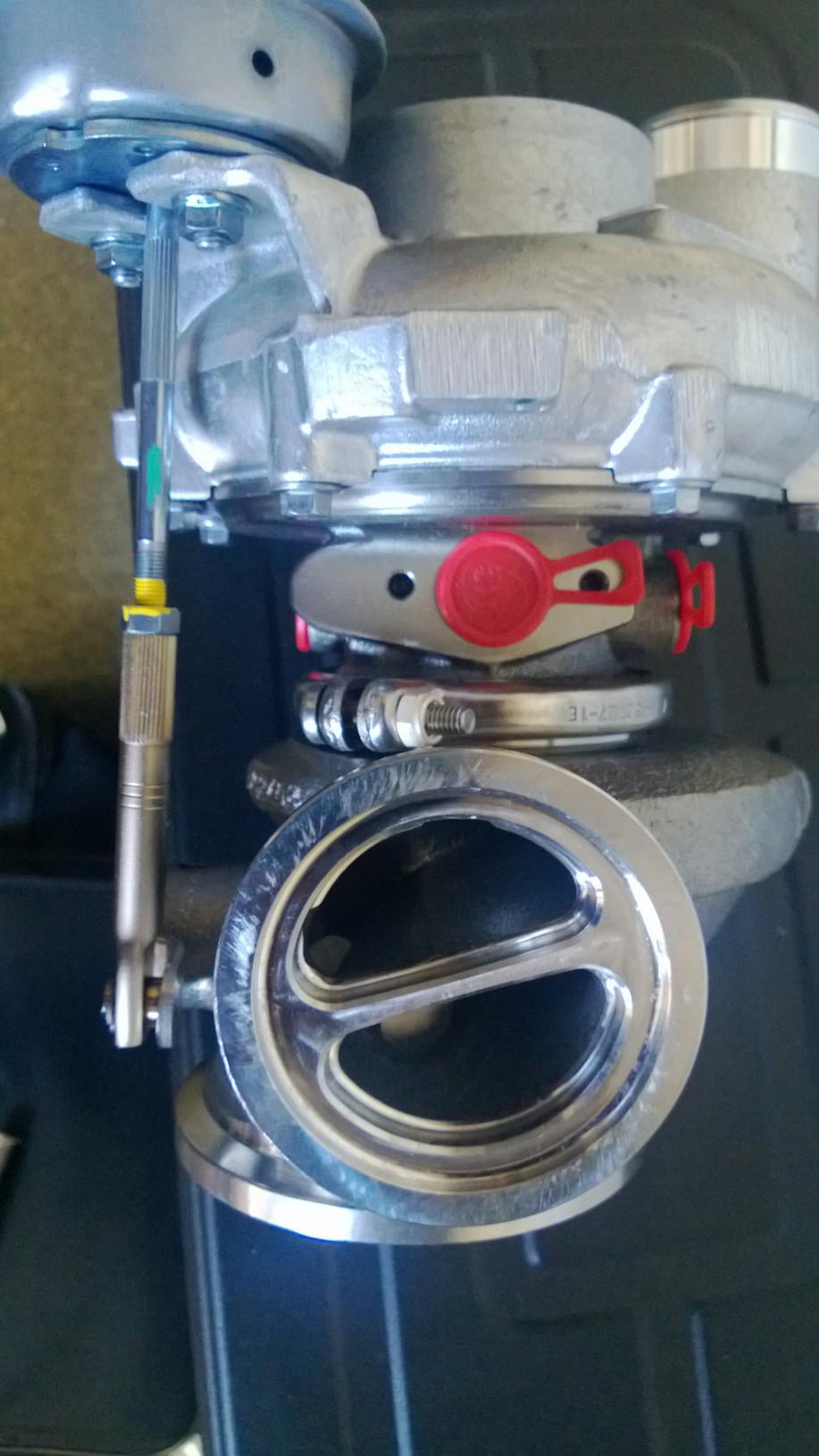

Also, another thing to consider is that those are divided turbine housing's. You have 2 exhaust ports and 2 turbos. There shouldn't be a need for divided turbine housings.
#14
Junior Member
Join Date: Aug 2008
Location: Pittsburgh PA
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Looks good. I've thought about using v-band inlet turbos for a twin setup, it makes everything much more compact and movable compared to having two T3 or T4 flanges. Looking forward to seeing your dyno results!
#16
10000 RPM Lane
iTrader: (2)
yeah, yeah, yeah

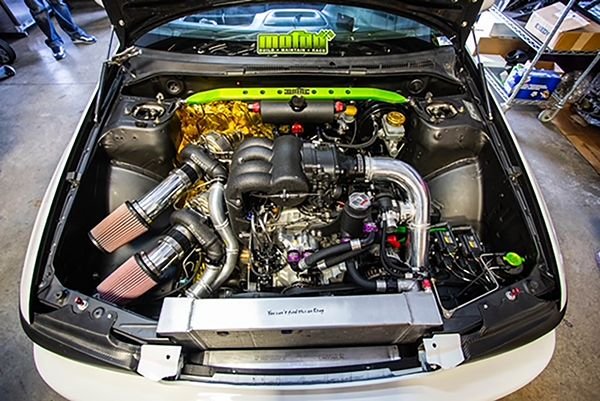

but bumping this for similar recent topic; 13B with twin Garrett G25-660 turbos (one per rotor) swapped into an awd Subaru with Xtrac sequential trans, think it’s still not fully built out yet, but shooting for 700 whp
.
.
youtube vid on the dyno shifting through the gears
nice build, but the guy is a bit of a youboob drama queen 👸
.
but bumping this for similar recent topic; 13B with twin Garrett G25-660 turbos (one per rotor) swapped into an awd Subaru with Xtrac sequential trans, think it’s still not fully built out yet, but shooting for 700 whp
.
.
youtube vid on the dyno shifting through the gears
nice build, but the guy is a bit of a youboob drama queen 👸
.
Last edited by TeamRX8; 12-22-21 at 12:29 AM.
The following 3 users liked this post by TeamRX8:
#17
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,855
Received 2,617 Likes
on
1,854 Posts

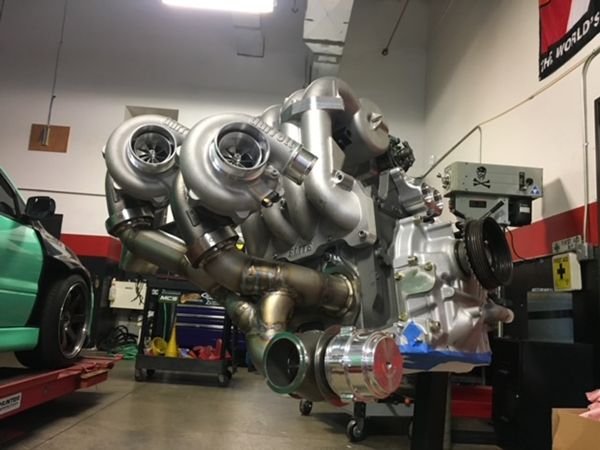

that is kind of a serious build, KSP was doing 731hp back in the day with a pair of HKS GT3037's and a bridgeport 13BT
i wish i would have saved more pics
i wish i would have saved more pics
#19
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,855
Received 2,617 Likes
on
1,854 Posts
#20
10000 RPM Lane
iTrader: (2)
I get that line of thought, but not 2x more imo if looking at equivalent technology. Even some single turbo builds can be 2x cost difference between each other in that regard.
if I were to attempt it then I’d take a cheaper route of using the Pulsar G25-550 copy cat turbos though, which they offer in the 0.49 IWG V-band that Garrett doesn’t have and at only $900 each. Two of those are about the same cost as one Garrett. The RX8 chassis with REW swap has some more space down low than the RX7 and with IWG the exhaust manifolds won’t be overly complicated if they can fit as I’m envisioning it. The support piping is double, though some can be manifolded rather than separate, but the inlet, exhaust, and compressor discharge piping is for sure some more work and cost.
Where I see the possible advantage is in the response relative to the peak power output. It seems that two of these small turbos fairly close-coupled to the exhaust ports may offer some potential to come on sooner than an equivalently sized single. Which as proposed would be a Garrett G35-1050. In the RX8 chassis that would require a forward/high mount manifold with less balanced, longer path exhaust flow, EWG, etc..
Honestly, if there was a smaller G20-500 option with 80% eff. I’d probably be all over it. Garrett did recently release some smaller GBC turbo options, but too small for this idea and less efficient than the newer G-series because they’re based off the previous Gen2 technology; only 72% peak eff and 58% eff at the far right, meh. Mostly blowing smoke out my tail pipe though, on topic for this subject
as these get smaller with more punch, possibly has potential
.
if I were to attempt it then I’d take a cheaper route of using the Pulsar G25-550 copy cat turbos though, which they offer in the 0.49 IWG V-band that Garrett doesn’t have and at only $900 each. Two of those are about the same cost as one Garrett. The RX8 chassis with REW swap has some more space down low than the RX7 and with IWG the exhaust manifolds won’t be overly complicated if they can fit as I’m envisioning it. The support piping is double, though some can be manifolded rather than separate, but the inlet, exhaust, and compressor discharge piping is for sure some more work and cost.
Where I see the possible advantage is in the response relative to the peak power output. It seems that two of these small turbos fairly close-coupled to the exhaust ports may offer some potential to come on sooner than an equivalently sized single. Which as proposed would be a Garrett G35-1050. In the RX8 chassis that would require a forward/high mount manifold with less balanced, longer path exhaust flow, EWG, etc..
Honestly, if there was a smaller G20-500 option with 80% eff. I’d probably be all over it. Garrett did recently release some smaller GBC turbo options, but too small for this idea and less efficient than the newer G-series because they’re based off the previous Gen2 technology; only 72% peak eff and 58% eff at the far right, meh. Mostly blowing smoke out my tail pipe though, on topic for this subject
as these get smaller with more punch, possibly has potential
.
Last edited by TeamRX8; 12-23-21 at 02:16 PM.
#21
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,855
Received 2,617 Likes
on
1,854 Posts
plus, i mean its just so much cooler looking
Last edited by j9fd3s; 12-23-21 at 03:39 PM.
#22
10000 RPM Lane
iTrader: (2)
well an FD3 is for sure 🤣

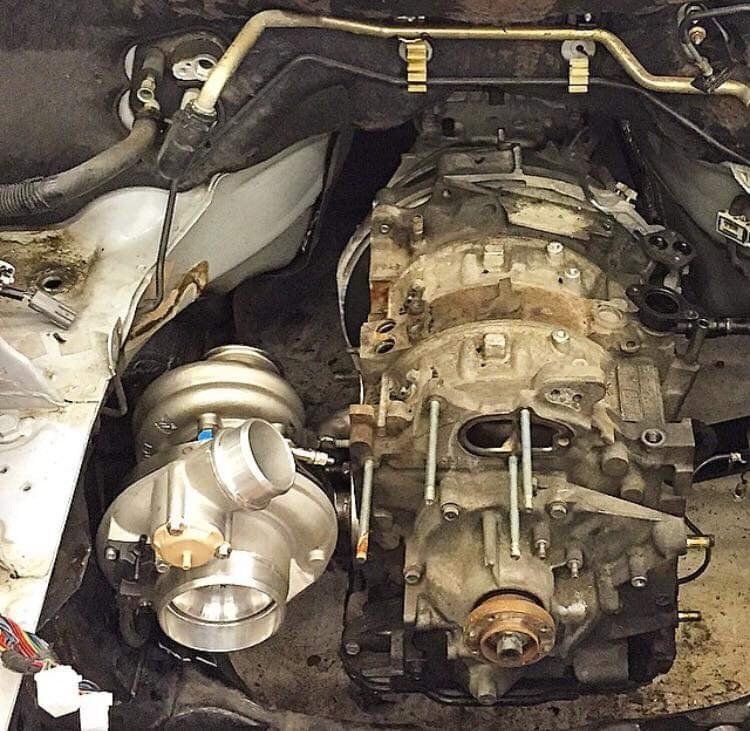

but here’s the difference in chassis space, this is an RX8 chassis with custom-fit manifold and EFR9174 0.92AR (picture credit to Jesse/RotaryMachineRx):
.
.
given this a G35-1050 could likely be mounted the same
However, when you look at the combined turbine flow of two 0.49AR G25 turbos, it starts 19 lb/min @ 1.3 PR, which is well below where the G35 0.83 and 1.01 AR turbine flow curves start, and from there it jumps up to just above the 0.83 AR flow curve until 2.0 Pr, where it then moves up to the 1.01 AR flow curve until 3.0 PR (32 lb/min) and then flat lines. So on paper it looks peppier than a G35 0.83 low-mid, but then extends out to the G35 1.01 on the top end. Except those housings only come in an open V-band inlet configuration and this is like a divided configuration. The divided T4 housing is only in a 1.06 AR. Looks tasty
So even just looking at these pics it sure seems to me like they could be squeezed down in there very close-coupled almost direct to the exhaust ports.
.
but here’s the difference in chassis space, this is an RX8 chassis with custom-fit manifold and EFR9174 0.92AR (picture credit to Jesse/RotaryMachineRx):
.
.
given this a G35-1050 could likely be mounted the same
However, when you look at the combined turbine flow of two 0.49AR G25 turbos, it starts 19 lb/min @ 1.3 PR, which is well below where the G35 0.83 and 1.01 AR turbine flow curves start, and from there it jumps up to just above the 0.83 AR flow curve until 2.0 Pr, where it then moves up to the 1.01 AR flow curve until 3.0 PR (32 lb/min) and then flat lines. So on paper it looks peppier than a G35 0.83 low-mid, but then extends out to the G35 1.01 on the top end. Except those housings only come in an open V-band inlet configuration and this is like a divided configuration. The divided T4 housing is only in a 1.06 AR. Looks tasty
So even just looking at these pics it sure seems to me like they could be squeezed down in there very close-coupled almost direct to the exhaust ports.
.
Last edited by TeamRX8; 12-23-21 at 08:14 PM.
#24
10000 RPM Lane
iTrader: (2)
Frankly I think it just depends on your goal. First I don’t think an electric scavenge is necessary, at least not on an RX8 chassis. I’d have to rely more on other people’s experience on the FD chassis. Otherwise I believe it’d depend on your goal. Top end power I’d concede to the G35 single setup. Low end response, I’m inclined to swing to twin G25 turbos as proposed.
All of which is based on the data we have. The actual results remain to be seen. Technically the G25-660 and G30-660 are the same dimensions though. So there potentially is a higher power option, but then you’re into the G40 range with a full array of divided T4 options.
.
All of which is based on the data we have. The actual results remain to be seen. Technically the G25-660 and G30-660 are the same dimensions though. So there potentially is a higher power option, but then you’re into the G40 range with a full array of divided T4 options.
.
Last edited by TeamRX8; 12-24-21 at 05:56 PM.
