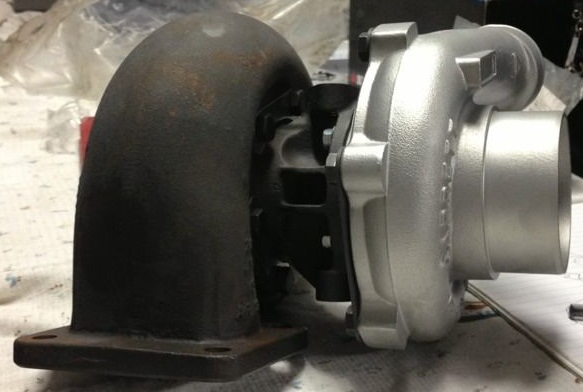

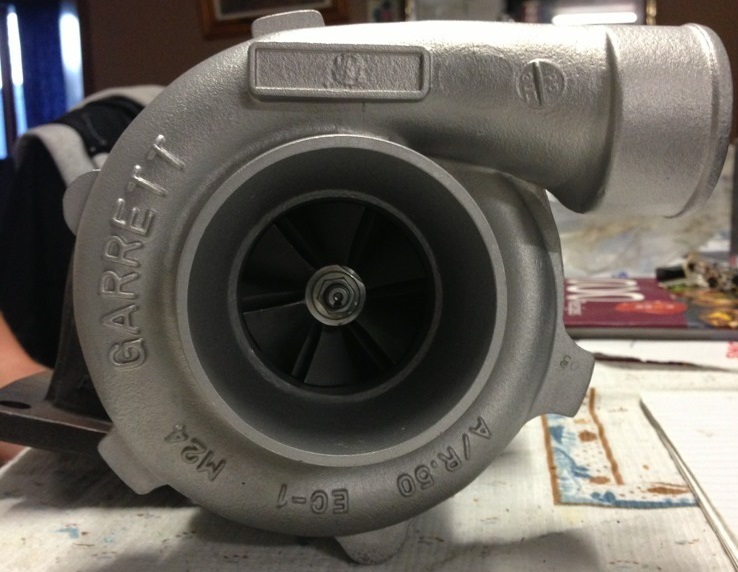

What size turbo housing is this? Genuine Garrett T04

6/12 blade compressor wheel. Looks too big to be a T04B. I think its a T04R or T04E-66.

Looks like a 1.15 T04R to me?



Looks like 1 1.15, My guess is it is a diesel To4E



Do you mean 1 or 1.15 or not sure? Chances it has the 67/84mm compressor wheel? It looks larger than 60mm to me! 60-1 is 7 blade, T04E66 I suspect is 7 blade.

T04R/Z is 6 blade. I don't know any other wheel sizes around that ballpark.



Sorry a 1.15. Its not a 67mm compressor wheel, that is a 3" inlet. It would be super thin inlet casting( and its not, even has a step inside). Looks like a 57 trim To4E to me...



Thanks.

I was incorrectly assuming that was a 4" compressor cover.



It might still be a good candidate for high flowing. What wheel would you put on it.

Obviously I could put a 60-1 or a T04R/Z/T67 cold side on it, or I found these on ebay

Turbo Billet Compressor Wheel Garrett GT3582R 3540 61.3/82mm/56 Trim/11+0 Blades | eBay

Turbo Billet Compressor Wheel Garrett T04Z T04R 11 Blade 66.3 / 84mm Balanced | eBay

Kinugawa Billet Turbo Compressor Wheel Garrett GT3582 GT3540 61.3/82mm 6+6 Blade | eBay

Kinugawa Billet Turbo Compressor Wheel Garrett T04Z T04R 7+7 Blades 66.3 / 84mm | eBay
