Some preliminary set-up pics !
11-09-07, 07:09 PM
#1
Rotary Freak
Thread Starter
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
Some preliminary set-up pics !

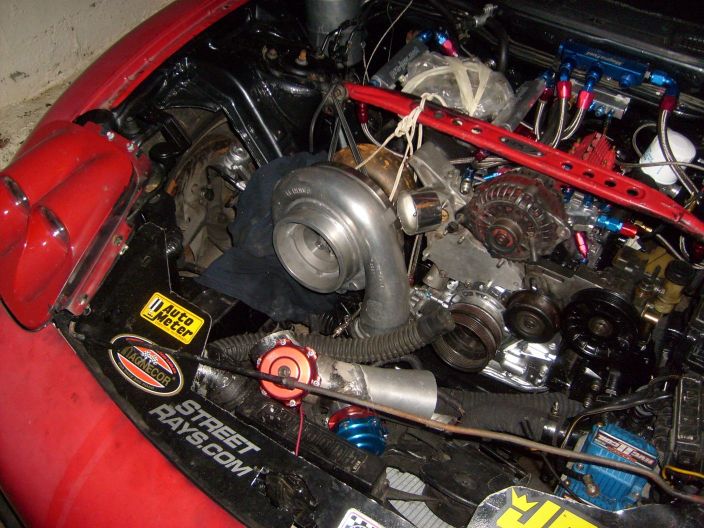

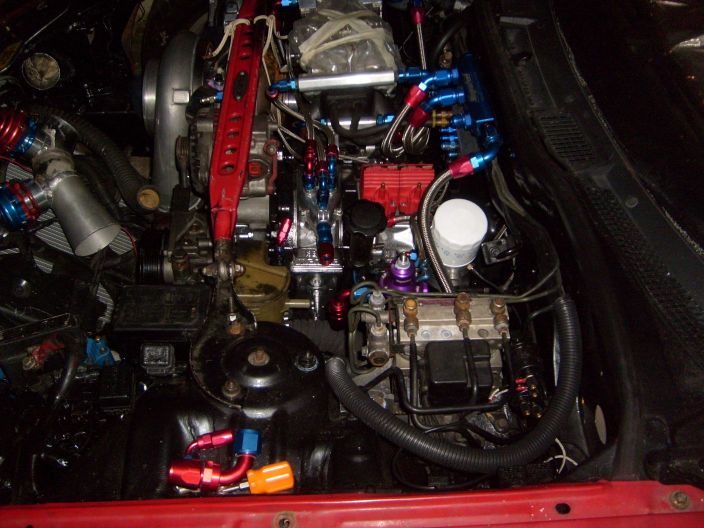

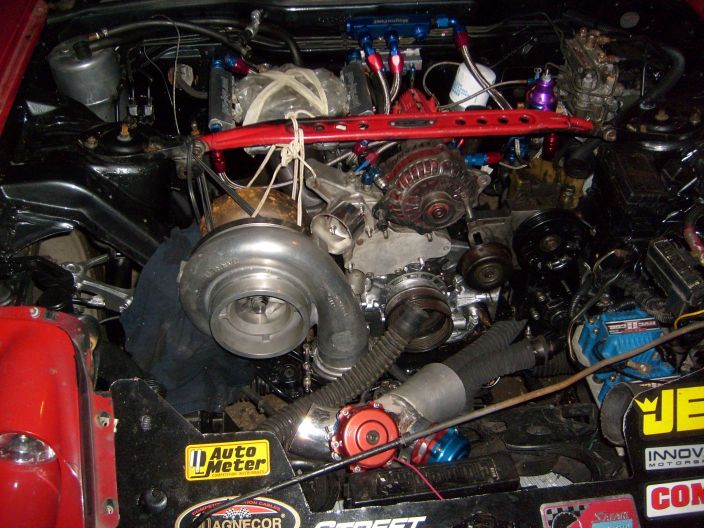

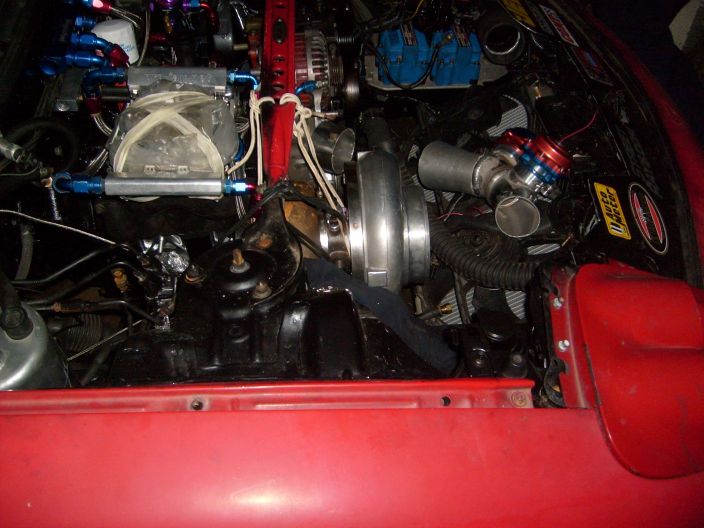

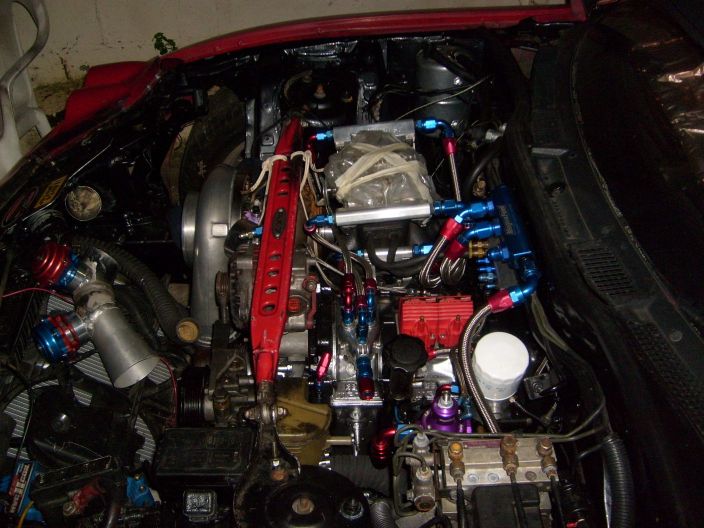

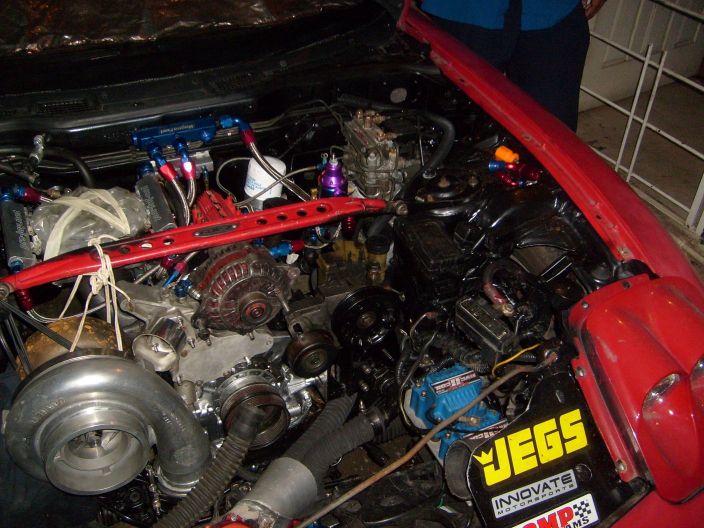

Motor is in , I am soon going to start on my exhaust manifold . The dam turbo is too heavy to hold up so , I had to improvise ! , the discharge piping would be a bit of a challenge , but I think I figured it out . more to come as I progress.
11-09-07, 08:17 PM
#4
*** Bless The USA
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
cool............................. but damn, you got enough junk laying around in the engine bay ?
You going to run a intercooler ?
Post your entire setup.
You going to run a intercooler ?
Post your entire setup.
11-09-07, 08:55 PM
#5
Rotary Freak
Thread Starter
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
Yep , it happens when you are trying to come up with the best layout for everything.
Trending Topics
11-10-07, 05:29 PM
#11
Rotary Freak
Thread Starter
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
I am hoping for 550whp , but 650+ seems to be the rage now , so .......why the hell not ! i dont want to boost more than 30 psi though.
Thank you , it should be nicer when its all done .
"That Big Thing" started to spin (, just like the GT3071's did) , when I put it in front of a bedroom fan which , by the way , was set at its lowest speed , . So I'm not worried abouts its performance in any way, in fact I have seen a "normal" sleeve bearing GT45 make 25psi by 5000RPM on a BP motor , so I think I would be safe.
Thank you , it should be nicer when its all done .
"That Big Thing" started to spin (, just like the GT3071's did) , when I put it in front of a bedroom fan which , by the way , was set at its lowest speed , . So I'm not worried abouts its performance in any way, in fact I have seen a "normal" sleeve bearing GT45 make 25psi by 5000RPM on a BP motor , so I think I would be safe.
11-13-07, 11:41 AM
#13
Senior Member
11-14-07, 06:36 AM
#14
Rotary Freak
Thread Starter
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
Yes and no , the price was good , but I am also of the belief that the GT42's turbine is too small for my porting type. If i could have gotten a custom ball bearing turbo with a 42 front and 45 rear I may have gone that route instead.
11-15-07, 06:03 AM
#16
Rotary Freak
Thread Starter
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
Yes , I did not see any performance improvements over the Garrett , the prices were similar and they weren't ready with their ball bearing versions yet .
11-15-07, 08:15 AM
#18
Rotary Freak
Thread Starter
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
Thanks , I always had a J tech intake set up , I have he semi-pp lower manifold and theholley styled 4 injector Tb with their 'hat" , I have it covered up with some plastic in the pics , thats why you cant see it clearly.
02-08-08, 10:54 AM
#22
Rotary Freak
Thread Starter
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
Hi everyone ! I am a bit further along now , but my work schedule has changed DRASTICALLY , so I am struggling to get things done during the week ends (that I'm not required to work !).
So far I have completed my custom (dual thermostat ) oil cooler upgrade , fabricated the exhaust manifold , completed the mods and upgrades to my fuel syatem .
At the moment I am working on my intercooler piping , upgrading my water injection system and I am looking around for a good deal on a pair of TIAL V44 wastegates(I have since decided against the single V60 and ended up selling it.)
I also have to pull the motor AGAIN ! turns out my new ORC clutch cover is a bit too wide/large for my OS push/pull converter ! one of the nuts on the clutch cover is making contact with a bolt head on the converter , so I have to do some modifications to the converter to allow the bolt to sit lower , or maybe I just need to simply grind down the bolt head a bit or both , either way I have to pull the motor to do it .I will take some pics as soon as I can.
So far I have completed my custom (dual thermostat ) oil cooler upgrade , fabricated the exhaust manifold , completed the mods and upgrades to my fuel syatem .
At the moment I am working on my intercooler piping , upgrading my water injection system and I am looking around for a good deal on a pair of TIAL V44 wastegates(I have since decided against the single V60 and ended up selling it.)
I also have to pull the motor AGAIN ! turns out my new ORC clutch cover is a bit too wide/large for my OS push/pull converter ! one of the nuts on the clutch cover is making contact with a bolt head on the converter , so I have to do some modifications to the converter to allow the bolt to sit lower , or maybe I just need to simply grind down the bolt head a bit or both , either way I have to pull the motor to do it .I will take some pics as soon as I can.
02-09-08, 10:33 AM
#25
Rotary Freak
Join Date: Dec 2001
Location: chandler, AZ
Posts: 2,402
Likes: 0
Received 0 Likes
on
0 Posts
I also have to pull the motor AGAIN ! turns out my new ORC clutch cover is a bit too wide/large for my OS push/pull converter ! one of the nuts on the clutch cover is making contact with a bolt head on the converter , so I have to do some modifications to the converter to allow the bolt to sit lower , or maybe I just need to simply grind down the bolt head a bit or both , either way I have to pull the motor to do it .I will take some pics as soon as I can.
