Single turbo vacuum lines

I'm almost done with my TII wap in a SA. Running a GT35R T04. Also running a S4 TII eng with a FD UIM. I have an idea what vac lines i will need but want to know from the experts where I should connect each of them.. I have the following and if you can tell me where to run the vac lines from each to where i should connect them on the UIM. I know alot of people choose different locations but that's ok.. This is the components i need help with.. 3 BAR, bov, boost gauge, Tial 44 wastegate, FPR. Any info will help alot. Also I see the BOV installed on either side of the intercooler piping.. Which side is better? I have attached a few pics to see my setup.. thanks Steve

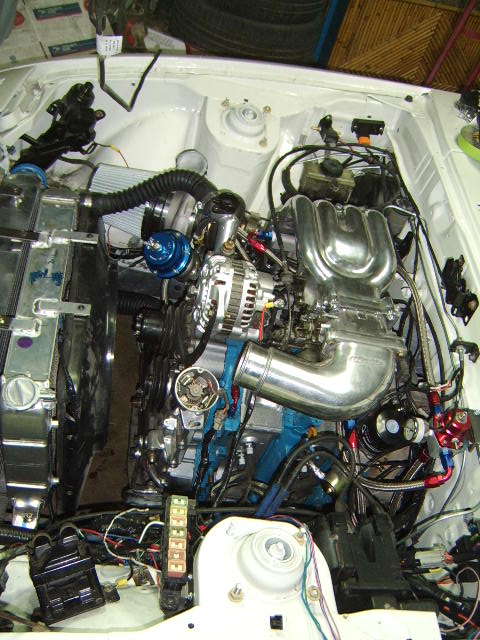

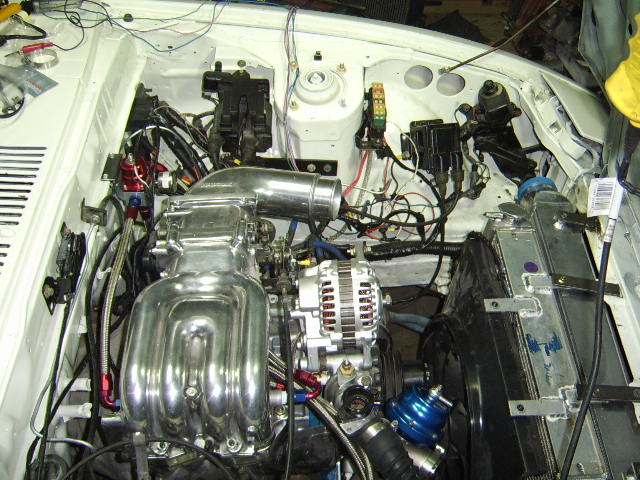

Attached Thumbnails Single turbo vacuum lines-sta72150.jpg   Single turbo vacuum lines-sta72218.jpg   Single turbo vacuum lines-sta72216.jpg
