s400 + RX-7 = ?

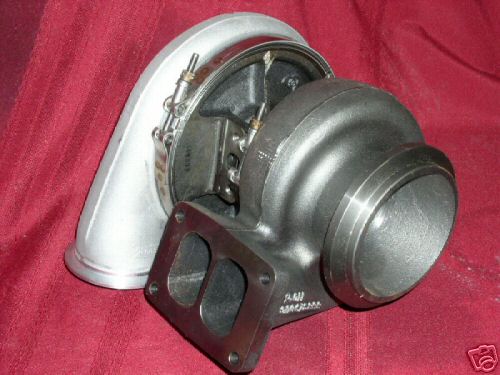

Not the best at turbo-sizing so i was wondering if anyone new if this would work on a rotary, where would it spool? I'm guessing it wouldn't be good for anything under 500HP - 600HP, figured i'd check with you guys
Thanks
Cold Side:
Huge 62 Trim Compressor Wheel -2.505 in. (64mm), Inducer, 3.600 in. (91mm) Major
5 in. Inlet and 3.5 in Outlet
Hot Side
1.10 A/R Turbine Housing w/Tangential Scroll
Standard Large-Frame (Thumper) inlet, bolt spacing about 4.5 in. x 2.75 in, V-Band Outlet.
Thanks
Cold Side:
Huge 62 Trim Compressor Wheel -2.505 in. (64mm), Inducer, 3.600 in. (91mm) Major
5 in. Inlet and 3.5 in Outlet
Hot Side
1.10 A/R Turbine Housing w/Tangential Scroll
Standard Large-Frame (Thumper) inlet, bolt spacing about 4.5 in. x 2.75 in, V-Band Outlet.
#3
What are the specs on the turbine? My old T78 had a GT series compressor slapped on. It was about 93mm in diameter (exducer). Jason still uses this turbo. Yes, it was a bit laggy, but when it hit, it hit HARD. I'd get serious boost mid 4K range, full boost by 5100.
#4
NASA geek
iTrader: (2)
Another thing to concider aside from only looking at the HUGE compressor exducer.... is the fact that this uses the TA45 LARGE from turbine as well. Whats that meen?? a big *** turbine wheel and the turbine housings are larger then a T4. not only is this a big turbine and larger then T4 tang housing, but its a 1.10 A/R !!!!! In other words, big power extra extra late boost response.
~Mike............
~Mike............
#5
Rotary Freak
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
Depends on the port , I would get 5psi boost on a free rev to 7000rpm with one like that but with a 1.22 a/r turbine on my last half bp motor.On load the boost would be at 12psi by4500rpms and thats with a pair of 35mm wastegates opening up (boost controller not connected to them).
#6
Lives on the Forum
Compressor wheel measures closely to a Turbonetics T64.
Not a bad size...
Should do around 500hp at the wheels...
Turbonetics T64
Compressor inducer: 2.490"
Compressor major: 3.670"
-Ted
Not a bad size...
Should do around 500hp at the wheels...
Turbonetics T64
Compressor inducer: 2.490"
Compressor major: 3.670"
-Ted
#7
Eats, Sleeps, Dreams Rotary
iTrader: (61)
S400 is huge. I used to have S300 and its wheels are almost the same as T51. the S300 I could start making boost around 3000 but after 4200 the it would go from around 8psi - 22psi in around 500rpm and held the boost to 8500. and once you shift to the next gear you where dropped right back into the max torq range.
I 1st started with a 1.15 exh housing. but that would not start to spool until 6500+ after find a .83 housing it started spooling around 4k
on the highway 3rd and 4th gear it would break the tires loose on high boost.
I 1st started with a 1.15 exh housing. but that would not start to spool until 6500+ after find a .83 housing it started spooling around 4k
on the highway 3rd and 4th gear it would break the tires loose on high boost.
Trending Topics
#8
Eats, Sleeps, Dreams Rotary
iTrader: (61)
here is the comp map for the S300
we made 499rwhp @ 23 psi.
I dont see gettin more than 550 - 560 out of this turbo.
some wheel specs to compair
S300 2.789/3.14
The hks T51 spl is 2.785/3.198
The Greddy t88 is 2.846/3.346
Turbonetics q trim is 2.693/3.111
we made 499rwhp @ 23 psi.
I dont see gettin more than 550 - 560 out of this turbo.
some wheel specs to compair
S300 2.789/3.14
The hks T51 spl is 2.785/3.198
The Greddy t88 is 2.846/3.346
Turbonetics q trim is 2.693/3.111
Last edited by 87GTR; 01-14-05 at 02:45 AM.
#9
Lives on the Forum
Originally Posted by 87GTR
some wheel specs to compair
The hks T51 spl is 2.785/3.198
The numbers you quoted look like the turbine wheel specs?
The Greddy t88 is 2.846/3.346
Turbonetics q trim is 2.693/3.111
-Ted
