Quick question about single turbos

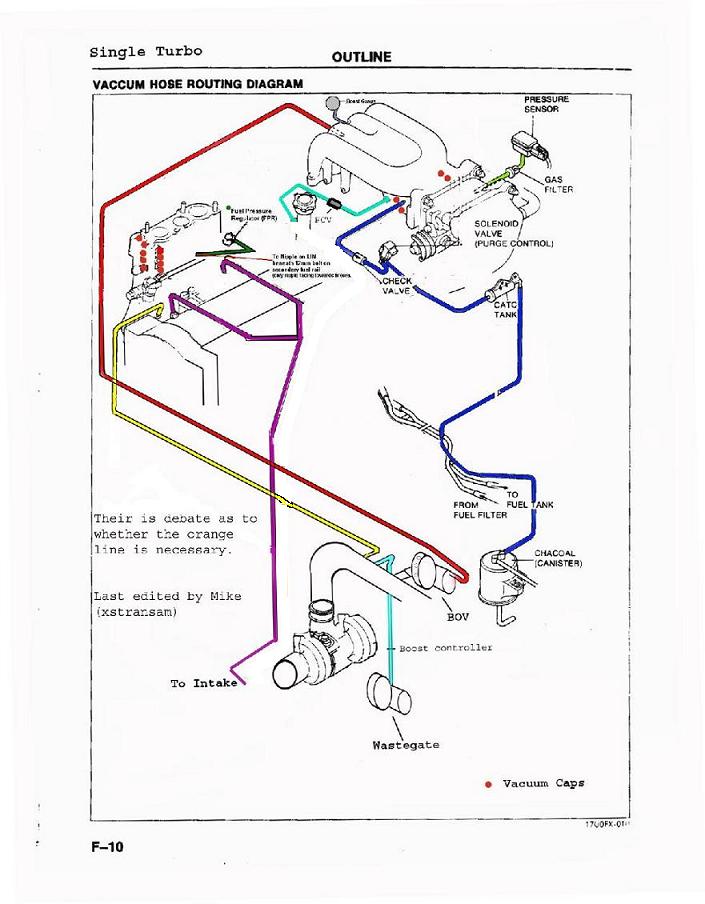

I'm in the process of going single on my fd. I have been looking at the single turbo vacuum diagram and was wondering how you guys are getting the vacuum hose on before the turbo (purple line in diagram). Do you guys weld a nipple for the hose onto the turbo or does the turbo come with nipples for that line. Same goes for the wastegate line. Do I have to put a nipple in the intercooler piping so that i can install my boost controller or is there a nipple on the turbo already that I can use. Sorry if these are stupid questions. One last thing; if I have to provide the nipples for this, where can I get them from?
R.K.
R.K.
#2
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,892
Likes: 0
Received 114 Likes
on
66 Posts
My cone filter is mounted on a 4" diamter X 6" extension pipe onto the turbo inlet. I drilled and tapped the pipe for the vacuum fitting. If you are using an inverted cone tipped filter, some have placed it in there.
There are also fittings that can be placed in the turbo hoses.
For the WG pressure line, drill and tap either the turbo outlet, or IC outlet, or throttle body elbow.
There are also fittings that can be placed in the turbo hoses.
For the WG pressure line, drill and tap either the turbo outlet, or IC outlet, or throttle body elbow.
#3
Big Daddy!!!
Thread Starter
Join Date: Jul 2002
Location: Edmonton, Alberta, Canada
Posts: 1,194
Likes: 0
Received 0 Likes
on
0 Posts
Where can I get these vacuum fittings? What are they made of, aluminum, brass......
Also do you think you can take a pic of your intake setup with the vacuum line going to it?
R.K.
Also do you think you can take a pic of your intake setup with the vacuum line going to it?
R.K.
