Post photos of your POV setup...
#1
Eats, Sleeps, Dreams Rotary
Thread Starter
Post photos of your POV setup...
I've been searching POV and there's not much. Guess not many of you are running them. Was thinking of getting one and setting it a few PSI higher than my max boost just for protection.
Anyone have photos of the Greddy POV welded into place?
Thanks,
David
Anyone have photos of the Greddy POV welded into place?
Thanks,
David
#3
Eats, Sleeps, Dreams Rotary
Thread Starter
Originally Posted by weaklink
I have heard that POVs are bad for turbos because if it ever opens your turbos will overspin. Just what I've heard, no personal experience.
Last edited by apneablue; 03-22-05 at 10:23 AM.
#4
development
I was thinking of a way I could use the stock charge relief valve as something similar...but then I was able to tame my boost, still isn't bad protection. You'd definitely hear it once it opens at WOT, and then go trouble shoot your boost problem.
good thought Dave.
good thought Dave.
#5
I have a Greddy POV, and I can take som pics of how I have it welded to my intake pipe.

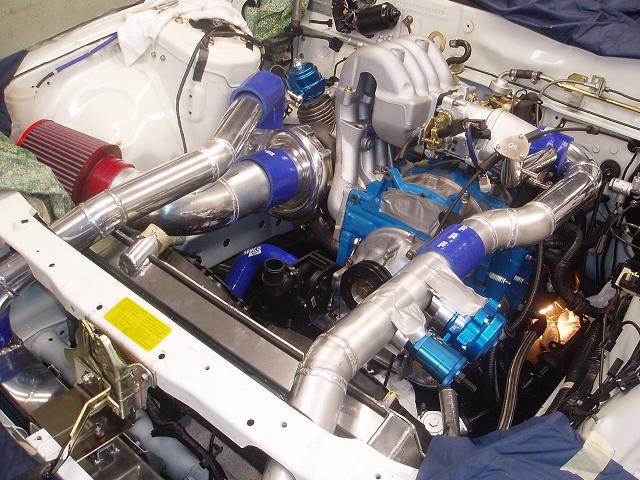

You can se in an old pic, were I have placed it, not welded yet though...
https://www.rx7club.com/attachment.p...chmentid=98312
You can se in an old pic, were I have placed it, not welded yet though...
https://www.rx7club.com/attachment.p...chmentid=98312
#7
Eats, Sleeps, Dreams Rotary
Thread Starter
Originally Posted by molehill
I have a Greddy POV, and I can take som pics of how I have it welded to my intake pipe.
You can se in an old pic, were I have placed it, not welded yet though...
https://www.rx7club.com/attachment.p...chmentid=98312
You can se in an old pic, were I have placed it, not welded yet though...
https://www.rx7club.com/attachment.p...chmentid=98312
POV is Pop Off Valve....It's set to a certain boost lever a little above desired boost...If for some reason you have a failure which causes you to overboost it will open up and prevent you from boosting too high...Motor savior device...
Trending Topics
#8
Thanks man! I had to machine the flange for the POV to fit the pipe, it was a
square with a hole in each corner, but after a couple of minutes in the turning machine it was ready! I will take some pics of it welded to the pipe...
square with a hole in each corner, but after a couple of minutes in the turning machine it was ready! I will take some pics of it welded to the pipe...
#9
Senior Member
iTrader: (2)

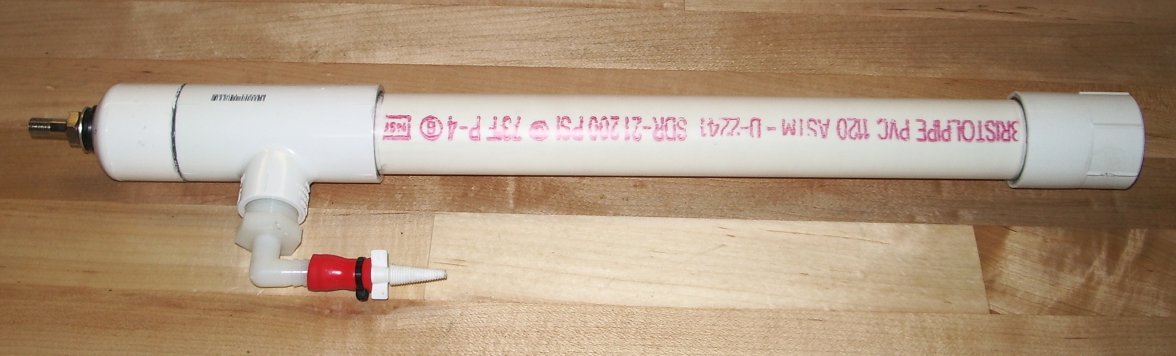

I welded mine to the side of the IC. Like molehill, I had to take some of the flange off prior to welding it. I'd post pics but i basically lookes like a POV welded to the IC. Setting it is tricky. It has a pipe thread on it so I got a PVC thread fitting and made a pressure chamber of PVC pipe. Drilled two more holes in the pipe, one for a valve stem and another nipple to connect to my boost gage. Then I hooked an air compressor to the chamber and just dialed in the boost that it opens at (2 PSI over my max setting). Otherwise, you'll have no idea what it is set at. Also I put a piece of tape on the piston as a tell-tale so I can see if it is opening (you can't really hear it). I think it's pretty cheap insurance.
(avitar is prior to installation, it's on the passenger's side, just above the filter)
(avitar is prior to installation, it's on the passenger's side, just above the filter)
#10
Eats, Sleeps, Dreams Rotary
Thread Starter
Originally Posted by adax
....... Setting it is tricky. It has a pipe thread on it so I got a PVC thread fitting and made a pressure chamber of PVC pipe. Drilled two more holes in the pipe, one for a valve stem and another nipple to connect to my boost gage. Then I hooked an air compressor to the chamber and just dialed in the boost that it opens at (2 PSI over my max setting)......
Does this mean you two are back togehter ------->
Last edited by apneablue; 03-22-05 at 01:38 PM.
#13
Eats, Sleeps, Dreams Rotary
Thread Starter
Excellent...This would be great for callibrating the boost pressure sensor on the water injection setup too....I am in the middle of that now.
#14
Mad Man
Originally Posted by weaklink
I have heard that POVs are bad for turbos because if it ever opens your turbos will overspin. Just what I've heard, no personal experience.
