Pics of mods ....DP,MSD,Braces
08-22-05, 05:03 PM
#1
boxed in and drawn out
Thread Starter
Join Date: Dec 2003
Location: Bayouself
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
Pics of mods ....DP,MSD,Braces

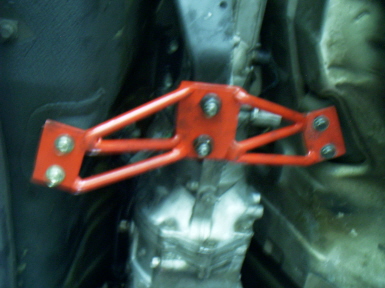

Car going together with Ito portesd/built motor. All mods should be all out except for water injection and duel pumps.HKSEVCIV, APEXI timer, J&S knock, PowerFC, 780+1600, AeromotiveFP, Gothpump,Trans and diff brace, KAZZ, TO4R (1.00 port match divided)ported upper and lower intakes,Innovate.......you get the point.
I have the 3.5 downpipe and was wonder where do you guys get the rest of ithe exhaust pipes bent or made and muffler? (No cat here) I have the SS tubing but my bud cant bend over 3".
HELP?
I have the 3.5 downpipe and was wonder where do you guys get the rest of ithe exhaust pipes bent or made and muffler? (No cat here) I have the SS tubing but my bud cant bend over 3".
HELP?
08-22-05, 05:05 PM
#2
boxed in and drawn out
Thread Starter
Join Date: Dec 2003
Location: Bayouself
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
more....

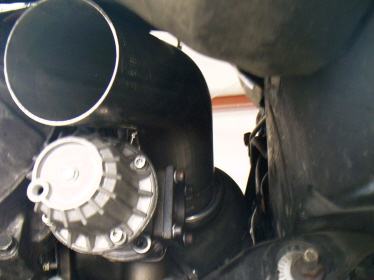

see the top half of DP bottom 45 will be welded tommorrow and the wastgate pipe.Its the midpipe that will be a pain and then the muffler.
Thanks for any suggestions of places.
see the top half of DP bottom 45 will be welded tommorrow and the wastgate pipe.Its the midpipe that will be a pain and then the muffler.
Thanks for any suggestions of places.
Last edited by APEXL8T; 08-22-05 at 05:07 PM.
which msd are you running?
08-22-05, 05:18 PM
#5
boxed in and drawn out
Thread Starter
Join Date: Dec 2003
Location: Bayouself
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts

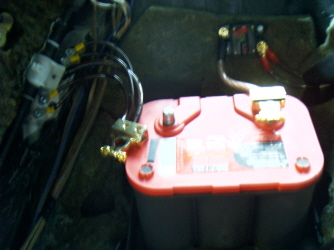

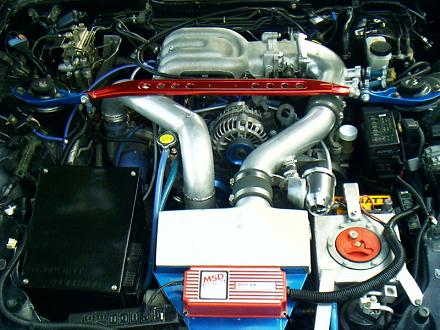

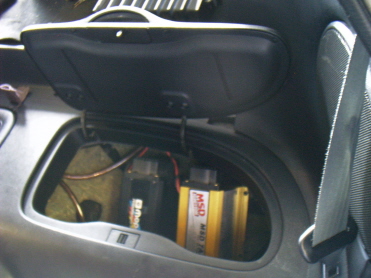

Two 7AL-2 ...the black mopar box is the same (in pic) I've mounted them in the back storage...next to the battery. i have a multi fuse panle there and a 200amp breaker. Wired a relay to my fuel pump as a hotter set up with two grounds for the pump. The relay is in the hatch too.
08-22-05, 05:21 PM
#6
boxed in and drawn out
Thread Starter
Join Date: Dec 2003
Location: Bayouself
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Carl Byck
Looks like things are going well. What are you using for a manifold? Do I recognize that WG? What are your cooling mods? Carl
This is the setup but now its candy apple powder coated.....I DONT LIKE IT.
Trending Topics
08-22-05, 08:23 PM
#8
I live in an igloo
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
damn that is some hot *** ****! Just curious, but with your throttle body there, did you port the top bores and put in larger throttle plates?? If you did, that is pretty extreme, if its stock then I just learned something about the fd
08-22-05, 09:16 PM
#9
boxed in and drawn out
Thread Starter
Join Date: Dec 2003
Location: Bayouself
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
How do you keep the liquid cool? How close to ambient does it stay, and is it driven by a pump? Carl Byck
I have a copper radiator.Use a Jabsco pump frpm the ford lightning air to water IC setup. Two tears ago we got the Air temps from FastFreddy's and either Ari or Steve thought they were outsanding.(Now if I could hit your numbers Carl WOOO HOOO) L8T
damn that is some hot *** ****! Just curious, but with your throttle body there, did you port the top bores and put in larger throttle plates?? If you did, that is pretty extreme, if its stock then I just learned something about the fd
BlaCkPlaGUE

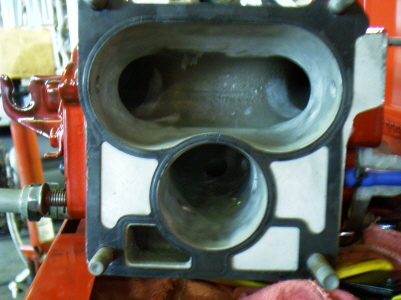

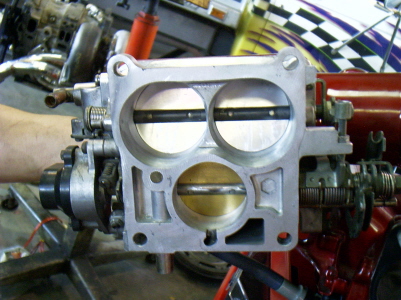

Thanks thats nice of you to say.Its has "custom" larger made TB plates and the OE secondary is now used in the ported primary........About as big as it can be without mechanical interference.
If there are benifits for doing this I dont know.There are so many members who have done these I,m sure they can address if it helps , hurts or doesnt do much.
I am trying to maximize the things I have based on laymens intellect.
L8T
I have a copper radiator.Use a Jabsco pump frpm the ford lightning air to water IC setup. Two tears ago we got the Air temps from FastFreddy's and either Ari or Steve thought they were outsanding.(Now if I could hit your numbers Carl WOOO HOOO) L8T
damn that is some hot *** ****! Just curious, but with your throttle body there, did you port the top bores and put in larger throttle plates?? If you did, that is pretty extreme, if its stock then I just learned something about the fd
BlaCkPlaGUE
Thanks thats nice of you to say.Its has "custom" larger made TB plates and the OE secondary is now used in the ported primary........About as big as it can be without mechanical interference.
If there are benifits for doing this I dont know.There are so many members who have done these I,m sure they can address if it helps , hurts or doesnt do much.
I am trying to maximize the things I have based on laymens intellect.
L8T
