Single Turbo RX-7's Questions about all aspects of single turbo setups.

Part # for K&N 'Shorty' 4 inch air filter

Old 06-14-12, 01:17 AM
  #76
Senior Member
iTrader: (8)

Join Date: Jul 2011
Location: AZ
Posts: 481
Received 5 Likes on 4 Posts
AZ

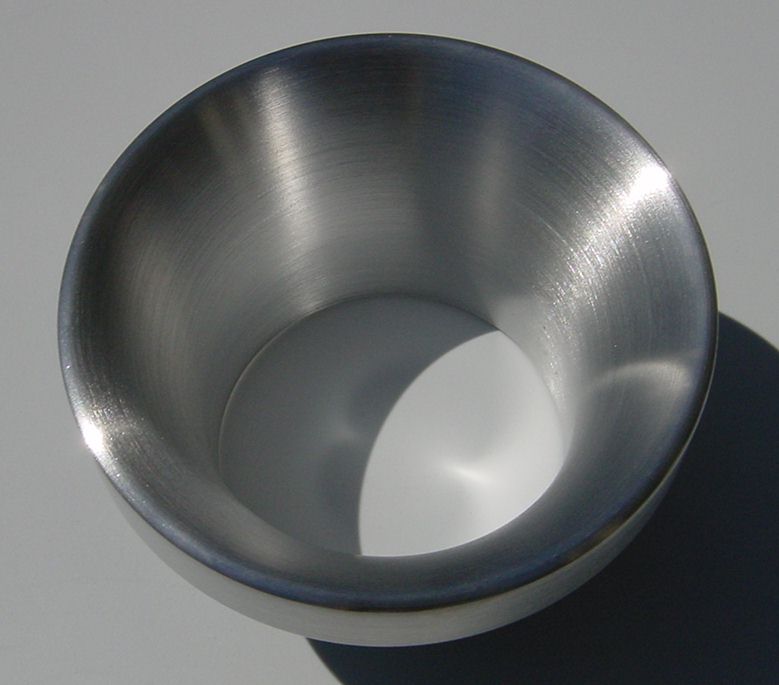

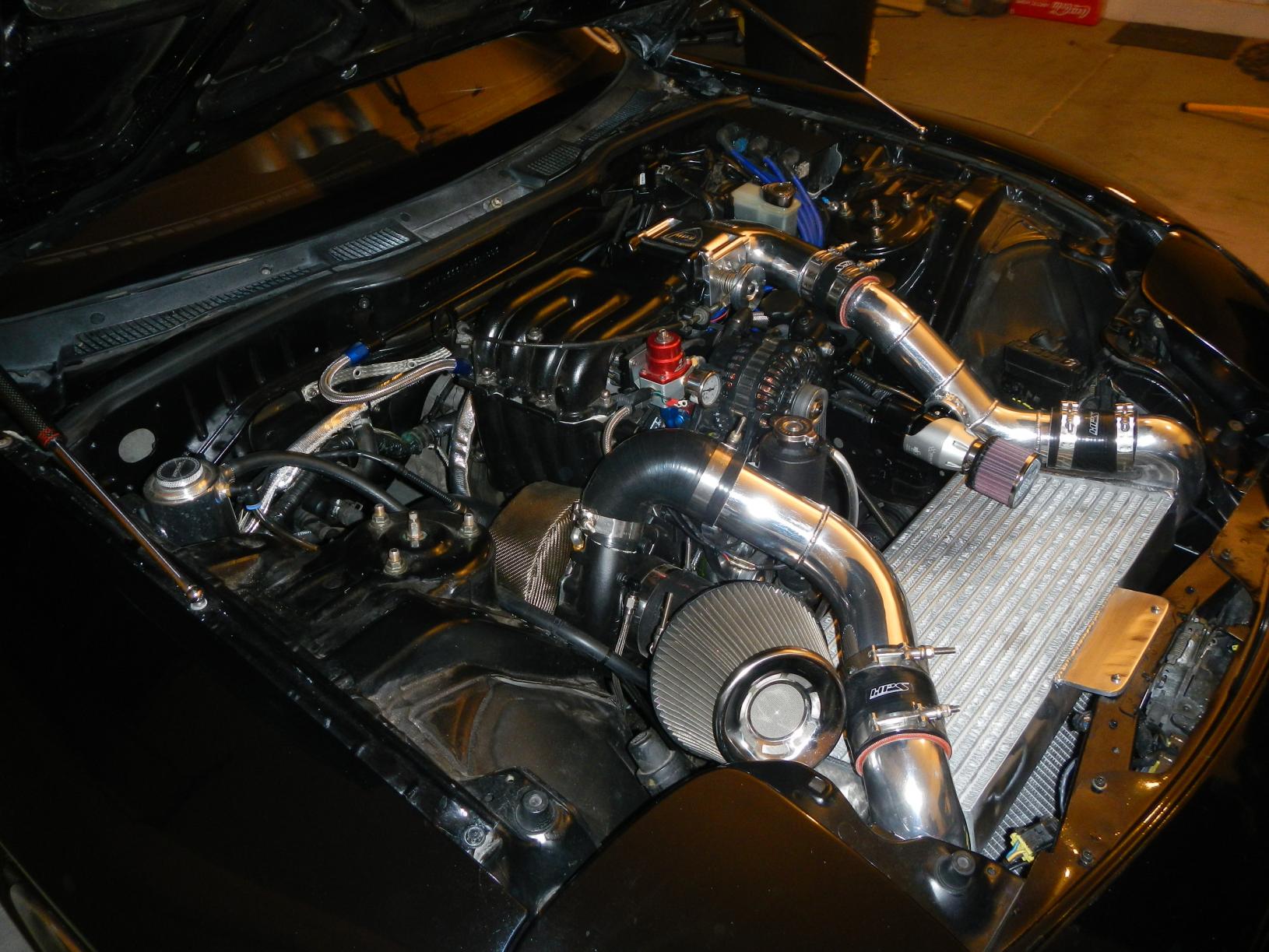

I use a 6 inch to 4 inch velocity stack with a Stainless Mesh filter with a 6 inch opening which connects to the velocity stack.

A 45 degree steel reinforced 4 inch silicon hose that is slightly angled upward sit the filter perfectly for my set up. Gets a little bit of cold air in that location as well.

Definitely did not hinder power on the dyno.
Attached Thumbnails Part # for K&N 'Shorty' 4 inch air filter-engine3.jpg   Part # for K&N 'Shorty' 4 inch air filter-6inchvstack.jpg   Part # for K&N 'Shorty' 4 inch air filter-6inchvstack2.jpg
Neutron is offline
Old 06-14-12, 10:32 AM
  #77
Eats, Sleeps, Dreams Rotary
10 Year Member
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,901
Likes: 0
Received 0 Likes on 0 Posts
^ I wish I had that much room.
XLR8 is offline
Old 06-14-12, 11:13 PM
  #78
Eye In The Sky
iTrader: (2)

cewrx7r1's Avatar

Join Date: Feb 2001
Location: In Our Heads
Posts: 7,645
Likes: 0
Received 14 Likes on 12 Posts

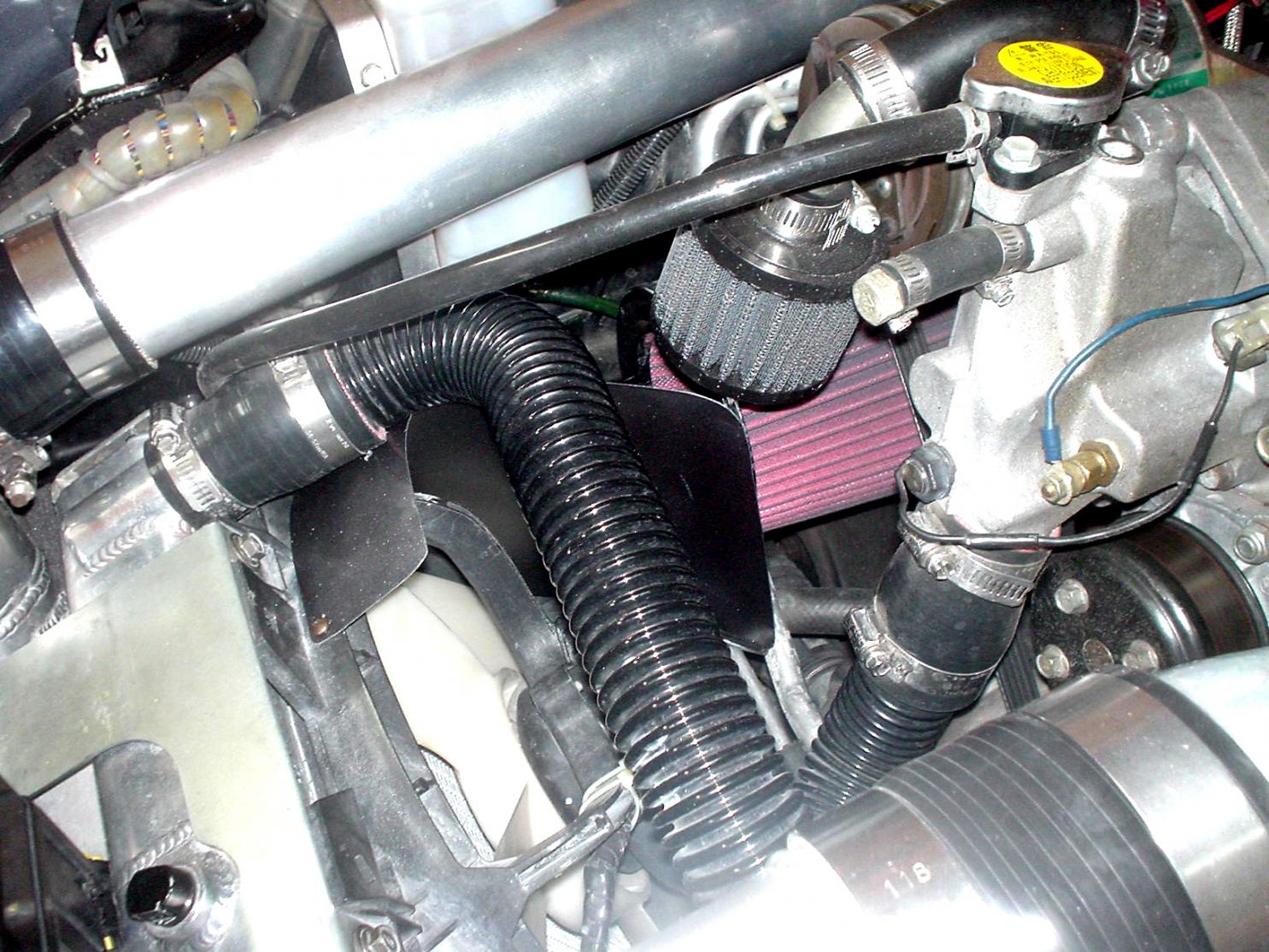

Instead of using a short filter, I modified the top of my Koyo rad.
Cut off the 45 degree downward bend of the top pipe.
Buy a metal hose from my http://www.coolflex.com/cfm/welcome.cfm.
Bend to fit and cut an appropriate length.
You will need two silicone adapters as the rad and hose are different diameters.
Attached Thumbnails Part # for K&N 'Shorty' 4 inch air filter-002.jpg
cewrx7r1 is offline
Old 06-15-12, 10:47 AM
  #79
Eye In The Sky
iTrader: (2)

cewrx7r1's Avatar

Join Date: Feb 2001
Location: In Our Heads
Posts: 7,645
Likes: 0
Received 14 Likes on 12 Posts
Someone shared his concern over my type of setup failing on some cars.

The problem is with the hose adapter that they supply, two pieces glued together, and of not best quality.

The "Hose Techniques" adapters are way supperior. At the beginning I even used two clamps per end but found it was not necessary.
cewrx7r1 is offline
Old 06-16-12, 10:30 PM
  #80
Eats, Sleeps, Dreams Rotary
10 Year Member
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,901
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by hiboost View Post
Did you received it? Any pics? How much something custom like that would cost? Also where can you get those flow numbers?

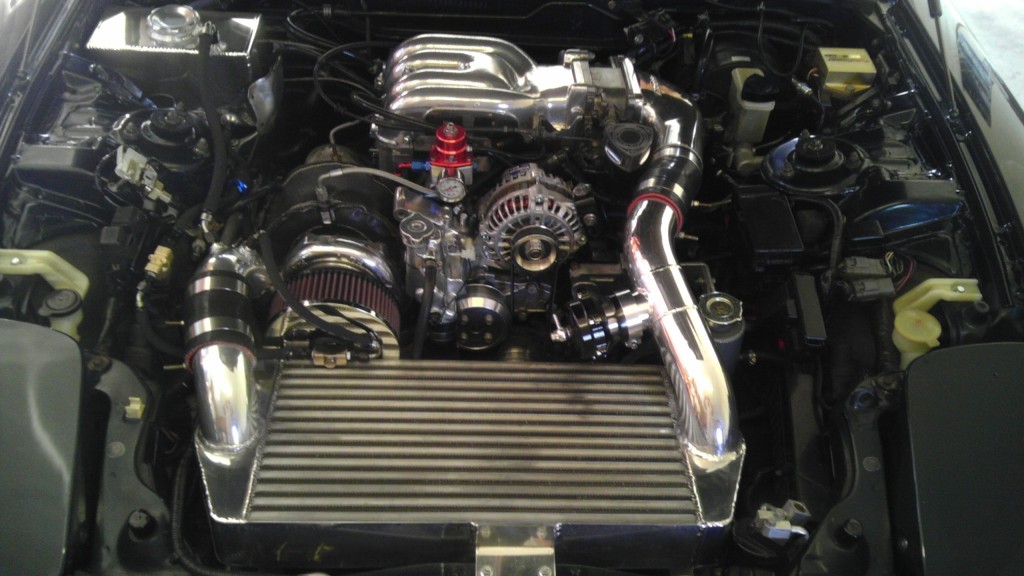

Pic of my custom filter installed. Turned out great...

Name:  IMAG0059.jpg
Views: 391
Size:  157.4 KB
XLR8 is offline
Old 10-07-15, 10:41 PM
  #81
Original Gangster/Rotary!

Thread Starter
iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 136 Likes on 109 Posts
Juuuuust bought another RU-2510 for the CYM i recently picked up, which has similarly restrictive area for the filter for the GT35R.

Would you believe the filter I removed came from my old VR R1, back when IRP built the CYM it fit on perfectly and the customer was happy to have a free 'OG' filter..... made 400 rwhp all these years with no problems
GoodfellaFD3S is offline
Old 11-17-15, 07:49 AM
  #82
Original Gangster/Rotary!

Thread Starter
iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 136 Likes on 109 Posts
bumping this for a friend of mine who was asking for details
GoodfellaFD3S is offline
Old 11-18-15, 09:36 AM
  #83
SEMI-PRO
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,865
Received 31 Likes on 28 Posts
I need this... Thanks..
Will measure for my situation and figure which option I need..
ZoomZoom is offline
Old 11-18-15, 09:49 AM
  #84
Rotary Enthusiast

Join Date: Jan 2005
Location: hsv al
Posts: 828
Received 7 Likes on 6 Posts
I just melted my K&N RC-8180 as it attached to the turbo housing on my S366.

a quick google search resulted with this:
BMS Silicon Single Turbo Filter 4.5" 3.75"- BurgerTuning.com

Its a BMW thing, but it might work.



i was also thinking that maybe i can slip a short coupler over the turbo and mount a larger diameter filter with a larger flange over the top of a silicone couple to better insulate.... but I am still looking around.
Gilgamesh is offline
Old 11-18-15, 12:42 PM
  #85
Brap Brap, Fap Fap
iTrader: (7)

Shainiac's Avatar

Join Date: Jun 2006
Location: Lyme, CT
Posts: 1,485
Received 9 Likes on 9 Posts
I killed a 4” ID K&N filter in exactly the same way. It was installed on a Holset HE351 VGT. Very small VGT A/R with rotary EGTs ended up melting the rubber boot on the filter! The filter is now a cup holder on my desk and K&N replaced it no questions asked.

Last edited by Shainiac; 11-18-15 at 03:45 PM.
Shainiac is offline
Old 11-18-15, 01:55 PM
  #86
SEMI-PRO
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,865
Received 31 Likes on 28 Posts
Originally Posted by Gilgamesh View Post
I just melted my K&N RC-8180 as it attached to the turbo housing on my S366.

a quick google search resulted with this:
BMS Silicon Single Turbo Filter 4.5" 3.75"- BurgerTuning.com

Its a BMW thing, but it might work.



i was also thinking that maybe i can slip a short coupler over the turbo and mount a larger diameter filter with a larger flange over the top of a silicone couple to better insulate.... but I am still looking around.
Even better! Now I just need to measure to see which shortie I need. Price is good too!
ZoomZoom is offline
Old 11-18-15, 09:18 PM
  #87
Original Gangster/Rotary!

Thread Starter
iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 136 Likes on 109 Posts
Originally Posted by Gilgamesh View Post
I just melted my K&N RC-8180 as it attached to the turbo housing on my S366.

a quick google search resulted with this:
BMS Silicon Single Turbo Filter 4.5" 3.75"- BurgerTuning.com

Its a BMW thing, but it might work.



i was also thinking that maybe i can slip a short coupler over the turbo and mount a larger diameter filter with a larger flange over the top of a silicone couple to better insulate.... but I am still looking around.
Nice, 60% more surface area is a good thing
GoodfellaFD3S is offline
Old 11-19-15, 08:19 AM
  #88
SEMI-PRO
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,865
Received 31 Likes on 28 Posts
I measured and only the smallest of filters may fit. I ordered the K&N RX-4130-1 Universal X-Stream Clamp-On, Universal Air Filters

If it seems to be a problem I will have an offset aluminum pipe made and put on a full size filter. Right now I need a quick fix so I don't continue to destroy the compressor wheel and enjoy what's left of the driving season.
ZoomZoom is offline
Old 11-19-15, 08:22 AM
  #89
SEMI-PRO
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,865
Received 31 Likes on 28 Posts

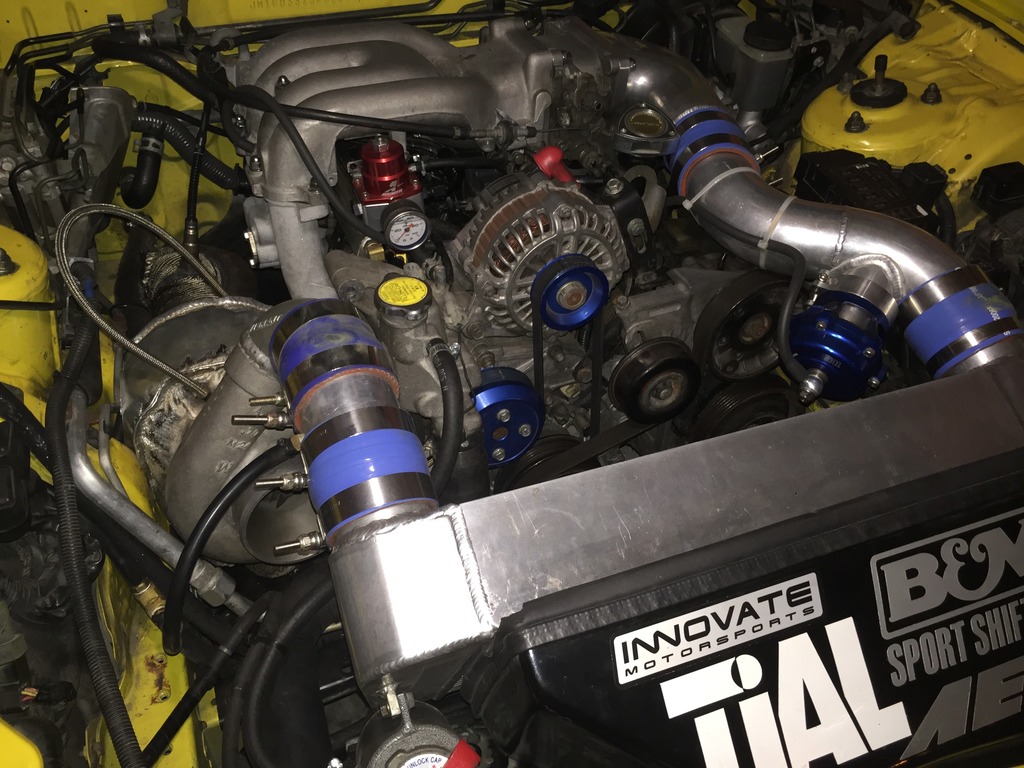

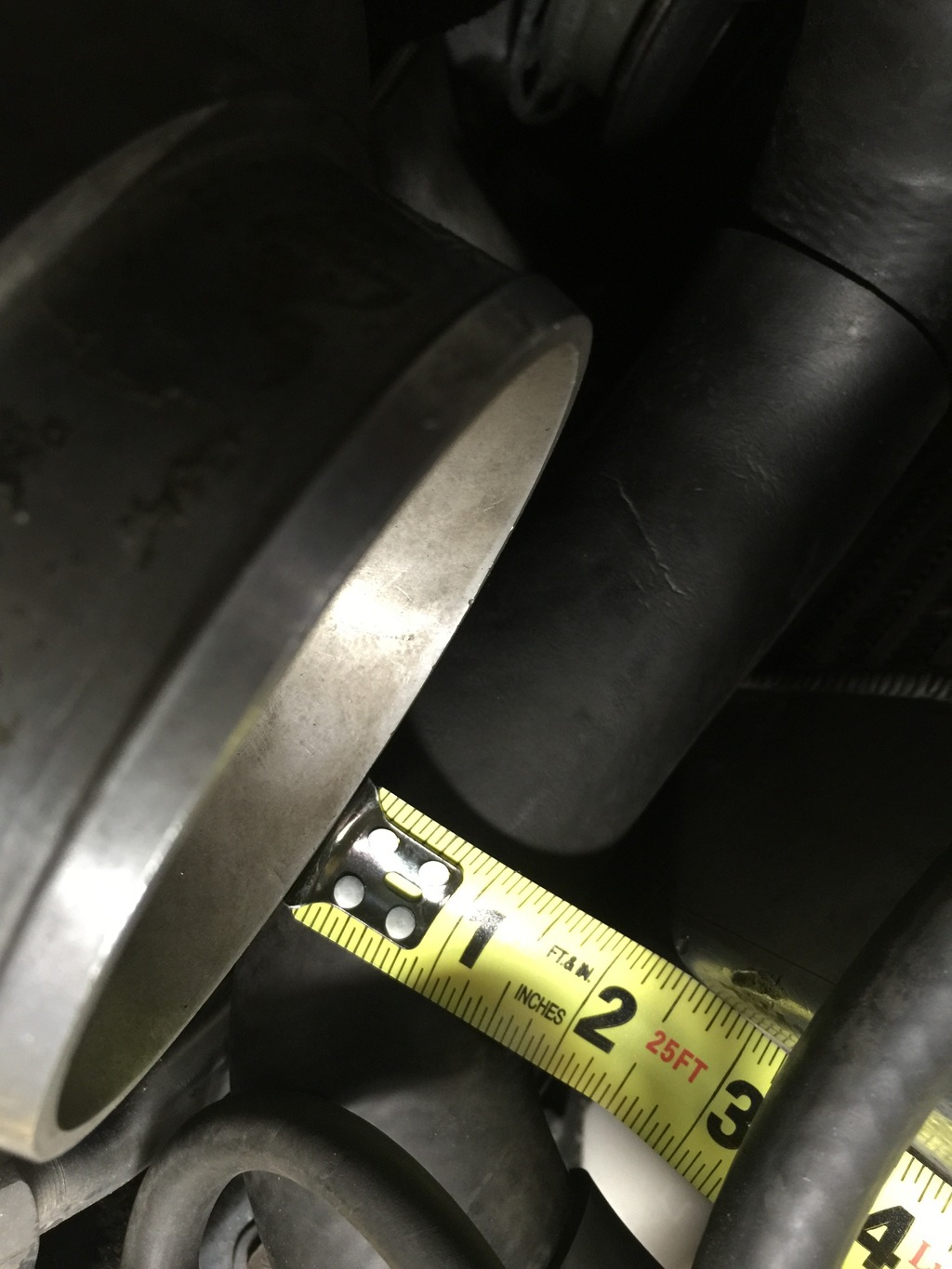

You see how little room I have between the turbo and the M2 large intercooler. Only other option is snake a coupler around it and put the filter next to the Intercooler.
Name:  87C9039B-011F-48A7-B5B5-4AAF82CCE222.jpg
Views: 396
Size:  221.9 KB
Name:  D9A0311E-A4F5-4453-A11F-AEAF39C27C97.jpg
Views: 375
Size:  238.1 KB

Last edited by Howard Coleman CPR; 11-19-15 at 12:44 PM.
ZoomZoom is offline
Old 11-19-15, 08:53 AM
  #90
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 14 Likes on 13 Posts
Originally Posted by ZoomZoom View Post
You see how little room I have between the turbo and the M2 large intercooler. Only other option is snake a coupler around it and put the filter next to the Intercooler.

good luck with that one.
RotaryEvolution is offline
Old 11-19-15, 01:10 PM
  #91
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,352
Received 47 Likes on 30 Posts
Name:  D9A0311E-A4F5-4453-A11F-AEAF39C27C97.jpg
Views: 413
Size:  238.1 KB



manifold design is lots more than where does the turbo fit easiest in the engine compartment and the airfilter is one of the considerations.

it is all about maximizing oxygen molecules into the engine...

a couple of A list items in that process:

1. minimize flow restriction

filters are an important item here and as someone earlier said.... bigger is better.

restriction measured at 1.5 inches of water by K&N indicates short filters only flow 350 CFM while large filters flow over 1100.

my filter flows 1187 CFM at 1.5 water.

500 rotary rwhp takes 960.

2. minimize heat. cooler air contains MORE oxygen. more oxygen means more power. the last thing you want is to have your filter directly in front of a heat exchanger





Howard
Howard Coleman CPR is offline
Old 11-19-15, 01:26 PM
  #92
SEMI-PRO
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,865
Received 31 Likes on 28 Posts
Lol, thanks Howard. I actually didn't build this setup. I'm just looking to make it work for now. Before the final tune I may get the coupler so I can run the filter down the side of the intercooler.
ZoomZoom is offline
Old 11-19-15, 05:00 PM
  #93
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 14 Likes on 13 Posts
might try scooting the intercooler over an inch if possible, in order to get a 45* coupler in there.

ran into a similar issue with my new electric fan, but still had wayyyy more room than that.. lol

sadly turbos really don't like to draw air from a tube, even one with a slight radius, but sometimes you gotta do what you gotta do to not suck on dirt.

Last edited by RotaryEvolution; 11-19-15 at 05:03 PM.
