New Garrett G40-1000 and G40-1150

Facebook Post

Does anyone have any info on the new Garrett G40-1000 and G40-1150? Saw this post on facebook and go excited. The G series turbos looked to be very impressive but there did not seem to be a good match for a rotary. These may be a good match but I have not been able to find any information.

Nov 3, 2020 | 04:18 PM

neit_jnf

Eats, Sleeps, Dreams Rotary

iTrader: (17)

Joined: Apr 2003

Posts: 4,056

Likes: 261

From: Around

62 or 71mm inducer compressors (no exducer info)
77mm inducer turbine (no exducer info) good rotary size
Ceramic bearings, stainless turbine housings

Nov 3, 2020 | 11:15 PM

Neutron

Thread Starter

Senior Member

iTrader: (10)

Joined: Jul 2011

Posts: 664

Likes: 94

From: AZ

Thanks! My googling skills are not working very well today.

Nov 4, 2020 | 08:28 AM

Turblown

Turn up the boost

iTrader: (12)

Joined: Dec 2001

Posts: 7,174

Likes: 236

From: Twin Cities, MN

What is nice is a more compact compressor cover, instead of GT42 size...

According to the video below T4 divided housings will be available( unlike some of the other new models like the G42 compact etc)

Unfortunately these will also be super expensive, so it will be a long time until we see data on them...

https://www.youtube.com/watch?v=JbEM...ature=youtu.be

__________________
Rotary Performance Parts

Nov 4, 2020 | 09:08 AM

Neutron

Thread Starter

Senior Member

iTrader: (10)

Joined: Jul 2011

Posts: 664

Likes: 94

From: AZ

Thanks for the post Elliot. Kinda wish there was a compressor in between the 62mm and 71mm.

Nov 4, 2020 | 11:58 AM

neit_jnf

Eats, Sleeps, Dreams Rotary

iTrader: (17)

Joined: Apr 2003

Posts: 4,056

Likes: 261

From: Around

For the price I think EFRs are better options.

Garrett GTW series I think are better bang for the buck.

Nov 4, 2020 | 12:15 PM

Neutron

Thread Starter

Senior Member

iTrader: (10)

Joined: Jul 2011

Posts: 664

Likes: 94

From: AZ

Quote:

Originally Posted by neit_jnf

For the price I think EFRs are better options.

Garrett GTW series I think are better bang for the buck.

It definitely looks that way.

Trending Topics

Old guys with 12As club meeting

22.1k

2.0M
The MillionMileFC Build Thread

14

561
Front and rear rotors?

5

694
Fc RX7 Rust repair

5

136
Hello, another FD owner!

5

175

Nov 7, 2021 | 06:03 PM

TeamRX8

10000 RPM Lane

iTrader: (2)

Joined: Oct 2006

Posts: 2,740

Likes: 924

From: on the rev limiter

copying this over from a different thread; should have been posted here instead maybe

Quote:

Originally Posted by TeamRX8

the G40-900 and 1150 are out now, looking good

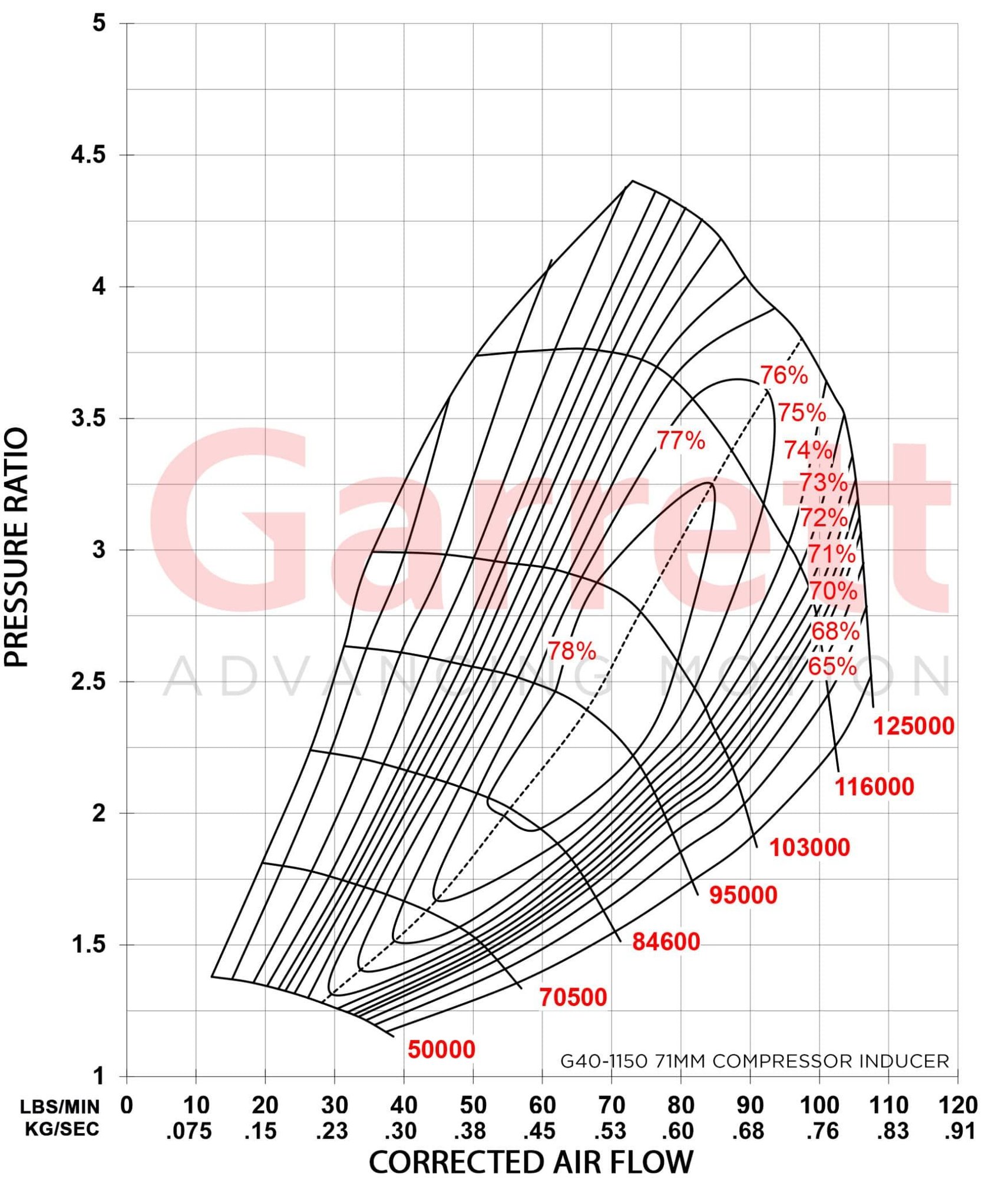

the 80% center island has me rethinking a G35 purchase 🤔 wish it was a bit higher Pr though … the 70% efficiency width from 33 lb/min -73 lb/min @ 20 psig isn’t shabby though

Quote:

Originally Posted by Brettus

Really interesting that Garrett thought they needed another series between the G35 and G42. Not only that ...but they went away from the single entry theme straight to twin scroll housings only. Would be interested to know what their thinking was .

Quote:

Originally Posted by TeamRX8

They discussed releasing it a year ago as a G40-1000/1050

>was link to *this* thread<

It’s also not the same -900 compressor assembly as the smaller G30/35; different compressor exducer, trim, and AR …
