My T04r single turbo project -- added few pics
Here is my T04r project:

-Street ported engine (built by azrotaryrockets)
-Haltech e8
-Xcessive LIM with 6x1000cc
-Aeromotive fuel pressure reg
-Dual walbro fuel pump system
-T04r
-44mm tial wastegate
-greddy 2 row intercooler

Comments?... Sugestions?

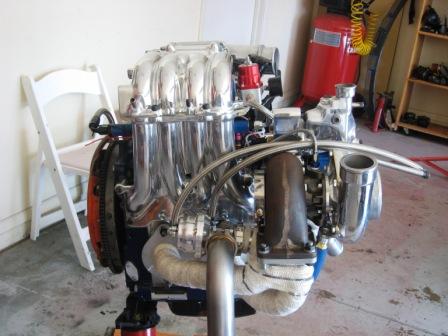

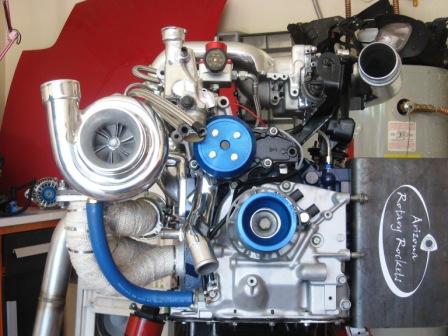

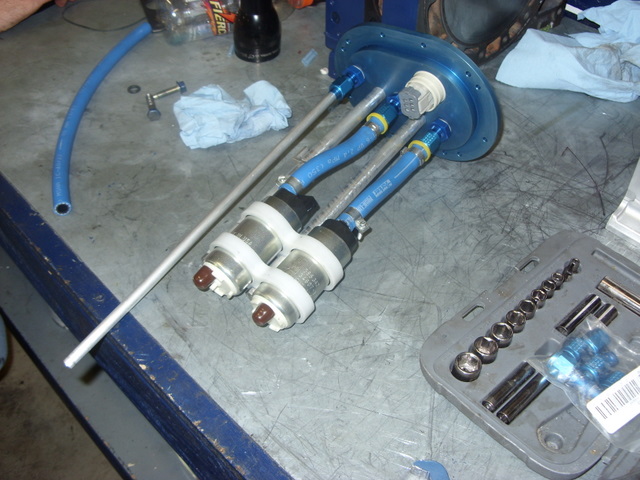

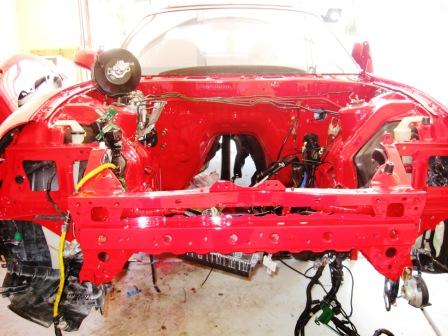

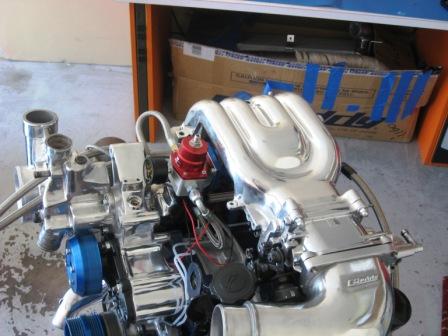

Attached Thumbnails My T04r single turbo project -- added few pics-sn850195.jpg   My T04r single turbo project -- added few pics-img_0566.jpg   My T04r single turbo project -- added few pics-img_0563-1.jpg   My T04r single turbo project -- added few pics-img_0561-1.jpg   My T04r single turbo project -- added few pics-img_0560-1.jpg

hiboost is offline
Reply Like
Old 08-11-08, 04:44 PM
  #2
Rotary Enthusiast


iTrader: (25)

AHarada's Avatar

Join Date: Sep 2006
Location: CA
Posts: 1,209
Received 10 Likes on 8 Posts
Nice. Is that an open dump tube? What kind of power are you shooting for? No aux injection?
AHarada is offline
Reply Like
Old 08-11-08, 04:54 PM
  #3
Junior Member

Spicoli's Avatar

Join Date: Jul 2008
Location: Canada
Posts: 23
Likes: 0
Received 0 Likes on 0 Posts
wow.. the engine looks amazing! Gooluck with the build! The more pics the better!!
Spicoli is offline
Reply Like
Old 08-11-08, 06:57 PM
  #4
Put it in her butt
iTrader: (1)

Azcamel's Avatar

Join Date: May 2008
Location: Tucson
Posts: 848
Likes: 0
Received 0 Likes on 0 Posts
hey cool, your one one that glenn was building that motor for, sick work. i got some parts for sale if your intrested... look at my sig.
Azcamel is offline
Reply Like
Old 08-11-08, 07:26 PM
  #5
Rotary Enthusiast

iTrader: (3)

zack4173's Avatar

Join Date: Jan 2006
Location: Bonney lake Washington
Posts: 1,020
Likes: 0
Received 0 Likes on 0 Posts
that thing is going to be awesome when its done.
zack4173 is offline
Reply Like
Old 08-11-08, 07:58 PM
  #6
Serbian

Thread Starter
iTrader: (1)

hiboost's Avatar

Join Date: Nov 2006
Location: phoenix
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by AHarada
Nice. Is that an open dump tube? What kind of power are you shooting for? No aux injection?
I'm going to reroute the dump tube to the down pipe. I'm looking for something between 400-500whp hopefully . Aux injection you mean water injection ? Maybe later
hiboost is offline
Reply Like
Old 08-12-08, 04:33 PM
  #7
Junior Member

Spicoli's Avatar

Join Date: Jul 2008
Location: Canada
Posts: 23
Likes: 0
Received 0 Likes on 0 Posts
how much did this all cost? ....if you dont mind me asking.. I'm planning on doing a similar setup at some point.
Spicoli is offline
Reply Like

Trending Topics

Old 08-12-08, 04:54 PM
  #8
Rotary Powered

iTrader: (2)

Rx-7Addict's Avatar

Join Date: Sep 2001
Location: Chicago, IL
Posts: 2,272
Likes: 0
Received 1 Like on 1 Post
Nice choice of turbos

I made 420 whp @ 15 psi and 464 @ 18 psi, with a smallish .84 a/r.

What a/r did you go with?
Rx-7Addict is offline
Reply Like
Old 08-12-08, 05:19 PM
  #9
AponOUT!?

iTrader: (31)

theorie's Avatar

Join Date: Nov 2002
Location: Sarasota, FL
Posts: 3,521
Likes: 0
Received 13 Likes on 9 Posts
beautiful setup
theorie is offline
Reply Like
Old 08-12-08, 05:48 PM
  #10
Serbian

Thread Starter
iTrader: (1)

hiboost's Avatar

Join Date: Nov 2006
Location: phoenix
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rx-7Addict
Nice choice of turbos

I made 420 whp @ 15 psi and 464 @ 18 psi, with a smallish .84 a/r.

What a/r did you go with?
That is the one thing I honestly didn't check .. I kinda let Glen decide on that. I told him my power goals and he got this turbo for me. I will check again.
Nice power you made there... I hope for something similar. Do you have any pics or videos of your car?
hiboost is offline
Reply Like
Old 08-12-08, 05:49 PM
  #11
Serbian

Thread Starter
iTrader: (1)

hiboost's Avatar

Join Date: Nov 2006
Location: phoenix
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by theorie
beautiful setup
Thanks man, Its Glen's work
hiboost is offline
Reply Like
Old 08-12-08, 09:05 PM
  #12
Rotary Powered

iTrader: (2)

Rx-7Addict's Avatar

Join Date: Sep 2001
Location: Chicago, IL
Posts: 2,272
Likes: 0
Received 1 Like on 1 Post
Originally Posted by hiboost
That is the one thing I honestly didn't check .. I kinda let Glen decide on that. I told him my power goals and he got this turbo for me. I will check again.
Nice power you made there... I hope for something similar. Do you have any pics or videos of your car?

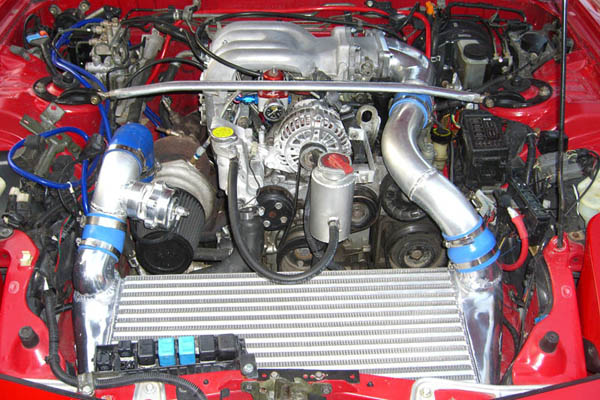

Here is a pic of the setup

Attached Thumbnails My T04r single turbo project -- added few pics-cimg1436a.jpg
Rx-7Addict is offline
Reply Like
Old 08-12-08, 09:12 PM
  #13
Rotary Powered

iTrader: (2)

Rx-7Addict's Avatar

Join Date: Sep 2001
Location: Chicago, IL
Posts: 2,272
Likes: 0
Received 1 Like on 1 Post
Would like to see some dynos when youre done. Also, depending on your a/r, id like to see how 3500rpm to 5000 (or redline, really) compares. I chose the smaller a/r because the car is street driven and I wanted good power by 4000 rpm - I am at::

260 hp @ 4500 rpm
315 hp @ 5000
360 hp @ 5500
410 hp @ 6000
450 hp @ 6500
peak is @ about 6800 - 464 hp
Loses a bit of steam past 7000, down to 450 @ 7250 this is mostly due to the smaller a/r getting out of its optimal range
Rx-7Addict is offline
Reply Like
Old 08-12-08, 09:25 PM
  #14
Serbian

Thread Starter
iTrader: (1)

hiboost's Avatar

Join Date: Nov 2006
Location: phoenix
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rx-7Addict
Would like to see some dynos when youre done. Also, depending on your a/r, id like to see how 3500rpm to 5000 (or redline, really) compares. I chose the smaller a/r because the car is street driven and I wanted good power by 4000 rpm - I am at::

260 hp @ 4500 rpm
315 hp @ 5000
360 hp @ 5500
410 hp @ 6000
450 hp @ 6500
peak is @ about 6800 - 464 hp
Loses a bit of steam past 7000, down to 450 @ 7250 this is mostly due to the smaller a/r getting out of its optimal range
Very nice car man ... Off course as soon I get my first dyno numbers I'll post it here. Do you have 1/4 mile numbers?
hiboost is offline
Reply Like
Old 08-12-08, 09:41 PM
  #15
Rotary Powered

iTrader: (2)

Rx-7Addict's Avatar

Join Date: Sep 2001
Location: Chicago, IL
Posts: 2,272
Likes: 0
Received 1 Like on 1 Post
Originally Posted by hiboost
Very nice car man ... Off course as soon I get my first dyno numbers I'll post it here. Do you have 1/4 mile numbers?
No, unfortunately I havent been the the track this year. I will try to scan in my dyno sheet to give you a better idea of the curve
Rx-7Addict is offline
Reply Like
Old 09-09-08, 09:11 PM
  #16
Serbian

Thread Starter
iTrader: (1)

hiboost's Avatar

Join Date: Nov 2006
Location: phoenix
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
progress
More pics... Engine finaly in the car

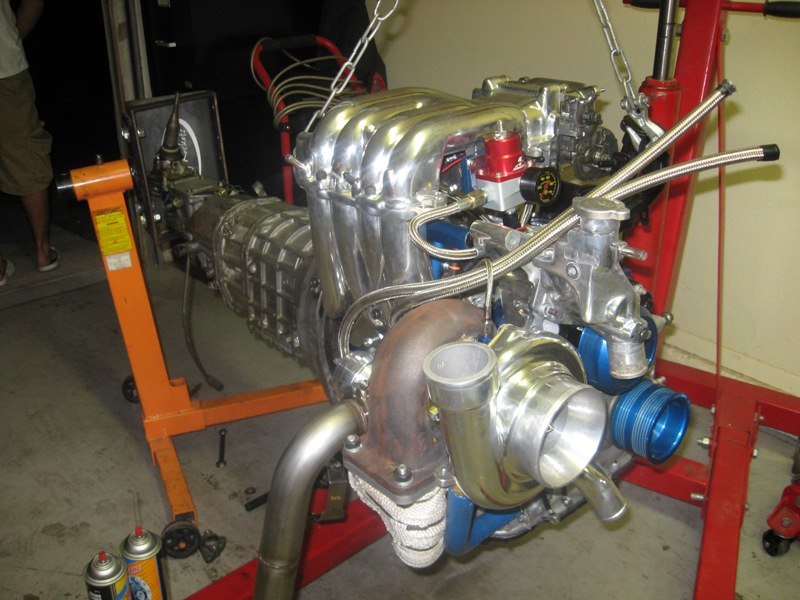

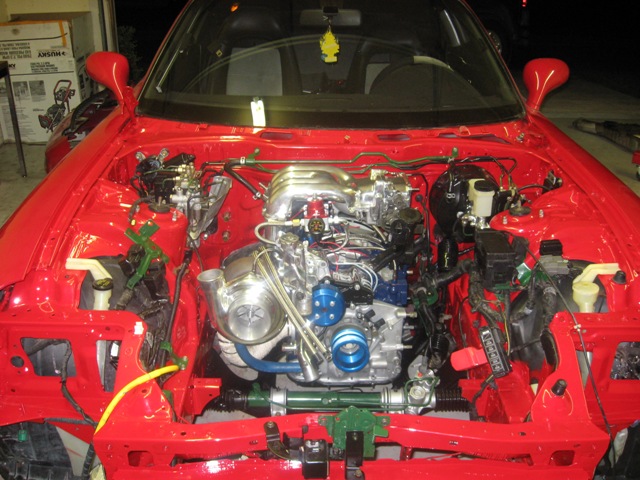

Attached Thumbnails My T04r single turbo project -- added few pics-img_0676.jpg   My T04r single turbo project -- added few pics-img_0665.jpg
hiboost is offline
Reply Like
Old 09-09-08, 09:25 PM
  #17
Please somebody help!!!

iTrader: (1)

NissanConvert's Avatar

Join Date: Sep 2005
Location: Woodridge, IL
Posts: 1,442
Likes: 0
Received 0 Likes on 0 Posts
I <3 that LIM. One day when i don't have to subject my car to emissions testing i will have one!
NissanConvert is offline
Reply Like
Old 01-07-09, 01:50 AM
  #18
Serbian

Thread Starter
iTrader: (1)

hiboost's Avatar

Join Date: Nov 2006
Location: phoenix
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Haltech wiring is giving me little problems... Dont know how to do dash wiring (tachometer, speedometer gauges etc..... None of the BKM online show how to do this
hiboost is offline
Reply Like
Old 01-07-09, 02:13 AM
  #19
Bann3d. I got OWNED!!!

iTrader: (22)

RX7 RAGE's Avatar

Join Date: Feb 2001
Location: San Diego, CA
Posts: 5,014
Received 63 Likes on 22 Posts
looks good my friend
RX7 RAGE is offline
Reply Like
Old 01-07-09, 05:07 AM
  #20
R.I.P. Icemark

iTrader: (2)

staticguitar313's Avatar

Join Date: Sep 2004
Location: gilbert, arizona
Posts: 4,229
Likes: 0
Received 1 Like on 1 Post
I have an AZRR motor as well and all i can say is your going to love yours! TOP NOTCH WORK!
staticguitar313 is offline
Reply Like
Old 01-09-09, 01:34 PM
  #21
Full Member

iTrader: (6)

Jose93RX7's Avatar

Join Date: Dec 2008
Location: Houston, Texas
Posts: 97
Likes: 0
Received 0 Likes on 0 Posts
WOW!, nice setup...
Jose93RX7 is offline
Reply Like
Old 01-10-09, 06:45 PM
  #22
Junior Member

trakshuhn's Avatar

Join Date: Dec 2008
Location: sioux falls south dakota
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
nice setup
trakshuhn is offline
Reply Like
Old 01-10-09, 10:58 PM
  #23
Serbian

Thread Starter
iTrader: (1)

hiboost's Avatar

Join Date: Nov 2006
Location: phoenix
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
thank you guys... I'm almost there ...
hiboost is offline
Reply Like
Old 01-11-09, 03:30 PM
  #24
that random guy

iTrader: (3)

black06g85's Avatar

Join Date: Jun 2007
Location: Queens, NY
Posts: 331
Likes: 0
Received 0 Likes on 0 Posts
looks like a nice setup, I'm be doing something similar with mine
black06g85 is offline
Reply Like
Old 01-11-09, 04:48 PM
  #25
Time or Money, Pick one

iTrader: (37)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 3,353
Received 154 Likes on 125 Posts
hey rx7 addict, how do you like your rx7store vmic? anymore pics of it installed? thanks
