My new GT35R setup
I switched the car from a 497.7whp T-88 turbo setup to a GT35R setup. Mazcare did all of the work and did a great job on the install and what not.
It has an exhaust leak, but it looks like a part manufacuring issue that is being resolved right now with ATP. They have been pretty cool about it so far.
I am still in the break in period so I have yet to boost it. I am going to get it tuned in the next week or so and will have some real numbers then.

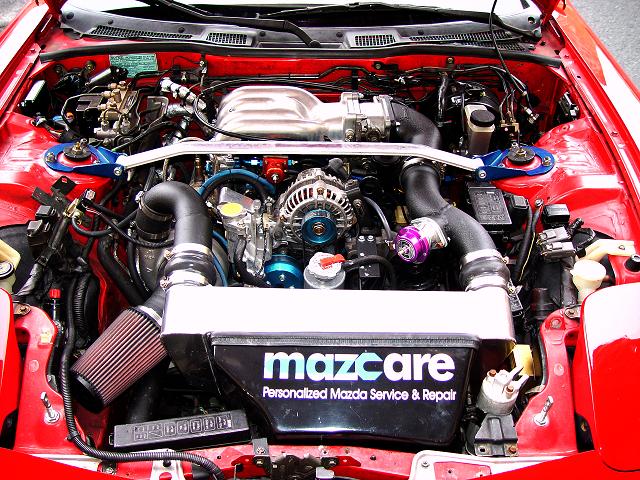

Basically this is the setup:
GT35R turbo
Greddy tubular manifold
larger throttle body
550/1600 injectors
porsche 911 turbo fuel pump
power fc
HKS ignition amp
brand new street port motor with all kinds of goodies. Blueprinted and ballance.
2mm ceramic apex seals
custom made down pipe and exhaust
greddy BOV
greddy wastegate
Pettit cool charge III intercooler
mazdaspeed radiator
9.5 lbs flywheel
lightened accessory pullies
ACT clutch
and other stuff I am forgetting.
Hopefully going to have in the 400whp range with a very useable power range that is fairly reliable. Anyway. I will update when I get the thing tuned.
It has an exhaust leak, but it looks like a part manufacuring issue that is being resolved right now with ATP. They have been pretty cool about it so far.
I am still in the break in period so I have yet to boost it. I am going to get it tuned in the next week or so and will have some real numbers then.
Basically this is the setup:
GT35R turbo
Greddy tubular manifold
larger throttle body
550/1600 injectors
porsche 911 turbo fuel pump
power fc
HKS ignition amp
brand new street port motor with all kinds of goodies. Blueprinted and ballance.
2mm ceramic apex seals
custom made down pipe and exhaust
greddy BOV
greddy wastegate
Pettit cool charge III intercooler
mazdaspeed radiator
9.5 lbs flywheel
lightened accessory pullies
ACT clutch
and other stuff I am forgetting.
Hopefully going to have in the 400whp range with a very useable power range that is fairly reliable. Anyway. I will update when I get the thing tuned.
#2
Rotor Nut.
iTrader: (34)
nice setup , i kind of like the black piping. let me know how your boost responce is with that turbo once you break it in. (ie what rpm do you hit full boost ?) also seen that you are selling wrx parts. my buddy has one and would be intrested in the utec and vf-22 turbo. send me a pm with some prices.
Trending Topics
#8
off camber
Thread Starter
iTrader: (1)
Join Date: Dec 2004
Location: atl, ga
Posts: 482
Likes: 0
Received 0 Likes
on
0 Posts
RX7UP, I changed the setup from a T-88 single to this becuase lag to 5500 is not that cool for a street car. 500whp tends to break stuff too.
With the GT35R the boost response is unreal. I am breaking in the new motor and if I look at the accelerator wrong it starts boosting. The boost comes on faster than in my WRX. At 3000 rpms if the throttle is pushed down more than 1/4 the way down it starts building boost. It is takes a lot of concentration to keep the thing from boosting during the break in period (my right foot is heavy, I guess). Fortunatly, I am almost finished with that and should be dyno tuning in the next few days!!
Thanks for the compliments on the piping. It was Charlie's (Mazcare) idea to powder coat it black. I really like it too.
With the GT35R the boost response is unreal. I am breaking in the new motor and if I look at the accelerator wrong it starts boosting. The boost comes on faster than in my WRX. At 3000 rpms if the throttle is pushed down more than 1/4 the way down it starts building boost. It is takes a lot of concentration to keep the thing from boosting during the break in period (my right foot is heavy, I guess). Fortunatly, I am almost finished with that and should be dyno tuning in the next few days!!
Thanks for the compliments on the piping. It was Charlie's (Mazcare) idea to powder coat it black. I really like it too.
#9
Rotary Enthusiast
Join Date: Feb 2001
Location: In the Sky
Posts: 1,190
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 855m0n0
With the GT35R the boost response is unreal. I am breaking in the new motor and if I look at the accelerator wrong it starts boosting. The boost comes on faster than in my WRX. At 3000 rpms if the throttle is pushed down more than 1/4 the way down it starts building boost. It is takes a lot of concentration to keep the thing from boosting during the break in period (my right foot is heavy, I guess). Fortunatly, I am almost finished with that and should be dyno tuning in the next few days!!
Thanks for the compliments on the piping. It was Charlie's (Mazcare) idea to powder coat it black. I really like it too.
#10
off camber
Thread Starter
iTrader: (1)
Join Date: Dec 2004
Location: atl, ga
Posts: 482
Likes: 0
Received 0 Likes
on
0 Posts
Well, dynoed the setup the other day. It did 381.9hp @6500 rpm. We didnt rev any higher due to some boost controll issues. Mazcare is checking out the wastegate and what not and it should be ready to dyno again soon. The drivabity with this turbo is awesome. Even having to shift at 5800 rpms the car is VERY fast and lots of fun to drive. I can't wait drive this thing when I can rev 8000 rpms.
I should have the car back pretty soon and dyno again. I will upload the final dyno chart once it has been done.
I should have the car back pretty soon and dyno again. I will upload the final dyno chart once it has been done.
#12
Eats, Sleeps, Dreams Rotary
Originally Posted by 855m0n0
Well, dynoed the setup the other day. It did 381.9hp @6500 rpm. We didnt rev any higher due to some boost controll issues. Mazcare is checking out the wastegate and what not and it should be ready to dyno again soon. The drivabity with this turbo is awesome. Even having to shift at 5800 rpms the car is VERY fast and lots of fun to drive. I can't wait drive this thing when I can rev 8000 rpms.
I should have the car back pretty soon and dyno again. I will upload the final dyno chart once it has been done.
I should have the car back pretty soon and dyno again. I will upload the final dyno chart once it has been done.
#14
Eats, Sleeps, Dreams Rotary
Originally Posted by 855m0n0
AFRs are in the 10.5-11.5 range. Boost was "set" to 15 psi. We didnt finish tuning it due to boost control issues.
#15
Senior Member
I will be running a similar setup too, don't have a streetport but have a v-mount and couple of variances but pretty similar. Still waiting on my GT35R from aspec, got the rest of the kit but the turbo itself is on backorder. Sounds like I will be very pleased with the setup when its up and running and when I break the motor in.
-Rob
-Rob
#18
off camber
Thread Starter
iTrader: (1)
Join Date: Dec 2004
Location: atl, ga
Posts: 482
Likes: 0
Received 0 Likes
on
0 Posts
Update: Got the boost and fuel issues under control but have not been back to the dyno yet or retuned. The AFRs are in the 10.0:1-10.3:1 range (super rich) and boost is holding steady at 14psi. I ran a 12.6@117 on Sunday at grudge wars with full interior on 245 sumitomo V rated street tires (spinning 1st and 2nd and shifting at 6K in 1st and 7K in 2nd to keep the wheels from spinning as much).
It is a very fast setup. My 60 ft time and 1/8th mile time sucked really hard but from the 1/8 mile to the 1/4 mile the thing was very quick.
I am guessing with 15psi and AFR at 11.1:1 or so the car should have very good power(hopefully well over 400whp). I will be dynoing and tuning soon and will update then.
It is a very fast setup. My 60 ft time and 1/8th mile time sucked really hard but from the 1/8 mile to the 1/4 mile the thing was very quick.
I am guessing with 15psi and AFR at 11.1:1 or so the car should have very good power(hopefully well over 400whp). I will be dynoing and tuning soon and will update then.
#22
Registered User
Join Date: Dec 2001
Location: Chicago
Posts: 428
Likes: 0
Received 0 Likes
on
0 Posts
Hi Boostgasm,
by chance did you buy your GT35R kit from us? if so please contact me as i will take care of your problem. I had a couple of v-band clamps go out to customers that were a tad bit loose. Im trying to track down my customers who got these clamps.
If this is your problem please contact us here: info@a-spectuning.com and ill get you a new clamp!
thanks!
A-spec
by chance did you buy your GT35R kit from us? if so please contact me as i will take care of your problem. I had a couple of v-band clamps go out to customers that were a tad bit loose. Im trying to track down my customers who got these clamps.
If this is your problem please contact us here: info@a-spectuning.com and ill get you a new clamp!
thanks!
A-spec
Originally Posted by boostgasm
what type of issue were you having exhaust leak wise? I'm having an exhaust leak issue on my 35R setup....
#23
Senior Member
Join Date: Jun 2003
Location: west palm beach, FL
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
I was having issues with my A spec manifold and downpipe flange leaking, so I had to get it sent to the machine shop for them to machine the manifold flat( $$$), and also had to get the downpipe converted to a 4 bolt flange($$$). Vband would not stop leaking. Even after buying 2 more clamps($$$)
Last edited by ghostrx7; 04-25-05 at 07:43 PM.
#25
formerly 93BlackFD
Join Date: Feb 2005
Location: Marietta, GA
Posts: 176
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by ghostrx7
I was having issues with my A spec manifold and downpipe flange leaking, so I had to get it sent to the machine shop for them to machine the manifold flat( $$$), and also had to get the downpipe converted to a 4 bolt flange($$$). Vband would not stop leaking. Even after buying 2 more clamps($$$)
