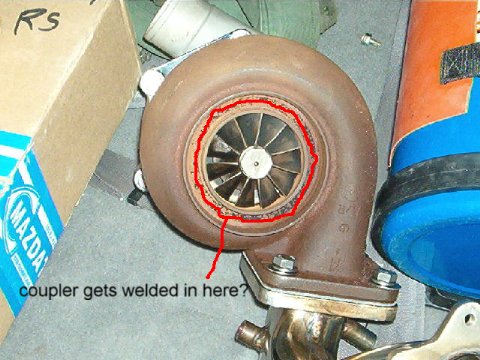

The V-band coupler will get welded in the groove between the inner and outer ridge, right? Im trying to make sure I measure the diameter in the correct location before I order the parts. Its a T04B 1.00A/R on the hot side.



a t4 1.0ar vband connector should be 3" right? thats what i have on my t4 to4s with a 1.0ar hotside

What you have highlighted is where my v-band was welded on



-Jacob



jacob, where did you buy that turbo? i wanna get that silver coating on my hotside



Thanks. And I measured 3 1/2 inches, but I'll check again after I eat.



I got it from cheapturbo.com which is know phinoxturbo or something like that.

That is an HPC coating on the hotside

-Jacob



Nice!



That looks to me like either a 3 1/2" or 4". But yea it gets welded there...



The channel is 3 1/2" from center to center, but its pretty wide. I found a 3" piece of pipe and it fit over the inner ridge and sat in the channel, so I guess I can get a 3" coupler welded in.
