How many of you use no Air filter on your turbo?
#1
Powered by** Rotary
Thread Starter
How many of you use no Air filter on your turbo?
As of right now i have a metal mesh that covers the inlet and the holes are really small on it so there isn't anything that can really get through there. I like it this way, but don't really know if there might be any benefits of getting an air filter.
Plus i don't really have enough room for the damn thing.
Anybody else runs without one... if so for how long?
Plus i don't really have enough room for the damn thing.
Anybody else runs without one... if so for how long?
#2
development
bad idea...there is so much little dust/road grime/sand/basically anything and everything your turbo will suck up...its basically going to sandblast your housings
I've read, that a large K&N (definitely better for street driving) will flow better than mesh screens...more sureface area for air to travel through.
I've always gone by the rule of thumb, "Use the biggest air filter you can fit"
I've read, that a large K&N (definitely better for street driving) will flow better than mesh screens...more sureface area for air to travel through.
I've always gone by the rule of thumb, "Use the biggest air filter you can fit"
#3
Rotary Freak
iTrader: (12)
When my car was on the dyno I pulled the air filter off to see what the difference was... the car made 3.5 more rwhp. It's not worth trashing your turbo for only a couple of hp .
Turbo wheels are pretty fragile and it only takes one little thing to get sucked up before your turbo and engine are toast.
Turbo wheels are pretty fragile and it only takes one little thing to get sucked up before your turbo and engine are toast.
#4
NASA geek
iTrader: (2)
Really REALLY bad idea. I've taken apart MANY turbo's that ran without a filter on them. They all looked like they got sand blasted using gravel and glass. In some cases, the impeller blades wore so thin they were very close to breaking off. Now imagine all this sand blasting INSIDE YOUR ENGINE. The couple hp gain is NOT worth it. Furthermore, metal screens tend to HURT flow moreso them a proper sized filter. Like dubulup said, you can never get too big of a filter. If you have to, run a pipe on the turbo inlet and place the filter else were in the engine bay were it fits.
~Mike...................
~Mike...................
#6
Banned. I got OWNED!!!
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
You can run the mesh temporarily.
I took my airfilter off on the dyno one time and it sucked my boost controller in. Needless to say, my turbo was trashed.
I took my airfilter off on the dyno one time and it sucked my boost controller in. Needless to say, my turbo was trashed.
Trending Topics
#10
King of the Loop
I know alot of dudes that use stocking on n/a cars. I wouldnt suggest no filter on a turbo car though. My friend ran his rx2 like thta for a while and now he tells me his fins are torn up and needs a new t66. Pricey??
#11
Banned. I got OWNED!!!
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by BoOsTin FD
Now, you use that auto zone one? How's that working for you? The thing looks restrictive to me.
#12
Rotary Freak
Crap, I was thinking of running a mesh filter on my car, too, there's just NO room for an air filter. I MIGHT be able to get an HKS mushroom deelie on there, but that's it, and I hear those are bad for turbo applications anyways...
#13
Powered by** Rotary
Thread Starter
Originally Posted by LUPE
Have you seen mine? I have no problems with it.
I'll probably get one of those for now...
#14
Banned. I got OWNED!!!
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by BoOsTin FD
Yeah I've seen yours when you guys finished putting the side exhaust
I'll probably get one of those for now...
I'll probably get one of those for now...
#16
Racing is Life.....
Join Date: Nov 2001
Location: Northern California
Posts: 576
Likes: 0
Received 0 Likes
on
0 Posts
One word - K&N
Washed and lightly oiled yearly (every 10K miles or so) ......I'll see if I can cross-link a post of my engine bay with it.
Beast

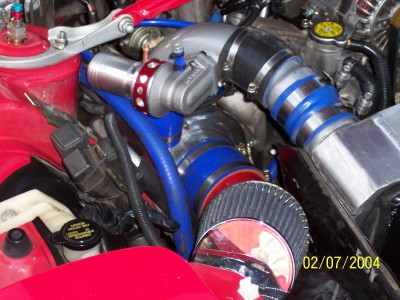

Ah, here it is....this was with a 13BREW vs. the 13BRE in it now.....same basic fit.
Beast
Ah, here it is....this was with a 13BREW vs. the 13BRE in it now.....same basic fit.
#17
Rotary Freak
Originally Posted by Beast From The East
YEAH! K&N!!!
#19
Mesh screens usually flow worse than a filter. A tight mesh will flow poorly (and is at risk for being sucked into the turbo). Metal meshes have a deceiving amount of blocked versus open area. 30-40% blockage is not uncommon, even though their appearance is deceptive. Examples: http://s2.pegasusautoracing.com/048.pdf
Don't use anything flexible like a stocking -- it will get sucked into the turbo very easily. I would be very surprised if it flowed well, too.
K&N makes a very short filter with a 4" ID base. The element is pretty small and it seems like it would be restrictive, but I made 410HP with this filter in place. And it didn't look like it was sucking in on itself in any noticable way. Another guy at the same dyno tune day had an HKS mushroom that would suck itself in a few inches during the runs. We swapped my little K&N on there and it made better power and didn't noticably deform during the runs. I suppose it will require more cleaning (and make somewhat less power) than a larger filter, but it works and doesn't seem to be a major restriction.
Can you move anything else around to make more room for a filter? It might be worth it if you can tilt/move your radiator more forward to make room.
-Max
Don't use anything flexible like a stocking -- it will get sucked into the turbo very easily. I would be very surprised if it flowed well, too.
K&N makes a very short filter with a 4" ID base. The element is pretty small and it seems like it would be restrictive, but I made 410HP with this filter in place. And it didn't look like it was sucking in on itself in any noticable way. Another guy at the same dyno tune day had an HKS mushroom that would suck itself in a few inches during the runs. We swapped my little K&N on there and it made better power and didn't noticably deform during the runs. I suppose it will require more cleaning (and make somewhat less power) than a larger filter, but it works and doesn't seem to be a major restriction.
Can you move anything else around to make more room for a filter? It might be worth it if you can tilt/move your radiator more forward to make room.
-Max
Last edited by maxcooper; 02-03-06 at 05:31 AM. Reason: D'oh, I just realized you already got a filter
#21
Senior Member
Join Date: Oct 2004
Location: St. Louis
Posts: 670
Likes: 0
Received 0 Likes
on
0 Posts
thats one hell of an air filter! i have have been running a mesh screen. ii have very little room between the front cover and intercooler piping. probably 3 inch of space. would a 90 degree bend off the turbo be very restrictive?
#23
Senior Member
Join Date: Oct 2004
Location: St. Louis
Posts: 670
Likes: 0
Received 0 Likes
on
0 Posts
good point, i found some smaller filters on K&N's website that may work , but they r very small. I may just have to do a little cutting and welding and make a new charge pipe to give my self more room. Im glad to see this thread come up, as i was always a little worried about my screen .
#24
Racing is Life.....
Join Date: Nov 2001
Location: Northern California
Posts: 576
Likes: 0
Received 0 Likes
on
0 Posts
I have seen very serious turbo and engine failure using screens and the HKS foam filter stuff.....I may offend some folks, but that stuff is pure crap.
I have three short K&Ns on my Triumph as well, looks like this, however, I made mine taller by cutting and rewelding the towers to support a 4 inch tall filter vs. these twin inch tall filters. Butts right up against the fender well - I ended up drilling a hole in the fender arch so I can get a Philips screwdriver through to unscrew the cover for the middle one:
Just get creative....
Beast
I have three short K&Ns on my Triumph as well, looks like this, however, I made mine taller by cutting and rewelding the towers to support a 4 inch tall filter vs. these twin inch tall filters. Butts right up against the fender well - I ended up drilling a hole in the fender arch so I can get a Philips screwdriver through to unscrew the cover for the middle one:
Just get creative....
Beast
#25
Original Gangster/Rotary!
iTrader: (213)
Originally Posted by Nuvolari
LOL, I read a few years ago on this forum about a guy that used a tee shirt ....yup it sucked it right up.
